2016 Peugeot 308 Owner's Manual - RHD (UK, Australia)

23
Warning / indicator lamp State Cause Action / Observations
Battery charge *fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
th

e warning lamp should go off when the engine is
started.
If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
*
Depending on the country of sale. Seat belt(s)
not fastened
/
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
Airbags on temporarily.
th

is lamp comes on for a few
seconds when you turn on the
ignition, then goes off.
th

is lamp should go off when the engine is started.
If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
1
Instruments

24
Engine oil
pressurefixed.th
ere is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a Pe
ugeOt
dealer or a qualified workshop.
Deflated tyre fixed.
th

e pressure in one or more tyres is
too low. Check the pressures of the tyres as soon as possible.
th

is check should preferably carried out with the tyres
cold.
flashing then fixed.
th

e under-inflation detection system
has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
For more information on under-inflation detection,
refer to the corresponding section.
Warning


/ indicator lamp
State Cause Action

/ Observations
Foot on the
brake pedal fixed.
th

e brake pedal must be pressed. With an automatic gearbox, press the brake pedal, engine running, before releasing the parking brake, to
unlock the lever and come out of position P .
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
tO

P mode of Stop & Start,
changing to S
tA

R
t
mode is refused
because the clutch pedal is not fully
down. You must declutch fully to allow the change to engine
S
t

A R
t m
o d e .
Instruments

25
Warning or indicator lamp
in the instrument panelState
Cause Action
/ Observations
Door(s) open fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10
km/h).A door or the boot is still open. Close the door or boot.
fixed, associated with a
message identifying the
door, and accompanied
by an audible signal
if the speed is above
6
mph (10 km/h).
1
Instruments

26
AdBlue® additive
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.the
remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km). Have the AdBlue® additive tank topped up as soon
as possible: go to a Pe ugeOt dealer or a qualified
workshop, or carry out this operation yourself.
+ flashing associated with
the S
eR

VIC
e
w

arning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.
the

remaining driving range is
between 0 and 350 miles (600 km). You must top-up the AdBlue
® additive tank to avoid
a breakdown : go to a Pe
ugeOt dealer or a qualified
workshop, or carry out this operation yourself.
flashing, associated
with the S
eR

VIC
e

w

arning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented.
th

e AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.to b e able to start the engine, you must top-up the
AdBlue® additive tank: go to a Pe ugeOt dealer
or a qualified workshop, or carry out this operation
yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the additive tank.
Warning or indicator lamp
in the instrument panel
State
Cause Action


/ Observations
For topping-up or for more information on the AdBlue
® additive, refer to the corresponding section.
Instruments

27
Warning or indicator lamp
in the instrument panelState
Cause Action
/ Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
th

is alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a P
e

uge
Ot
dealer or a qualified
workshop without delay , to avoid a breakdown.
flashing, on switching on
the ignition, associated
with the S
eR

VIC
e
and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions
control system: the engine starting
inhibition system prevents starting of
the


engine.
to b
e able to start the engine, you must call on a
P
e

uge
Ot
dealer or a qualified workshop.
1
Instruments

28

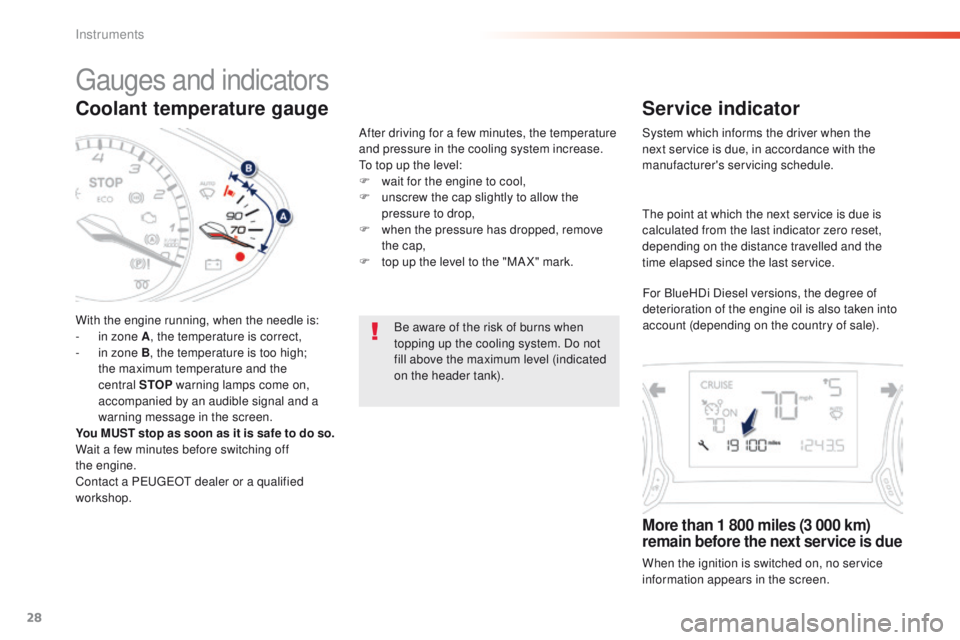

Coolant temperature gauge
With the engine running, when the needle is:
- i n zone A , the temperature is correct,
-

i
n zone B, the temperature is too high;
the maximum temperature and the
central STOP warning lamps come on,
accompanied by an audible signal and a
warning message in the screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off
the


engine.
Contact a P
e

uge
Ot
dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op up the level:
F
w
ait for the engine to cool,
F
u
nscrew the cap slightly to allow the
pressure to drop,
F
w
hen the pressure has dropped, remove
the cap,
F
t
op up the level to the "MA X" mark.
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).
gauges and indicators
Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
th
e point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account (depending on the country of sale).
Instruments

29

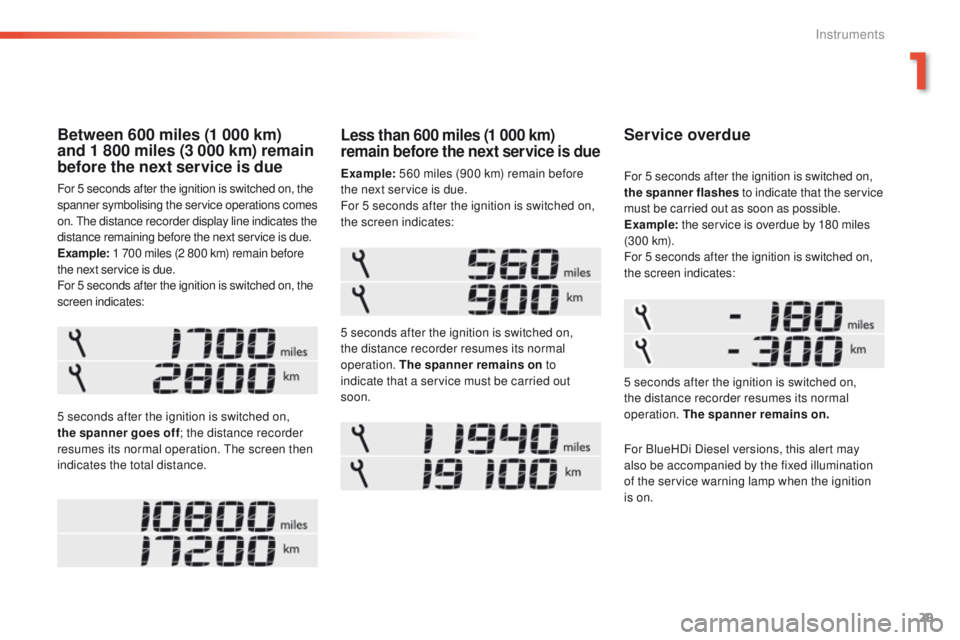

Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. t
h
e distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total distance.
Service overdue
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on. For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(3 0 0 k m).
For 5 seconds after the ignition is switched on,
the screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
For BlueHDi Diesel versions, this alert may
also be accompanied by the fixed illumination
of the service warning lamp when the ignition
is on.
1
Instruments

30

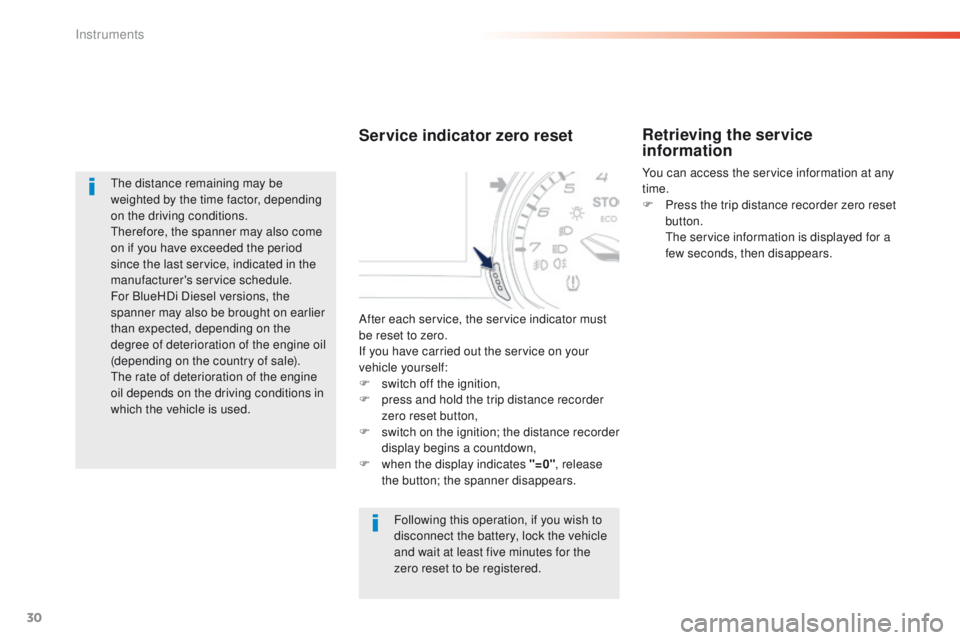

the distance remaining may be
weighted by the time factor, depending
on the driving conditions.
th
erefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
th

e rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.
Service indicator zero reset
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.


t
h
e service information is displayed for a
few seconds, then disappears.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

s

witch off the ignition,
F

p

ress and hold the trip distance recorder
zero reset button,
F

s

witch on the ignition; the distance recorder
display begins a countdown,
F

w

hen the display indicates "=0" , release
the button; the spanner disappears.
Instruments
