103

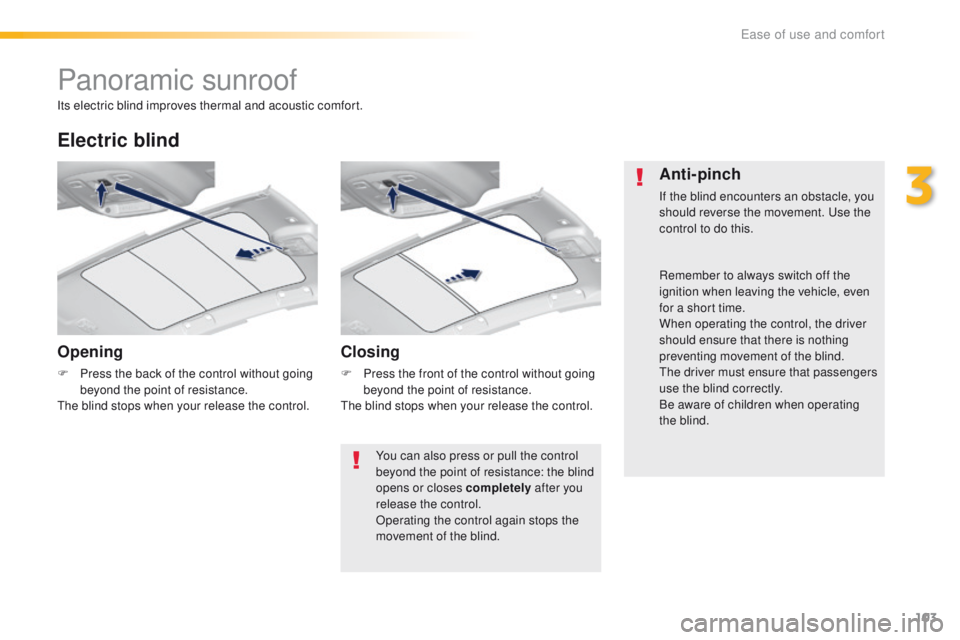

Panoramic sunroof
Opening
F Press the back of the control without going beyond the point of resistance.
the

blind stops when your release the control.
Electric blind
Closing
F Press the front of the control without going beyond the point of resistance.
the

blind stops when your release the control.
Anti-pinch
If the blind encounters an obstacle, you
should reverse the movement. use the
control to do this.
Its electric blind improves thermal and acoustic comfort.
You can also press or pull the control
beyond the point of resistance: the blind
opens or closes completely after you
release the control.
Operating the control again stops the
movement of the blind. Remember to always switch off the
ignition when leaving the vehicle, even
for a short time.
When operating the control, the driver
should ensure that there is nothing
preventing movement of the blind.
the

driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.
3
ease of use and comfort

104

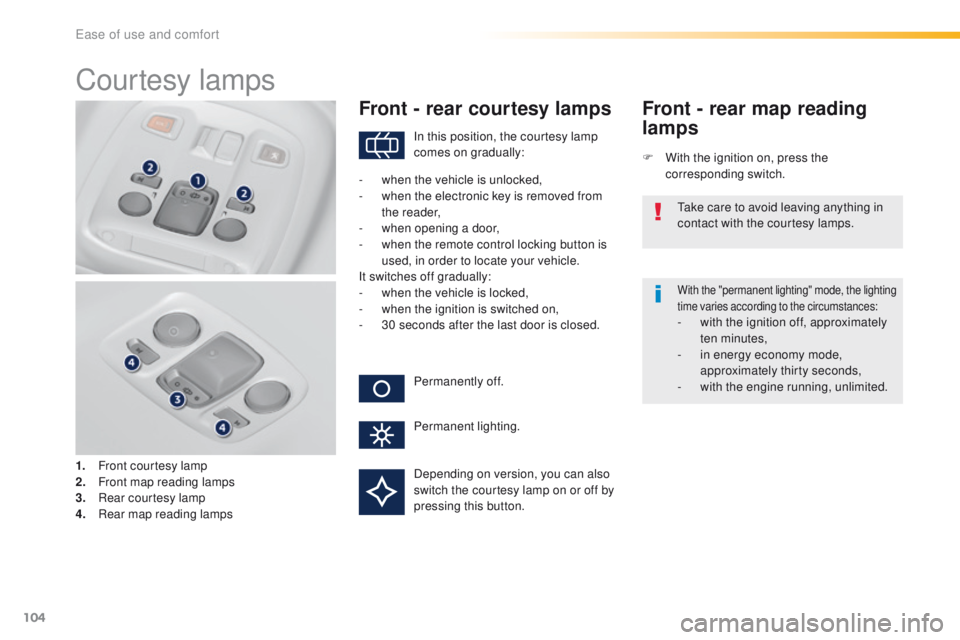

Courtesy lamps
1. Front courtesy lamp
2. Front map reading lamps
3.
R

ear courtesy lamp
4.
R

ear map reading lamps
Front - rear courtesy lamps
F With the ignition on, press the corresponding switch.
Front - rear map reading
lamps
With the "permanent lighting" mode, the lighting
time varies according to the circumstances:
- with the ignition off, approximately ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

ith the engine running, unlimited.
In this position, the courtesy lamp
comes on gradually:
Permanently off.
Permanent lighting.
-

w

hen the vehicle is unlocked,
-

w

hen the electronic key is removed from
the reader,
-
w

hen opening a door,
-

w

hen the remote control locking button is
used, in order to locate your vehicle.
It switches off gradually:
-

w

hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
ta
ke care to avoid leaving anything in
contact with the courtesy lamps.
Depending on version, you can also
switch the courtesy lamp on or off by
pressing this button.
ease of use and comfort

105

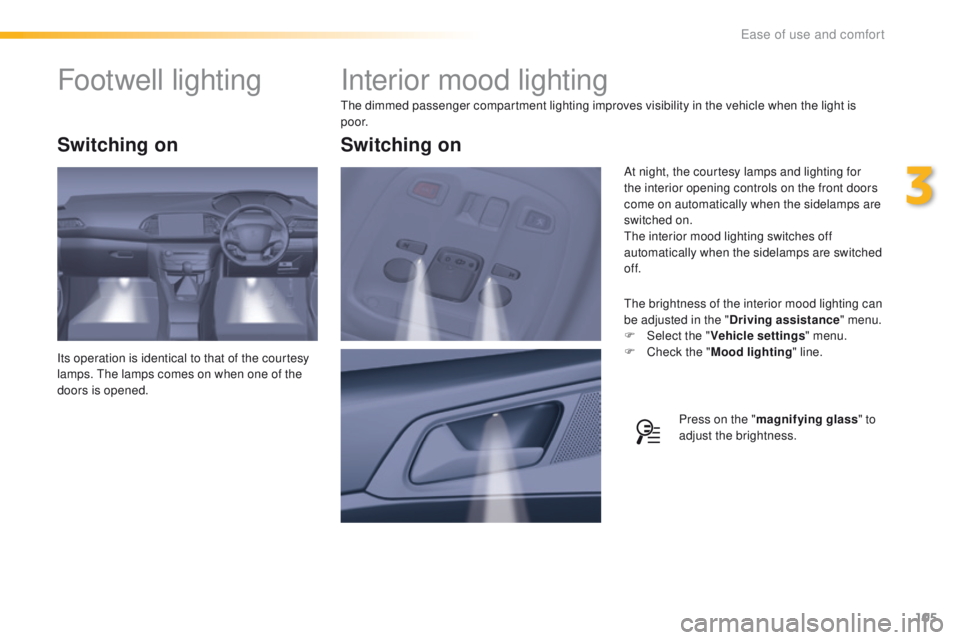

Interior mood lighting
the dimmed passenger compartment lighting improves visibility in the vehicle when the light is
p o o r.
th
e brightness of the interior mood lighting can
be adjusted in the " Driving assistance " menu.
F

Sel
ect the "Vehicle settings " menu.
F

C
heck the "Mood lighting " line.
At night, the courtesy lamps and lighting for
the interior opening controls on the front doors
come on automatically when the sidelamps are
switched on.
th

e interior mood lighting switches off
automatically when the sidelamps are switched
of f.
Switching on
Footwell lighting
Its operation is identical to that of the courtesy
lamps. th e lamps comes on when one of the
doors is opened.
Switching on
Press on the " magnifying glass " to
adjust the brightness.
3
ease of use and comfort

106

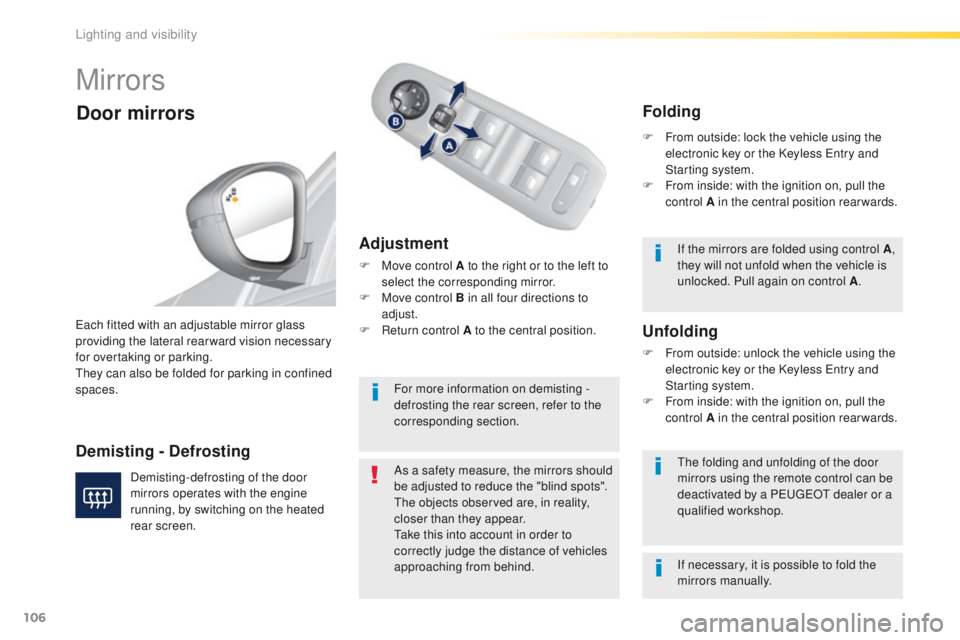

Mirrors
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
ea

ch fitted with an adjustable mirror glass
providing the lateral rear ward vision necessary
for overtaking or parking.
th

ey can also be folded for parking in confined
spaces.
Demisting - Defrosting
Door mirrors
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen. As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
th

e objects observed are, in reality,
closer than they appear.
ta

ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.th e folding and unfolding of the door
mirrors using the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
Unfolding
F From outside: unlock the vehicle using the electronic key or the Keyless en try and
Starting system.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
Folding
F From outside: lock the vehicle using the electronic key or the Keyless en try and
Starting system.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
For more information on demisting -
defrosting the rear screen, refer to the
corresponding section.
If necessary, it is possible to fold the
mirrors manually.
Lighting and visibility

107

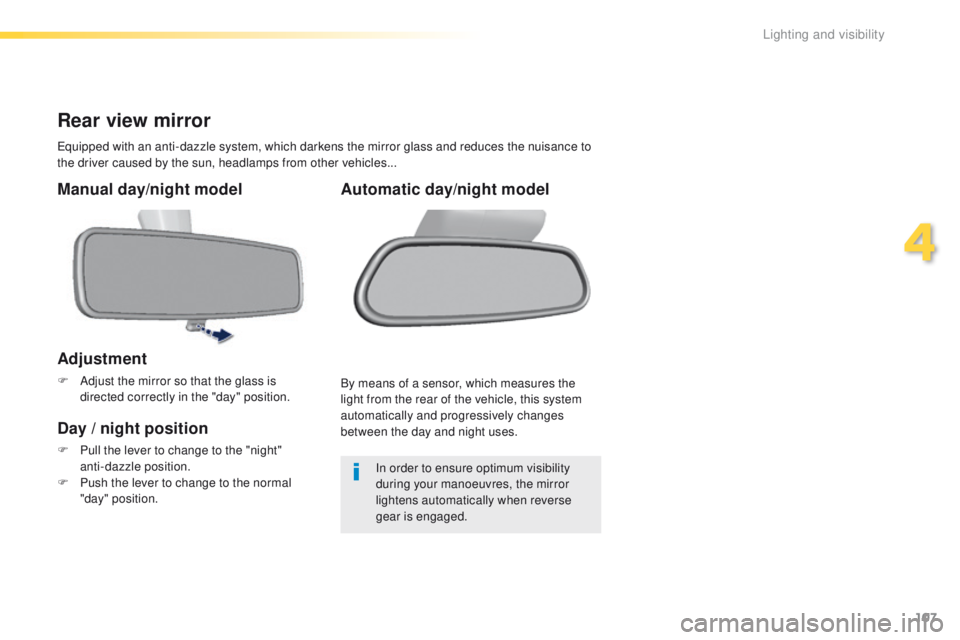

Rear view mirror
equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
4
Lighting and visibility

108

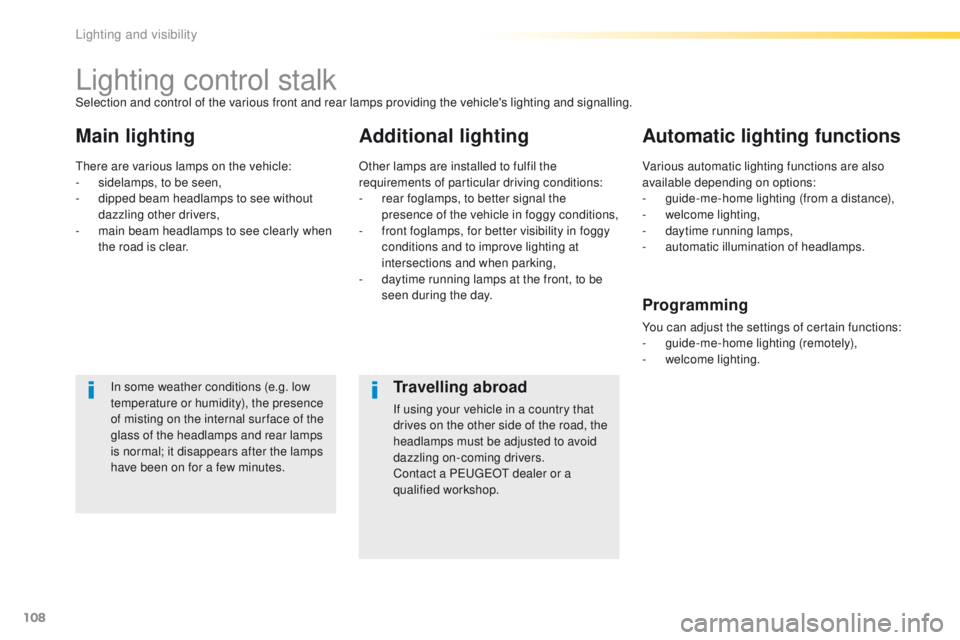

Lighting control stalk
Main lightingAdditional lightingAutomatic lighting functions
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
th

ere are various lamps on the vehicle:
-

s

idelamps, to be seen,
-

d

ipped beam headlamps to see without
dazzling other drivers,
-

m

ain beam headlamps to see clearly when
the road is clear. Other lamps are installed to fulfil the
requirements of particular driving conditions:
-
r
ear foglamps, to better signal the
presence of the vehicle in foggy conditions,
-
f
ront foglamps, for better visibility in foggy
conditions and to improve lighting at
intersections and when parking,
-
d
aytime running lamps at the front, to be
seen during the day. Various automatic lighting functions are also
available depending on options:
-
g
uide-me-home lighting (from a distance),
-
w
elcome lighting,
-
d
aytime running lamps,
-
a
utomatic illumination of headlamps.
Programming
You can adjust the settings of certain functions:
- gu
ide-me-home lighting (remotely),
-

w
elcome lighting.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a P
e

uge
Ot
dealer or a
qualified workshop.
Lighting and visibility

109

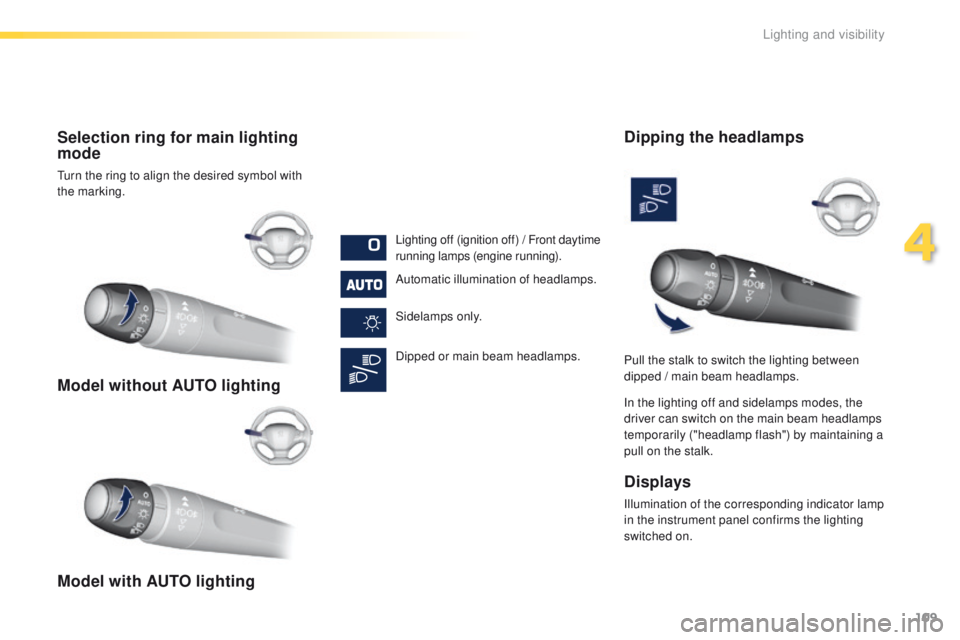

Model without AUTO lighting
Model with AUTO lighting Selection ring for main lighting
mode
turn the ring to align the desired symbol with
the marking.Lighting off (ignition off) / Front daytime
running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on. Pull the stalk to switch the lighting between
dipped / main beam headlamps.
4
Lighting and visibility

110
Foglamp selection ring
the rear foglamps operate with the sidelamps on.the front foglamps operate with dipped beam on (in manual or auto mode).
Front and
rear foglamps
When the headlamps switch off with automatic
illumination of headlamps (Au tO m odel)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F


t
u
rn the ring rear wards to switch off the
foglamps, the sidelamps will then switch off.
Rear foglamp only
F to switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with A
u

t
O m
odel), the foglamp and the dipped
beam headlamps will remain on.
F
t
o s
witch it off, turn the ring rear wards. Rotate and release the ring:
F
f or wards a first time to switch on the front
foglamps,
F

f
or wards a second time to switch on the
rear foglamps,
F

r
ear wards a first time to switch off the rear
foglamps,
F

r
ear wards a second time to switch of the
front fog lamps.
