2016 Peugeot 308 Owner's Manual - RHD (UK, Australia)

263

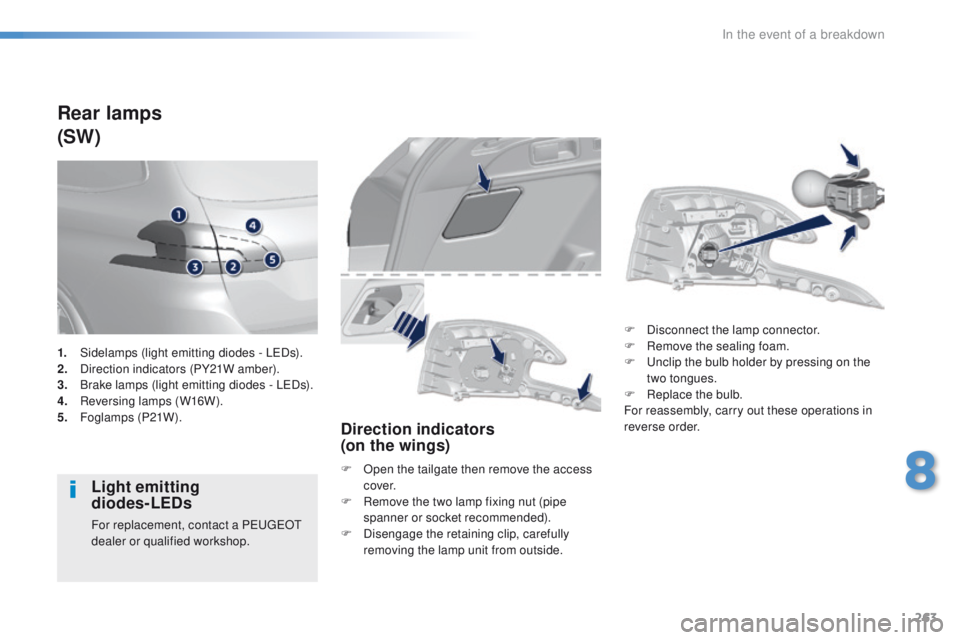

Rear lamps
(SW)
Light emitting
diodes-LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access c ove r.
F

R
emove the two lamp fixing nut (pipe
spanner or socket recommended).
F

D
isengage the retaining clip, carefully
removing the lamp unit from outside. F

D
isconnect the lamp connector.
F
R
emove the sealing foam.
F u
n
clip the bulb holder by pressing on the
two tongues.
F
R
eplace the bulb.
For reassembly, carry out these operations in
reverse order.
1.
S

idelamps (light emitting diodes - L
eD

s).
2.
D

irection indicators (PY21W amber).
3.
B

rake lamps (light emitting diodes - L
eD

s).
4.
R

eversing lamps (W16W).
5.
F

oglamps (P21W).
8
In the event of a breakdown

264

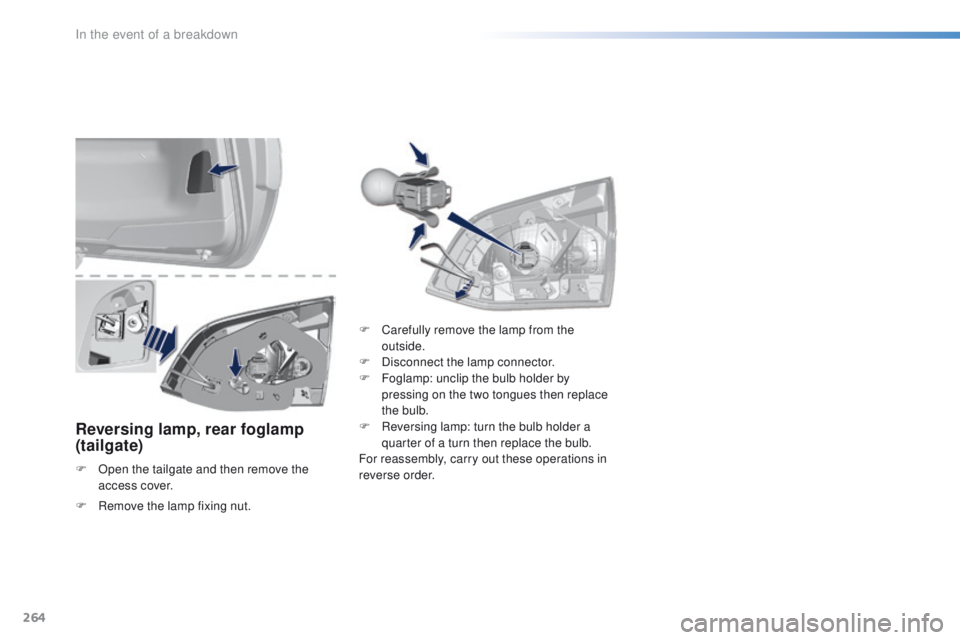

Reversing lamp, rear foglamp
(tailgate)
F Open the tailgate and then remove the access cover. F

C
arefully remove the lamp from the
outside.
F
D
isconnect the lamp connector.
F
F
oglamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F
R
eversing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F

R
emove the lamp fixing nut.
In the event of a breakdown

265
For the replacement of this type of lamp,
contact a PeugeOt dealer or a qualified
workshop.

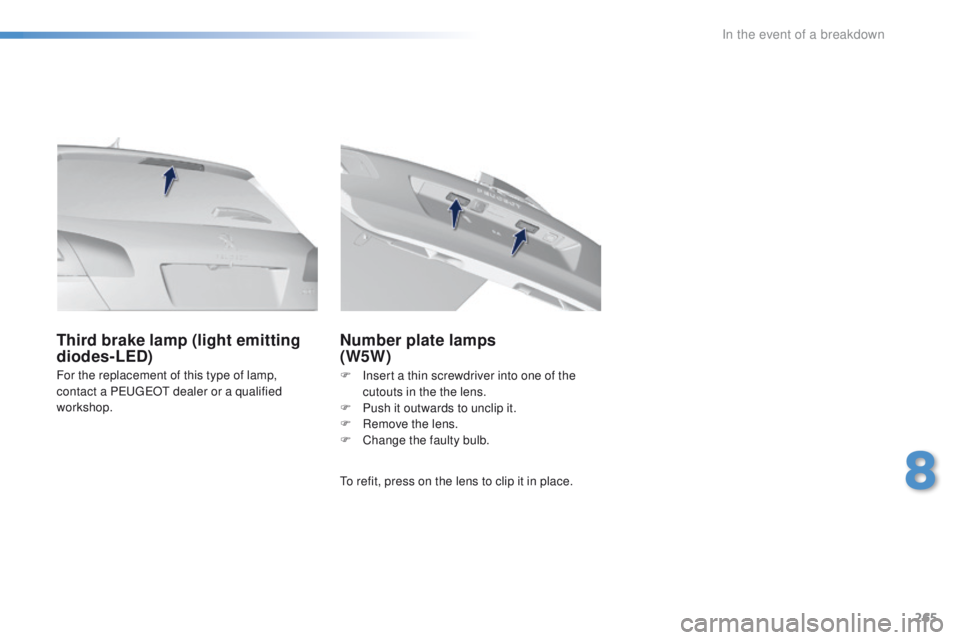

Third brake lamp (light emitting
diodes-LED) Number plate lamps
(W5W)
to refit, press on the lens to clip it in place. F
I
nsert a thin screwdriver into one of the
cutouts in the the lens.
F
P
ush it outwards to unclip it.
F
R
emove the lens.
F
C
hange the faulty bulb.
8
In the event of a breakdown

266
F unclip the cover by pulling at the top left, then right.
F

D
isengage the cover completely and turn it
ove r.
Access to the tools
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must be switched
of f,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
th

e replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a P
e

uge
Ot
dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
to replace a fuse, you must:
F
u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a P
e

uge
Ot
dealer or a qualified workshop.
F

R

emove the tweezer from the back of the
cover to which it is fitted.th
e extraction tweezer is fitted to the back of
the dashboard fusebox cover.
In the event of a breakdown

267

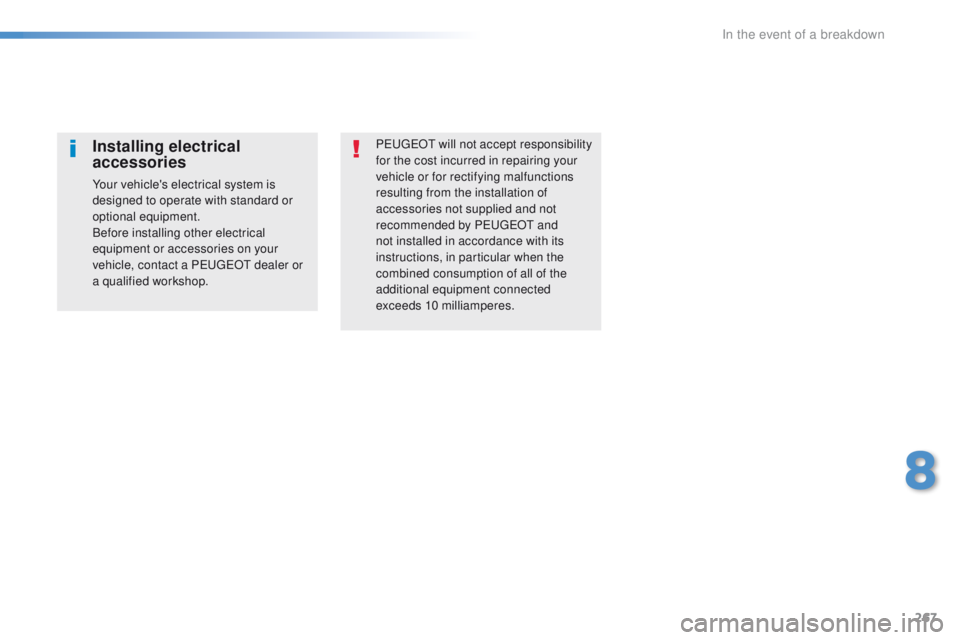

PeugeOt will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
e

uge
Ot
and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
8
In the event of a breakdown

268

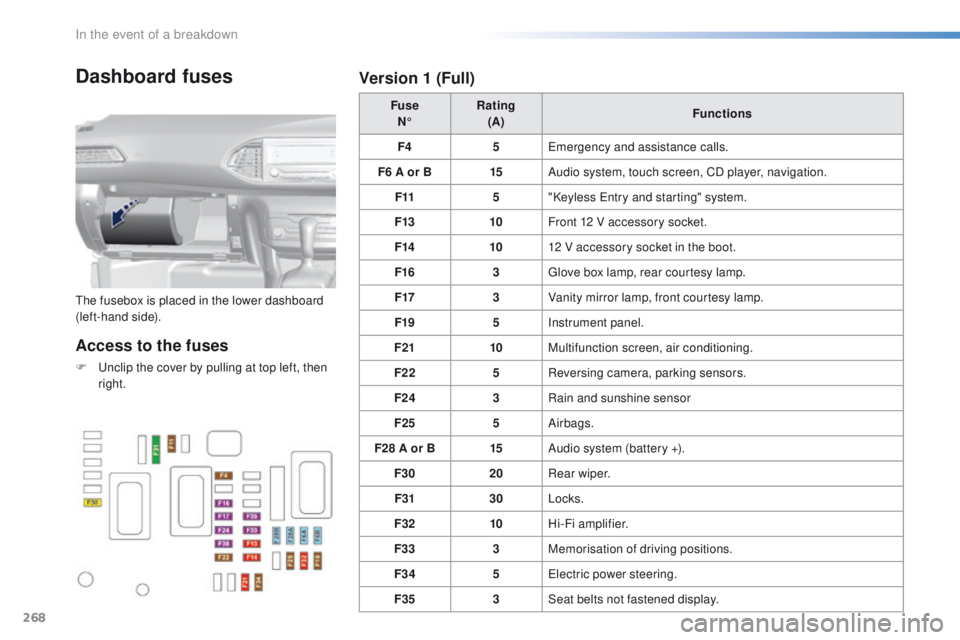

Dashboard fuses
the fusebox is placed in the lower dashboard
(left-hand side).Fuse
N° Rating
(A) Functions
F4 5
em
ergency and assistance calls.
F6 A or B 15Audio system, touch screen, CD player, navigation.
F11 5"Keyless e
n
try and starting" system.
F13 10Front 12 V accessory socket.
F14 1012 V accessory socket in the boot.
F16 3
gl
ove box lamp, rear courtesy lamp.
F17 3Vanity mirror lamp, front courtesy lamp.
F19 5Instrument panel.
F21 10Multifunction screen, air conditioning.
F22 5Reversing camera, parking sensors.
F24 3Rain and sunshine sensor
F25 5Airbags.
F28 A or B 15Audio system (battery +).
F30 20Rear wiper.
F31 30Locks.
F32 10Hi-Fi amplifier.
F33 3Memorisation of driving positions.
F34 5
el

ectric power steering.
F35 3Seat belts not fastened display.
Access to the fuses
F unclip the cover by pulling at top left, then
right.
Version 1 (Full)
In the event of a breakdown

269

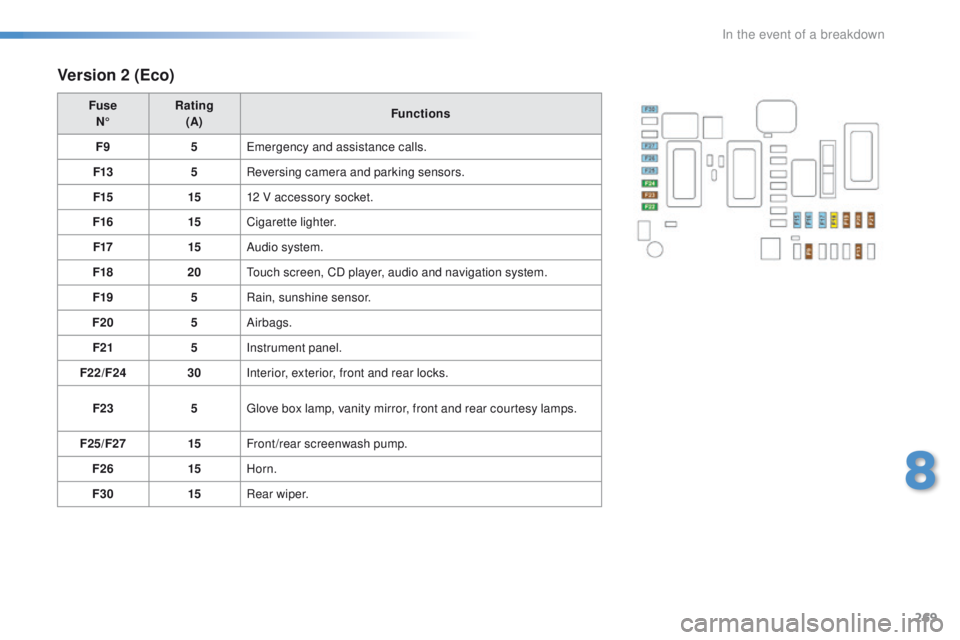

Version 2 (Eco)
FuseN° Rating
(A) Functions
F9 5
em

ergency and assistance calls.
F13 5Reversing camera and parking sensors.
F15 1512 V accessory socket.
F16 15Cigarette lighter.
F17 15Audio system.
F18 20
to

uch screen, CD player, audio and navigation system.
F19 5Rain, sunshine sensor.
F20 5Airbags.
F21 5Instrument panel.
F22/F24 30Interior, exterior, front and rear locks.
F23 5
gl

ove box lamp, vanity mirror, front and rear courtesy lamps.
F25/F27 15Front/rear screenwash pump.
F26 15Horn.
F30 15Rear wiper.
8
In the event of a breakdown

270
Engine compartment
fuses
Access to the fuses
F unclip the cover.
F C hange the fuse.
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F12 5Park Assist control unit.
F14 25Front and rear screenwash pump
F15 5Power steering.
F19 30Front wiper motor.
F20 15Front and rear screenwash motors.
F21 20Headlamp wash.
F22 15Horn.
F23 15Right hand main beam headlamp.
F24 15Left hand main beam headlamp.
th
e fusebox is located in the engine
compartment near the battery.
Version 1 (Full)
Fuesbox 1
In the event of a breakdown
