2016 Peugeot 308 Owner's Manual - RHD (UK, Australia)

287
* the maximum power corresponds to the value type approved on a test bed, under conditions defined by eu ropean legislation
(Directive 1999/99/eC ).
Engine
2.0 litre BlueHDi 180
GT
Gearbox
eAt6
automatic (6-speed)
Model code LHAH
t
- LHAHW - LJAH
t
- LJAHW
Body style HatchbackSW
Cubic capacity (cc) 1 997
Bore x stroke (mm) 85 x 88
Max power: eu standard (kW)*
13 3
Max power engine speed (rpm) 3 750
Max torque: eu standard (Nm)
400
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic converter yes
Particle filter yes
Oil capacity (in litres)
en
gine (with replacement of the filter cartridge)
5 .1
Diesel gt engines and gearboxes
9
technical data

288
Diesel weights and towed loads (in kg)
* the kerb weight is equal to the unladen weight + driver (75 kg).Engine
1.6 litre HDi 921.6 litre e- HDi 115 1.6 litre BlueHDi 100
Gearbox Manual (5-speed)Manual (6-speed) Manual (5-speed)
Model code LB9HP - LC9HPLB9HC - LC9HC LBBHY - LCBHY
Body style HatchbackSWHatchback SWHatchback SW
un
laden weight
1 0901 1801 1601 200 1 1601 200
Kerb weight* 1 1651 255 1 2371 2751 235 1 275
gr
oss vehicle weight
( g
V
W)
1 74 0
1 850 1 780 1 8701 780 1 880
gr
oss train weight (
g
t
W
)
on a 12% gradient 3 040
3 050 3 180 3 1703 0 743 080
un
braked trailer (within gt
W l
imit)
on a 10% or 12% gradient 1 300 1 200 1 400 1 300 1 300 1 200
unb
raked trailer
580620 615630 615630
Recommended nose weight 757175 7175 71
th
e gt
W a
nd towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Do not exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
technical data

289
* the kerb weight is equal to the unladen weight + driver (75 kg).Engine
1.6 litre BlueHDi 120
Gearbox Manual (6-speed)
eAt6
automatic (6-speed)
Model code LBBHZ - LBBHX - LCBHZ - LCBHXLBBH
t
- LBBHX - LCBH
t
- LCBHX
Body style HatchbackSWHatchback SW
un
laden weight
1 1851 300 1 200 1 310
Kerb weight* 1 2601 3751 2751 385
gr
oss vehicle weight
( g
V
W)
1 810
1 870 1 820 1 910
gr
oss train weight (
g
t
W
)
on a 12% gradient 3 210
3 1703 120 3 11 0
un
braked trailer (within gt
W l
imit)
on a 10% or 12% gradient 1 400
1 300 1 300 1 200
unb
raked trailer
615680 635690
Recommended nose weight 757175 71
th
e gt
W a
nd towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Do not exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
9
technical data

290
* the kerb weight is equal to the unladen weight + driver (75 kg).Engine
2.0 litre BlueHDi 150
Gearbox Manual (6-speed)
eAt6
automatic (6-speed)
Model code LHAHX - LJAHX - LJAHRLHAHX - LJAHX
Body style HatchbackSWHatchback SW
un
laden weight
1 2901 3151 3101 420
Kerb weight* 1 3651 390 1 3851 495
gr
oss vehicle weight
( g
V
W)
1 870
1 9701 900 2 000
gr
oss train weight (
g
t
W
)
on a 12% gradient 3 465
3 4703 398 3 400
un
braked trailer (within gt
W l
imit)
on a 10% or 12% gradient 1 600
1 5001 500 1 400
unb
raked trailer
680690 690 74 0
Recommended nose weight 757175 71
th
e gt
W a
nd towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Do not exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
technical data

291
the gtW a nd towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Do not exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel gt weights and towed loads (in kg)
* the kerb weight is equal to the unladen weight + driver (75 kg). Engine
2.0 litre BlueHDi 180
GT
Gearbox
eAt6
automatic (6-speed)
Model code LHAH
t
- LHAHW - LJAH
t
- LJAHW
Body style HatchbackSW
un
laden weight
1 3201 425
Kerb weight* 1 3951 500
gr
oss vehicle weight
( g
V
W)
1 920
2 020
gr
oss train weight (
g
t
W
)
on a 12% gradient 3 420
3 420
un
braked trailer (within gt
W l
imit)
on a 10% or 12% gradient 1 500
1 400
unb
raked trailer
695750
Recommended nose weight 7571
9
technical data

292

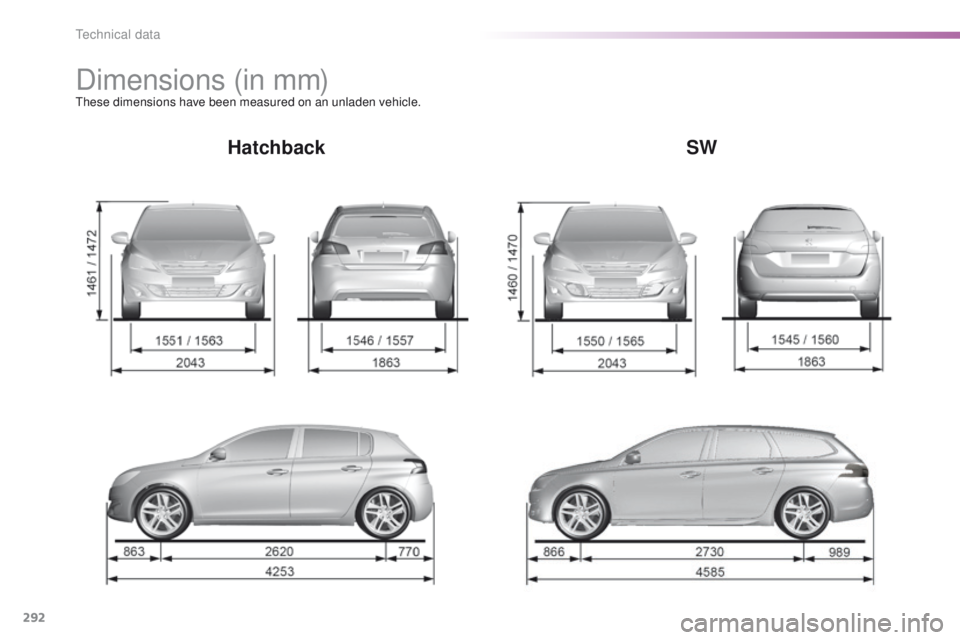

Dimensions (in mm)these dimensions have been measured on an unladen vehicle.
HatchbackSW
technical data

293

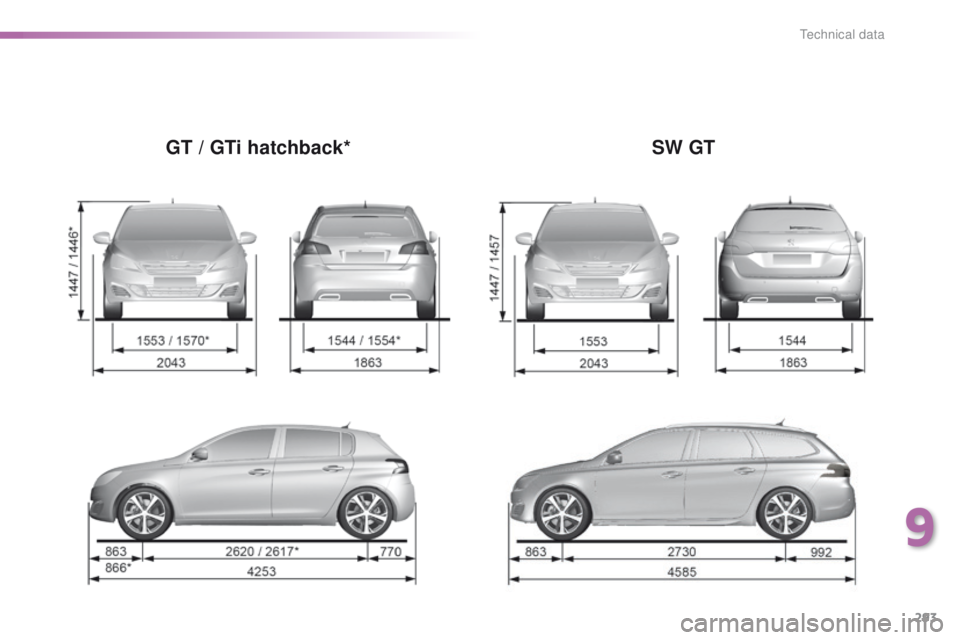

GT / GTi hatchback*SW GT
9
Technical data

294
Affaire version
Number of seats: 2 persons.useable boot volume: 1.31 m3
In metres ( m)
Load floor length 1.4 5 8
Load width at the wheel arches 1.03 6
Load width at the centre 1.07 7
Load height
-

a

t the centre 0.916
-

a

t the load aperture 0.831
-

b

elow the luggage cover 0.5
