SYSTEMSEC-123
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
SYSTEM
NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

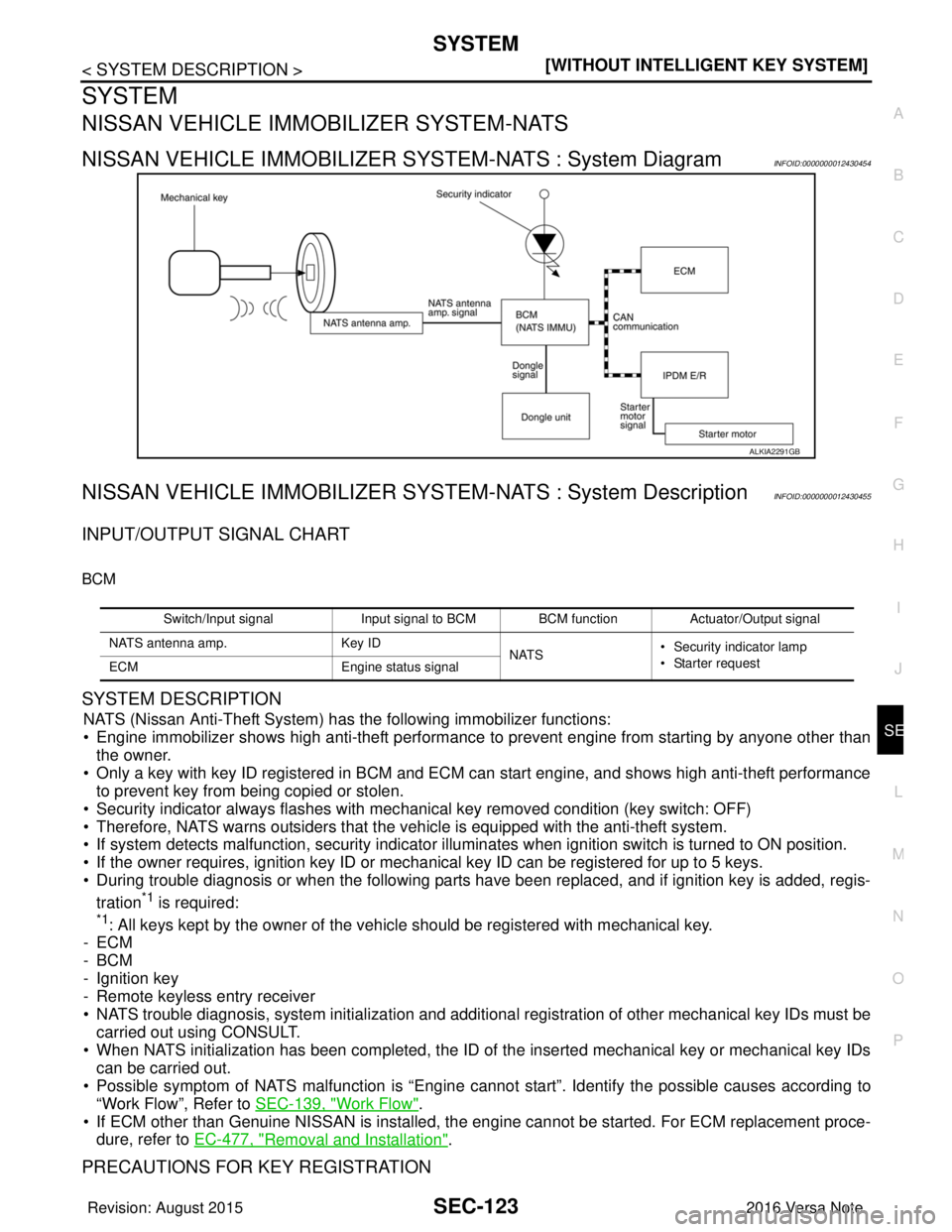

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS : System DiagramINFOID:0000000012430454
NISSAN VEHICLE IMMOBILIZER SY STEM-NATS : System DescriptionINFOID:0000000012430455
INPUT/OUTPUT SIGNAL CHART
BCM
SYSTEM DESCRIPTION
NATS (Nissan Anti-Theft System) has the following immobilizer functions:
• Engine immobilizer shows high anti-theft performance to prevent engine from starting by anyone other than
the owner.
• Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft performance to prevent key from being copied or stolen.
• Security indicator always flashes with mec hanical key removed condition (key switch: OFF)
• Therefore, NATS warns outsider s that the vehicle is equipped with the anti-theft system.
• If system detects malfunction, security indicator illuminates when ignition switch is turned to ON position.
• If the owner requires, ignition key ID or mechanical key ID can be registered for up to 5 keys.
• During trouble diagnosis or when the following parts have been replaced, and if ignition key is added, regis-
tration
*1 is required:
*1: All keys kept by the owner of the vehi cle should be registered with mechanical key.
-ECM
-BCM
- Ignition key
- Remote keyless entry receiver
• NATS trouble diagnosis, system initialization and additional registration of other mechanical key IDs must be
carried out using CONSULT.
• When NATS initialization has been completed, the ID of the inserted mechanical key or mechanical key IDs can be carried out.
• Possible symptom of NATS malfunction is “Engine cannot start”. Identify the possible causes according to
“Work Flow”, Refer to SEC-139, "
Work Flow".
• If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce- dure, refer to EC-477, "
Removal and Installation".
PRECAUTIONS FOR KEY REGISTRATION
ALKIA2291GB
Switch/Input signal Input signal to BCM BCM function Actuator/Output signal
NATS antenna amp. Key ID
NATS• Security indicator lamp
• Starter request
ECM Engine status signal
Revision: August 2015 2016 Versa Note
