2016 NISSAN MAXIMA Nissan Connect Navigation Manual


> (GLW    0RGHO 1&*1-1 @
How to view USB screenNCGNJN1402-120906-E9144E87-0DC7-4702-9C76-7699BDDE627E
5GA0063X
*1[USB Menu]:
Touch to switch to the USB Menu screen.
ªUSB Menuº (page 3-24)
*2[Source]:
Touch to switch to the source select screen.
ªSelecting audio sourceº (page 3-12)
*3Track information:
Track information such as the song title,
artist name and album name are displayed.
*4Audio source indicator:
Indicates which USB memory device
(USB1 or USB2) is currently selected. To
switch to the USB1 and USB2, touch
[Source] on the audio screen.
ªSelecting audio sourceº (page 3-12)
*5Album artwork/Turn direction indicator:
Image of an album artwork is displayed
when available if the setting is turned on.
ªUSB Menuº (page 3-24)
When the album artwork display setting is
turned off, the turn direction and the
distance to the next turn are displayed when
a route is set with the navigation system.
*6Play time and progress bar:
The play time of the track is displayed. The
bar indicates the progress in playing a track.
3. Audio system
&RQGLWLRQ
3-23


> (GLW    0RGHO 1&*1-1 @
3. Audio system
*7USB operation keys:
Touch an icon for operations.
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-24)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-24)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
USB memory device player operationNCGNJN1402-120906-D6F756B8-A874-4D4F-BD71-90C3D033F1C0
Activation and playing:
Connecting the USB memory device into the
port will activate the USB mode.
USB memory device can also be played by
selecting the source on the audio source menu
screen.
ªSelecting audio sourceº (page 3-12)
To pause playing the USB memory device, touch
[
]. To resume playing, touch [].
Skipping tracks:
To skip the tracks, push <
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [USB Menu] and touch
[Folder List].
ªUSB Menuº (page 3-24)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
To rewind or fast-forward the track, push and
hold <
>/<>, touch and hold []/[],
or tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[1 Folder] ?[All] ?(off)
USB MenuGUID-D7405901-8E6D-4B27-8B77-BD50EA7A85CFTouch [USB Menu] on the USB screen to display
the USB Menu screen.
The following items are available.
&RQGLWLRQ
3-24


> (GLW    0RGHO 1&*1-1 @
[Now Playing] Touch to display the USB screen.
[Scan] Touch to scan the tracks in theUSB memory device. During
scanning, the first several sec-
onds of all the tracks will be
played. Touching [Scan] again will
cancel the scanning mode and
the USB memory device will
return to play normally from the
track which is playing.
[Folder List]* Touch to display the folder list. Touch an item on the list to select
the folder.
Touch [
] and go back to the
previous screen to select tracks in
the folder.
[Album Art-
work] Touch to turn on/off the album
artwork display on the USB
screen.
Track List A list of the tracks in the USB is displayed. Touch an item on the
list to select the track.
*: Displayed only when available.
iPod


> (GLW    0RGHO 1&*1-1 @
3. Audio system

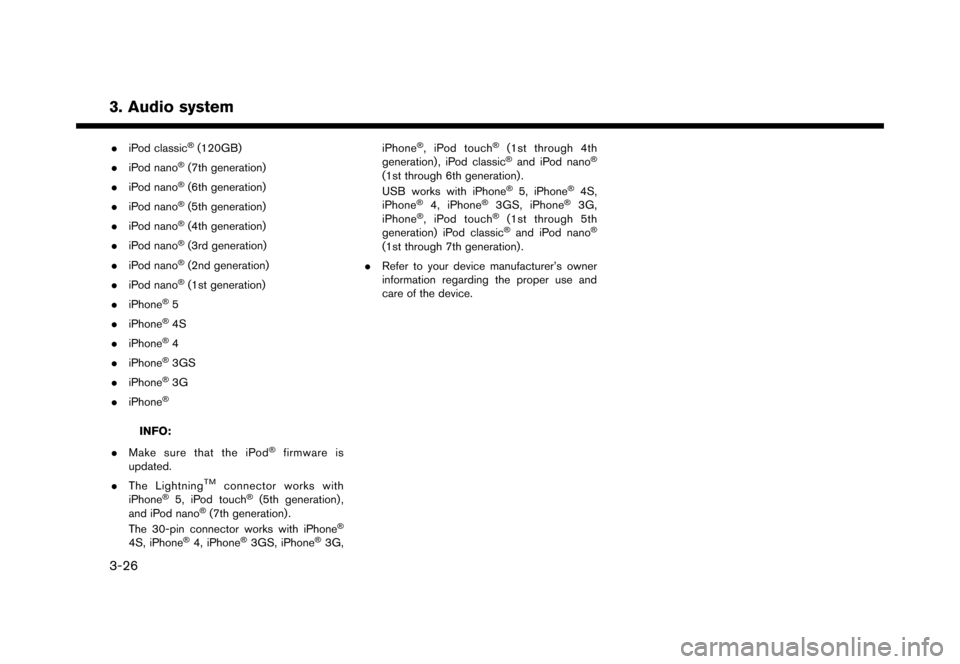

.iPod classic


> (GLW    0RGHO 1&*1-1 @

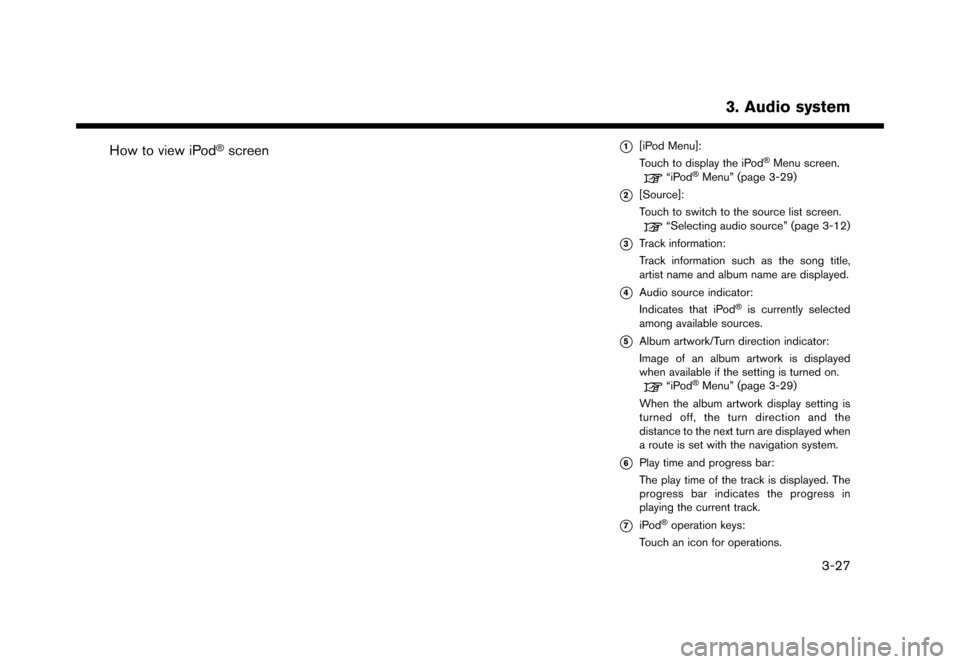

How to view iPod


> (GLW    0RGHO 1&*1-1 @
3. Audio system
[] Each time [] is touched, the
mode changes.
ªChanging play modeº
(page 3-28)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
mode changes.
ªChanging play modeº
(page 3-28)
*8Track number:
Indicates the track number and the total
number of tracks.
iPod


> (GLW    0RGHO 1&*1-1 @
iPod


> (GLW    0RGHO 1&*1-1 @
3. Audio system
BLUETOOTH
