2016 NISSAN MAXIMA Nissan Connect Navigation Manual


> (GLW    0RGHO 1&*1-1 @
available.
. Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
. Due to infrastructure problems, or transmis-
sion delay, there are times when the informa-
tion may differ from the actual condition.
Always observe safe driving practices and
follow all traffic regulations.
. Due to the coverage and quality of traffic
information and road conditions, it is not
always possible for the system to provide the
shortest time route even when traffic in-
formation is considered.
. Traffic information that is displayed may differ
from information from other media (e.g.,
radio) , as other media may use different
information sources.
5. Information
&RQGLWLRQ
5-21


> (GLW    0RGHO 1&*1-1 @

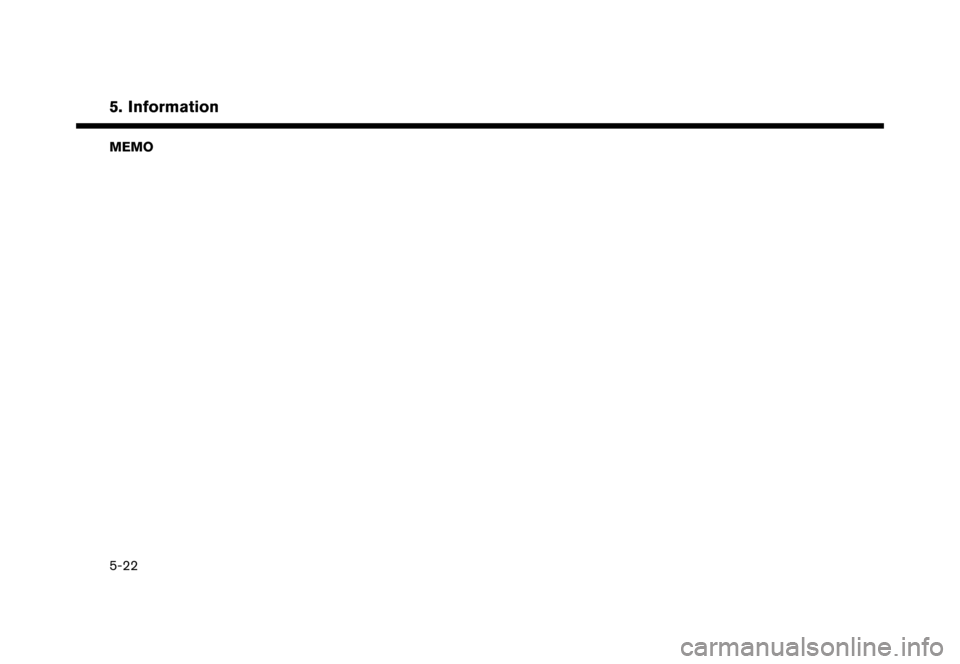

5. Information
MEMO
&RQGLWLRQ
5-22


> (GLW    0RGHO 1&*1-1 @
6 Navigation
Safety information...
..................................................................... 6-3
Map operation ...
........................................................................\
.... 6-3
Displaying current vehicle location ...
................................. 6-3
Map types ...
........................................................................\
...... 6-3
Road color ...
........................................................................\
..... 6-6
Moving map ...
........................................................................\
.. 6-6
Changing scale of map ...
...................................................... 6-7
Changing map ...
...................................................................... 6-8
Map view settings ...
............................................................... 6-9
Setting information on map ...
............................................ 6-12
Traffic information on map (for U.S. and Canada) ...
..... 6-13
Map Menu screen ...
............................................................ 6-13
Setting destination ...
................................................................. 6-14
Basic operations ...
............................................................... 6-14
Finding address ...
................................................................ 6-17
Finding nearby place ...
....................................................... 6-18
Finding points of interest ...
................................................ 6-19
Setting home as destination ...
.......................................... 6-20
Searching from address book ...
....................................... 6-21
Searching from previous destinations ...
......................... 6-21
Searching by connecting to the internet (if
so equipped) ...
..................................................................... 6-22
Setting intersection ...
.......................................................... 6-22
Setting by phone number ...
............................................... 6-23
Setting city center ...
............................................................ 6-23 Setting freeway entrance/exit
...
...................................... 6-23
Setting from stored routes ...
........................................... 6-24
Setting point on map ...
..................................................... 6-24
Setting with NissanConnect
SMServices (if
so equipped) ...
................................................................... 6-25
Options before starting the route guidance ...
............ 6-26
Route guidance ...
...................................................................... 6-27
About route guidance ...
................................................... 6-27
Route menu ...
..................................................................... 6-33
Setting new destination ...
................................................ 6-36
Canceling Route ...
............................................................. 6-36
Confirming route ...
............................................................. 6-36
Editing route ...
.................................................................... 6-36
Recalculating route ...
........................................................ 6-39
Searching for detour route using traffic information
(for U.S. and Canada) ...
................................................... 6-39
Setting detour route ...
...................................................... 6-40
Route guidance settings ...
.............................................. 6-40
Viewing traffic information (for U.S. and Canada) ...
......... 6-46
Viewing available traffic information ...
........................... 6-46
Traffic information setting ...
............................................. 6-48
Storing a location/route ...
....................................................... 6-49
Storing location ...
.............................................................. 6-49
Storing route ...
................................................................... 6-50
Storing avoid area ...
.......................................................... 6-50
&RQGLWLRQ


> (GLW    0RGHO 1&*1-1 @

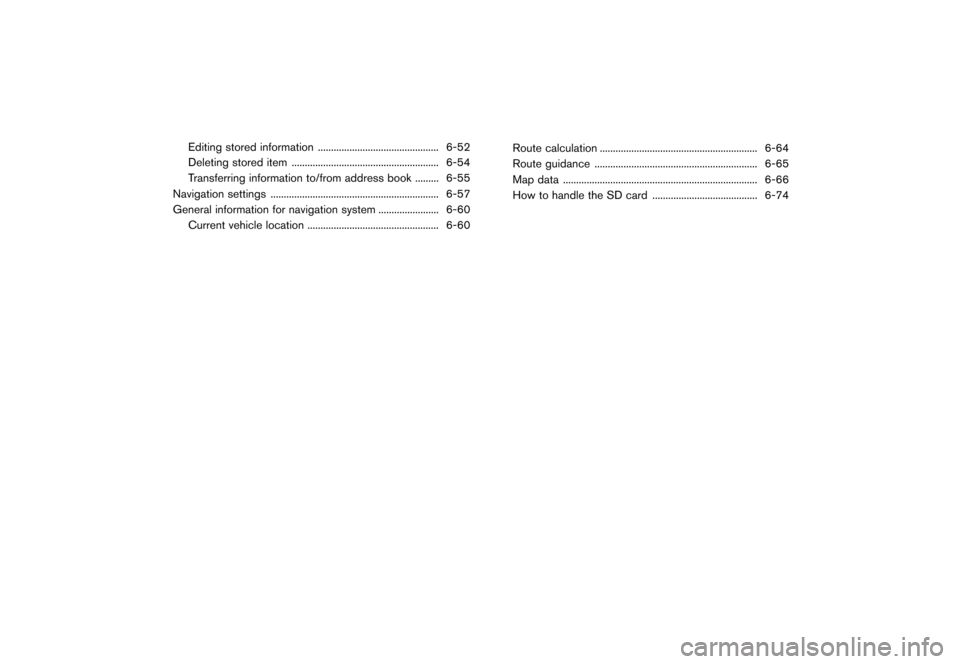

Editing stored information...
.............................................. 6-52
Deleting stored item ...
........................................................ 6-54
Transferring information to/from address book ...
......... 6-55
Navigation settings ...
................................................................ 6-57
General information for navigation system ...
....................... 6-60
Current vehicle location ...
.................................................. 6-60 Route calculation
...
............................................................ 6-64
Route guidance ...
.............................................................. 6-65
Map data ...
........................................................................\
.. 6-66
How to handle the SD card ...
........................................ 6-74
&RQGLWLRQ


> (GLW    0RGHO 1&*1-1 @
SAFETY INFORMATIONNCGNJN1402-86E86BA3-BF7E-40C4-BA2C-BCE97C60A7D2The navigation system is primarily designed to
help you reach your destination. However, you,
the driver, must use the system safely and
properly. Information concerning road condi-
tions, traffic signs and the availability of services
may not always be up to date. The system is not a
substitute for safe, proper, and legal driving.
WARNING1&*1-1'%$&&$%$.Do not rely on route guidance alone.
Always be sure that all driving man-
euvers are legal and safe in order to
avoid accidents.
MAP OPERATIONNCGNJN1402-120906-C5FCA318-4BBA-4D15-A857-9B542ACCC9A3
DISPLAYING CURRENT VEHICLE
LOCATION
NCGNJN1402-120906-D8AC00A2-1C2D-4A70-9906-9AEEE4DB75F8
5GB0410X
Push


> (GLW    0RGHO 1&*1-1 @
6. Navigation
2D mapNCGNJN1402-120906-EE372FB2-4CFF-45FF-B632-64E8205D13D0The 2D map displays the map in a two-dimensional environment similar to a road map.
5GB0500XScreen information:
*1Destination:
Indicates the location of the final destina-
tion.
*2Waypoint:
Displays the location of the waypoint the
vehicle will stop by before heading to the
final destination. A maximum of 5 waypoints
can be set.
*3Guide point:
Indicates a guide point on the route.
*4Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*5Avoid area:
Displays the areas to avoid that are stored in
the Address Book. Route guidance can be
set to avoid the registered avoid areas.
ªStoring avoid areaº (page 6-50)
Green: Freeways included
Blue: Freeways not included
*6Speed limit icon:
Displays the speed limit of the road the
vehicle is on.
*7Arrow and distance:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8icon:
Touch the icon to display the Map Menu.
ªMap Menu screenº (page 6-13)
*9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. The
map scale can be adjusted using the scale
bar.
ªChanging scale of mapº (page 6-7)
*10/Direction indicator:
Indicates the directional setting of the map.
: North always pointing up.
: Direction of the vehicle heading always
pointing up.
Touch the icon to change the map view and
&RQGLWLRQ
6-4


> (GLW    0RGHO 1&*1-1 @
the map orientation.
ªChanging map view and map orienta-
tionº (page 6-8)
*11Remaining distance to the destination:
Indicates the approximate remaining dis-
tance to the destination or waypoint. This
indicator will appear when a destination or
waypoint is set and route guidance is
started.
The arrow displayed here indicates the
direction of the destination. It can be
displayed only when the map scale is in
the range of 1/64 miles (25 m) - 1/8 miles
(200 m) .
*12Estimated time to the destination:
Indicates the estimated time to the destina-
tion or waypoint. This indicator will appear
when a destination or waypoint is set and
route guidance is started.
ªGuidance settingsº (page 6-41)
*13Traffic indicator (for U.S. and Canada):
Indicates the reception condition of the
traffic information transmitted from the
provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
The indicator does not appear without aSiriusXM Traffic subscription.
*14Vehicle icon:
Indicates the current vehicle location and
the direction the vehicle is heading.
*15Suggested route:
Appears in bold blue during route guidance.
*16Stored location (yellow):
Displays the locations that are stored in the
Address Book.
ªStoring locationº (page 6-49)
The icons can be changed according to
your preferences.
*17Street name:
Displays the name of the street that the
vehicle is currently driving on.
*18Voice Menu button (if so equipped):
Touch the icon to connect to the Nissan-
Connect
SMServices Voice Menu.
ªConnecting to Interactive Voice
Menuº (page 5-13)
BirdviewTM(3D) mapNCGNJN1402-120906-587FA18F-02CE-4C96-A6DD-1A627158824CBirdviewTMdisplays the map from an elevated
perspective. In BirdviewTM, it is easy to recognize
an image of the route because it provides a
panoramic view over a long distance.
5GB0598X
INFO:
Note the following items about the Birdview
TM
display. . ªBirdviewTMº is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TMalways appears with
the current forward direction facing up.
Building graphicsNCGNJN1402-D52D68EF-B8E2-45F4-A665-3D4F393E1605In an area where the building graphics are stored
in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called ªBuilding
footprint graphicsº, and on the Birdview
TMdis-
play, these are called ª3D building graphicsº.
6. Navigation
&RQGLWLRQ
6-5


> (GLW    0RGHO 1&*1-1 @
6. Navigation
5GB0408X
Building footprint graphics (2D map)
5GB0409X
3D building graphics (BirdviewTMmap)
INFO:
In an area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
ROAD COLORNCGNJN1402-120906-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by color.
Red Freeway
Brown
Dark Yellow Main road
Gray Narrow street
Dark green Road with incomplete map data
MOVING MAPNCGNJN1402-120906-7786F4B5-D56C-4754-9A7C-B9979A7906F1Map can be scrolled by touch screen operations.
Map scrolling operations are limited and not fully
available while driving.
Touch:
5GB0495X
2D map:
When the map on the screen is touched, the
cross pointer is displayed and the position
touched is set as the center of the screen. After moving the map, touch [
] on the map
screen to display the current location map
screen.
INFO:
. Touch [Slow] on the map screen to display
the 8-directional key for fine adjustments of
the location. Touch [Cancel] to cancel the
fine adjustment mode.
. Sliding the Display Commander (if so
equipped) can also operate the map.
Birdview
TM(3D) map:
Touch the screen. The cross pointer is displayed
at the center of the map. Touching the screen
again will scroll the map toward the touched
location.
Touch [
] or [] to change the direction of the
map.
INFO:
Sliding the Display Commander (if so equipped)
can also operate the map.
Long touch:
Touch the direction to move to. The map
continues to scroll while the screen is touched.
&RQGLWLRQ
6-6
