2016 NISSAN MAXIMA Nissan Connect Navigation Manual


> (GLW    0RGHO 1&*1-1 @

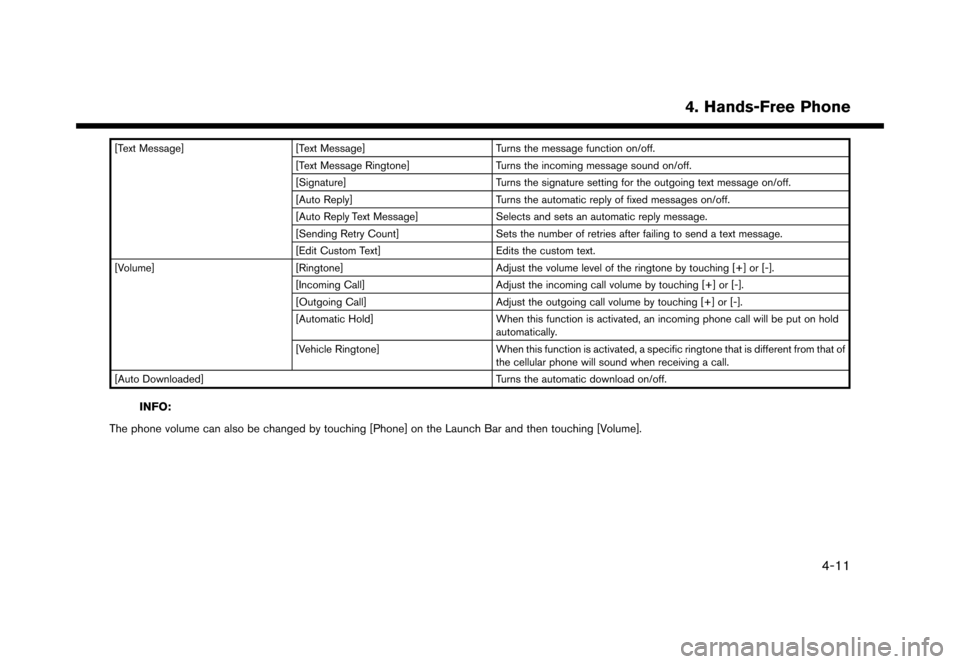

[Text Message][Text Message] Turns the message function on/off.
[Text Message Ringtone] Turns the incoming message sound on/off.
[Signature] Turns the signature setting for the outgoing text message on/off.
[Auto Reply] Turns the automatic reply of fixed messages on/off.
[Auto Reply Text Message] Selects and sets an automatic reply message.
[Sending Retry Count] Sets the number of retries after failing to send a text message.
[Edit Custom Text] Edits the custom text.
[Volume] [Ringtone] Adjust the volume level of the ringtone by touching [+] or [-].
[Incoming Call] Adjust the incoming call volume by touching [+] or [-].
[Outgoing Call] Adjust the outgoing call volume by touching [+] or [-].
[Automatic Hold] When this function is activated, an incoming phone call will be put on hold
automatically.
[Vehicle Ringtone] When this function is activated, a specific ringtone that is different from that of
the cellular phone will sound when receiving a call.
[Auto Downloaded] Turns the automatic download on/off.
INFO:
The phone volume can also be changed by touching [Phone] on the Launch Bar and then touching [Volume].
4. Hands-Free Phone
&RQGLWLRQ
4-11


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone
PhonebookNCGNJN1402-120906-03CA7EF1-BE5A-4519-9A4C-1E8BBB8D9AD5
5GF0050X
Phonebook information in cellular phones can be
downloaded to be used for making calls and
sending text messages.
ªPhone settingsº (page 4-10)
Quick DialNCGNJN1402-0FB27751-B822-433A-977A-435B2430D290
5GF0051X
Up to 5 Quick Dial entries can be registered.
Quick Dial entries can be used to make a call or
to send text messages.Registration:
1. Touch [Phone] on the Launch Bar.
2. Touch [Quick Dial].
3. Touch [Add New] to register a phone number
to the Quick Dial list.
4. Select a method for registration.
Available methods:
.[Copy from Call History]:A phone number can be selected from
[Incoming], [Outgoing], or [Missed] call
history lists.
.[Copy from Phonebook]:A phone number can be selected from the
Phonebook.
.[Enter Number by Keypad]:A phone number can be entered manually
using keypad.
INFO:
Available methods may vary depending on
conditions.
5. The registration screen is displayed. Enter the phone number and edit the entry
information as necessary. 6. Touch [OK] to save the entry.
INFO:
Quick Dial entries can also be registered by
touching [Settings] on the Launch Bar and
then selecting [Phone].
ªPhone settingsº (page 4-10)
Voice Tag:
A custom voice tag can be recorded for each of
the items registered in the Quick Dial and be
used to dial the number by speaking it.
5GF0052X
On the Quick Dial registration screen, select
[VoiceTag].
&RQGLWLRQ
4-12


> (GLW    0RGHO 1&*1-1 @
Available
ItemsAction
[Play] Play the recorded voice tag.
[Store] Touch to record a voice tag for the phone number.
[Replace] Touch to rerecord the voice tag.
[Delete] Touch to delete the voice tag.
BLUETOOTH


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone

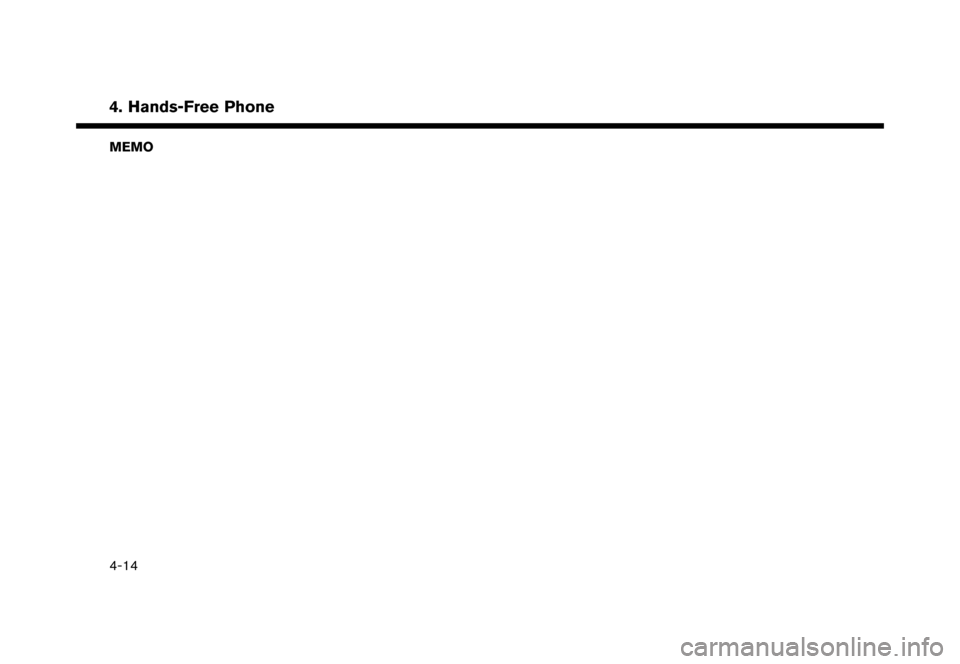

MEMO
&RQGLWLRQ
4-14


> (GLW    0RGHO 1&*1-1 @

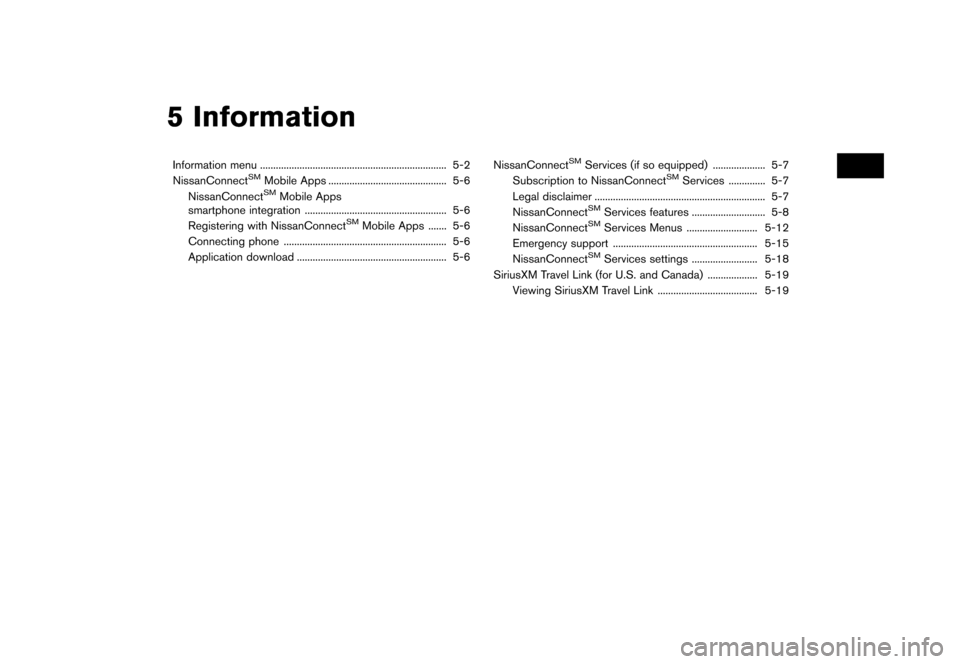

5 Information
Information menu...
....................................................................... 5-2
NissanConnectSMMobile Apps ...
............................................. 5-6
NissanConnectSMMobile Apps
smartphone integration ...
...................................................... 5-6
Registering with NissanConnect
SMMobile Apps ...
....... 5-6
Connecting phone ...
.............................................................. 5-6
Application download ...
......................................................... 5-6 NissanConnect
SMServices (if so equipped)
...
.................... 5-7
Subscription to NissanConnectSMServices ...
.............. 5-7
Legal disclaimer ...
................................................................. 5-7
NissanConnect
SMServices features ...
............................ 5-8
NissanConnectSMServices Menus ...
........................... 5-12
Emergency support ...
....................................................... 5-15
NissanConnect
SMServices settings ...
......................... 5-18
SiriusXM Travel Link (for U.S. and Canada) ...
................... 5-19
Viewing SiriusXM Travel Link ...
...................................... 5-19
&RQGLWLRQ


> (GLW    0RGHO 1&*1-1 @
5. Information
INFORMATION MENUNCGNJN1402-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information
(for U.S. and Canada) , traffic information (for U.S. and Canada) , vehicle information, current location information, and navigation software version.
5GH0285X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
For U.S. and Canada
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 5-6)
[NissanConnect Services] (if so equipped) Display the NissanConnectSMService menu screen.ªNissanConnectSMServicesº (page 5-7)
[SXM Weather] [Current Conditions]Display current weather condition information. Touch [Favorite City] to see conditions
for a favorite location. To change the favorite location, touch [Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location. To
change the selected location, touch [Change City].
&RQGLWLRQ
5-2


> (GLW    0RGHO 1&*1-1 @
Menu itemResult
[Graphical Map] Display a graphical map of the weather information on the display. Initially, the system
will display all available information. Touch the scale button to show [Zoom In]/[Zoom
Out] for changing the map scale to 320 miles (640 km) U.S., 32 miles (64 km) Middle
scale or 5 miles (10 km) Detail scale. Touch [Radar] to stop displaying the weather
radar map. Touch [Chart] to stop displaying weather surface features and pressure,
when the map scale is U.S. Touch [Storm] to stop displaying Storm information, when
the map scale is U.S. or Middle scale. Touch [Winds] to stop displaying wind
information, when map scale is Detail scale.
[Alert Map] Show Alert Map information on the display. Touch [Legend] to display the detailed
contents of information used for the current warning/advisory map by type. Touch the
scale button to show [Zoom In]/[Zoom Out] for changing the map scale to 320 miles
(640 km) U.S., 32 miles (64 km) Middle scale or 5 miles (10 km) Detail scale.
[Weather Alert] Turn the weather alert on/off.
[SXM Traffic] [Info on Route]Touch to display traffic information detected on the route to the destination.
[Nearby Traffic Info] Touch to display traffic information detected near the current vehicle location.
[SXM Sports] Touch [Yes] to view a list of available sports that can be added or touch [No] to go
back. Select a favorite sport and division/conference from the list to view scores. A
favorite team cannot be selected. When viewing a favorite, a list of recent and near
future games/events is displayed. Touch [Tune] to go to a channel that is
broadcasting the event live. A score will also display while the event is broadcasting.
Touch [Delete One] to delete a favorite sport or [Delete All] to delete all favorite
sports. Up to 10 sports can be saved.
5. Information
&RQGLWLRQ
5-3


> (GLW    0RGHO 1&*1-1 @
5. Information
Menu itemResult
[SXM Stocks] To add a favorite stock, touch [Yes] to display a List of Matching Stocks. Select a
stock by performing a search or typing in the symbol. Touch [Yes] to add a stock to
the list or touch [No] to go back. Touching [Add Stock] will also allow adding a
favorite stock. Once a stock is added, it's price, trend, and date can be viewed. Red
indicates the stock is down and green indicates the stock is up. Touch [Delete Stock]
to [Delete All] or [Delete One]. Up to 20 stocks can be saved. Only supported stocks
can be added.
[SXM Fuel Prices] [Select Fuel]Select a gas station from the list to see all of the fuel prices or to set it as a destination.
Touch [Select Fuel] to display prices for a different fuel type.
Touch [By Distance]/[By Price] to sort the list by distance or by price.
Touch [Near Dest]/[Nearby] to show a list of gas stations near the destination or near
the current location.
[By Distance]/[By Price]
[Near Dest]/[Nearby]
[SXM Movie Listings] [Nearby Theaters]Displays a list of theaters by distance. Select the theater for Theater Details such as
its location and phone number. While viewing the Theater Details, touch [Go here] for
route guidance. While viewing the list of Nearby Theaters, touch [Movies] to display a
list of movies that are playing at that theater. Select the movie to display Movie Details
including the rating, running time, and show times.
[Current Movies] Displays a list of movies that are currently playing. Touch [Details] to display Movie
Details including the rating, running time, and show times. While viewing the list of
Current Movies, select the movie to display a list of Nearby Theaters. Select the
theater for Theater Details such as its location and phone number. Touch [Movies] for
a detailed description and show times of the selected movie. Touch [Go Here] for
route guidance to the selected theater.
[Vehicle] (if so equipped) [Energy Flow] (model with hybrid
system)Displays energy information. Touch [History] to display the Fuel Economy History
screen.
For details of the Energy Flow, refer to the vehicle Owner's Manual.
[Eco Drive Report] Displays the Eco Drive Report.
&RQGLWLRQ
5-4
