> (GLW    0RGHO (1-1 (91$01&*. @
nation.

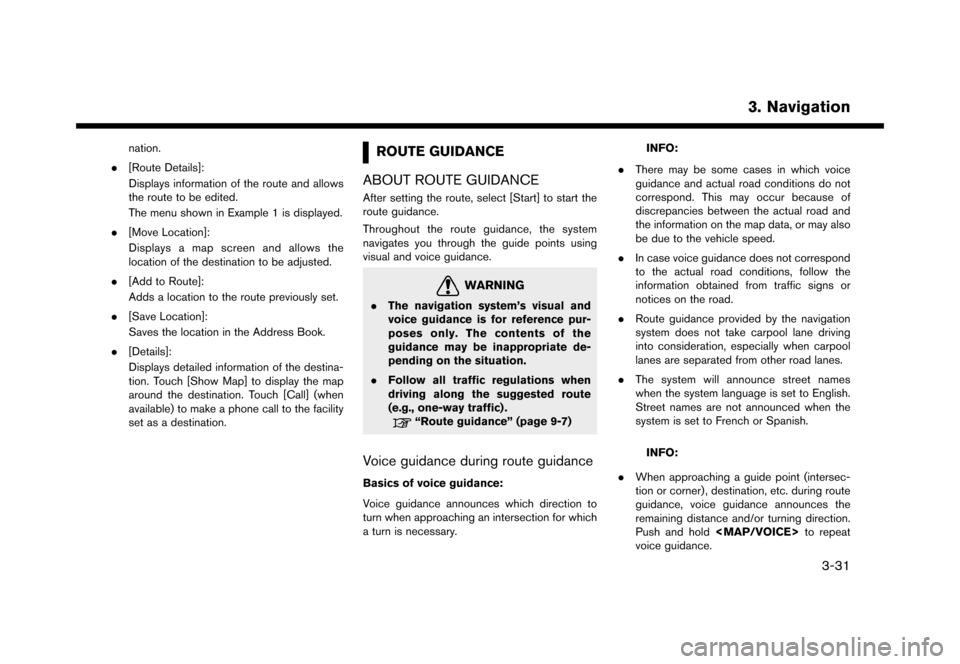

. [Route Details]:
Displays information of the route and allows
the route to be edited.
The menu shown in Example 1 is displayed.
. [Move Location]:
Displays a map screen and allows the
location of the destination to be adjusted.
. [Add to Route]:
Adds a location to the route previously set.
. [Save Location]:
Saves the location in the Address Book.
. [Details]:
Displays detailed information of the destina-
tion. Touch [Show Map] to display the map
around the destination. Touch [Call] (when
available) to make a phone call to the facility
set as a destination.ROUTE GUIDANCEENJN1502-120906-FD38A9D2-BD38-4915-90E1-EFF73D4DAEA9
ABOUT ROUTE GUIDANCEENJN1502-120906-FD5538DC-DAD3-4D25-9388-EEEB98B01107After setting the route, select [Start] to start the
route guidance.
Throughout the route guidance, the system
navigates you through the guide points using
visual and voice guidance.
WARNING(1-1()&)&$((%%(('&%.The navigation system's visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. Follow all traffic regulations when
driving along the suggested route
(e.g., one-way traffic) .
ªRoute guidanceº (page 9-7)
Voice guidance during route guidanceENJN1502-120906-B9542D5E-9818-4B43-8BA0-4E1F33E37BDB
Basics of voice guidance:
Voice guidance announces which direction to
turn when approaching an intersection for which
a turn is necessary.
INFO:
. There may be some cases in which voice
guidance and actual road conditions do not
correspond. This may occur because of
discrepancies between the actual road and
the information on the map data, or may also
be due to the vehicle speed.
. In case voice guidance does not correspond
to the actual road conditions, follow the
information obtained from traffic signs or
notices on the road.
. Route guidance provided by the navigation
system does not take carpool lane driving
into consideration, especially when carpool
lanes are separated from other road lanes.
. The system will announce street names
when the system language is set to English.
Street names are not announced when the
system is set to French or Spanish.
INFO:
. When approaching a guide point (intersec-
tion or corner) , destination, etc. during route
guidance, voice guidance announces the
remaining distance and/or turning direction.
Push and hold


> (GLW    0RGHO (1-1 (91$01&*. @

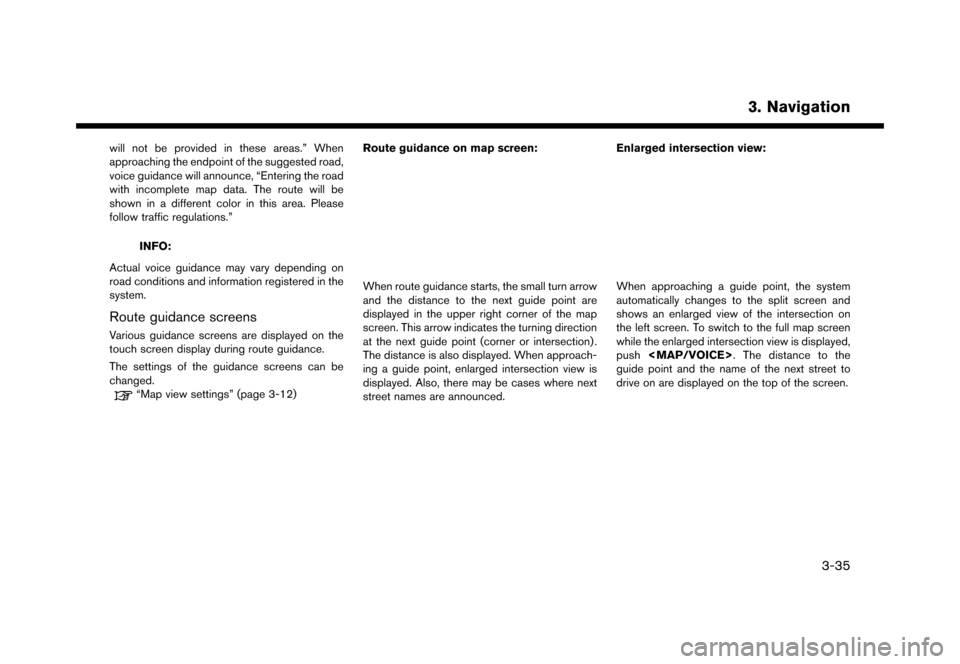

will not be provided in these areas.º When
approaching the endpoint of the suggested road,
voice guidance will announce, ªEntering the road
with incomplete map data. The route will be
shown in a different color in this area. Please
follow traffic regulations.º
INFO:
Actual voice guidance may vary depending on
road conditions and information registered in the
system.
Route guidance screensENJN1502-120906-1EC15C97-38ED-4C88-9336-8B6A6573F8DEVarious guidance screens are displayed on the
touch screen display during route guidance.
The settings of the guidance screens can be
changed.
ªMap view settingsº (page 3-12) Route guidance on map screen:
5GB0604X
When route guidance starts, the small turn arrow
and the distance to the next guide point are
displayed in the upper right corner of the map
screen. This arrow indicates the turning direction
at the next guide point (corner or intersection) .
The distance is also displayed. When approach-
ing a guide point, enlarged intersection view is
displayed. Also, there may be cases where next
street names are announced. Enlarged intersection view:
5GB0437X
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. To switch to the full map screen
while the enlarged intersection view is displayed,
push


> (GLW    0RGHO (1-1 (91$01&*. @

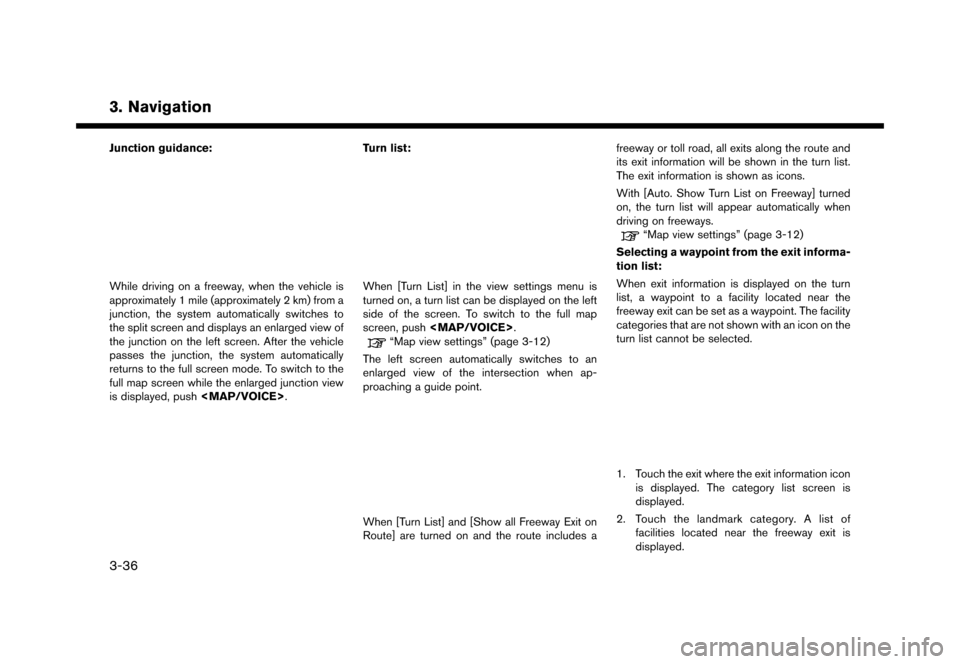

Junction guidance:
5GB0438X
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction on the left screen. After the vehicle
passes the junction, the system automatically
returns to the full screen mode. To switch to the
full map screen while the enlarged junction view
is displayed, push


> (GLW    0RGHO (1-1 (91$01&*. @
INFO:
The facility categories that are not shown
with an icon cannot be selected.
3. Touch the preferred facility for the waypoint.
4. The waypoint is set, and the route search is performed.
ªOptions before starting the route
guidanceº (page 3-29)
5. Touch [Start] to start the route guidance.
ROUTE MENUENJN1502-120906-A1C01E8A-570A-408B-B0D8-CEBD91E269C3
WARNING(1-1&%$&$%&)((%%Always stop the vehicle in a safe location
before modifying the route conditions.
Modifying the route conditions while
driving may cause an accident.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
your personal preference.
5GB0442X
Touch [Navi] on the Launch Bar.
Route menu screen is displayed when a destina-
tion is already set.
&RQGLWLRQ
3-37
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Available settings
Setting itemAction
[New Destination] Sets the new destination.
ªSetting new destinationº (page 3-40)
[Cancel Route] Cancels the current route guidance.
[Route Info] [Turn List] Displays the details of the suggested route.
[Simulation] Simulates the route guidance. This function provides a detailed image of the
route with voice guidance.
ªConfirming routeº (page 3-40)
[Store Route] A calculated route can be stored. A route can be stored only when it includes at
least one waypoint.
[Map Scroll] A map scrolled further will be displayed.
[Edit/Add to Route] A destination or waypoint can be edited to a route that has already been set.
ªEditing routeº (page 3-40)
[Settings] [Guidance Settings] [Guidance Voice] Activates or deactivates voice guidance.
[Guidance Volume] Adjust the volume level of voice guidance.
[Traffic Announcement] Activates or deactivates the traffic information announcements.
[Route Settings] [Basic Route Type] Set the route search conditions.
ªRoute Settingsº (page 3-47)
[Other Routing Choices]
[Show Destination] [Move Location] Displays a map screen and allows the location of the destination to be adjusted.
[Nearby POIs] Search for points of interest near the current vehicle location, such as
restaurants and charging stations, etc. The location can be set as a waypoint.
[Save Location] Save the destination in the Address Book.
[Recalculate] Manually search for the route again after changing the search conditions, etc.
and have the system calculate a route.
ªRecalculating routeº (page 3-43)
&RQGLWLRQ
3-38
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

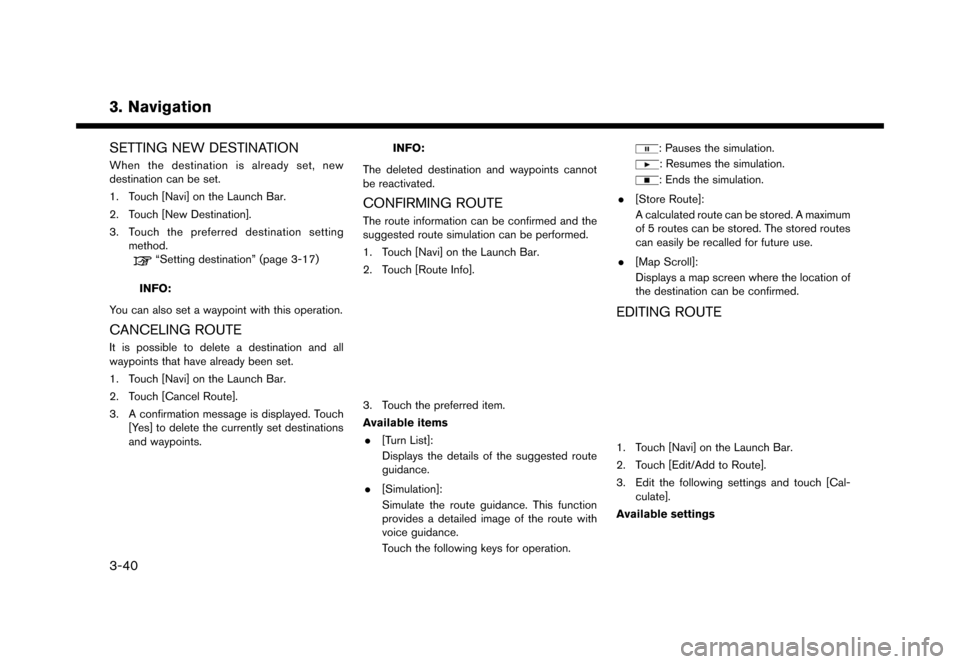

SETTING NEW DESTINATIONENJN1502-51BD1B5C-9429-445F-BDE5-CD6141F3BC65When the destination is already set, new
destination can be set.
1. Touch [Navi] on the Launch Bar.
2. Touch [New Destination].
3.Touch the preferred destination setting
method.
ªSetting destinationº (page 3-17)
INFO:
You can also set a waypoint with this operation.
CANCELING ROUTEENJN1502-8DC58B15-9628-42A9-83C4-AE2C6B35D56BIt is possible to delete a destination and all
waypoints that have already been set.
1. Touch [Navi] on the Launch Bar.
2. Touch [Cancel Route].
3. A confirmation message is displayed. Touch [Yes] to delete the currently set destinations
and waypoints.
INFO:
The deleted destination and waypoints cannot
be reactivated.
CONFIRMING ROUTEENJN1502-8B990E34-30A8-4D48-967C-29510AA4560CThe route information can be confirmed and the
suggested route simulation can be performed.
1. Touch [Navi] on the Launch Bar.
2. Touch [Route Info].
5GB0480X
3. Touch the preferred item.
Available items . [Turn List]:
Displays the details of the suggested route
guidance.
. [Simulation]:
Simulate the route guidance. This function
provides a detailed image of the route with
voice guidance.
Touch the following keys for operation.
: Pauses the simulation.
: Resumes the simulation.
: Ends the simulation.
. [Store Route]:
A calculated route can be stored. A maximum
of 5 routes can be stored. The stored routes
can easily be recalled for future use.
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
EDITING ROUTEENJN1502-120906-0CFA5674-26DB-4DBD-94B4-07D1D137A60E
5GB0443X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Edit the following settings and touch [Cal-
culate].
Available settings
&RQGLWLRQ
3-40
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

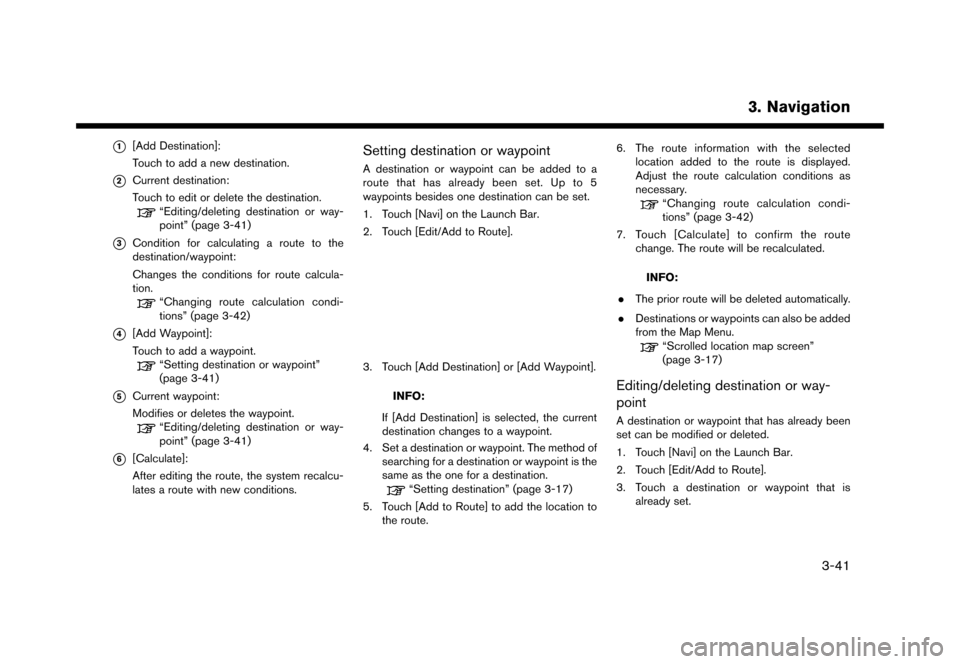

*1[Add Destination]:
Touch to add a new destination.
*2Current destination:
Touch to edit or delete the destination.
ªEditing/deleting destination or way-
pointº (page 3-41)
*3Condition for calculating a route to the
destination/waypoint:
Changes the conditions for route calcula-
tion.
ªChanging route calculation condi-
tionsº (page 3-42)
*4[Add Waypoint]:
Touch to add a waypoint.
ªSetting destination or waypointº
(page 3-41)
*5Current waypoint:
Modifies or deletes the waypoint.
ªEditing/deleting destination or way-
pointº (page 3-41)
*6[Calculate]:
After editing the route, the system recalcu-
lates a route with new conditions.
Setting destination or waypointENJN1502-120906-0BB2FCA4-907D-47E4-BFE0-38F304C36A5CA destination or waypoint can be added to a
route that has already been set. Up to 5
waypoints besides one destination can be set.
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
5GB0444X
3. Touch [Add Destination] or [Add Waypoint].
INFO:
If [Add Destination] is selected, the current
destination changes to a waypoint.
4. Set a destination or waypoint. The method of searching for a destination or waypoint is the
same as the one for a destination.
ªSetting destinationº (page 3-17)
5. Touch [Add to Route] to add the location to the route. 6.
The route information with the selected
location added to the route is displayed.
Adjust the route calculation conditions as
necessary.
ªChanging route calculation condi-
tionsº (page 3-42)
7. Touch [Calculate] to confirm the route
change. The route will be recalculated.
INFO:
. The prior route will be deleted automatically.
. Destinations or waypoints can also be added
from the Map Menu.
ªScrolled location map screenº
(page 3-17)
Editing/deleting destination or way-
point
ENJN1502-120906-CD749FF6-3A0C-4C28-9B11-71083532CB3DA destination or waypoint that has already been
set can be modified or deleted.
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch a destination or waypoint that is
already set.
&RQGLWLRQ
3-41
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
5GB0445X

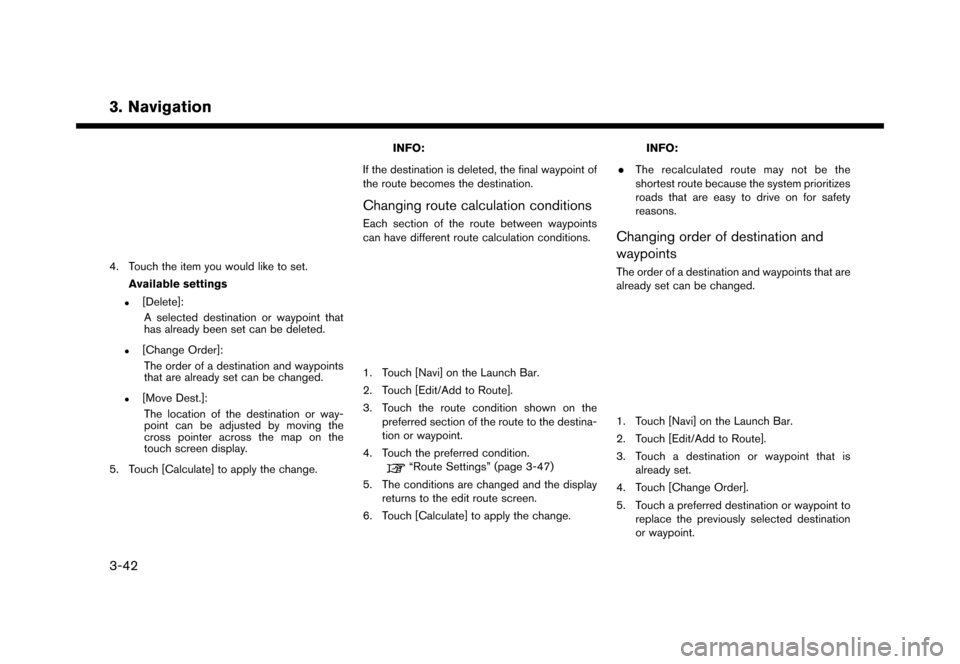

4. Touch the item you would like to set.Available settings
.[Delete]:A selected destination or waypoint that
has already been set can be deleted.
.[Change Order]:The order of a destination and waypoints
that are already set can be changed.
.[Move Dest.]:
The location of the destination or way-
point can be adjusted by moving the
cross pointer across the map on the
touch screen display.
5. Touch [Calculate] to apply the change.
INFO:
If the destination is deleted, the final waypoint of
the route becomes the destination.
Changing route calculation conditionsENJN1502-120906-2CFF4089-B7EE-40B4-A210-DBBEF76EF02BEach section of the route between waypoints
can have different route calculation conditions.
5GB0575X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch the route condition shown on the preferred section of the route to the destina-
tion or waypoint.
4. Touch the preferred condition.
ªRoute Settingsº (page 3-47)
5. The conditions are changed and the display returns to the edit route screen.
6. Touch [Calculate] to apply the change.
INFO:
. The recalculated route may not be the
shortest route because the system prioritizes
roads that are easy to drive on for safety
reasons.
Changing order of destination and
waypoints
ENJN1502-A503E69F-4403-4F87-813B-70DF8CB10CE1The order of a destination and waypoints that are
already set can be changed.
5GB0447X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch a destination or waypoint that is
already set.
4. Touch [Change Order].
5. Touch a preferred destination or waypoint to replace the previously selected destination
or waypoint.
&RQGLWLRQ
3-42
3. Navigation
