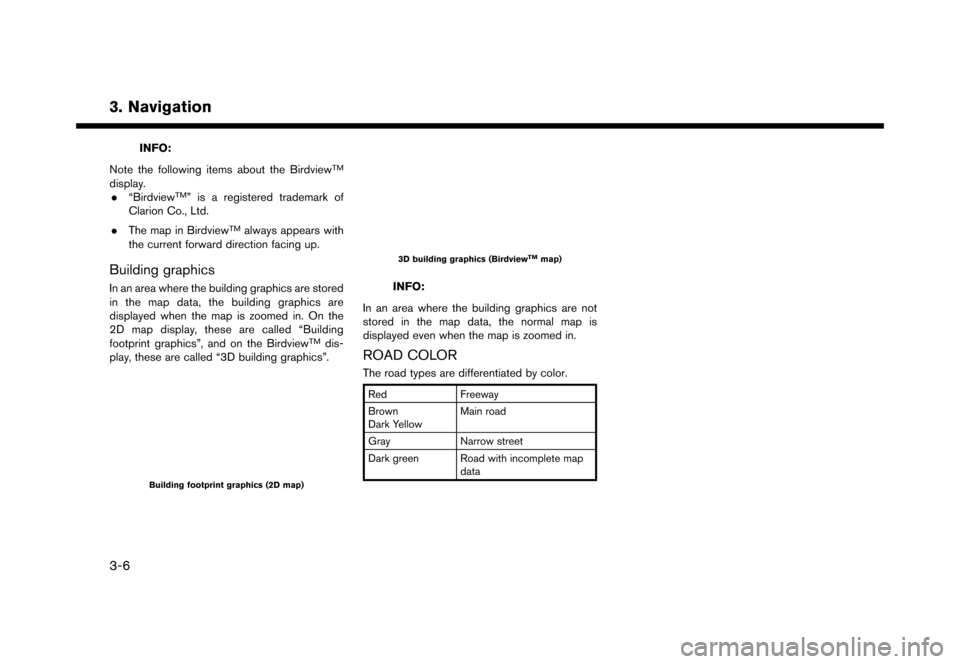

INFO:
Note the following items about the Birdview
TM
display. . ªBirdviewTMº is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TMalways appears with
the current forward direction facing up.
Building graphicsENJN1502-D52D68EF-B8E2-45F4-A665-3D4F393E1605In an area where the building graphics are stored
in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called ªBuilding
footprint graphicsº, and on the Birdview
TMdis-
play, these are called ª3D building graphicsº.
5GB0408X
Building footprint graphics (2D map)
5GB0409X
3D building graphics (BirdviewTMmap)
INFO:
In an area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
ROAD COLORENJN1502-120906-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by color.
Red Freeway
Brown
Dark Yellow Main road
Gray Narrow street
Dark green Road with incomplete map data
&RQGLWLRQ
3-6
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
MAP SYMBOLSGUID-C72C2BB1-18F4-46B4-9D21-DA742F0A6011This navigation system uses symbols to display facilities.
&RQGLWLRQ
3-7
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

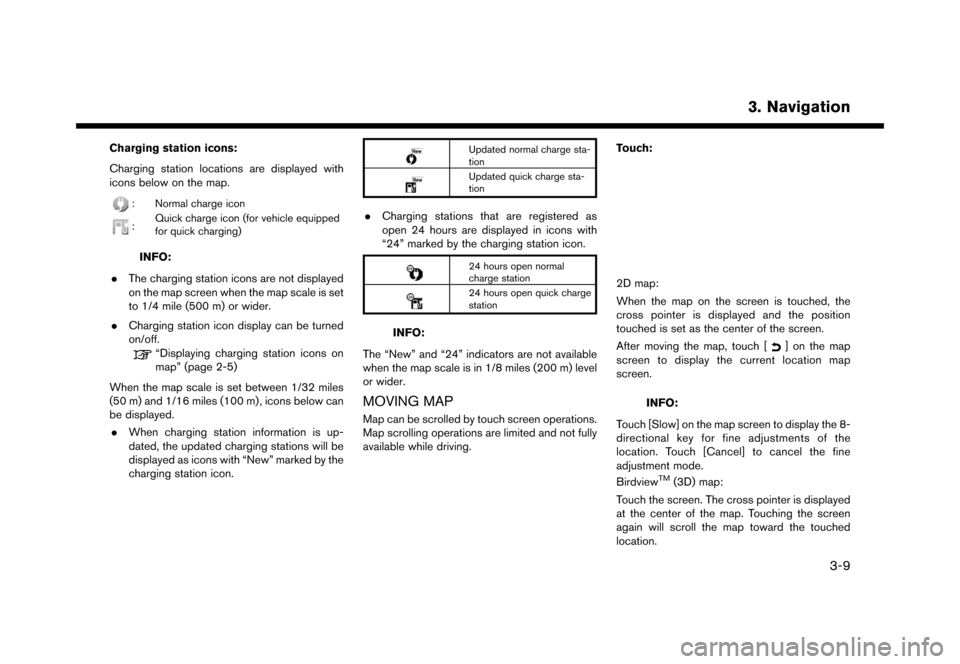

Charging station icons:
Charging station locations are displayed with
icons below on the map.
: Normal charge icon
:Quick charge icon (for vehicle equipped
for quick charging)
INFO:
. The charging station icons are not displayed
on the map screen when the map scale is set
to 1/4 mile (500 m) or wider.
. Charging station icon display can be turned
on/off.
ªDisplaying charging station icons on
mapº (page 2-5)
When the map scale is set between 1/32 miles
(50 m) and 1/16 miles (100 m) , icons below can
be displayed. . When charging station information is up-
dated, the updated charging stations will be
displayed as icons with ªNewº marked by the
charging station icon.
Updated normal charge sta-
tion
Updated quick charge sta-
tion
.Charging stations that are registered as
open 24 hours are displayed in icons with
ª24º marked by the charging station icon.
24 hours open normal
charge station
24 hours open quick charge
station
INFO:
The ªNewº and ª24º indicators are not available
when the map scale is in 1/8 miles (200 m) level
or wider.
MOVING MAPENJN1502-120906-7786F4B5-D56C-4754-9A7C-B9979A7906F1Map can be scrolled by touch screen operations.
Map scrolling operations are limited and not fully
available while driving. Touch:
5GB0495X
2D map:
When the map on the screen is touched, the
cross pointer is displayed and the position
touched is set as the center of the screen.
After moving the map, touch [
] on the map
screen to display the current location map
screen.
INFO:
Touch [Slow] on the map screen to display the 8-
directional key for fine adjustments of the
location. Touch [Cancel] to cancel the fine
adjustment mode.
Birdview
TM(3D) map:
Touch the screen. The cross pointer is displayed
at the center of the map. Touching the screen
again will scroll the map toward the touched
location.
&RQGLWLRQ
3-9
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

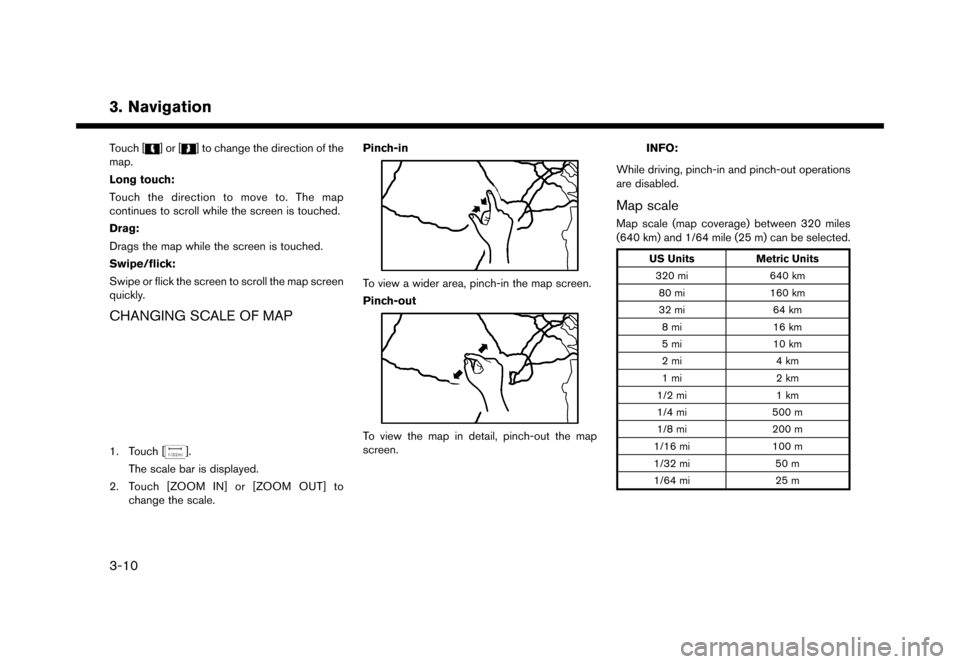

Touch [] or [] to change the direction of the
map.
Long touch:
Touch the direction to move to. The map
continues to scroll while the screen is touched.
Drag:
Drags the map while the screen is touched.
Swipe/flick:
Swipe or flick the screen to scroll the map screen
quickly.
CHANGING SCALE OF MAPENJN1502-120906-9DD1AE71-61BA-4F81-A0EB-6A8BF290FBF9
5GB0603X
1. Touch [].
The scale bar is displayed.
2. Touch [ZOOM IN] or [ZOOM OUT] to
change the scale. Pinch-in
5GB0246X
To view a wider area, pinch-in the map screen.
Pinch-out
5GB0243X
To view the map in detail, pinch-out the map
screen.
INFO:
While driving, pinch-in and pinch-out operations
are disabled.
Map scaleENJN1502-120906-254B822A-980F-405F-9359-0273C1E3FD89Map scale (map coverage) between 320 miles
(640 km) and 1/64 mile (25 m) can be selected.
US Units Metric Units
320 mi 640 km
80 mi 160 km
32 mi 64 km
8 mi 16 km
5 mi 10 km
2 mi 4 km
1 mi 2 km
1/2 mi 1 km
1/4 mi 500 m
1/8 mi 200 m
1/16 mi 100 m
1/32 mi 50 m
1/64 mi 25 m
&RQGLWLRQ
3-10
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
INFO:
Depending on the map scale, traffic information
icons cannot be displayed on the map screen.
ªTraffic information on mapº (page 3-50)

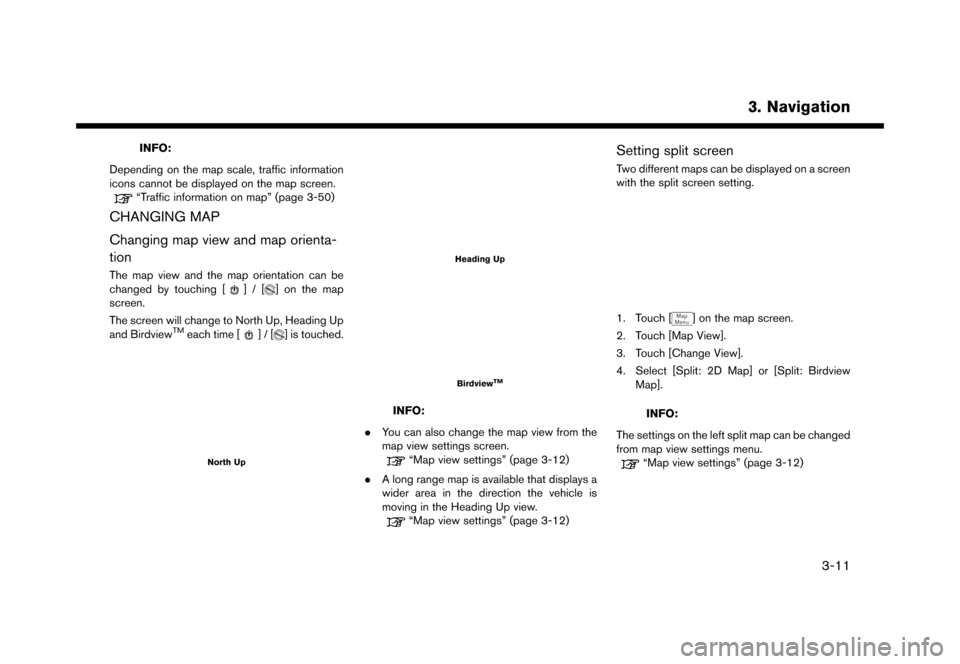

CHANGING MAPENJN1502-EE435B0C-944B-44A6-A02B-44DFEE72CD3F
Changing map view and map orienta-
tion
ENJN1502-35401E88-4D28-4449-AE8A-C5939593E4EAThe map view and the map orientation can be
changed by touching [
] / [] on the map
screen.
The screen will change to North Up, Heading Up
and Birdview
TMeach time [] / [] is touched.
5GB0044X
North Up
5GB0413X
Heading Up
5GB0414X
BirdviewTM
INFO:
. You can also change the map view from the
map view settings screen.
ªMap view settingsº (page 3-12)
. A long range map is available that displays a
wider area in the direction the vehicle is
moving in the Heading Up view.
ªMap view settingsº (page 3-12)
Setting split screenENJN1502-59764D97-54A7-4CDA-A1FE-D6101B420713Two different maps can be displayed on a screen
with the split screen setting.
5GB0415X
1. Touch [] on the map screen.
2. Touch [Map View].
3. Touch [Change View].
4. Select [Split: 2D Map] or [Split: Birdview Map].
INFO:
The settings on the left split map can be changed
from map view settings menu.
ªMap view settingsº (page 3-12)
&RQGLWLRQ
3-11
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

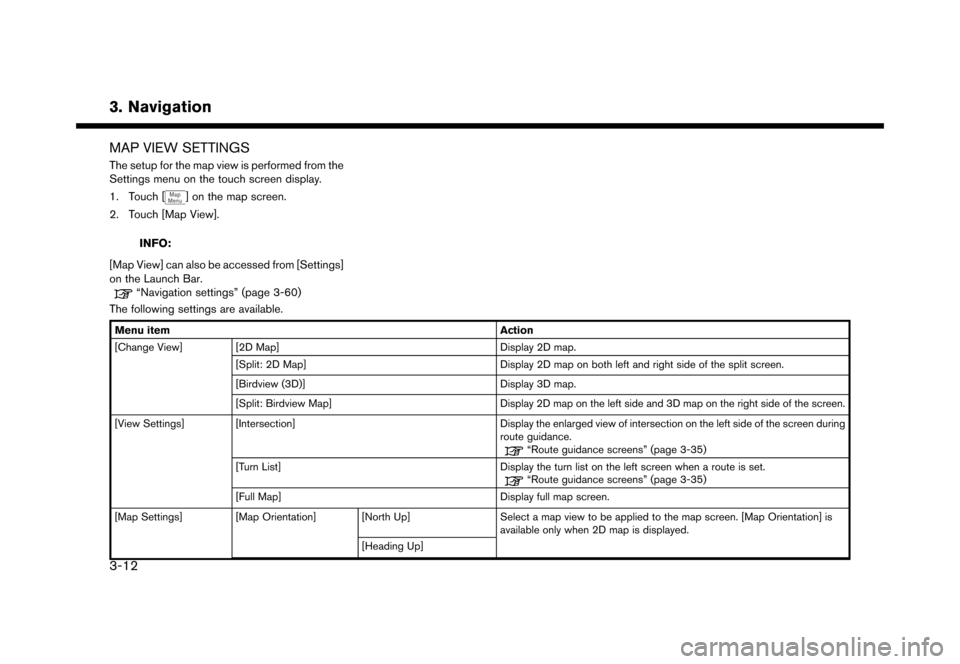

MAP VIEW SETTINGSENJN1502-120906-1F6AA0DC-5FB8-4E2E-9C33-C843D820D840The setup for the map view is performed from the
Settings menu on the touch screen display.
1. Touch [
] on the map screen.
2. Touch [Map View].
INFO:
[Map View] can also be accessed from [Settings]
on the Launch Bar.
ªNavigation settingsº (page 3-60)
The following settings are available.
Menu item Action
[Change View] [2D Map] Display 2D map.
[Split: 2D Map] Display 2D map on both left and right side of the split screen.
[Birdview (3D)] Display 3D map.
[Split: Birdview Map] Display 2D map on the left side and 3D map on the right side of the screen.
[View Settings] [Intersection] Display the enlarged view of intersection on the left side of the screen during
route guidance.
ªRoute guidance screensº (page 3-35)
[Turn List] Display the turn list on the left screen when a route is set.
ªRoute guidance screensº (page 3-35)
[Full Map] Display full map screen.
[Map Settings] [Map Orientation] [North Up] Select a map view to be applied to the map screen. [Map Orientation] is
available only when 2D map is displayed.
[Heading Up]
&RQGLWLRQ
3-12
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

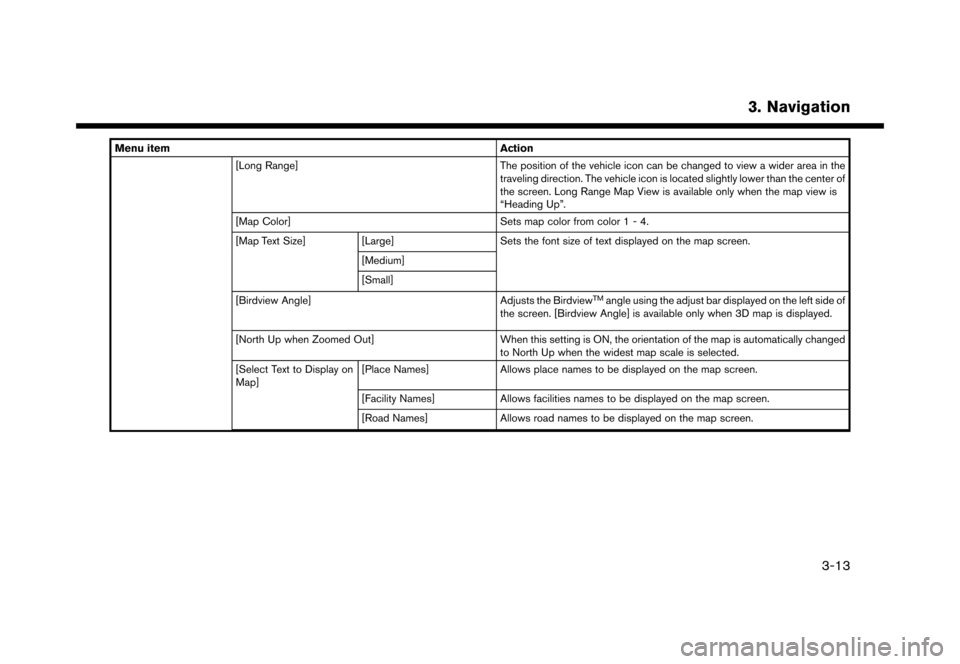

Menu itemAction
[Long Range] The position of the vehicle icon can be changed to view a wider area in the
traveling direction. The vehicle icon is located slightly lower than the center of
the screen. Long Range Map View is available only when the map view is
ªHeading Upº.
[Map Color] Sets map color from color 1 - 4.
[Map Text Size] [Large] Sets the font size of text displayed on the map screen.
[Medium]
[Small]
[Birdview Angle] Adjusts the Birdview
TMangle using the adjust bar displayed on the left side of
the screen. [Birdview Angle] is available only when 3D map is displayed.
[North Up when Zoomed Out] When this setting is ON, the orientation of the map is automatically changed
to North Up when the widest map scale is selected.
[Select Text to Display on
Map] [Place Names]
Allows place names to be displayed on the map screen.
[Facility Names] Allows facilities names to be displayed on the map screen.
[Road Names] Allows road names to be displayed on the map screen.
&RQGLWLRQ
3-13
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

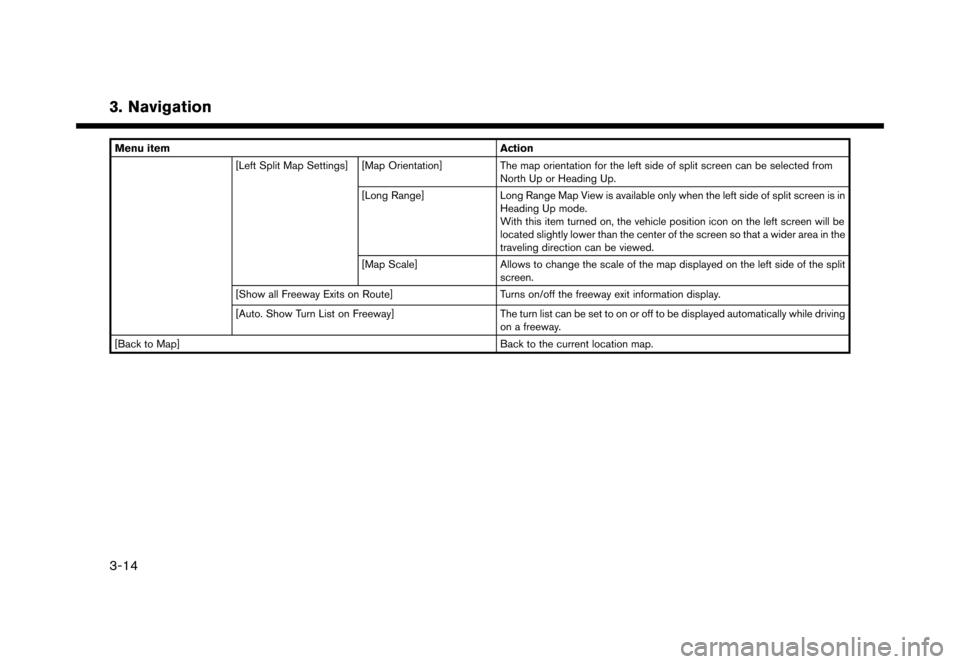

Menu itemAction
[Left Split Map Settings] [Map Orientation] The map orientation for the left side of split screen can be selected from
North Up or Heading Up.
[Long Range] Long Range Map View is available only when the left side of split screen is in
Heading Up mode.
With this item turned on, the vehicle position icon on the left screen will be
located slightly lower than the center of the screen so that a wider area in the
traveling direction can be viewed.
[Map Scale] Allows to change the scale of the map displayed on the left side of the split
screen.
[Show all Freeway Exits on Route] Turns on/off the freeway exit information display.
[Auto. Show Turn List on Freeway] The turn list can be set to on or off to be displayed automatically while driving
on a freeway.
[Back to Map] Back to the current location map.
&RQGLWLRQ
3-14
