2016 NISSAN LEAF display


> (GLW    0RGHO (1-1 (91$01&*. @

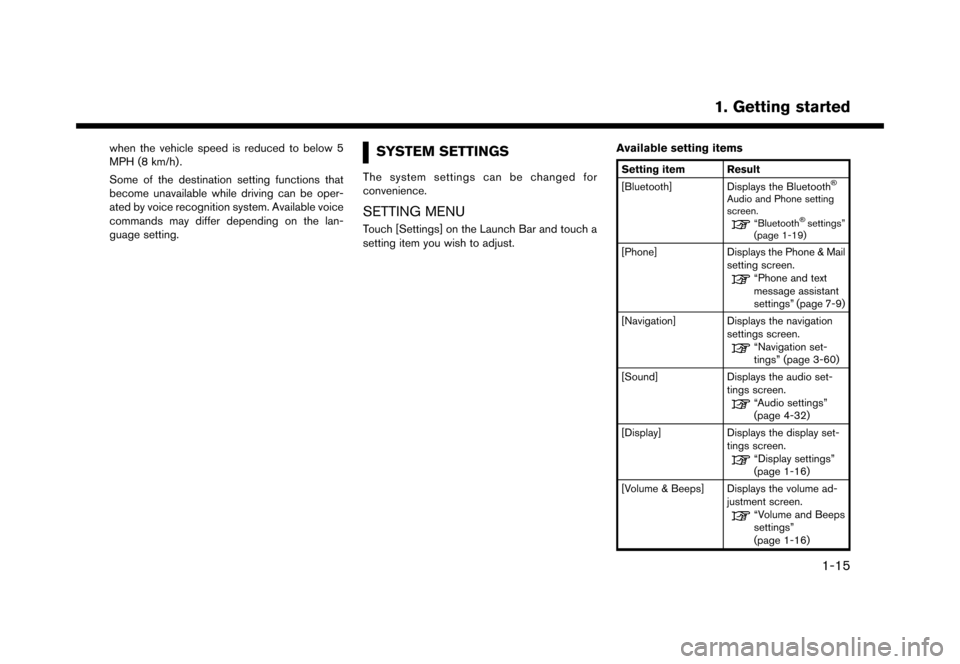

when the vehicle speed is reduced to below 5
MPH (8 km/h) .
Some of the destination setting functions that
become unavailable while driving can be oper-
ated by voice recognition system. Available voice
commands may differ depending on the lan-
guage setting.SYSTEM SETTINGSENJN1502-120906-811B4F8E-8E41-435D-BA44-76204FB0B276The system settings can be changed for
convenience.
SETTING MENUENJN1502-12A7E9D2-EBD5-4390-9640-2629B7A307F5Touch [Settings] on the Launch Bar and touch a
setting item you wish to adjust.Available setting items
Setting item Result
[Bluetooth]
Displays the Bluetooth


> (GLW    0RGHO (1-1 (91$01&*. @

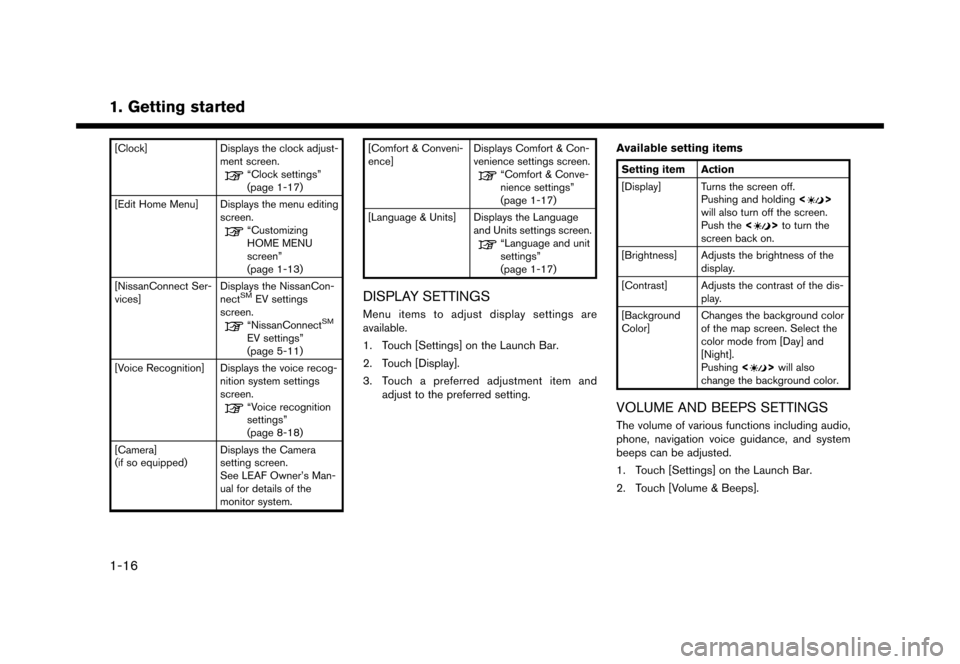

[Clock]Displays the clock adjust-
ment screen.
ªClock settingsº
(page 1-17)
[Edit Home Menu] Displays the menu editing screen.
ªCustomizing
HOME MENU
screenº
(page 1-13)
[NissanConnect Ser-
vices] Displays the NissanCon-
nect
SMEV settings
screen.
ªNissanConnectSM
EV settingsº
(page 5-11)
[Voice Recognition] Displays the voice recog- nition system settings
screen.
ªVoice recognition
settingsº
(page 8-18)
[Camera]
(if so equipped) Displays the Camera
setting screen.
See LEAF Owner's Man-
ual for details of the
monitor system. [Comfort & Conveni-
ence]
Displays Comfort & Con-
venience settings screen.
ªComfort & Conve-
nience settingsº
(page 1-17)
[Language & Units] Displays the Language and Units settings screen.
ªLanguage and unit
settingsº
(page 1-17)
DISPLAY SETTINGSENJN1502-120906-6BF6BB79-7BC5-47FC-AE67-09BC1505C4C5Menu items to adjust display settings are
available.
1. Touch [Settings] on the Launch Bar.
2. Touch [Display].
3.Touch a preferred adjustment item and
adjust to the preferred setting. Available setting items
Setting item Action
[Display] Turns the screen off.
Pushing and holding <
>
will also turn off the screen.
Push the <
>to turn the
screen back on.
[Brightness] Adjusts the brightness of the display.
[Contrast] Adjusts the contrast of the dis- play.
[Background
Color] Changes the background color
of the map screen. Select the
color mode from [Day] and
[Night].
Pushing
<
>will also
change the background color.
VOLUME AND BEEPS SETTINGSENJN1502-120906-210F184A-892E-4546-8D2A-0868DA7C4F52The volume of various functions including audio,
phone, navigation voice guidance, and system
beeps can be adjusted.
1. Touch [Settings] on the Launch Bar.
2. Touch [Volume & Beeps].
&RQGLWLRQ
1-16
1. Getting started


> (GLW    0RGHO (1-1 (91$01&*. @

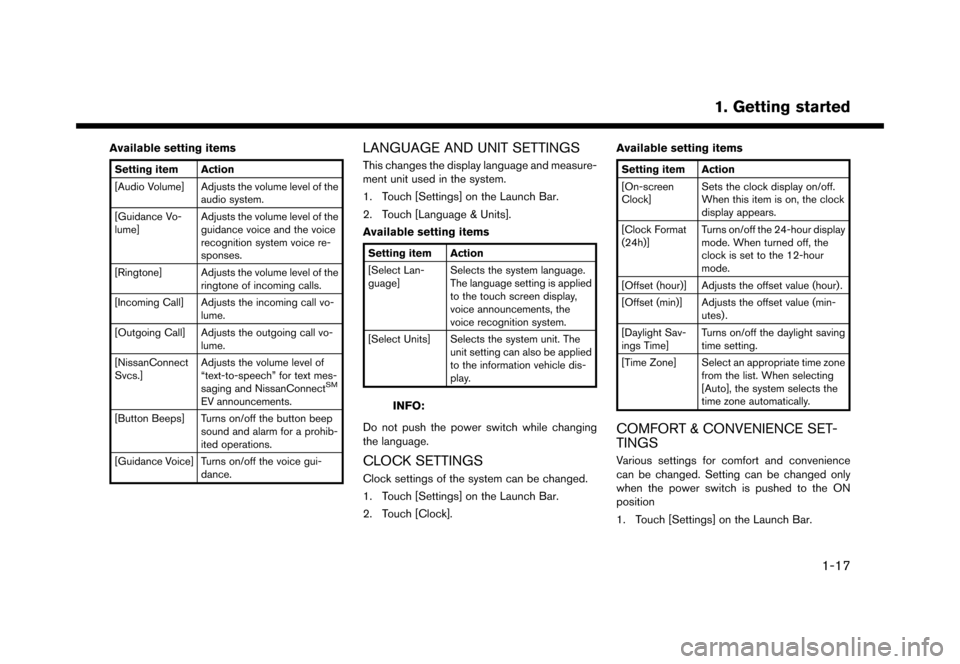

Available setting items
Setting item Action
[Audio Volume] Adjusts the volume level of theaudio system.
[Guidance Vo-
lume] Adjusts the volume level of the
guidance voice and the voice
recognition system voice re-
sponses.
[Ringtone] Adjusts the volume level of the ringtone of incoming calls.
[Incoming Call] Adjusts the incoming call vo- lume.
[Outgoing Call] Adjusts the outgoing call vo- lume.
[NissanConnect
Svcs.] Adjusts the volume level of
ªtext-to-speechº for text mes-
saging and NissanConnect
SM
EV announcements.
[Button Beeps] Turns on/off the button beep sound and alarm for a prohib-
ited operations.
[Guidance Voice] Turns on/off the voice gui- dance.
LANGUAGE AND UNIT SETTINGSENJN1502-120906-D7E9171E-3B1C-414A-AD30-925AD34D89F6This changes the display language and measure-
ment unit used in the system.
1. Touch [Settings] on the Launch Bar.
2. Touch [Language & Units].
Available setting items
Setting item Action
[Select Lan-
guage]Selects the system language.
The language setting is applied
to the touch screen display,
voice announcements, the
voice recognition system.
[Select Units] Selects the system unit. The unit setting can also be applied
to the information vehicle dis-
play.
INFO:
Do not push the power switch while changing
the language.
CLOCK SETTINGSENJN1502-120906-6FB05DB7-7A72-4B43-A7A5-4796C1370711Clock settings of the system can be changed.
1. Touch [Settings] on the Launch Bar.
2. Touch [Clock]. Available setting items
Setting item Action
[On-screen
Clock]
Sets the clock display on/off.
When this item is on, the clock
display appears.
[Clock Format
(24h)] Turns on/off the 24-hour display
mode. When turned off, the
clock is set to the 12-hour
mode.
[Offset (hour)] Adjusts the offset value (hour).
[Offset (min)] Adjusts the offset value (min- utes) .
[Daylight Sav-
ings Time] Turns on/off the daylight saving
time setting.
[Time Zone] Select an appropriate time zone from the list. When selecting
[Auto], the system selects the
time zone automatically.
COMFORT & CONVENIENCE SET-
TINGS
GUID-BB459D47-60AB-466A-9D4B-595A30F234D3Various settings for comfort and convenience
can be changed. Setting can be changed only
when the power switch is pushed to the ON
position
1. Touch [Settings] on the Launch Bar.
&RQGLWLRQ
1-17
1. Getting started


> (GLW    0RGHO (1-1 (91$01&*. @

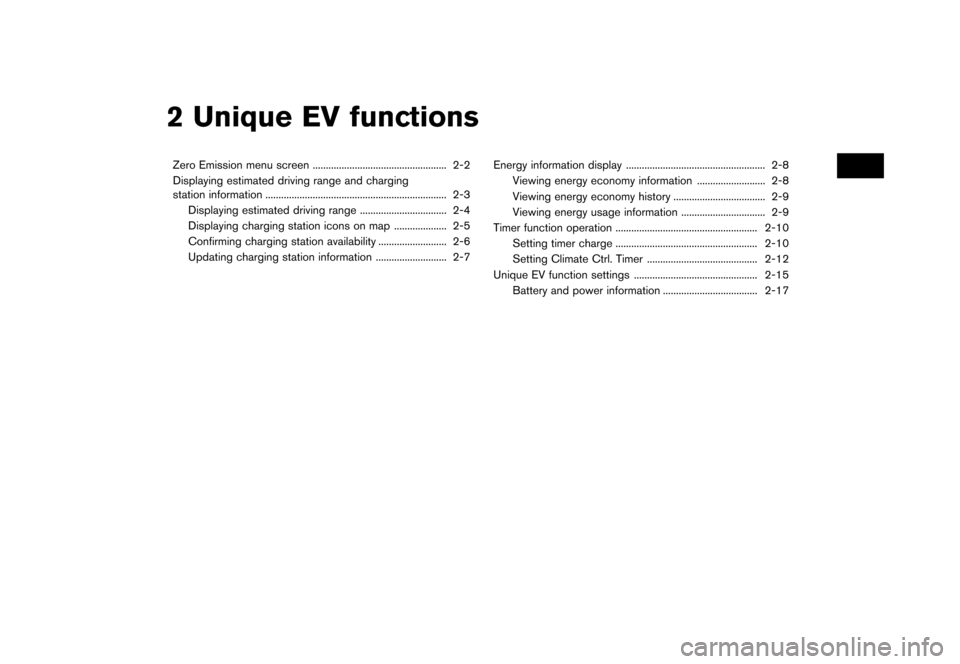

2 Unique EV functions
Zero Emission menu screen...
................................................... 2-2
Displaying estimated driving range and charging
station information ...
..................................................................... 2-3
Displaying estimated driving range ...
................................. 2-4
Displaying charging station icons on map ...
.................... 2-5
Confirming charging station availability ...
.......................... 2-6
Updating charging station information ...
........................... 2-7 Energy information display
...
..................................................... 2-8
Viewing energy economy information ...
.......................... 2-8
Viewing energy economy history ...
................................... 2-9
Viewing energy usage information ...
................................ 2-9
Timer function operation ...
...................................................... 2-10
Setting timer charge ...
...................................................... 2-10
Setting Climate Ctrl. Timer ...
.......................................... 2-12
Unique EV function settings ...
............................................... 2-15
Battery and power information ...
.................................... 2-17
&RQGLWLRQ


> (GLW    0RGHO (1-1 (91$01&*. @

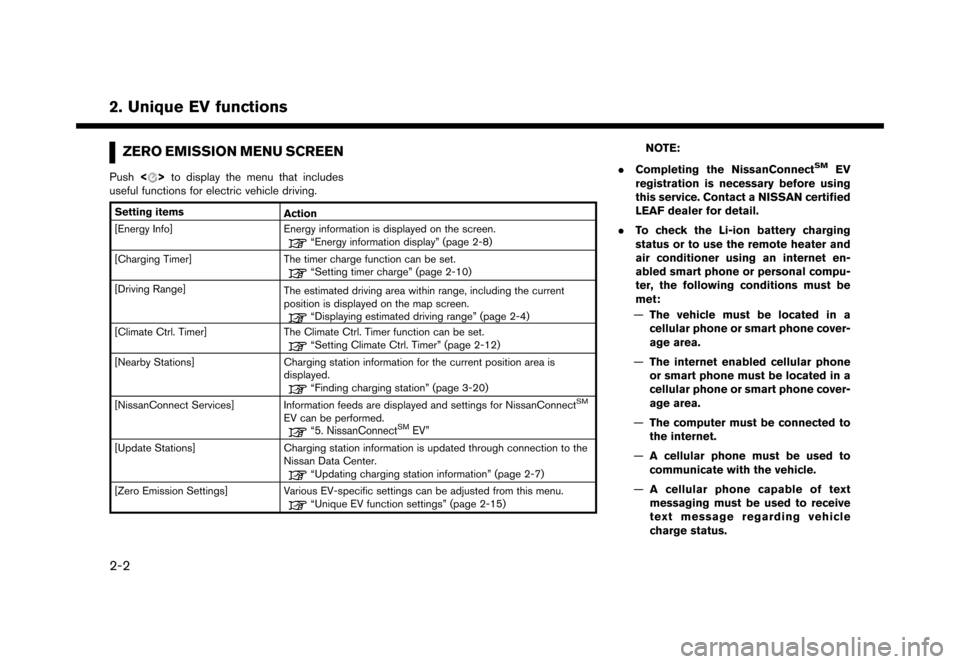

ZERO EMISSION MENU SCREENGUID-0B556DA0-16EA-44EF-A128-A7B649168153Push<>to display the menu that includes
useful functions for electric vehicle driving.
Setting items Action
[Energy Info] Energy information is displayed on the screen.
ªEnergy information displayº (page 2-8)
[Charging Timer] The timer charge function can be set.
ªSetting timer chargeº (page 2-10)
[Driving Range] The estimated driving area within range, including the current
position is displayed on the map screen.
ªDisplaying estimated driving rangeº (page 2-4)
[Climate Ctrl. Timer] The Climate Ctrl. Timer function can be set.
ªSetting Climate Ctrl. Timerº (page 2-12)
[Nearby Stations] Charging station information for the current position area is
displayed.
ªFinding charging stationº (page 3-20)
[NissanConnect Services] Information feeds are displayed and settings for NissanConnectSM
EV can be performed.ª5. NissanConnectSMEVº
[Update Stations] Charging station information is updated through connection to the
Nissan Data Center.
ªUpdating charging station informationº (page 2-7)
[Zero Emission Settings] Various EV-specific settings can be adjusted from this menu.
ªUnique EV function settingsº (page 2-15)
NOTE:
. Completing the NissanConnect
SMEV
registration is necessary before using
this service. Contact a NISSAN certified
LEAF dealer for detail.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
Ð The vehicle must be located in a
cellular phone or smart phone cover-
age area.
Ð The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cover-
age area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
&RQGLWLRQ
2-2
2. Unique EV functions


> (GLW    0RGHO (1-1 (91$01&*. @

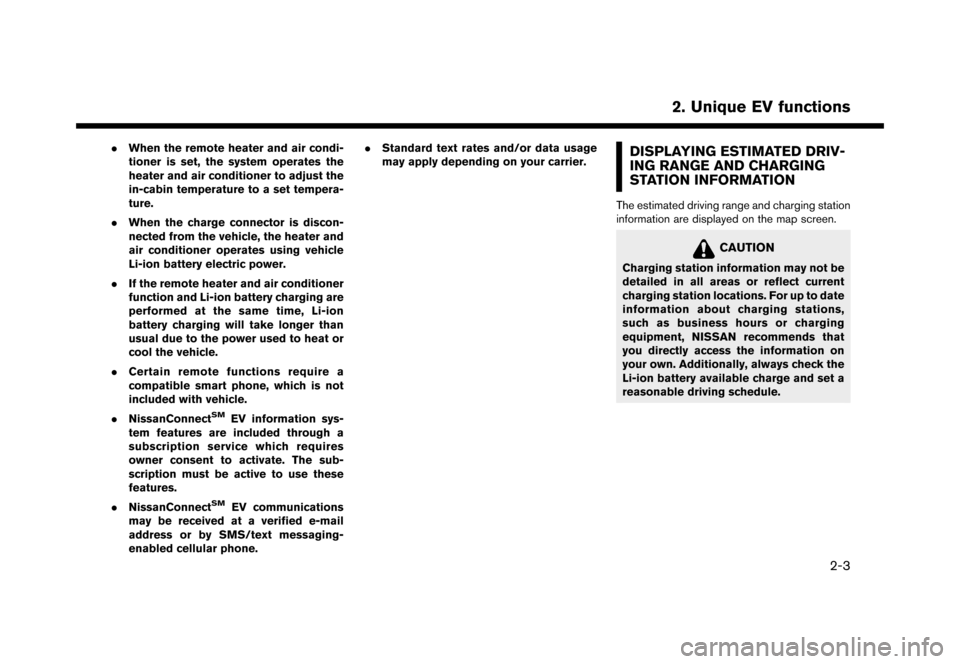

.When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
. When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle.
. Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. NissanConnect
SMEV information sys-
tem features are included through a
subscription service which requires
owner consent to activate. The sub-
scription must be active to use these
features.
. NissanConnect
SMEV communications
may be received at a verified e-mail
address or by SMS/text messaging-
enabled cellular phone. .
Standard text rates and/or data usage
may apply depending on your carrier.
DISPLAYING ESTIMATED DRIV-
ING RANGE AND CHARGING
STATION INFORMATION
GUID-3547CBE8-B5E6-4B39-BD39-CB8D4ABED3E9The estimated driving range and charging station
information are displayed on the map screen.
CAUTION*8,'%)()%%(%%'Charging station information may not be
detailed in all areas or reflect current
charging station locations. For up to date
information about charging stations,
such as business hours or charging
equipment, NISSAN recommends that
you directly access the information on
your own. Additionally, always check the
Li-ion battery available charge and set a
reasonable driving schedule.
&RQGLWLRQ
2-3
2. Unique EV functions


> (GLW    0RGHO (1-1 (91$01&*. @

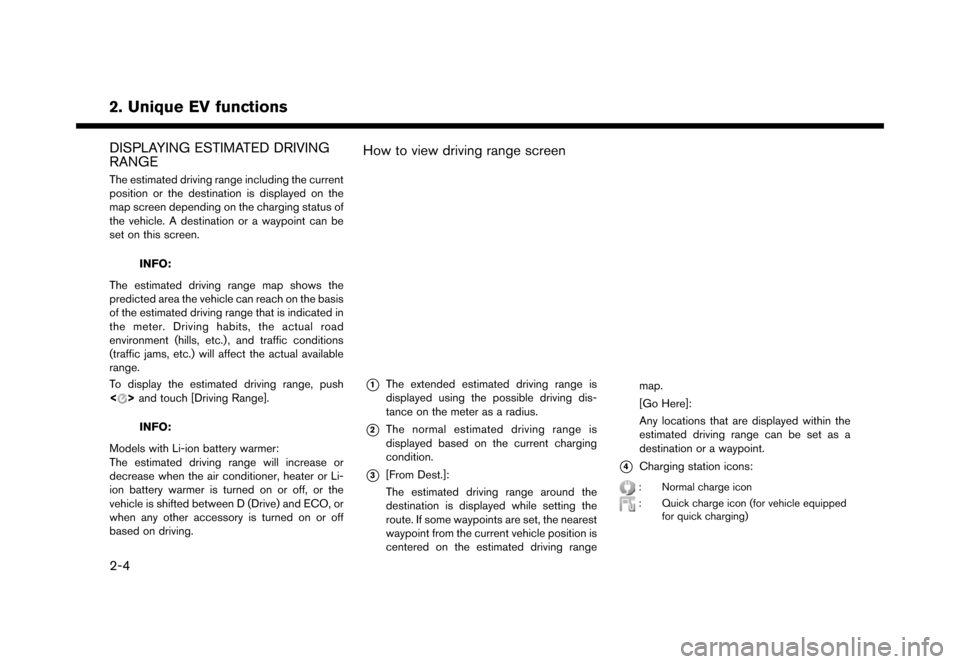

DISPLAYING ESTIMATED DRIVING
RANGE
GUID-CD58EAB3-6940-41B9-BB37-A57DC48A6C6EThe estimated driving range including the current
position or the destination is displayed on the
map screen depending on the charging status of
the vehicle. A destination or a waypoint can be
set on this screen.
INFO:
The estimated driving range map shows the
predicted area the vehicle can reach on the basis
of the estimated driving range that is indicated in
the meter. Driving habits, the actual road
environment (hills, etc.) , and traffic conditions
(traffic jams, etc.) will affect the actual available
range.
To display the estimated driving range, push
<
> and touch [Driving Range].
INFO:
Models with Li-ion battery warmer:
The estimated driving range will increase or
decrease when the air conditioner, heater or Li-
ion battery warmer is turned on or off, or the
vehicle is shifted between D (Drive) and ECO, or
when any other accessory is turned on or off
based on driving.
How to view driving range screenGUID-357E2F9E-C5DA-4876-942B-E7D3681F8F87
5GH0389X*1The extended estimated driving range is
displayed using the possible driving dis-
tance on the meter as a radius.
*2The normal estimated driving range is
displayed based on the current charging
condition.
*3[From Dest.]:
The estimated driving range around the
destination is displayed while setting the
route. If some waypoints are set, the nearest
waypoint from the current vehicle position is
centered on the estimated driving range map.
[Go Here]:
Any locations that are displayed within the
estimated driving range can be set as a
destination or a waypoint.*4Charging station icons:
: Normal charge icon
: Quick charge icon (for vehicle equipped
for quick charging)
&RQGLWLRQ
2-4
2. Unique EV functions


> (GLW    0RGHO (1-1 (91$01&*. @

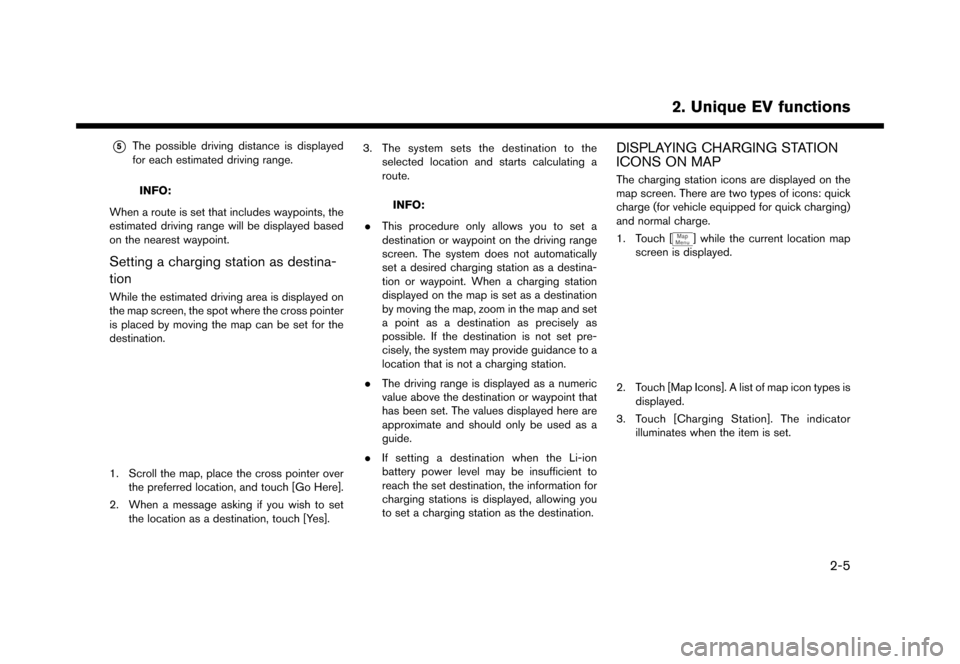

*5The possible driving distance is displayed
for each estimated driving range.
INFO:
When a route is set that includes waypoints, the
estimated driving range will be displayed based
on the nearest waypoint.
Setting a charging station as destina-
tion
GUID-0C70561D-71EE-4110-8A16-7ECC39286653While the estimated driving area is displayed on
the map screen, the spot where the cross pointer
is placed by moving the map can be set for the
destination.
5GH0390X
1. Scroll the map, place the cross pointer over the preferred location, and touch [Go Here].
2. When a message asking if you wish to set the location as a destination, touch [Yes]. 3.
The system sets the destination to the
selected location and starts calculating a
route.
INFO:
. This procedure only allows you to set a
destination or waypoint on the driving range
screen. The system does not automatically
set a desired charging station as a destina-
tion or waypoint. When a charging station
displayed on the map is set as a destination
by moving the map, zoom in the map and set
a point as a destination as precisely as
possible. If the destination is not set pre-
cisely, the system may provide guidance to a
location that is not a charging station.
. The driving range is displayed as a numeric
value above the destination or waypoint that
has been set. The values displayed here are
approximate and should only be used as a
guide.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
DISPLAYING CHARGING STATION
ICONS ON MAP
GUID-C5693920-C5B4-41AD-B63A-A2C62BD84716The charging station icons are displayed on the
map screen. There are two types of icons: quick
charge (for vehicle equipped for quick charging)
and normal charge.
1. Touch [
] while the current location map
screen is displayed.
5GH0391X
2. Touch [Map Icons]. A list of map icon types is displayed.
3. Touch [Charging Station]. The indicator
illuminates when the item is set.
&RQGLWLRQ
2-5
2. Unique EV functions
