> (GLW    0RGHO (1-1 (91$01&*. @

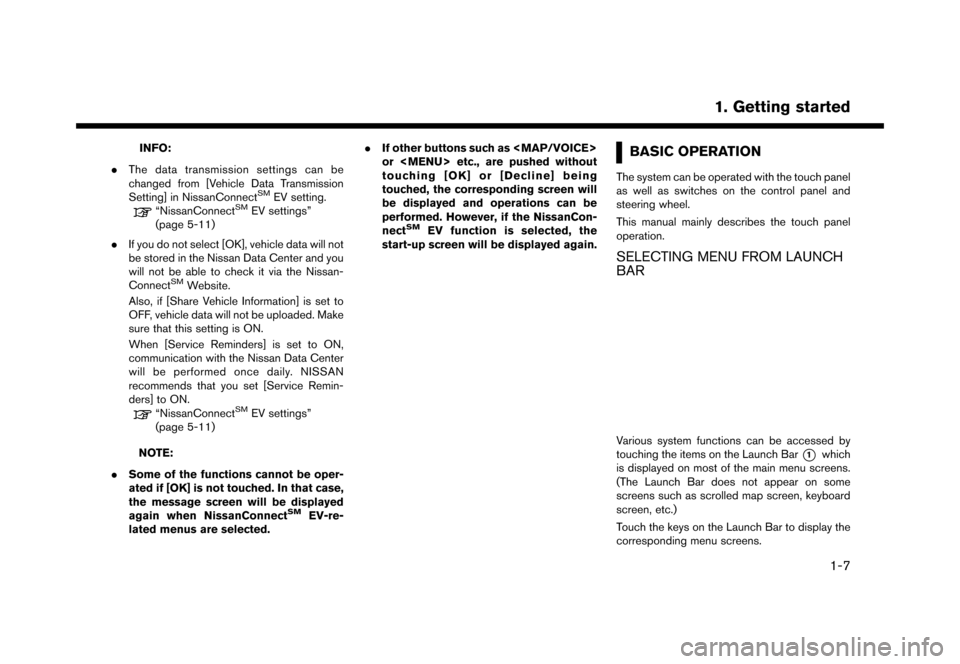

INFO:
. The data transmission settings can be
changed from [Vehicle Data Transmission
Setting] in NissanConnect
SMEV setting.
ªNissanConnectSMEV settingsº
(page 5-11)
. If you do not select [OK], vehicle data will not
be stored in the Nissan Data Center and you
will not be able to check it via the Nissan-
Connect
SMWebsite.
Also, if [Share Vehicle Information] is set to
OFF, vehicle data will not be uploaded. Make
sure that this setting is ON.
When [Service Reminders] is set to ON,
communication with the Nissan Data Center
will be performed once daily. NISSAN
recommends that you set [Service Remin-
ders] to ON.
ªNissanConnectSMEV settingsº
(page 5-11)
NOTE:
. Some of the functions cannot be oper-
ated if [OK] is not touched. In that case,
the message screen will be displayed
again when NissanConnect
SMEV-re-
lated menus are selected. .
If other buttons such as


> (GLW    0RGHO (1-1 (91$01&*. @

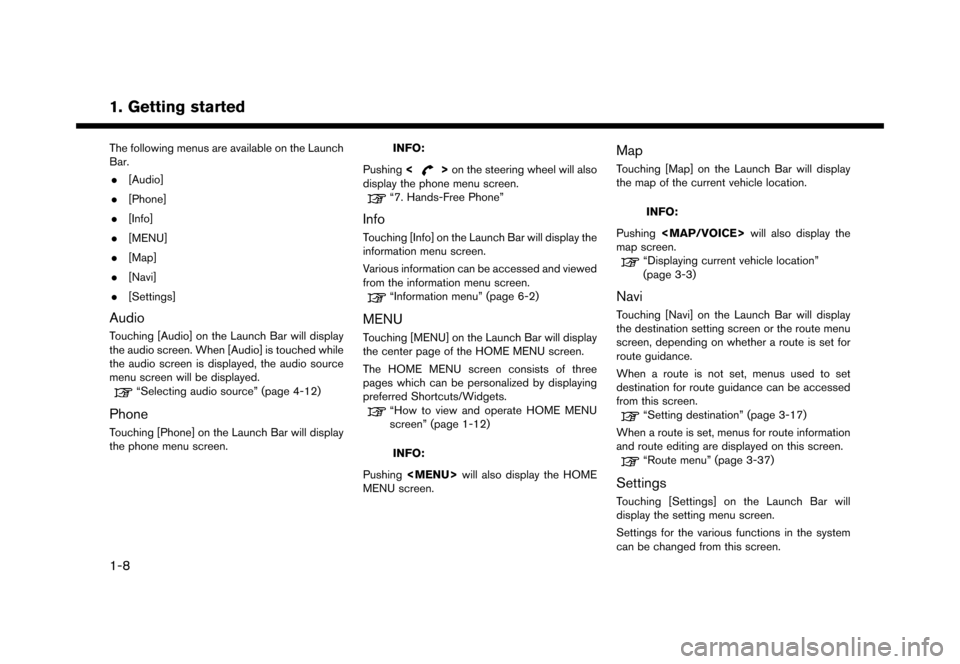

The following menus are available on the Launch
Bar.. [Audio]
. [Phone]
. [Info]
. [MENU]
. [Map]
. [Navi]
. [Settings]
AudioENJN1502-649C8501-BB6A-4900-9AEA-0E10ACEA7886Touching [Audio] on the Launch Bar will display
the audio screen. When [Audio] is touched while
the audio screen is displayed, the audio source
menu screen will be displayed.
ªSelecting audio sourceº (page 4-12)
PhoneENJN1502-00670E9F-9C30-4E03-8180-E7102B9A1334Touching [Phone] on the Launch Bar will display
the phone menu screen.
INFO:
Pushing <
>on the steering wheel will also
display the phone menu screen.
ª7. Hands-Free Phoneº
InfoENJN1502-7F13F423-D51C-41BB-94D7-9102D5ACE188Touching [Info] on the Launch Bar will display the
information menu screen.
Various information can be accessed and viewed
from the information menu screen.
ªInformation menuº (page 6-2)
MENUENJN1502-3221B48E-FC0A-4AE2-B6F2-C160846A0358Touching [MENU] on the Launch Bar will display
the center page of the HOME MENU screen.
The HOME MENU screen consists of three
pages which can be personalized by displaying
preferred Shortcuts/Widgets.
ªHow to view and operate HOME MENU
screenº (page 1-12)
INFO:
Pushing


> (GLW    0RGHO (1-1 (91$01&*. @

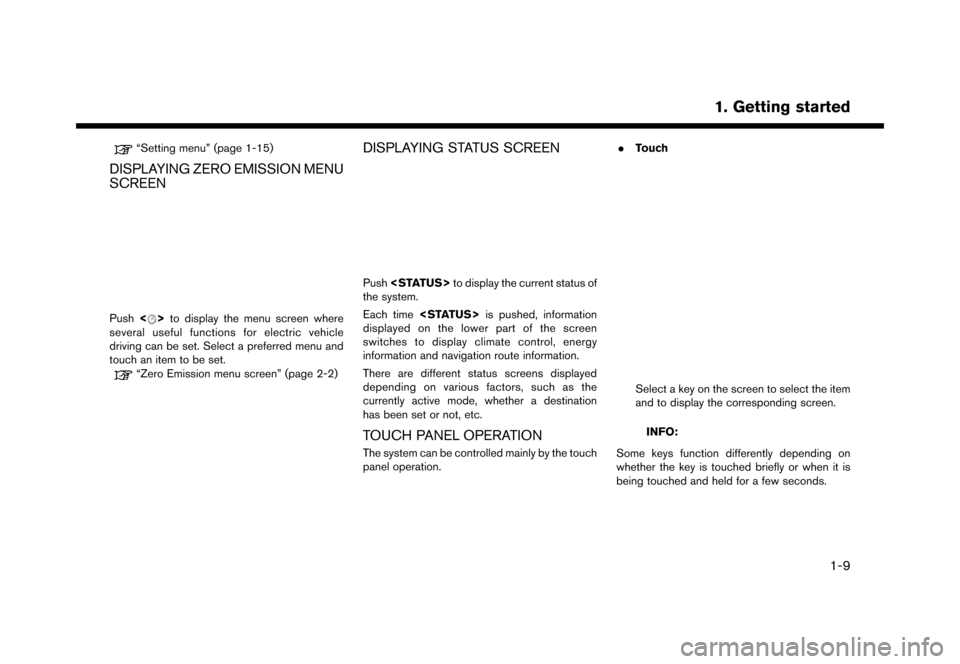

ªSetting menuº (page 1-15)
DISPLAYING ZERO EMISSION MENU
SCREEN
GUID-403CEF3B-E1E5-4FB3-BB7A-F0EF3E2ACA65
5GH0384X
Push<>to display the menu screen where
several useful functions for electric vehicle
driving can be set. Select a preferred menu and
touch an item to be set.
ªZero Emission menu screenº (page 2-2)
DISPLAYING STATUS SCREENGUID-4139B300-0004-48B7-AB0D-585AD882726B
5GH0385X
Push to display the current status of
the system.
Each time is pushed, information
displayed on the lower part of the screen
switches to display climate control, energy
information and navigation route information.
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
TOUCH PANEL OPERATIONENJN1502-A1BF9C2C-4643-4997-9E6E-93C94C9905ECThe system can be controlled mainly by the touch
panel operation. .
Touch
5GH0386X
Select a key on the screen to select the item
and to display the corresponding screen.
INFO:
Some keys function differently depending on
whether the key is touched briefly or when it is
being touched and held for a few seconds.
&RQGLWLRQ
1-9
1. Getting started


> (GLW    0RGHO (1-1 (91$01&*. @

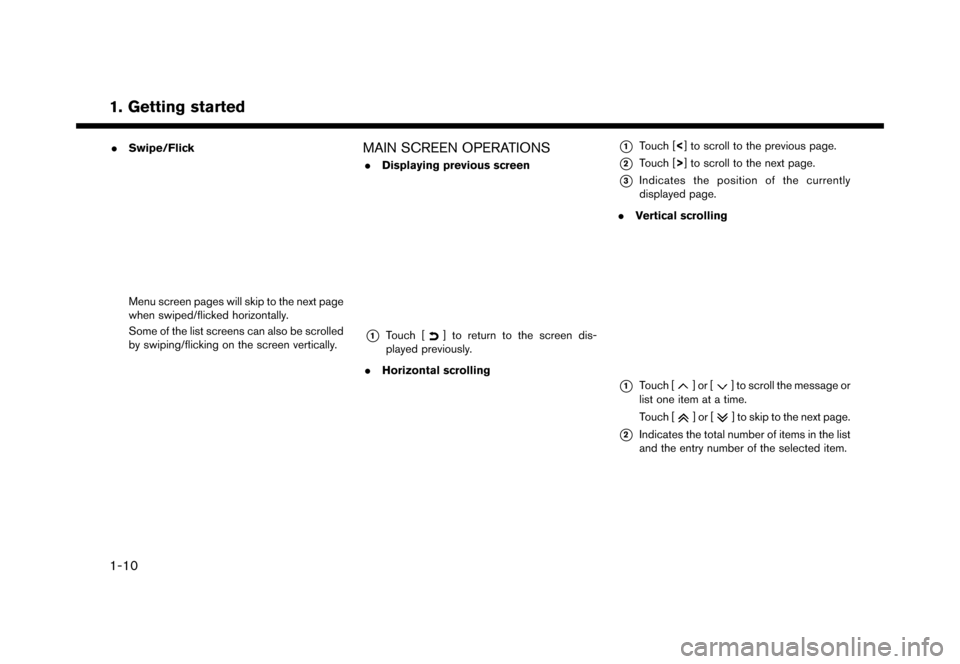

.Swipe/Flick
5GH0237X
Menu screen pages will skip to the next page
when swiped/flicked horizontally.
Some of the list screens can also be scrolled
by swiping/flicking on the screen vertically.
MAIN SCREEN OPERATIONSENJN1502-B2704A91-F2DB-44B4-827A-4CF2E650F379.Displaying previous screen
5GH0266X
*1Touch [] to return to the screen dis-
played previously.
. Horizontal scrolling
5GH0239X
*1Touch [<] to scroll to the previous page.
*2Touch [>] to scroll to the next page.
*3Indicates the position of the currently
displayed page.
. Vertical scrolling
5GH0240X
*1Touch [] or [] to scroll the message or
list one item at a time.
Touch [
] or [] to skip to the next page.
*2Indicates the total number of items in the list
and the entry number of the selected item.
&RQGLWLRQ
1-10
1. Getting started


> (GLW    0RGHO (1-1 (91$01&*. @

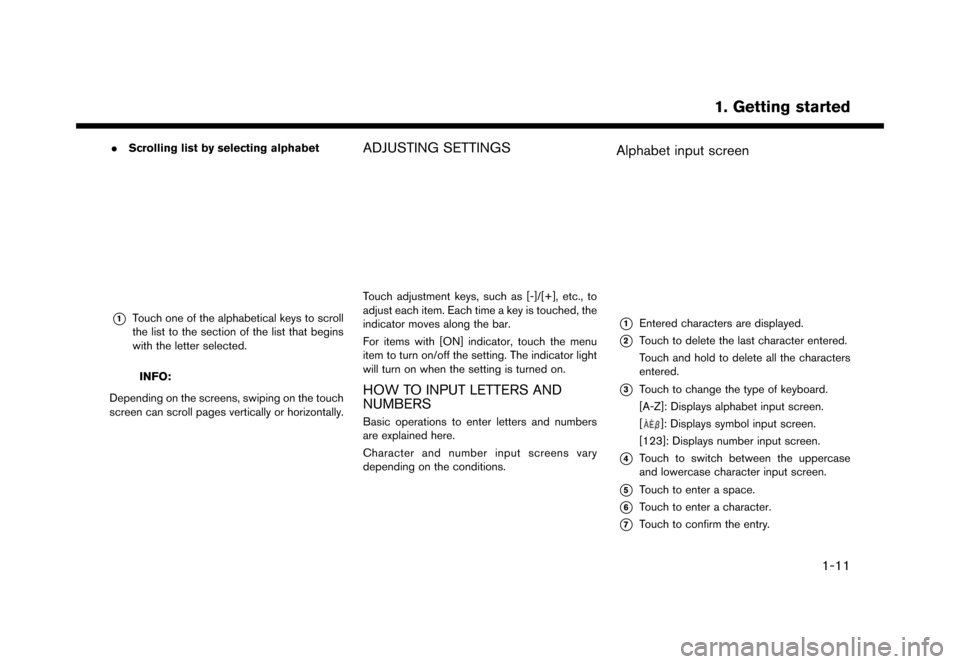

.Scrolling list by selecting alphabet
5GH0267X
*1Touch one of the alphabetical keys to scroll
the list to the section of the list that begins
with the letter selected.
INFO:
Depending on the screens, swiping on the touch
screen can scroll pages vertically or horizontally.
ADJUSTING SETTINGSENJN1502-120906-7511E082-9116-41D3-90B0-85329BDCEE4D
5GH0241X
Touch adjustment keys, such as [-]/[+], etc., to
adjust each item. Each time a key is touched, the
indicator moves along the bar.
For items with [ON] indicator, touch the menu
item to turn on/off the setting. The indicator light
will turn on when the setting is turned on.
HOW TO INPUT LETTERS AND
NUMBERS
ENJN1502-120906-95CCE032-178B-4697-8BFB-8BB9856AFD9CBasic operations to enter letters and numbers
are explained here.
Character and number input screens vary
depending on the conditions.
Alphabet input screenENJN1502-9244CA6E-8CE8-4E92-9F93-3F3D3E32096E
5GH0242X
*1Entered characters are displayed.
*2Touch to delete the last character entered.
Touch and hold to delete all the characters
entered.
*3Touch to change the type of keyboard.
[A-Z]: Displays alphabet input screen.
[
]: Displays symbol input screen.
[123]: Displays number input screen.
*4Touch to switch between the uppercase
and lowercase character input screen.
*5Touch to enter a space.
*6Touch to enter a character.
*7Touch to confirm the entry.
&RQGLWLRQ
1-11
1. Getting started


> (GLW    0RGHO (1-1 (91$01&*. @

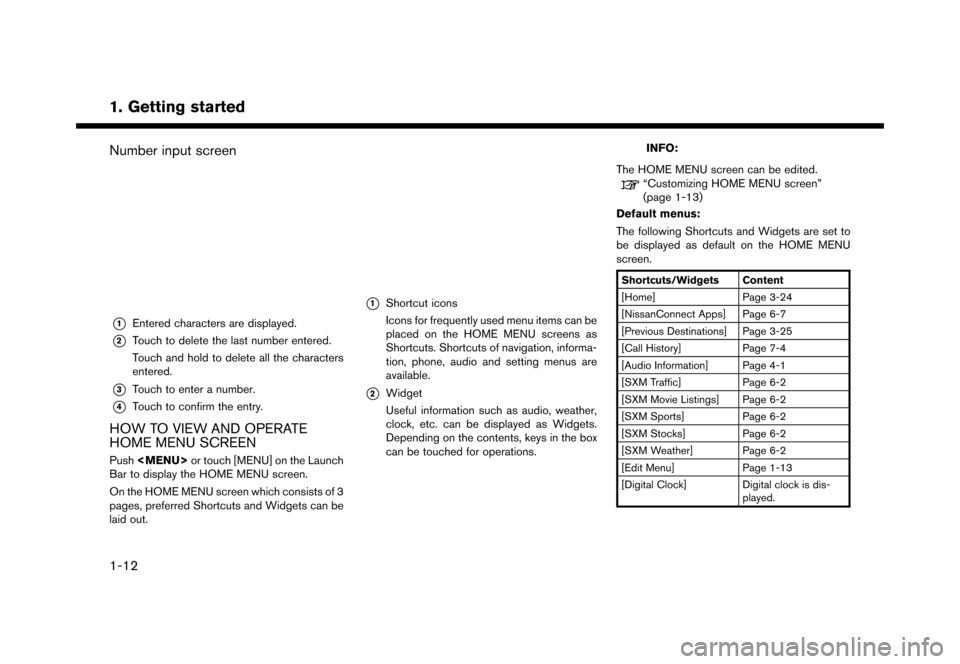

Number input screenENJN1502-BCECD62B-4D09-48C9-997D-360243F5586E
5GH0243X
*1Entered characters are displayed.
*2Touch to delete the last number entered.
Touch and hold to delete all the characters
entered.
*3Touch to enter a number.
*4Touch to confirm the entry.
HOW TO VIEW AND OPERATE
HOME MENU SCREEN
ENJN1502-CA23AE87-F50B-4970-A7BD-D9932C5241ABPush


> (GLW    0RGHO (1-1 (91$01&*. @

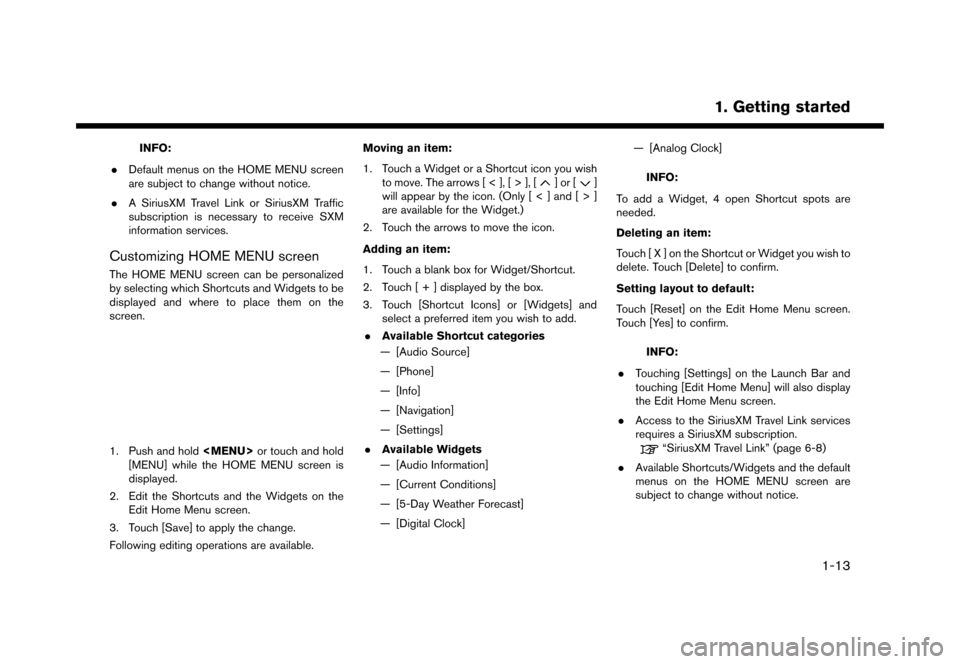

INFO:
. Default menus on the HOME MENU screen
are subject to change without notice.
. A SiriusXM Travel Link or SiriusXM Traffic
subscription is necessary to receive SXM
information services.
Customizing HOME MENU screenENJN1502-6891DABF-54F5-4264-BFFC-F75F8C5E4B9BThe HOME MENU screen can be personalized
by selecting which Shortcuts and Widgets to be
displayed and where to place them on the
screen.
5GH0257X
1. Push and hold


> (GLW    0RGHO (1-1 (91$01&*. @
FUNCTIONS DISABLED WHILE DRIVINGENJN1502-120906-96075C82-A5BC-42F2-A4C5-DF0BB2863C3F
5GH0268XExample
To ensure safe driving, some functions cannot be
operated or have limited operation while the
vehicle driving speed is 5 MPH (8 km/h) or
above.
The on-screen text and keys for these restricted
functions will be ªgrayed-outº or muted and
cannot be selected while driving. In some cases,
a screen message will appear indicating a
restricted function.
Restricted functions while driving include:. Character (letter and number) input screen.
. Scrolling and viewing of certain list screens
. Displaying detail information and touching
item on some information screen
. Adding/editing home location, address book
entries and current route
. Registering cellular phones
. Connecting Bluetooth
