2016 NISSAN LEAF display


> (GLW    0RGHO (1-1 (91$01&*. @

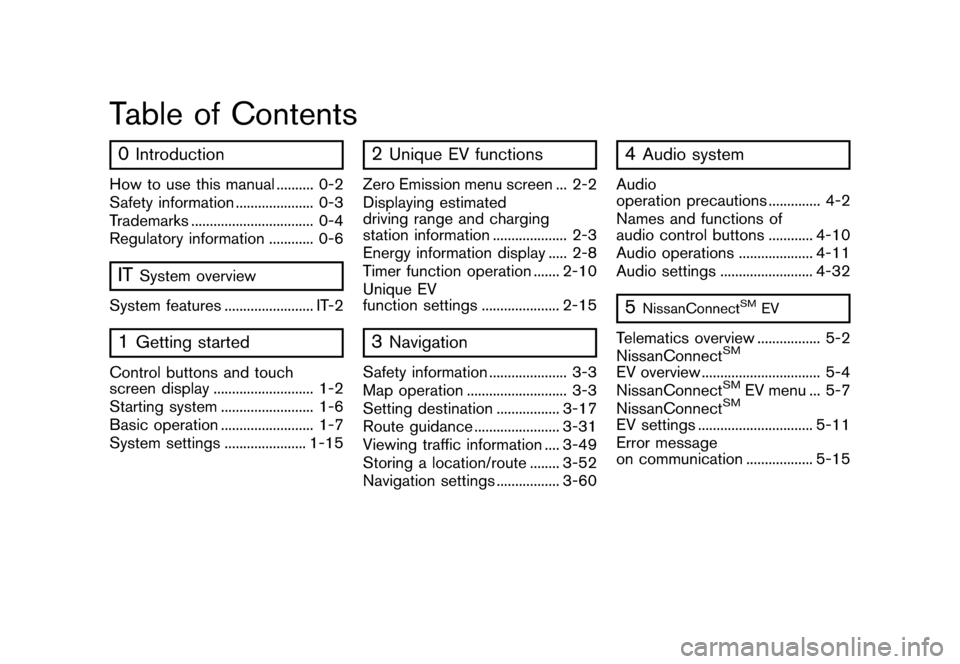

Table of Contents
0Introduction
How to use this manual...
.......... 0-2
Safety information ...
..................... 0-3
Trademarks ...
................................. 0-4
Regulatory information ...
............ 0-6
ITSystem overview
System features ...
........................ IT-2
1Getting started
Control buttons and touch
screen display ...
........................... 1-2
Starting system ...
......................... 1-6
Basic operation ...
......................... 1-7
System settings ...
...................... 1-15
2Unique EV functions
Zero Emission menu screen ...
... 2-2
Displaying estimated
driving range and charging
station information ...
.................... 2-3
Energy information display ...
..... 2-8
Timer function operation ...
....... 2-10
Unique EV
function settings ...
..................... 2-15
3Navigation
Safety information ...
..................... 3-3
Map operation ...
........................... 3-3
Setting destination ...
................. 3-17
Route guidance ...
....................... 3-31
Viewing traffic information ...
.... 3-49
Storing a location/route ...
........ 3-52
Navigation settings ...
................. 3-60
4Audio system
Audio
operation precautions ...
.............. 4-2
Names and functions of
audio control buttons ...
............ 4-10
Audio operations ...
.................... 4-11
Audio settings ...
......................... 4-32
5NissanConnectSMEV
Telematics overview ...
................. 5-2
NissanConnectSM
EV overview ...
................................ 5-4
NissanConnectSMEV menu ...
... 5-7
NissanConnectSM
EV settings ...
............................... 5-11
Error message
on communication ...
.................. 5-15
&RQGLWLRQ


> (GLW    0RGHO (1-1 (91$01&*. @

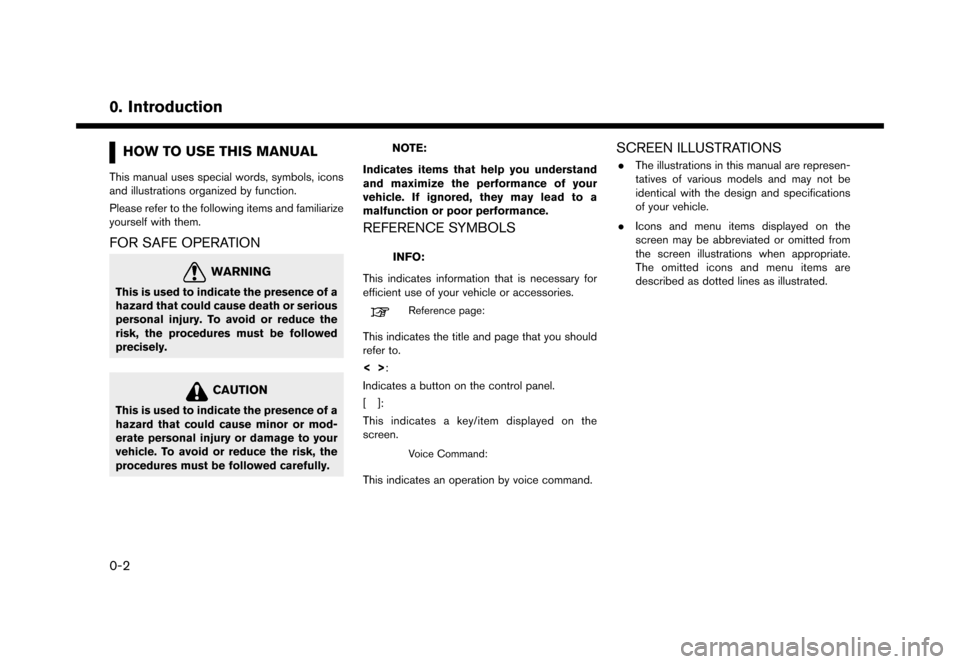

HOW TO USE THIS MANUALENJN1502-120906-D8FFB8FA-A072-42AA-8D6D-9FEA0AD9B6F9This manual uses special words, symbols, icons
and illustrations organized by function.
Please refer to the following items and familiarize
yourself with them.
FOR SAFE OPERATIONENJN1502-120906-AF356C63-BA5E-4B54-878D-6D8BA7D7E683
WARNING(1-1))$$''&$This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.
CAUTION(1-1))$)&($$%')$%)This is used to indicate the presence of a
hazard that could cause minor or mod-
erate personal injury or damage to your
vehicle. To avoid or reduce the risk, the
procedures must be followed carefully.
NOTE:
Indicates items that help you understand
and maximize the performance of your
vehicle. If ignored, they may lead to a
malfunction or poor performance.
REFERENCE SYMBOLSENJN1502-120906-A9CE57CF-4F6A-454A-9EF8-91C4E396725F
INFO:
This indicates information that is necessary for
efficient use of your vehicle or accessories.
Reference page:
This indicates the title and page that you should
refer to.
< >:
Indicates a button on the control panel.
[ ]:
This indicates a key/item displayed on the
screen.
Voice Command:
This indicates an operation by voice command.
SCREEN ILLUSTRATIONSENJN1502-5F699818-FF71-447B-881E-832E1898366B. The illustrations in this manual are represen-
tatives of various models and may not be
identical with the design and specifications
of your vehicle.
. Icons and menu items displayed on the
screen may be abbreviated or omitted from
the screen illustrations when appropriate.
The omitted icons and menu items are
described as dotted lines as illustrated.
5GH0263X
5GH0264X
&RQGLWLRQ
0-2
0. Introduction


> (GLW    0RGHO (1-1 (91$01&*. @

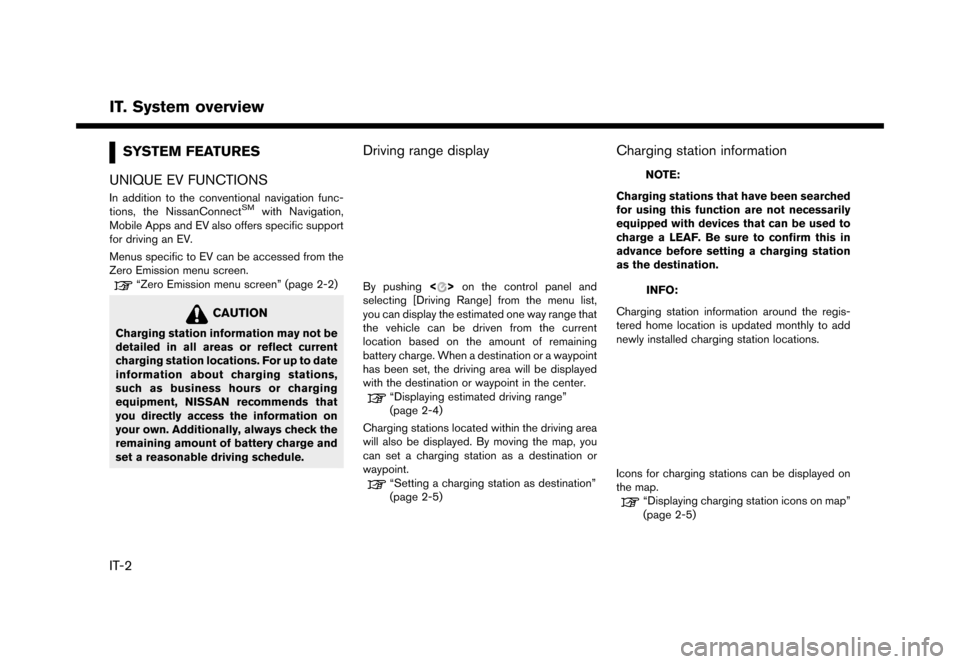

SYSTEM FEATURESGUID-8C259D90-7BE9-4690-AE5D-13383613B309
UNIQUE EV FUNCTIONSGUID-A787FECD-0388-4509-A4DB-0B0154121B2CIn addition to the conventional navigation func-
tions, the NissanConnectSMwith Navigation,
Mobile Apps and EV also offers specific support
for driving an EV.
Menus specific to EV can be accessed from the
Zero Emission menu screen.
ªZero Emission menu screenº (page 2-2)
CAUTION*8,'')$&)%$(&(%Charging station information may not be
detailed in all areas or reflect current
charging station locations. For up to date
information about charging stations,
such as business hours or charging
equipment, NISSAN recommends that
you directly access the information on
your own. Additionally, always check the
remaining amount of battery charge and
set a reasonable driving schedule.
Driving range displayGUID-B142A069-03FC-4FFC-93EB-1BCD55D1A802
5GA0113X
By pushing <>on the control panel and
selecting [Driving Range] from the menu list,
you can display the estimated one way range that
the vehicle can be driven from the current
location based on the amount of remaining
battery charge. When a destination or a waypoint
has been set, the driving area will be displayed
with the destination or waypoint in the center.
ªDisplaying estimated driving rangeº
(page 2-4)
Charging stations located within the driving area
will also be displayed. By moving the map, you
can set a charging station as a destination or
waypoint.
ªSetting a charging station as destinationº
(page 2-5)
Charging station informationGUID-D9EBB217-0CE0-4619-B18F-FB67CF2C4228
NOTE:
Charging stations that have been searched
for using this function are not necessarily
equipped with devices that can be used to
charge a LEAF. Be sure to confirm this in
advance before setting a charging station
as the destination.
INFO:
Charging station information around the regis-
tered home location is updated monthly to add
newly installed charging station locations.
5GH0451X
Icons for charging stations can be displayed on
the map.
ªDisplaying charging station icons on mapº
(page 2-5)
&RQGLWLRQ
IT-2
IT. System overview


> (GLW    0RGHO (1-1 (91$01&*. @
5GH0374X

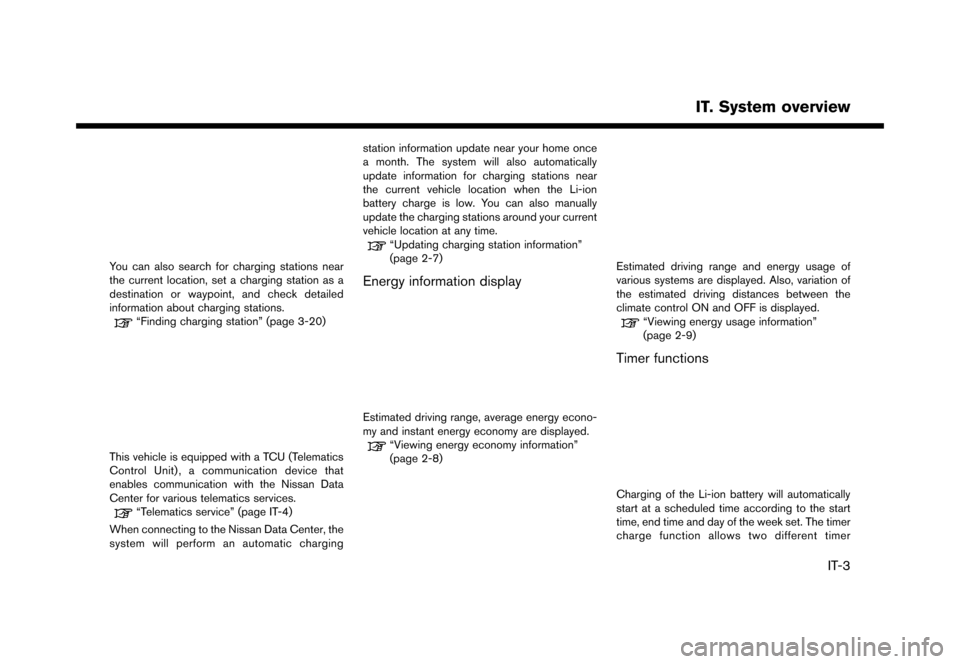

You can also search for charging stations near
the current location, set a charging station as a
destination or waypoint, and check detailed
information about charging stations.
ªFinding charging stationº (page 3-20)
5GH0375X
This vehicle is equipped with a TCU (Telematics
Control Unit) , a communication device that
enables communication with the Nissan Data
Center for various telematics services.
ªTelematics serviceº (page IT-4)
When connecting to the Nissan Data Center, the
system will perform an automatic charging station information update near your home once
a month. The system will also automatically
update information for charging stations near
the current vehicle location when the Li-ion
battery charge is low. You can also manually
update the charging stations around your current
vehicle location at any time.
ªUpdating charging station informationº
(page 2-7)
Energy information displayGUID-4CB444A9-385F-4183-901B-3504EF8C1BFA
5GH0376X
Estimated driving range, average energy econo-
my and instant energy economy are displayed.
ªViewing energy economy informationº
(page 2-8)
5GH0377X
Estimated driving range and energy usage of
various systems are displayed. Also, variation of
the estimated driving distances between the
climate control ON and OFF is displayed.
ªViewing energy usage informationº
(page 2-9)
Timer functionsGUID-6C3E67B8-8E0F-4DC4-8640-9C26C98270CB
5GH0378X
Charging of the Li-ion battery will automatically
start at a scheduled time according to the start
time, end time and day of the week set. The timer
charge function allows two different timer
&RQGLWLRQ
IT-3
IT. System overview


> (GLW    0RGHO (1-1 (91$01&*. @

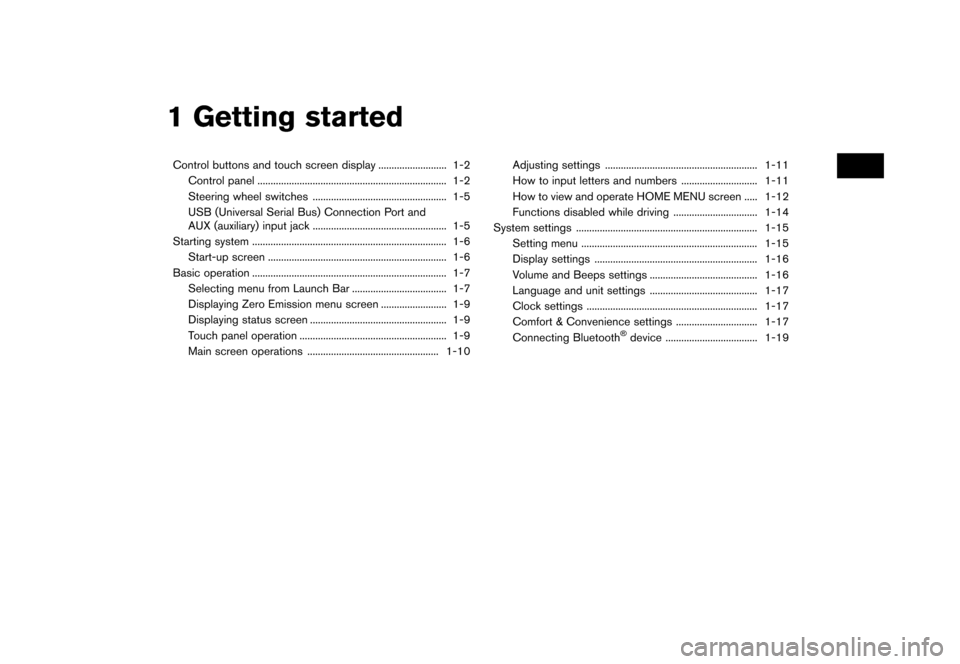

1 Getting started
Control buttons and touch screen display...
.......................... 1-2
Control panel ...
........................................................................\
1-2
Steering wheel switches ...
................................................... 1-5
USB (Universal Serial Bus) Connection Port and
AUX (auxiliary) input jack ...
................................................... 1-5
Starting system ...
........................................................................\
.. 1-6
Start-up screen ...
.................................................................... 1-6
Basic operation ...
........................................................................\
.. 1-7
Selecting menu from Launch Bar ...
.................................... 1-7
Displaying Zero Emission menu screen ...
......................... 1-9
Displaying status screen ...
.................................................... 1-9
Touch panel operation ...
........................................................ 1-9
Main screen operations ...
.................................................. 1-10 Adjusting settings
...
.......................................................... 1-11
How to input letters and numbers ...
............................. 1-11
How to view and operate HOME MENU screen ...
..... 1-12
Functions disabled while driving ...
................................ 1-14
System settings ...
..................................................................... 1-15
Setting menu ...
................................................................... 1-15
Display settings ...
.............................................................. 1-16
Volume and Beeps settings ...
......................................... 1-16
Language and unit settings ...
......................................... 1-17
Clock settings ...
................................................................. 1-17
Comfort & Convenience settings ...
............................... 1-17
Connecting Bluetooth


> (GLW    0RGHO (1-1 (91$01&*. @

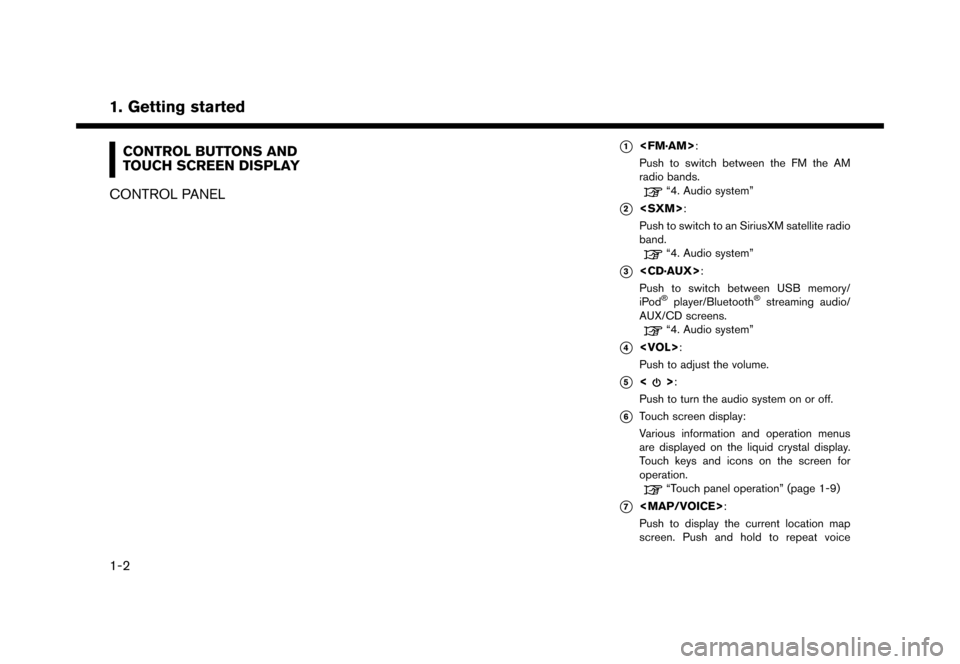

CONTROL BUTTONS AND
TOUCH SCREEN DISPLAY
ENJN1502-1D7E0D66-C372-4533-A154-A968B3FBAE87
CONTROL PANELENJN1502-0F79FBFA-8617-4697-9F42-8714291E5E6B
5GH0381X
*1:
Push to switch between the FM the AM
radio bands.
ª4. Audio systemº
*2:
Push to switch to an SiriusXM satellite radio
band.
ª4. Audio systemº
*3:
Push to switch between USB memory/
iPod


> (GLW    0RGHO (1-1 (91$01&*. @

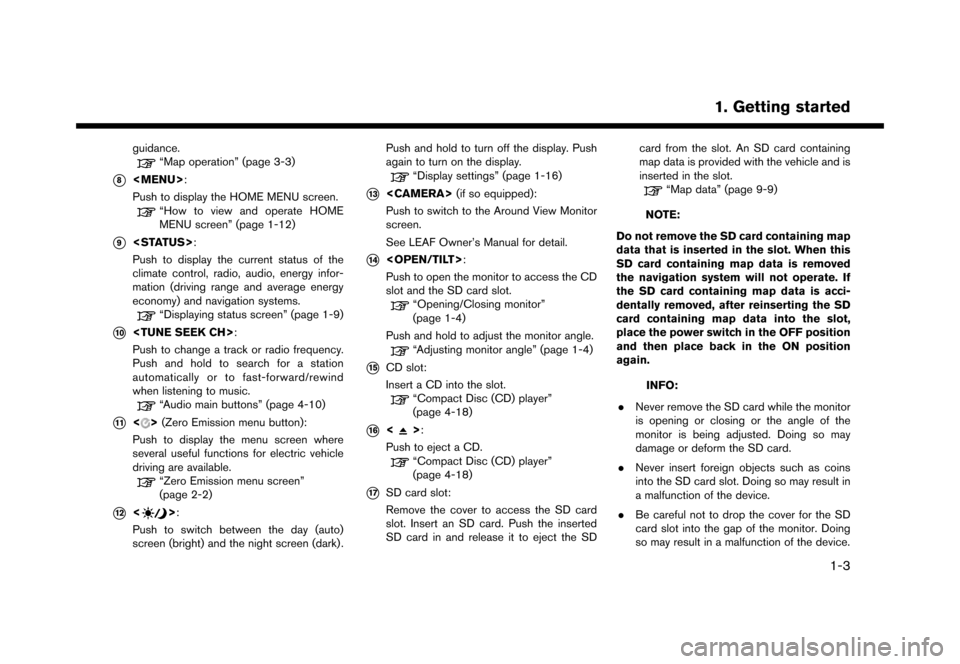

guidance.
ªMap operationº (page 3-3)
*8


> (GLW    0RGHO (1-1 (91$01&*. @

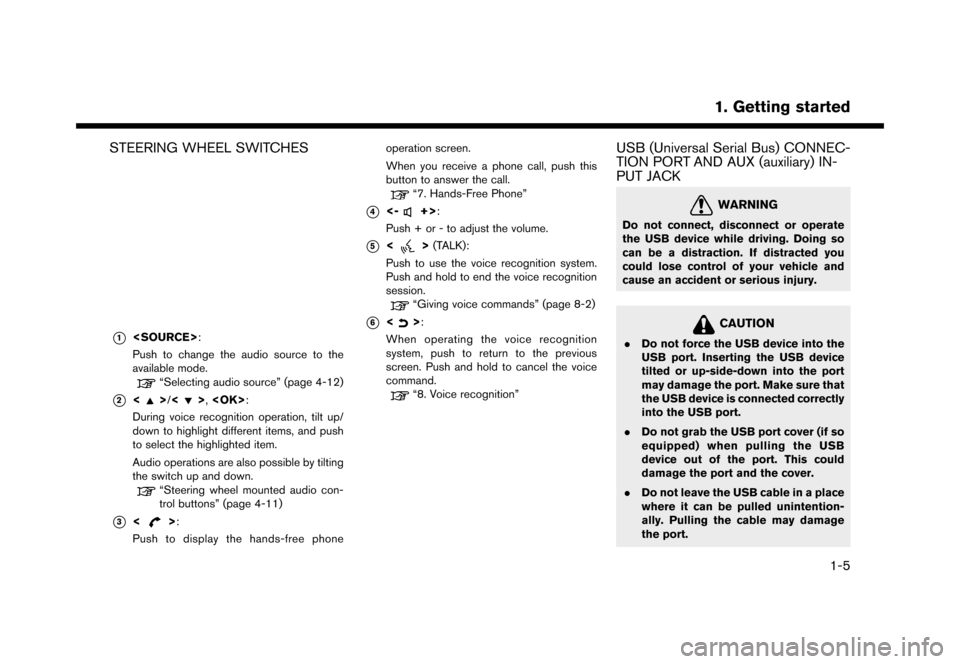

STEERING WHEEL SWITCHESENJN1502-120906-1B7CD1C1-5D48-4964-8816-2649513B59D0
5GH0383X
*1:
Push to change the audio source to the
available mode.
ªSelecting audio sourceº (page 4-12)
*2<>/<>,:
During voice recognition operation, tilt up/
down to highlight different items, and push
to select the highlighted item.
Audio operations are also possible by tilting
the switch up and down.
ªSteering wheel mounted audio con-
trol buttonsº (page 4-11)
*3<>:
Push to display the hands-free phone operation screen.
When you receive a phone call, push this
button to answer the call.
ª7. Hands-Free Phoneº
*4<-+>:
Push + or - to adjust the volume.
*5<> (TALK):
Push to use the voice recognition system.
Push and hold to end the voice recognition
session.
ªGiving voice commandsº (page 8-2)
*6<>:
When operating the voice recognition
system, push to return to the previous
screen. Push and hold to cancel the voice
command.
ª8. Voice recognitionº
USB (Universal Serial Bus) CONNEC-
TION PORT AND AUX (auxiliary) IN-
PUT JACK
ENJN1502-120906-E9AC7D61-BCC2-48F6-87C6-43CA8EAE0D5D
WARNING(1-1$$'&%'&&Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION(1-1&%%(&'. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.
&RQGLWLRQ
1-5
1. Getting started
