STEERING WHEEL SWITCHESENJN1502-120906-1B7CD1C1-5D48-4964-8816-2649513B59D0
5GH0383X
*1:
Push to change the audio source to the
available mode.
ªSelecting audio sourceº (page 4-12)
*2<>/<>,:
During voice recognition operation, tilt up/
down to highlight different items, and push
to select the highlighted item.
Audio operations are also possible by tilting
the switch up and down.
ªSteering wheel mounted audio con-
trol buttonsº (page 4-11)
*3<>:
Push to display the hands-free phone operation screen.
When you receive a phone call, push this
button to answer the call.
ª7. Hands-Free Phoneº
*4<-+>:
Push + or - to adjust the volume.
*5<> (TALK):
Push to use the voice recognition system.
Push and hold to end the voice recognition
session.
ªGiving voice commandsº (page 8-2)
*6<>:
When operating the voice recognition
system, push to return to the previous
screen. Push and hold to cancel the voice
command.
ª8. Voice recognitionº
USB (Universal Serial Bus) CONNEC-
TION PORT AND AUX (auxiliary) IN-
PUT JACK
ENJN1502-120906-E9AC7D61-BCC2-48F6-87C6-43CA8EAE0D5D
WARNING ( 1 - 1 $ $ ' & % ' & & Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION ( 1 - 1 & % % ( & '. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.
& R Q G L W L R Q
1-5
1. Getting started
Page 125 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

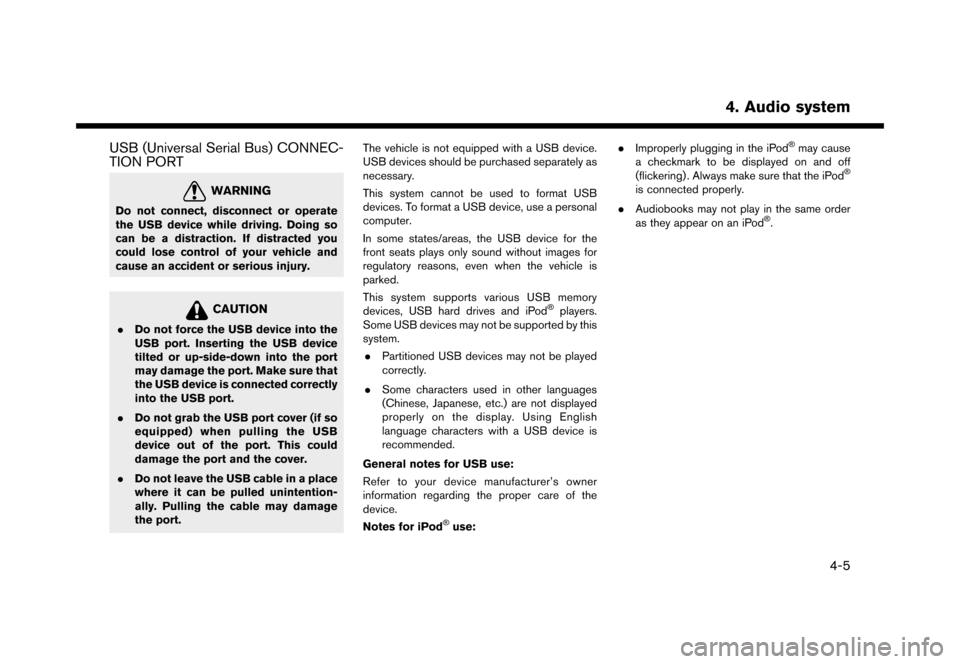

USB (Universal Serial Bus) CONNEC-
TION PORT
ENJN1502-120906-B14770CC-B357-4196-BAA4-5BEF948ED871
WARNING ( 1 - 1 ' ) ( ' ( & % $ ( & ) & $ Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION ( 1 - 1 % ' % ) $ ) & ( ) ) & ( % ' &.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port. The vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.
This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.
In some states/areas, the USB device for the
front seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.
This system supports various USB memory
devices, USB hard drives and iPod
Page 141 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
USB MEMORY DEVICE PLAYERENJN1502-120906-4ECBAE05-C74A-4D4B-B183-1F4933C3C92B
Connecting USB memory deviceENJN1502-120906-8B4A7CDA-0428-4D60-A67E-D4AD0C453CB2
WARNING ( 1 - 1 & ( $ ( ( % $ % ( & ) ( $ % $Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION ( 1 - 1 & % % % $ & & $ $ & ) ( & .Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port. Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
When compatible storage devices are plugged
into the port, compatible audio files on the
storage devices can be played through the
vehicle's audio system.
For the location of the USB port:
ªUSB (Universal Serial Bus) Connection
Port and AUX (auxiliary) input jackº
(page 1-5)
& R Q G L W L R Q
4-21
4. Audio system
