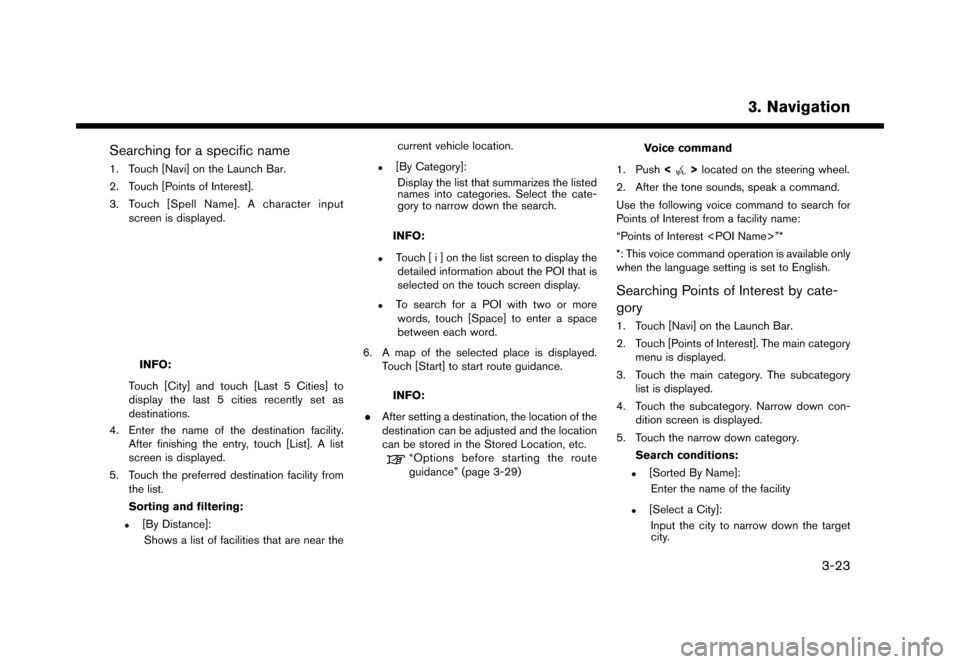

Searching for a specific nameENJN1502-120906-42622348-4B68-4A78-9240-986407C6723B1. Touch [Navi] on the Launch Bar.
2. Touch [Points of Interest].
3.Touch [Spell Name]. A character input
screen is displayed.
5GB0422X
INFO:
Touch [City] and touch [Last 5 Cities] to
display the last 5 cities recently set as
destinations.
4. Enter the name of the destination facility. After finishing the entry, touch [List]. A list
screen is displayed.
5. Touch the preferred destination facility from the list.
Sorting and filtering:
.[By Distance]:
Shows a list of facilities that are near the current vehicle location.
.[By Category]:
Display the list that summarizes the listed
names into categories. Select the cate-
gory to narrow down the search.
INFO:
.Touch [ i ] on the list screen to display thedetailed information about the POI that is
selected on the touch screen display.
.To search for a POI with two or more
words, touch [Space] to enter a space
between each word.
6. A map of the selected place is displayed. Touch [Start] to start route guidance.
INFO:
. After setting a destination, the location of the
destination can be adjusted and the location
can be stored in the Stored Location, etc.
ªOptions before starting the route
guidanceº (page 3-29)
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to search for
Points of Interest from a facility name:
ªPoints of Interest º*
*: This voice command operation is available only
when the language setting is set to English.
Searching Points of Interest by cate-
gory
ENJN1502-120906-351BE659-0AB9-473A-AC1A-38ABCADA93D61. Touch [Navi] on the Launch Bar.
2. Touch [Points of Interest]. The main category menu is displayed.
3. Touch the main category. The subcategory list is displayed.
4. Touch the subcategory. Narrow down con- dition screen is displayed.
5. Touch the narrow down category. Search conditions:
.[Sorted By Name]:Enter the name of the facility
.[Select a City]:Input the city to narrow down the target
city.
&RQGLWLRQ
3-23
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
.[Near Current Location]:Facilities near the current vehicle location
are displayed in a list.
.[Near Destination]:When the destination is set, this indicates
a list of facilities around the destination.
5GB0423X
6. Touch the preferred destination facility from the list.
Touch [Start] to start route guidance.
INFO:
. Subcategories may not be displayed de-
pending on the selected main category.
. If there is no nearby POI, a message asking
whether to search from an extended area will
be displayed. When [Yes] is selected, the
system starts to search for POI in a wider
area. .
Touch [ i ] on the list screen to display the
detailed information about the POI that is
selected on the touch screen display.
. Touch [By Distance] to sort the list by the
distance. Touch [New Category] to select a
different POI category.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to search for
Points of Interest from category:
ªPOI Categoryº
SETTING HOME AS DESTINATIONENJN1502-120906-EFD628DF-FD10-4DDD-BDF4-340E595F2B4EThe home location can be set as the destination
if the home location is stored in advance. This
function is especially useful when searching for a
route to return to the home location.
1. Touch [Navi] on the Launch Bar.
2. Touch [Home].
INFO:
If the home location is not stored yet, the
system will display a message asking if you
wish to store a home location. Touch [Yes] to
store the home location.
ªStoring home locationº (page 3-52)
3. An entire route to the destination is dis- played. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set home as
the destination:
ªGo Homeº
SEARCHING FROM ADDRESS
BOOK
ENJN1502-120906-4C7DF925-9404-4CBE-A2DD-E3DD6D9BAF0BLocations frequently visited can be stored in the
Address Book and reused to set destinations.
ªStoring locationº (page 3-52)
1. Touch [Navi] on the Launch Bar.
2. Touch [Address Book].
&RQGLWLRQ
3-24
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
5GB0429X

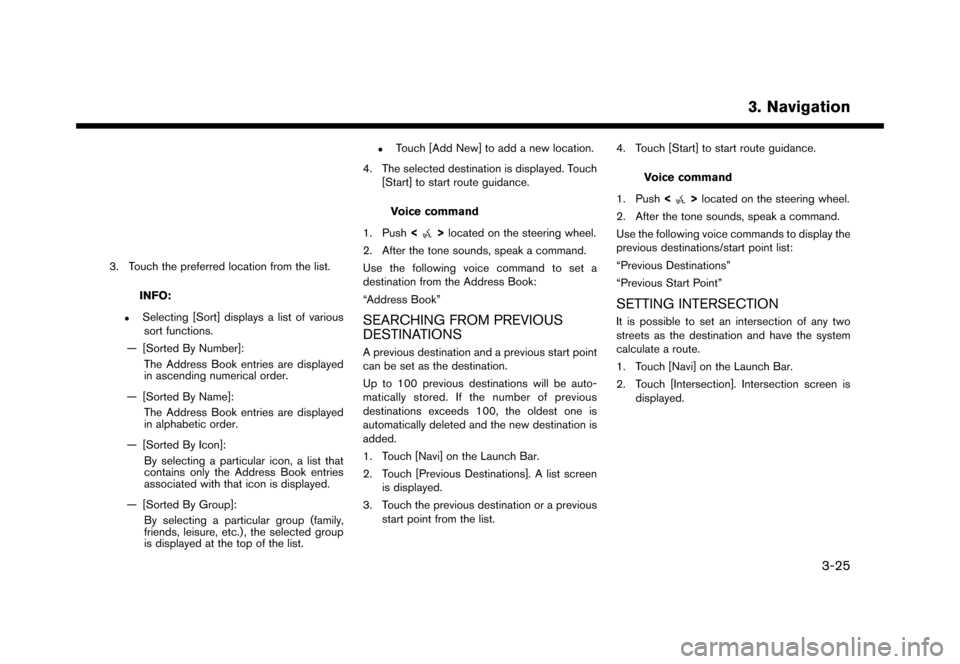

3. Touch the preferred location from the list.
INFO:
.Selecting [Sort] displays a list of varioussort functions.
Ð [Sorted By Number]: The Address Book entries are displayed
in ascending numerical order.
Ð [Sorted By Name]: The Address Book entries are displayed
in alphabetic order.
Ð [Sorted By Icon]: By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
Ð [Sorted By Group]: By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
.Touch [Add New] to add a new location.
4. The selected destination is displayed. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set a
destination from the Address Book:
ªAddress Bookº
SEARCHING FROM PREVIOUS
DESTINATIONS
ENJN1502-120906-CCA4B30F-6D42-498B-97B8-C74AE29C5414A previous destination and a previous start point
can be set as the destination.
Up to 100 previous destinations will be auto-
matically stored. If the number of previous
destinations exceeds 100, the oldest one is
automatically deleted and the new destination is
added.
1. Touch [Navi] on the Launch Bar.
2. Touch [Previous Destinations]. A list screen is displayed.
3. Touch the previous destination or a previous start point from the list. 4. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice commands to display the
previous destinations/start point list:
ªPrevious Destinationsº
ªPrevious Start Pointº
SETTING INTERSECTIONENJN1502-120906-4599645B-7FEB-4FFC-9904-951F14B57AFCIt is possible to set an intersection of any two
streets as the destination and have the system
calculate a route.
1. Touch [Navi] on the Launch Bar.
2. Touch [Intersection]. Intersection screen is displayed.
5GB0484X
&RQGLWLRQ
3-25
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

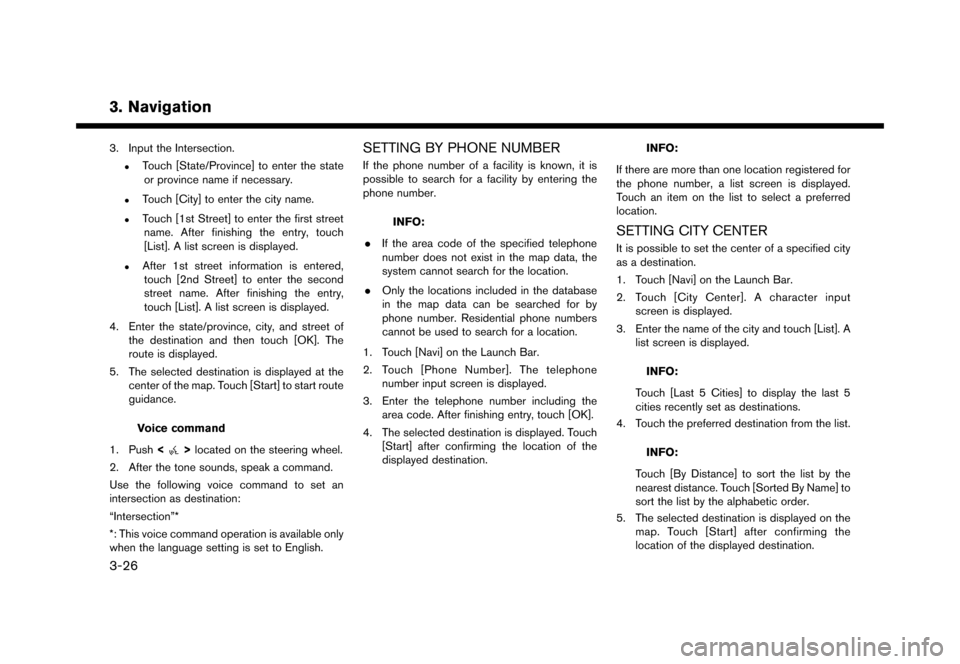

3. Input the Intersection.
.Touch [State/Province] to enter the stateor province name if necessary.
.Touch [City] to enter the city name.
.Touch [1st Street] to enter the first streetname. After finishing the entry, touch
[List]. A list screen is displayed.
.After 1st street information is entered,touch [2nd Street] to enter the second
street name. After finishing the entry,
touch [List]. A list screen is displayed.
4. Enter the state/province, city, and street of the destination and then touch [OK]. The
route is displayed.
5. The selected destination is displayed at the center of the map. Touch [Start] to start route
guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set an
intersection as destination:
ªIntersectionº*
*: This voice command operation is available only
when the language setting is set to English.
SETTING BY PHONE NUMBERENJN1502-120906-87C28043-E7CD-4FB6-9E27-0811FF88248EIf the phone number of a facility is known, it is
possible to search for a facility by entering the
phone number.
INFO:
. If the area code of the specified telephone
number does not exist in the map data, the
system cannot search for the location.
. Only the locations included in the database
in the map data can be searched for by
phone number. Residential phone numbers
cannot be used to search for a location.
1. Touch [Navi] on the Launch Bar.
2. Touch [Phone Number]. The telephone
number input screen is displayed.
3. Enter the telephone number including the area code. After finishing entry, touch [OK].
4. The selected destination is displayed. Touch [Start] after confirming the location of the
displayed destination.
INFO:
If there are more than one location registered for
the phone number, a list screen is displayed.
Touch an item on the list to select a preferred
location.
SETTING CITY CENTERENJN1502-120906-1CBCD129-BFBE-47D9-9EF0-BE9DCF8E2B24It is possible to set the center of a specified city
as a destination.
1. Touch [Navi] on the Launch Bar.
2. Touch [City Center]. A character input
screen is displayed.
3. Enter the name of the city and touch [List]. A list screen is displayed.
INFO:
Touch [Last 5 Cities] to display the last 5
cities recently set as destinations.
4. Touch the preferred destination from the list.
INFO:
Touch [By Distance] to sort the list by the
nearest distance. Touch [Sorted By Name] to
sort the list by the alphabetic order.
5. The selected destination is displayed on the map. Touch [Start] after confirming the
location of the displayed destination.
&RQGLWLRQ
3-26
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

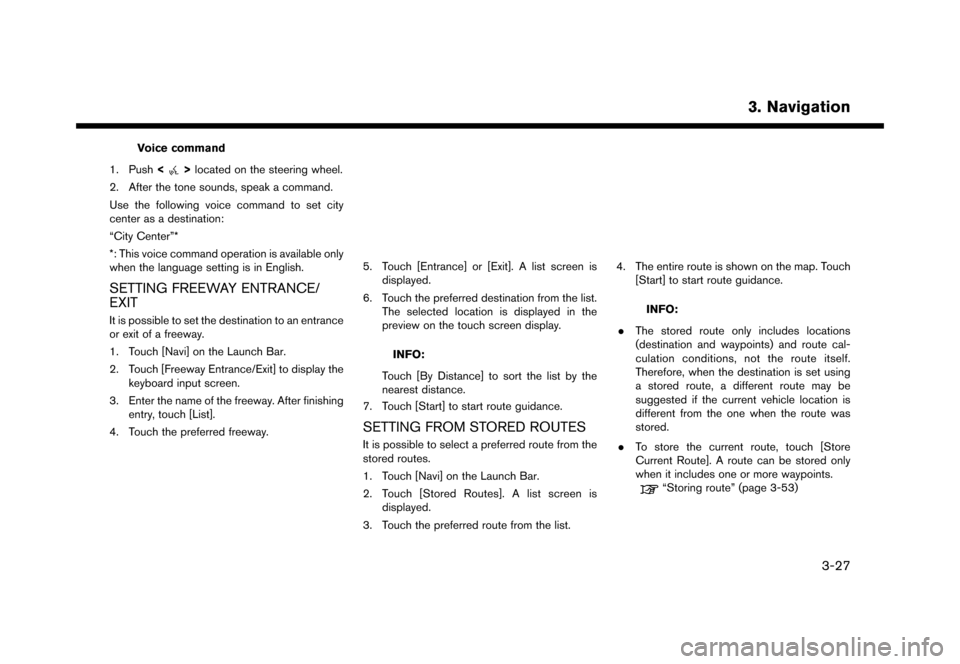

Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set city
center as a destination:
ªCity Centerº*
*: This voice command operation is available only
when the language setting is in English.
SETTING FREEWAY ENTRANCE/
EXIT
ENJN1502-120906-4515EF2C-9776-443B-97E6-E670C645B162It is possible to set the destination to an entrance
or exit of a freeway.
1. Touch [Navi] on the Launch Bar.
2. Touch [Freeway Entrance/Exit] to display the keyboard input screen.
3. Enter the name of the freeway. After finishing entry, touch [List].
4. Touch the preferred freeway.
5GB0428X
5. Touch [Entrance] or [Exit]. A list screen is displayed.
6. Touch the preferred destination from the list. The selected location is displayed in the
preview on the touch screen display.
INFO:
Touch [By Distance] to sort the list by the
nearest distance.
7. Touch [Start] to start route guidance.
SETTING FROM STORED ROUTESENJN1502-120906-174315DE-CFE8-4311-94E7-67FE9F3D0C92It is possible to select a preferred route from the
stored routes.
1. Touch [Navi] on the Launch Bar.
2. Touch [Stored Routes]. A list screen is
displayed.
3. Touch the preferred route from the list.
5GB0430X
4. The entire route is shown on the map. Touch [Start] to start route guidance.
INFO:
. The stored route only includes locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
stored.
. To store the current route, touch [Store
Current Route]. A route can be stored only
when it includes one or more waypoints.
ªStoring routeº (page 3-53)
&RQGLWLRQ
3-27
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

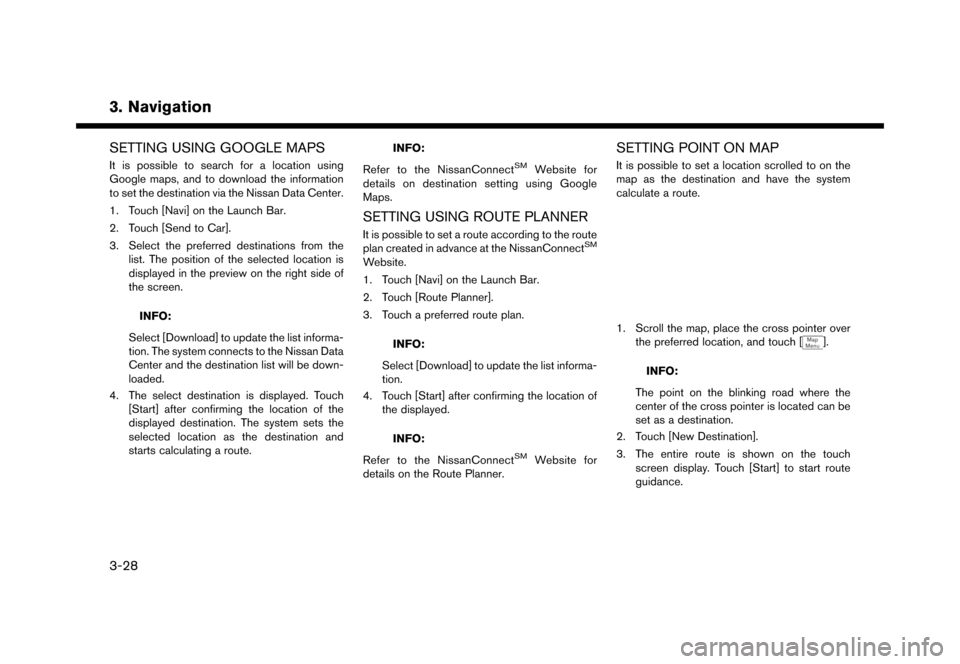

SETTING USING GOOGLE MAPSGUID-B3B09C8D-D203-4AF0-A7F9-4E87C9FD917BIt is possible to search for a location using
Google maps, and to download the information
to set the destination via the Nissan Data Center.
1. Touch [Navi] on the Launch Bar.
2. Touch [Send to Car].
3. Select the preferred destinations from thelist. The position of the selected location is
displayed in the preview on the right side of
the screen.
INFO:
Select [Download] to update the list informa-
tion. The system connects to the Nissan Data
Center and the destination list will be down-
loaded.
4. The select destination is displayed. Touch [Start] after confirming the location of the
displayed destination. The system sets the
selected location as the destination and
starts calculating a route.
INFO:
Refer to the NissanConnect
SMWebsite for
details on destination setting using Google
Maps.
SETTING USING ROUTE PLANNERGUID-B23F56C6-E873-4E07-B256-1FDC99F74184It is possible to set a route according to the route
plan created in advance at the NissanConnectSM
Website.
1. Touch [Navi] on the Launch Bar.
2. Touch [Route Planner].
3. Touch a preferred route plan.
INFO:
Select [Download] to update the list informa-
tion.
4. Touch [Start] after confirming the location of the displayed.
INFO:
Refer to the NissanConnect
SMWebsite for
details on the Route Planner.
SETTING POINT ON MAPENJN1502-120906-1CECA297-8DF7-4E58-9746-C408EB3A9FBDIt is possible to set a location scrolled to on the
map as the destination and have the system
calculate a route.
5GB0573X
1. Scroll the map, place the cross pointer over the preferred location, and touch [
].
INFO:
The point on the blinking road where the
center of the cross pointer is located can be
set as a destination.
2. Touch [New Destination].
3. The entire route is shown on the touch screen display. Touch [Start] to start route
guidance.
&RQGLWLRQ
3-28
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

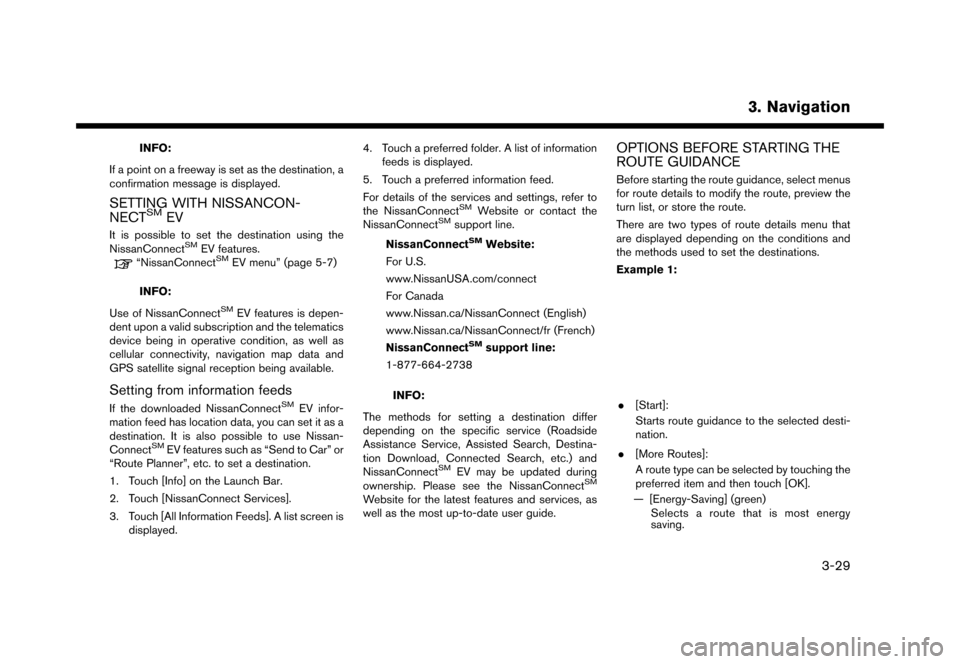

INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed.
SETTING WITH NISSANCON-
NECTSMEVENJN1502-9C340FD6-BECA-47BF-B787-9D191405656DIt is possible to set the destination using the
NissanConnectSMEV features.
ªNissanConnectSMEV menuº (page 5-7)
INFO:
Use of NissanConnect
SMEV features is depen-
dent upon a valid subscription and the telematics
device being in operative condition, as well as
cellular connectivity, navigation map data and
GPS satellite signal reception being available.
Setting from information feedsENJN1502-97A6CF18-92BA-438F-9AF5-2F0FD2404930If the downloaded NissanConnectSMEV infor-
mation feed has location data, you can set it as a
destination. It is also possible to use Nissan-
Connect
SMEV features such as ªSend to Carº or
ªRoute Plannerº, etc. to set a destination.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed. 4. Touch a preferred folder. A list of information
feeds is displayed.
5. Touch a preferred information feed.
For details of the services and settings, refer to
the NissanConnect
SMWebsite or contact the
NissanConnectSMsupport line.
NissanConnect
SMWebsite:
For U.S.
www.NissanUSA.com/connect
For Canada
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
NissanConnect
SMsupport line:
1-877-664-2738
INFO:
The methods for setting a destination differ
depending on the specific service (Roadside
Assistance Service, Assisted Search, Destina-
tion Download, Connected Search, etc.) and
NissanConnect
SMEV may be updated during
ownership. Please see the NissanConnectSM
Website for the latest features and services, as
well as the most up-to-date user guide.
OPTIONS BEFORE STARTING THE
ROUTE GUIDANCE
ENJN1502-120906-E83C964B-BC32-48FB-AF85-60942AFE2170Before starting the route guidance, select menus
for route details to modify the route, preview the
turn list, or store the route.
There are two types of route details menu that
are displayed depending on the conditions and
the methods used to set the destinations.
Example 1:
5GB0433X
. [Start]:
Starts route guidance to the selected desti-
nation.
. [More Routes]:
A route type can be selected by touching the
preferred item and then touch [OK].
Ð [Energy-Saving] (green) Selects a route that is most energy
saving.
&RQGLWLRQ
3-29
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

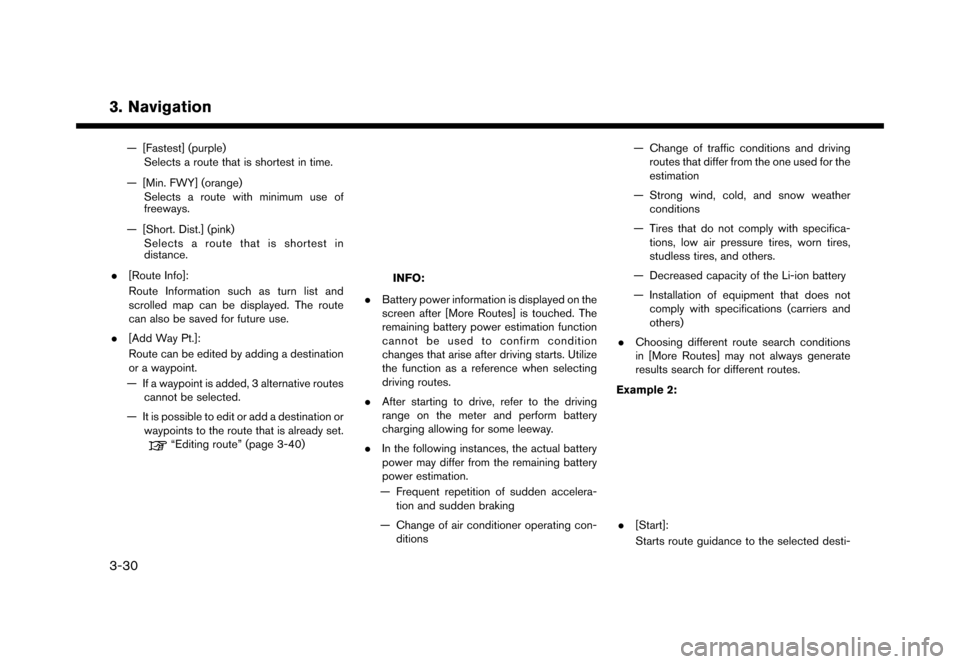

Ð [Fastest] (purple)Selects a route that is shortest in time.
Ð [Min. FWY] (orange) Selects a route with minimum use of
freeways.
Ð [Short. Dist.] (pink) Selects a route that is shortest in
distance.
. [Route Info]:
Route Information such as turn list and
scrolled map can be displayed. The route
can also be saved for future use.
. [Add Way Pt.]:
Route can be edited by adding a destination
or a waypoint.
Ð If a waypoint is added, 3 alternative routes cannot be selected.
Ð It is possible to edit or add a destination or waypoints to the route that is already set.
ªEditing routeº (page 3-40)
5GB0574X
INFO:
. Battery power information is displayed on the
screen after [More Routes] is touched. The
remaining battery power estimation function
cannot be used to confirm condition
changes that arise after driving starts. Utilize
the function as a reference when selecting
driving routes.
. After starting to drive, refer to the driving
range on the meter and perform battery
charging allowing for some leeway.
. In the following instances, the actual battery
power may differ from the remaining battery
power estimation.
Ð Frequent repetition of sudden accelera- tion and sudden braking
Ð Change of air conditioner operating con- ditions Ð Change of traffic conditions and driving
routes that differ from the one used for the
estimation
Ð Strong wind, cold, and snow weather conditions
Ð Tires that do not comply with specifica- tions, low air pressure tires, worn tires,
studless tires, and others.
Ð Decreased capacity of the Li-ion battery
Ð Installation of equipment that does not comply with specifications (carriers and
others)
. Choosing different route search conditions
in [More Routes] may not always generate
results search for different routes.
Example 2:
5GB0421X
. [Start]:
Starts route guidance to the selected desti-
&RQGLWLRQ
3-30
3. Navigation
