COMPACT DISC (CD) PLAYERENJN1502-120906-DC5E2611-026D-452C-A4AC-47F0F8806FC5
SAA0480
.Do not force a compact disc into the CD
insert slot. This could damage the CD and/or
CD player.
. Trying to load a CD with the CD door closed
could damage the CD and/or CD player. .
During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
. The player may skip while driving on rough
roads.
. The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
. Only use high quality 4.7 in (12 cm) round
discs that have the ªCOMPACT disc DIGI-
TAL AUDIOº logo on the disc or packaging.
. Do not expose the CD to direct sunlight.
. CDs that are of poor quality, dirty, scratched,
covered with fingerprints or that have pin
holes may not work properly.
. The following CDs may not work properly:
Ð Copy control compact discs (CCCD)
Ð Recordable compact discs (CD-R)
Ð Rewritable compact discs (CD-RW)
. Do not use the following CDs as they may
cause the CD player to malfunction.
Ð 3.1 in (8 cm) discs Ð CDs that are not round
Ð CDs with a paper label
Ð CDs that are warped, scratched, or have
abnormal edges
. This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
. If the CD cannot be played, one of the
following messages will be displayed.
Disc read error:
Indicates a CLV, Focus, TOC or Access
error. Check and reinsert the CD. Make sure
that it is inserted correctly.
Please eject disc:
Indicates a mechanism error. If the CD can
be ejected, eject and reinsert the CD. If the
CD cannot be ejected, contact a NISSAN
certified LEAF dealer.
Unplayable file:
Indicates that a readable file is not found on
the inserted CD. Check the data in your CD.
&RQGLWLRQ
4-4
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @
COMPRESSED AUDIO FILES (MP3/
WMA/AAC)
ENJN1502-120906-59506932-77E0-4626-8C21-4A60DD222070
Explanation of termsENJN1502-120906-EB91730C-D0C7-441C-9028-C9C6F27A417B.MP3 Ð MP3 is short for Moving Pictures
Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital audio
file format. This format allows for near ªCD
qualityº sound, but at a fraction of the size of
normal audio files. MP3 conversion of an
audio track can reduce the file size by
approximately a 10:1 ratio (Sampling: 44.1
kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. The compression
reduces certain parts of sound that seem
inaudible to most people.
. WMA Ð Windows Media Audio (WMA) is a
compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.
. Bit rate Ð Bit rate denotes the number of bits
per second used by a digital music file. The
size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file. .
Sampling frequency Ð Sampling frequency
is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.
. Multisession Ð Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is called
a multisession.
. ID3/WMA tag Ð The ID3/WMA tag is the
part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, album title,
encoding bit rate, track time duration, etc.
ID3 tag information is displayed on the
Album/Artist/Track title line on the display.
. AAC Ð Advanced Audio Coding (AAC) is a
compressed audio format. AAC offers great-
er file compression than MP3 and enables
music file creation and storage at the same
quality as MP3.

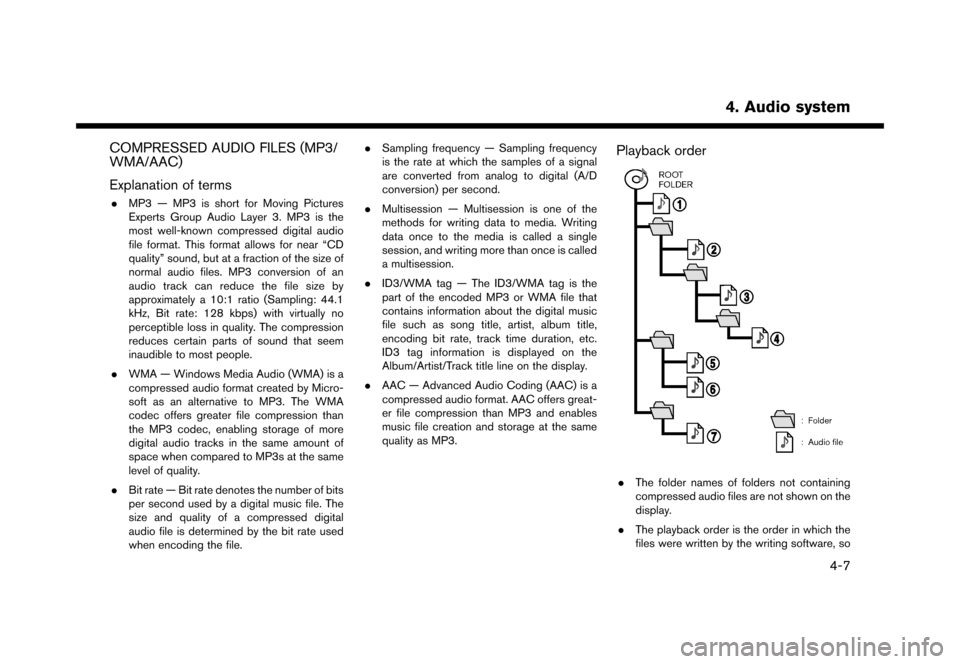

Playback orderENJN1502-120906-2A8E94F5-2F22-4C97-ACEA-E869F1816CEF
SAA2494
.The folder names of folders not containing
compressed audio files are not shown on the
display.
. The playback order is the order in which the
files were written by the writing software, so
&RQGLWLRQ
4-7
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @
the files might not play in the desired order.
. Music playback order of compressed audio
files is as illustrated.

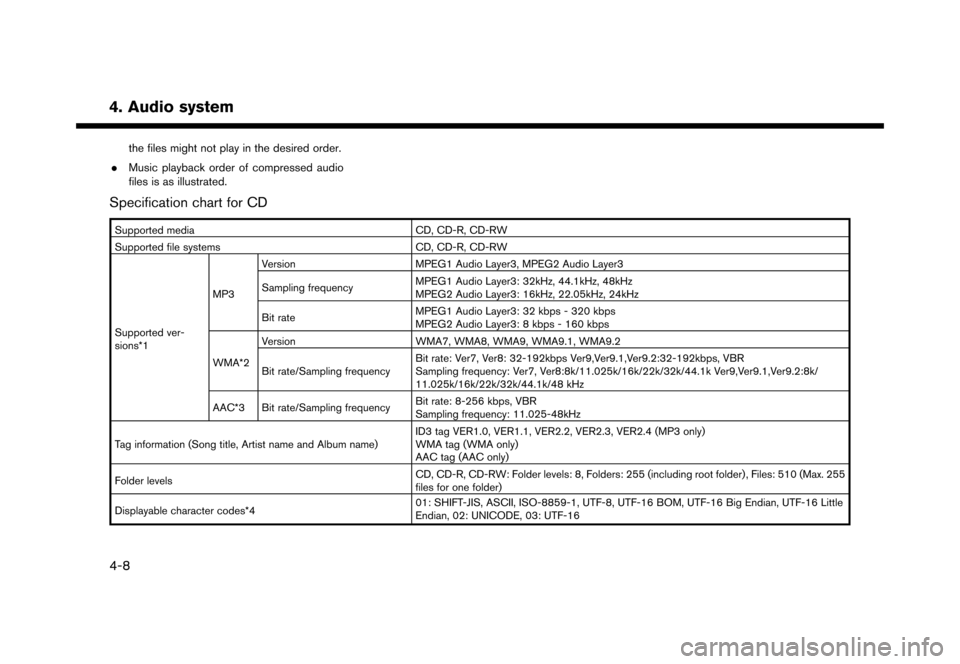

Specification chart for CDENJN1502-120906-AAC8B434-0F38-48A8-87BC-ED7696C5F421
Supported media CD, CD-R, CD-RW
Supported file systems CD, CD-R, CD-RW
Supported ver-
sions*1 MP3
Version
MPEG1 Audio Layer3, MPEG2 Audio Layer3
Sampling frequency MPEG1 Audio Layer3: 32kHz, 44.1kHz, 48kHz
MPEG2 Audio Layer3: 16kHz, 22.05kHz, 24kHz
Bit rate MPEG1 Audio Layer3: 32 kbps - 320 kbps
MPEG2 Audio Layer3: 8 kbps - 160 kbps
WMA*2 Version
WMA7, WMA8, WMA9, WMA9.1, WMA9.2
Bit rate/Sampling frequency Bit rate: Ver7, Ver8: 32-192kbps Ver9,Ver9.1,Ver9.2:32-192kbps, VBR
Sampling frequency: Ver7, Ver8:8k/11.025k/16k/22k/32k/44.1k Ver9,Ver9.1,Ver9.2:8k/
11.025k/16k/22k/32k/44.1k/48 kHz
AAC*3 Bit rate/Sampling frequency Bit rate: 8-256 kbps, VBR
Sampling frequency: 11.025-48kHz
Tag information (Song title, Artist name and Album name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
AAC tag (AAC only)
Folder levels CD, CD-R, CD-RW: Folder levels: 8, Folders: 255 (including root folder) , Files: 510 (Max. 255
files for one folder)
Displayable character codes*4 01: SHIFT-JIS, ASCII, ISO-8859-1, UTF-8, UTF-16 BOM, UTF-16 Big Endian, UTF-16 Little
Endian, 02: UNICODE, 03: UTF-16
&RQGLWLRQ
4-8
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @

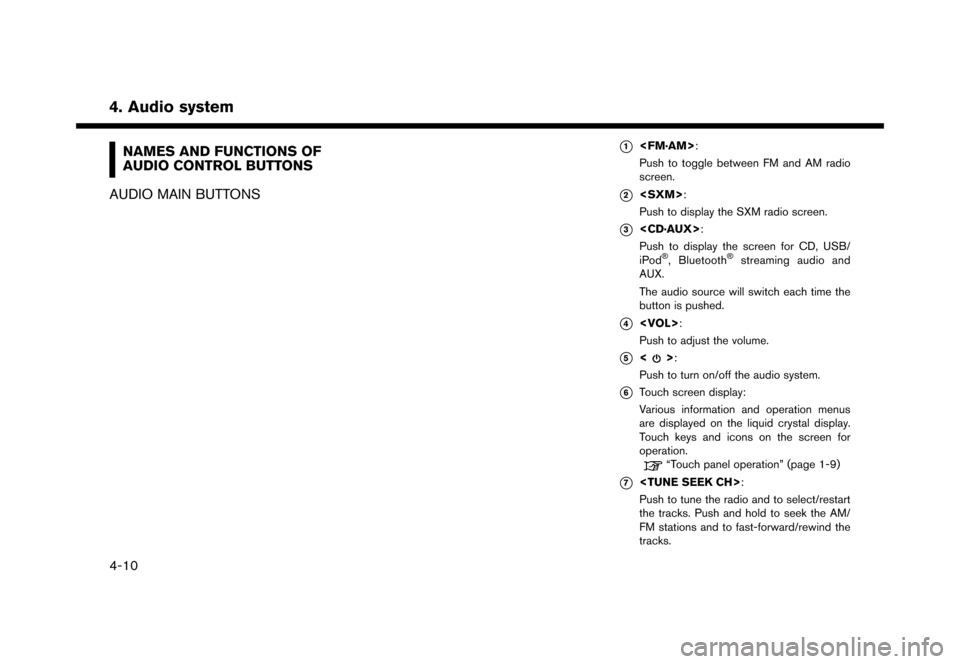

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONS
ENJN1502-AABAE45E-5D0B-46C4-B8C5-63D6B3725503
AUDIO MAIN BUTTONSENJN1502-BF54B88E-4C49-415B-A092-1CE4DFB2AE85
5GA0114X
*1:
Push to toggle between FM and AM radio
screen.
*2:
Push to display the SXM radio screen.
*3:
Push to display the screen for CD, USB/
iPod


> (GLW    0RGHO (1-1 (91$01&*. @

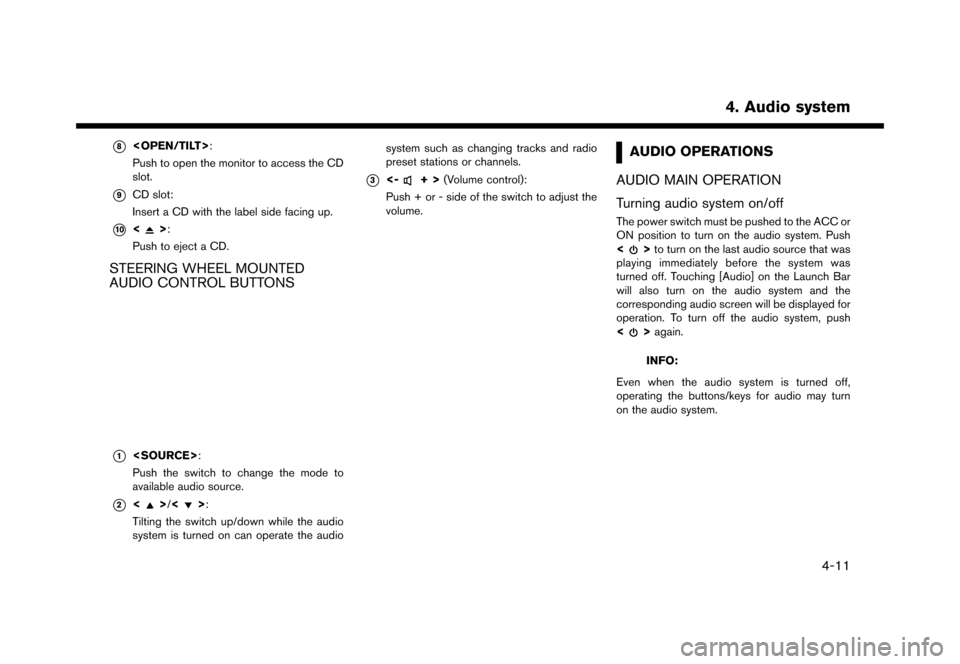

*8:
Push to open the monitor to access the CD
slot.
*9CD slot:
Insert a CD with the label side facing up.
*10<>:
Push to eject a CD.
STEERING WHEEL MOUNTED
AUDIO CONTROL BUTTONS
ENJN1502-8D8B77B0-542F-4040-8910-08948E84EDF4
5GA0115X
*1:
Push the switch to change the mode to
available audio source.
*2<>/<>:
Tilting the switch up/down while the audio
system is turned on can operate the audio system such as changing tracks and radio
preset stations or channels.
*3<-+ >
(Volume control):
Push + or - side of the switch to adjust the
volume.
AUDIO OPERATIONSENJN1502-8910DA01-FA52-4035-BC56-AEEA46A2B06E
AUDIO MAIN OPERATIONENJN1502-120906-21A3D1F2-D88E-4CCE-B170-B9485A368E7F
Turning audio system on/offENJN1502-120906-DEC1D39C-0B79-4535-9FBF-86BD31187CDDThe power switch must be pushed to the ACC or
ON position to turn on the audio system. Push
<
> to turn on the last audio source that was
playing immediately before the system was
turned off. Touching [Audio] on the Launch Bar
will also turn on the audio system and the
corresponding audio screen will be displayed for
operation. To turn off the audio system, push
<
> again.
INFO:
Even when the audio system is turned off,
operating the buttons/keys for audio may turn
on the audio system.
&RQGLWLRQ
4-11
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @

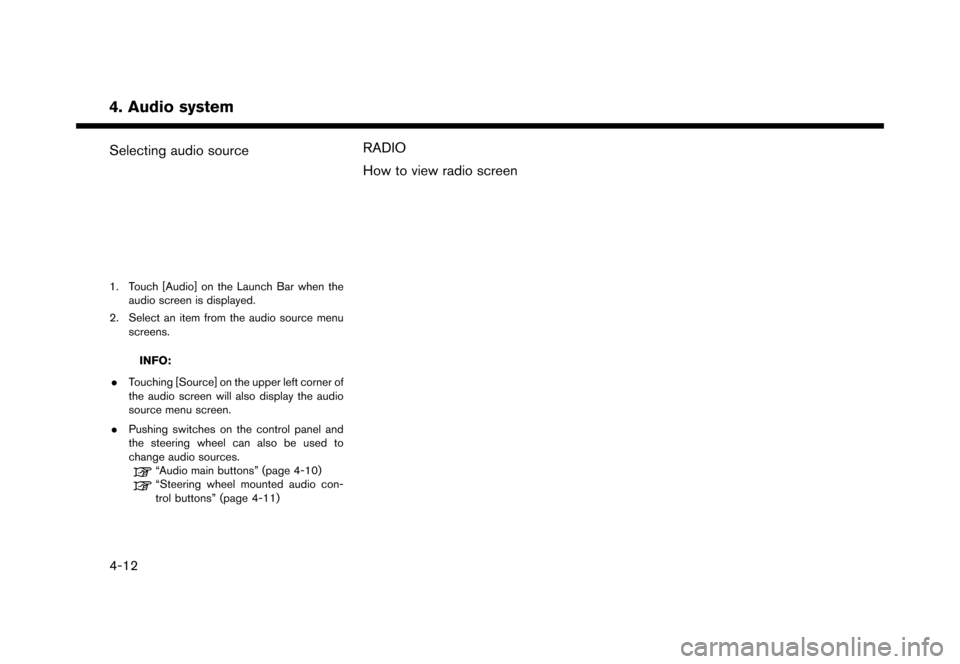

Selecting audio sourceENJN1502-120906-2A84B441-03C2-4E17-9A89-AC3DD54D9273
5GA0116X
1. Touch [Audio] on the Launch Bar when theaudio screen is displayed.
2. Select an item from the audio source menu screens.
INFO:
. Touching [Source] on the upper left corner of
the audio screen will also display the audio
source menu screen.
. Pushing switches on the control panel and
the steering wheel can also be used to
change audio sources.
ªAudio main buttonsº (page 4-10)
ªSteering wheel mounted audio con-
trol buttonsº (page 4-11)
RADIOENJN1502-120906-952EDDB7-2BDB-4ADF-BF9F-C1407C8FAA3E
How to view radio screenENJN1502-120906-C7E211CC-F05B-44A2-86A6-770B8278B318
5GA0061X
&RQGLWLRQ
4-12
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @
The radio screen can be viewed and operated on
the touch screen display.
*1[AM Menu]/[FM Menu]/[SXM Menu]:
Touch to display the radio menu screen.
ªRadio Menuº (page 4-15)
*2[Source]:
Touch to display the audio source screen to
select the other audio source.
ªSelecting audio sourceº (page 4-12)
*3Preset number:
A preset number is displayed if the current
frequency is stored as a preset station or
channel.
*4Audio source indicator:
Indicates the currently selected audio
source.
*5Reception information display:
Reception information currently available
such as frequency, station, or channel name,
etc. are displayed.
*6Turn direction indicator:
When a route to the destination is set,
turning direction and the distance to the
next turn is displayed.
*7TAG indicator (for U.S.):
TAG indicator is displayed if the iTunes


> (GLW    0RGHO (1-1 (91$01&*. @

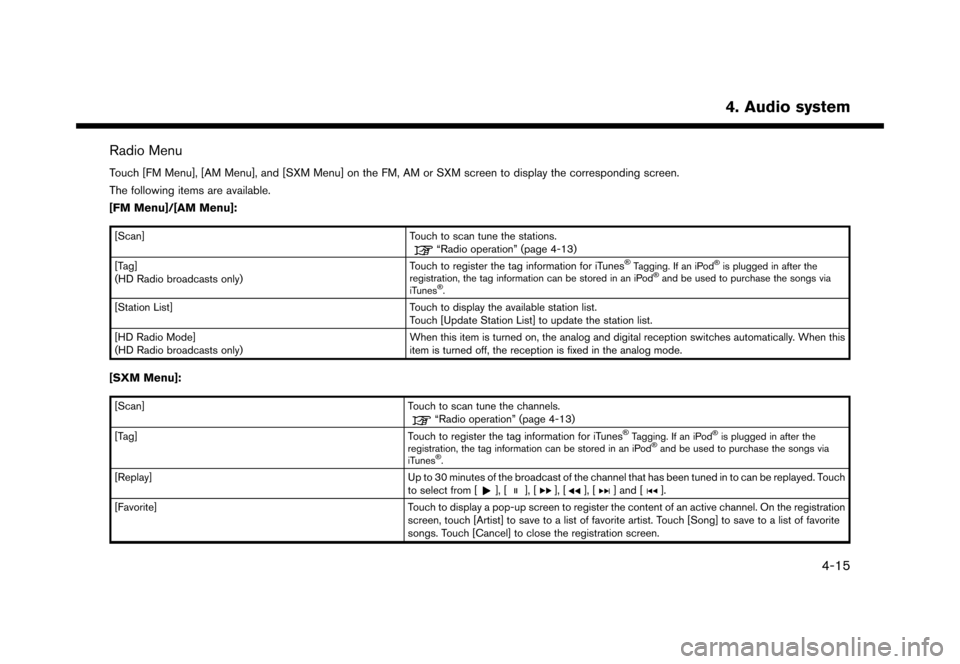

Radio MenuENJN1502-D950716C-9E53-45AA-A4AF-8EC5B4A2CD6ETouch [FM Menu], [AM Menu], and [SXM Menu] on the FM, AM or SXM screen to display the corresponding screen.
The following items are available.
[FM Menu]/[AM Menu]:
[Scan]Touch to scan tune the stations.ªRadio operationº (page 4-13)
[Tag]
(HD Radio broadcasts only) Touch to register the tag information for iTunes
