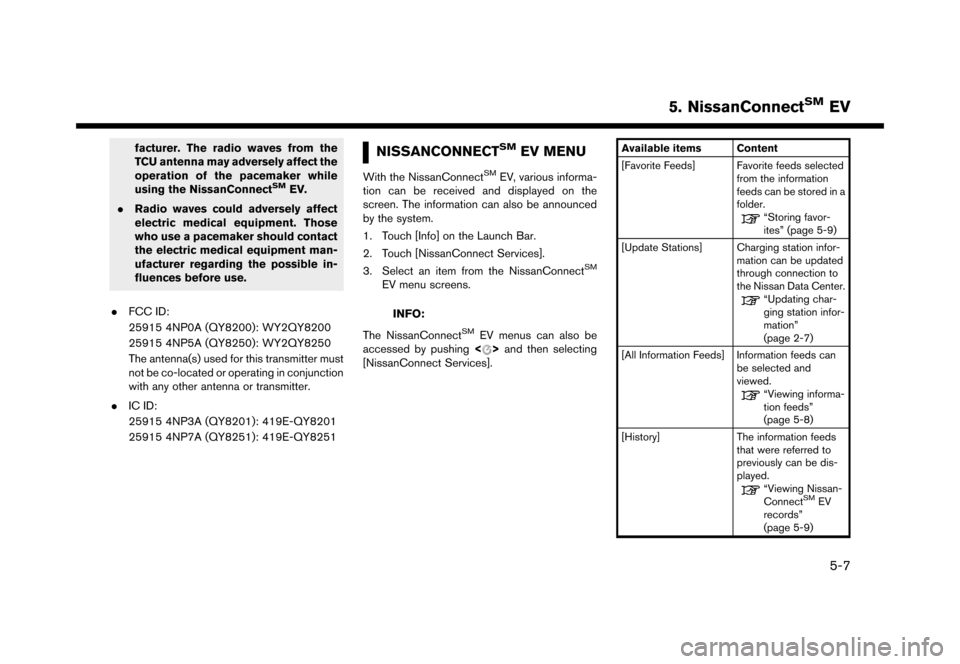

> (GLW    0RGHO (1-1 (91$01&*. @
facturer. The radio waves from the
TCU antenna may adversely affect the
operation of the pacemaker while
using the NissanConnect
SMEV.
. Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-
ufacturer regarding the possible in-
fluences before use.
. FCC ID:
25915 4NP0A (QY8200): WY2QY8200
25915 4NP5A (QY8250): WY2QY8250
The antenna(s) used for this transmitter must
not be co-located or operating in conjunction
with any other antenna or transmitter.
. IC ID:
25915 4NP3A (QY8201): 419E-QY8201
25915 4NP7A (QY8251): 419E-QY8251
NISSANCONNECTSMEV MENUGUID-D3DF0690-7FE6-4879-9F42-4850455ACE70With the NissanConnectSMEV, various informa-
tion can be received and displayed on the
screen. The information can also be announced
by the system.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Select an item from the NissanConnect
SM
EV menu screens.
INFO:
The NissanConnect
SMEV menus can also be
accessed by pushing <
>and then selecting
[NissanConnect Services].
Available items Content
[Favorite Feeds] Favorite feeds selected from the information
feeds can be stored in a
folder.
ªStoring favor-
itesº (page 5-9)
[Update Stations] Charging station infor- mation can be updated
through connection to
the Nissan Data Center.
ªUpdating char-
ging station infor-
mationº
(page 2-7)
[All Information Feeds] Information feeds can be selected and
viewed.
ªViewing informa-
tion feedsº
(page 5-8)
[History] The information feeds
that were referred to
previously can be dis-
played.
ªViewing Nissan-
ConnectSMEV
recordsº
(page 5-9)
&RQGLWLRQ
5-7
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @
[Charging Availability] Availability of chargingstations can be con-
firmed.
ªConfirming char-
ging station avail-
abilityº (page 2-6)
[NissanConnect Ser-
vices Settings] NissanConnect
SMEV
settings can be chan-
ged.
ªNissanConnect-SMEV settingsº
(page 5-11)
VIEWING INFORMATION FEEDSENJN1502-DD03B117-2CA4-4366-9B71-1D96791C490CContents of the various NissanConnectSMEV
information can be downloaded.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed.
4. Touch a preferred folder. A list of information feeds is displayed. The content is announced
by the system (Text-to-Speech) while the
vehicle is being driven, or if parked, you can
read the content on the display.
INFO:
. Touch [Stop] during communication with the
Nissan Data Center to cancel the connec-
tion.
. A message is displayed when the commu-
nication is disconnected while downloading
information due to a poor communication
status. Select [Yes] to restart the download.
. Laws in some jurisdictions may restrict the
use of ªText-to-Speech.º Check local reg-
ulations before using this feature.
. Some terminology such as personal names,
place names, special terms, symbols, etc.
may not be announced correctly. This is not a
malfunction.
. The system will pause announcements when
interrupted by the voice guidance given by
the navigation system. When the voice
guidance finishes, the system will restart
the announcement.
. The volume can be adjusted when the
system announces the information.
ªVolume and Beeps settingsº
(page 1-16)
. The selected content is read out while the
vehicle is being driven, or if parked, you can
read the content on the display. .
Content settings can be made using the
NissanConnect
SMWebsite. For more de-
tails, refer to the NissanConnectSMWebsite
or contact the NissanConnectSMsupport
line.
NissanConnect
SMWebsite:
For U.S.
www.NissanUSA.com/connect
For Canada
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
NissanConnect
SMsupport line:
1-877-664-2738
Screen informationENJN1502-8FEB06C0-A569-4D23-BEF7-9414FB11CEC9When information is downloaded from the
Nissan Data Center, the contents of the informa-
tion are displayed while the vehicle is stopped.
&RQGLWLRQ
5-8
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @
5GH0260X
*1Contents:
The contents of the NissanConnectSMEV
feeds are displayed.
*2Menu:
Stops the Text-to-Speech voice announce-
ments and displays the operation menu
items on the right side of the screen.
*3[]/[]:
Turns to the next or previous page if the
information has a number of content pages.
*4:
If the information contains map information,
the icon be displayed. It can be set as the
destination.
*5:
If the information contains phone number
information, the icon is displayed. It is
possible to make a phone call to the facility.
5GH0261X
After parking the vehicle in a safe location and
touching [Menu], the operation menu is dis-
played on the right side of the screen.
INFO:
The availability of the operation menu items
differs depending on the contents of the
selected information.
STORING FAVORITESGUID-39D6EF5F-C754-4E77-A421-1D9B341E164FFavorite feeds selected from the information
feeds can be stored in a folder.
1. Touch [Info] on the Launch Bar and touch [NissanConnect Services].
2. Touch [Favorite Feeds].
3. Touch [Add New]. A folder list is displayed.
4. Touch the preferred folder from the list. An information feed list is displayed. 5. Touch a favorite feed to be stored.
6. Check the contents of the message, then
touch [Yes]. When the contents of the
information are sent to the Nissan Data
Center, the registration is completed.
INFO:
. The contents that are entered in the favorites
folder need to be transmitted to the Nissan
Data Center. Registration of the contents is
not completed until the data is transmitted to
the Nissan Data Center.
. A message is displayed if communication is
interrupted while downloading information.
Touch [Yes] to restart the download.
VIEWING NISSANCONNECTSMEV
RECORDS
GUID-90E10400-2E12-467B-91BA-A2FF2D68745EThe information feeds that were referred to
previously are displayed. A maximum of 3 feeds
can be stored in the history.
1. Touch [Info] on the Launch Bar and touch
[NissanConnect Services].
2. Touch [History]. An Information feed list is displayed.
&RQGLWLRQ
5-9
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

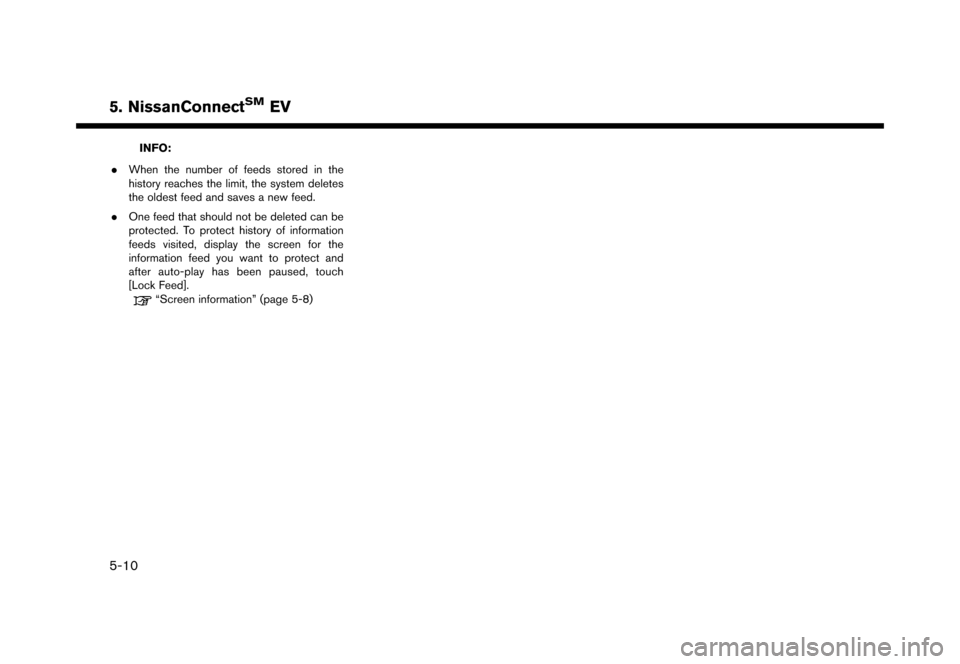

INFO:
. When the number of feeds stored in the
history reaches the limit, the system deletes
the oldest feed and saves a new feed.
. One feed that should not be deleted can be
protected. To protect history of information
feeds visited, display the screen for the
information feed you want to protect and
after auto-play has been paused, touch
[Lock Feed].
ªScreen informationº (page 5-8)
&RQGLWLRQ
5-10
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

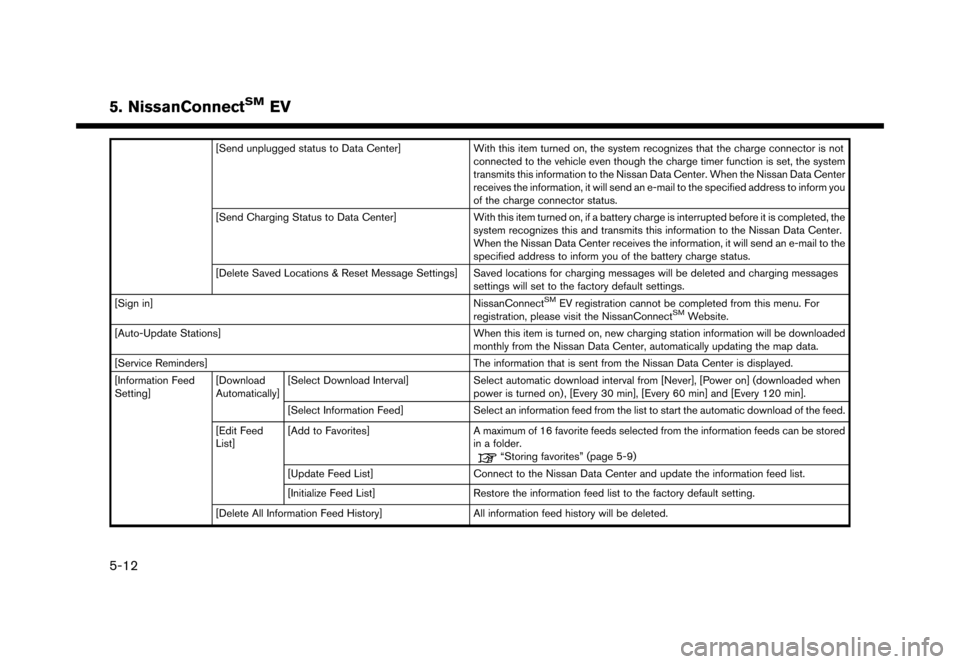

[Send unplugged status to Data Center]With this item turned on, the system recognizes that the charge connector is not
connected to the vehicle even though the charge timer function is set, the system
transmits this information to the Nissan Data Center. When the Nissan Data Center
receives the information, it will send an e-mail to the specified address to inform you
of the charge connector status.
[Send Charging Status to Data Center] With this item turned on, if a battery charge is interrupted before it is completed, the
system recognizes this and transmits this information to the Nissan Data Center.
When the Nissan Data Center receives the information, it will send an e-mail to the
specified address to inform you of the battery charge status.
[Delete Saved Locations & Reset Message Settings] Saved locations for charging messages will be deleted and charging messages settings will set to the factory default settings.
[Sign in] NissanConnect
SMEV registration cannot be completed from this menu. For
registration, please visit the NissanConnectSMWebsite.
[Auto-Update Stations] When this item is turned on, new charging station information will be downloaded
monthly from the Nissan Data Center, automatically updating the map data.
[Service Reminders] The information that is sent from the Nissan Data Center is displayed.
[Information Feed
Setting] [Download
Automatically][Select Download Interval]
Select automatic download interval from [Never], [Power on] (downloaded when
power is turned on) , [Every 30 min], [Every 60 min] and [Every 120 min].
[Select Information Feed] Select an information feed from the list to start the automatic download of the feed.
[Edit Feed
List] [Add to Favorites]
A maximum of 16 favorite feeds selected from the information feeds can be stored
in a folder.
ªStoring favoritesº (page 5-9)
[Update Feed List] Connect to the Nissan Data Center and update the information feed list.
[Initialize Feed List] Restore the information feed list to the factory default setting.
[Delete All Information Feed History] All information feed history will be deleted.
&RQGLWLRQ
5-12
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

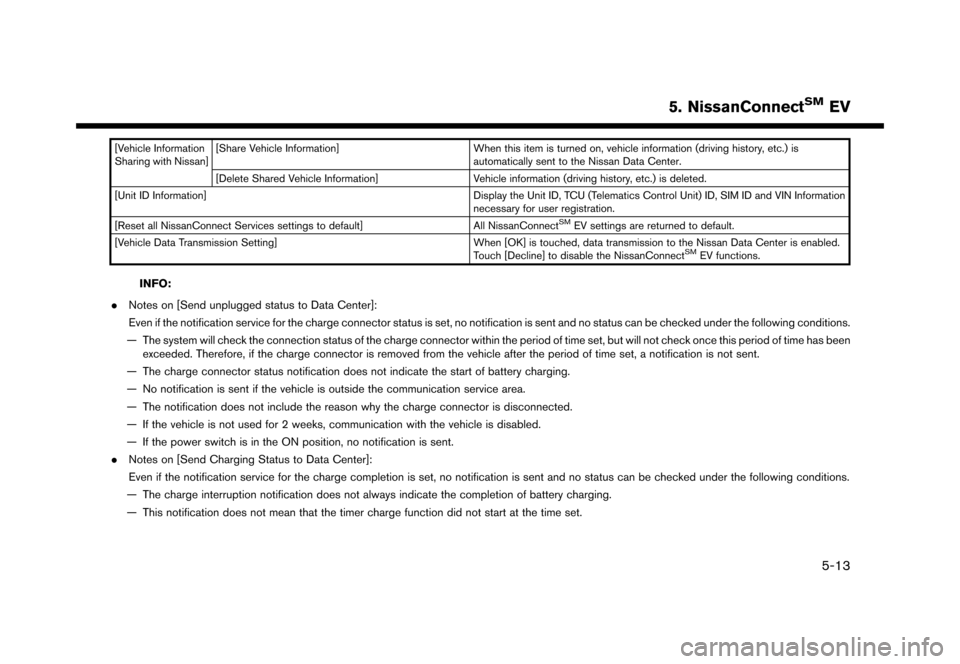

[Vehicle Information
Sharing with Nissan][Share Vehicle Information]
When this item is turned on, vehicle information (driving history, etc.) is
automatically sent to the Nissan Data Center.
[Delete Shared Vehicle Information] Vehicle information (driving history, etc.) is deleted.
[Unit ID Information] Display the Unit ID, TCU (Telematics Control Unit) ID, SIM ID and VIN Information
necessary for user registration.
[Reset all NissanConnect Services settings to default] All NissanConnect
SMEV settings are returned to default.
[Vehicle Data Transmission Setting] When [OK] is touched, data transmission to the Nissan Data Center is enabled.
Touch [Decline] to disable the NissanConnect
SMEV functions.
INFO:
. Notes on [Send unplugged status to Data Center]:
Even if the notification service for the charge connector status is set, no notification is sent and no status can be checked under the following conditions.
Ð The system will check the connection status of the charge connector within the period of time set, but will not check once this period of time has been exceeded. Therefore, if the charge connector is removed from the vehicle after the period of time set, a notification is not sent.
Ð The charge connector status notification does not indicate the start of battery charging.
Ð No notification is sent if the vehicle is outside the communication service area.
Ð The notification does not include the reason why the charge connector is disconnected.
Ð If the vehicle is not used for 2 weeks, communication with the vehicle is disabled.
Ð If the power switch is in the ON position, no notification is sent.
. Notes on [Send Charging Status to Data Center]:
Even if the notification service for the charge completion is set, no notification is sent and no status can be checked under the following conditions.
Ð The charge interruption notification does not always indicate the completion of battery charging.
Ð This notification does not mean that the timer charge function did not start at the time set.
&RQGLWLRQ
5-13
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

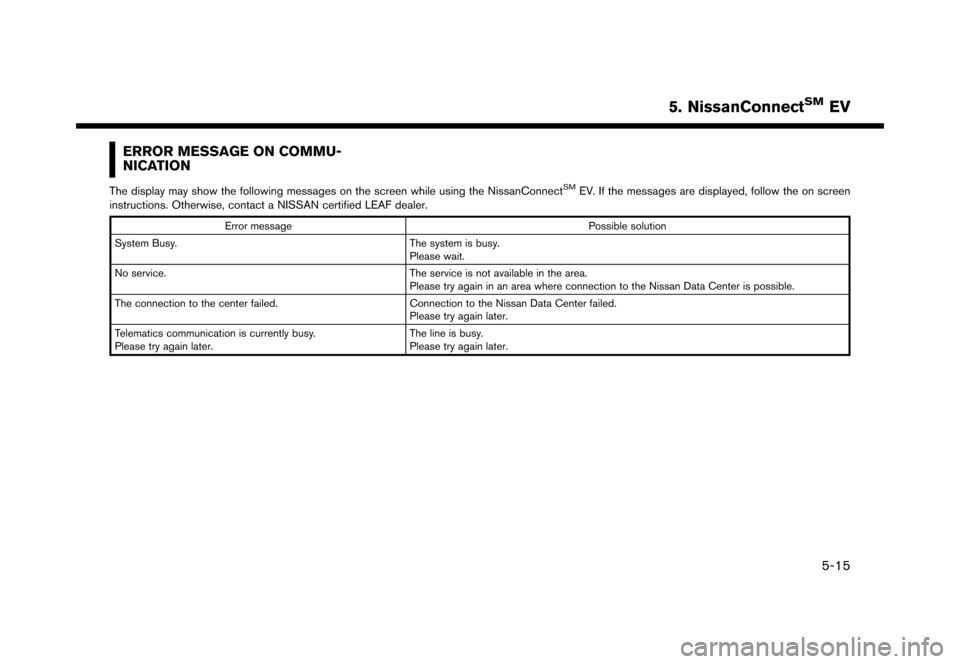

ERROR MESSAGE ON COMMU-
NICATION
GUID-A4CD8C22-D2D0-4FAC-A08B-2ECB0AB57954The display may show the following messages on the screen while using the NissanConnectSMEV. If the messages are displayed, follow the on screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.
Error message Possible solution
System Busy. The system is busy.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the Nissan Data Center is possible.
The connection to the center failed. Connection to the Nissan Data Center failed.
Please try again later.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
&RQGLWLRQ
5-15
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

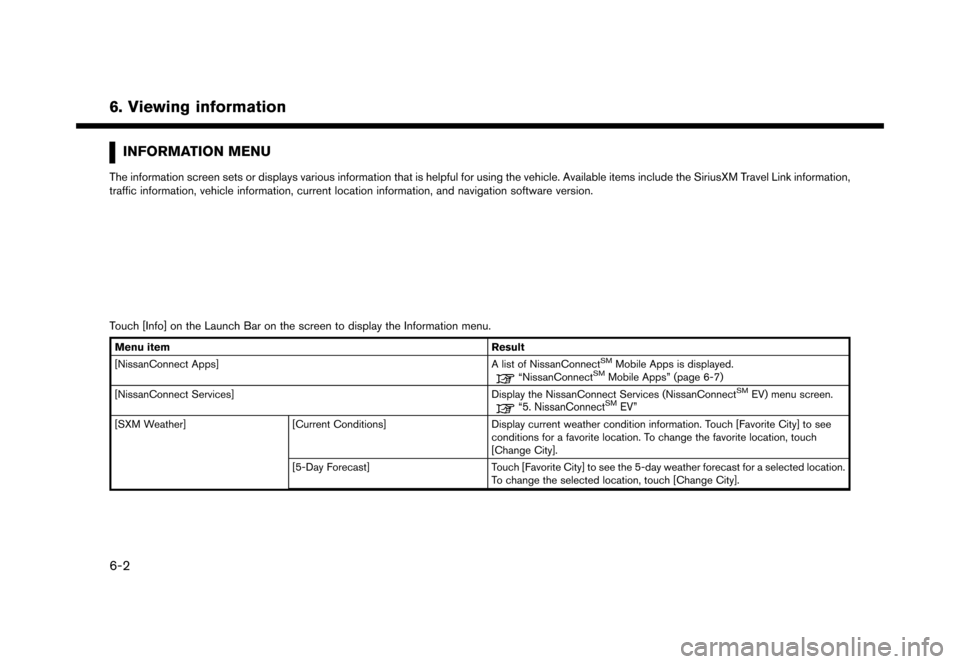

INFORMATION MENUENJN1502-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information,
traffic information, vehicle information, current location information, and navigation software version.
5GH0409X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 6-7)
[NissanConnect Services] Display the NissanConnect Services (NissanConnectSMEV) menu screen.ª5. NissanConnectSMEVº
[SXM Weather][Current Conditions] Display current weather condition information. Touch [Favorite City] to see
conditions for a favorite location. To change the favorite location, touch
[Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location.
To change the selected location, touch [Change City].
&RQGLWLRQ
6-2
6. Viewing information
