2016 NISSAN LEAF display


> (GLW    0RGHO (1-1 (91$01&*. @

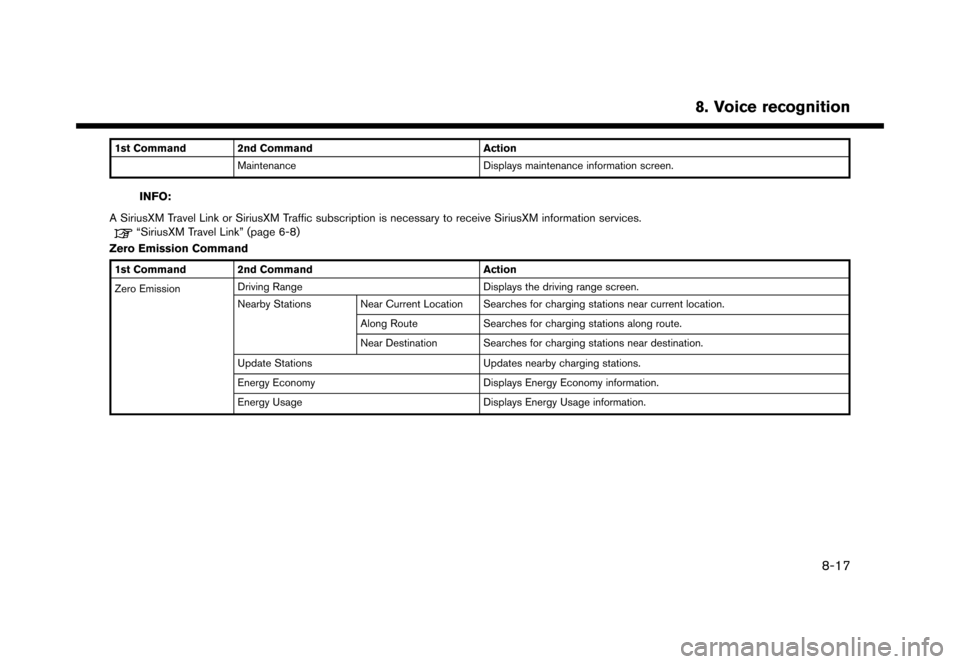

1st Command 2nd CommandAction
Maintenance Displays maintenance information screen.
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
ªSiriusXM Travel Linkº (page 6-8)
Zero Emission Command
1st Command 2nd Command Action
Zero Emission Driving Range
Displays the driving range screen.
Nearby Stations Near Current Location Searches for charging stations near current location.
Along RouteSearches for charging stations along route.
Near Destination Searches for charging stations near destination.
Update Stations Updates nearby charging stations.
Energy Economy Displays Energy Economy information.
Energy Usage Displays Energy Usage information.
&RQGLWLRQ
8-17
8. Voice recognition


> (GLW    0RGHO (1-1 (91$01&*. @

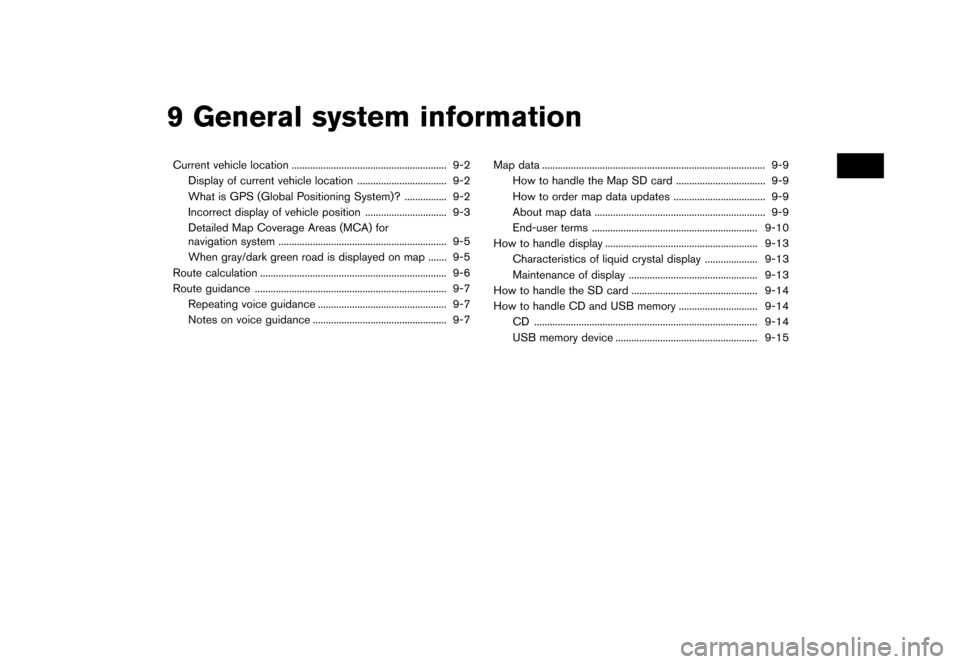

9 General system information
Current vehicle location...
........................................................... 9-2
Display of current vehicle location ...
.................................. 9-2
What is GPS (Global Positioning System)? ...
................ 9-2
Incorrect display of vehicle position ...
............................... 9-3
Detailed Map Coverage Areas (MCA) for
navigation system ...
................................................................ 9-5
When gray/dark green road is displayed on map ...
....... 9-5
Route calculation ...
....................................................................... 9-6
Route guidance ...
........................................................................\
. 9-7
Repeating voice guidance ...
................................................. 9-7
Notes on voice guidance ...
................................................... 9-7 Map data
...
........................................................................\
............. 9-9
How to handle the Map SD card ...
.................................. 9-9
How to order map data updates ...
................................... 9-9
About map data ...
................................................................. 9-9
End-user terms ...
............................................................... 9-10
How to handle display ...
.......................................................... 9-13
Characteristics of liquid crystal display ...
.................... 9-13
Maintenance of display ...
................................................. 9-13
How to handle the SD card ...
................................................ 9-14
How to handle CD and USB memory ...
.............................. 9-14
CD ...
........................................................................\
............. 9-14
USB memory device ...
...................................................... 9-15
&RQGLWLRQ


> (GLW    0RGHO (1-1 (91$01&*. @
CURRENT VEHICLE LOCATIONENJN1502-120906-3DB2B298-7959-42E7-A529-EBC2E6E1A510
DISPLAY OF CURRENT VEHICLE
LOCATION
ENJN1502-120906-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
WHAT IS GPS (Global Positioning
System)?
ENJN1502-120906-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detect the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustmentGUID-397DB4FB-31B2-4B95-A408-0734E5AE4532When the system judges that the vehicle position
is not accurate based on vehicle speed and gyro
sensor data calculations, the system will auto-
matically adjust the position of the vehicle icon
using GPS signals.
Receiving signals from GPS satellitesGUID-BE69F8F9-5318-4090-9ED5-74A3046914D7The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receive
GPS signals.
NAI0422
*
Inside tunnels or parking garages
NAI0423 *
In areas with numerous tall buildings
NAI0424
*
Under multi-layered highways
NAI0425
*
Areas with numerous tall trees
&RQGLWLRQ
9-2
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @

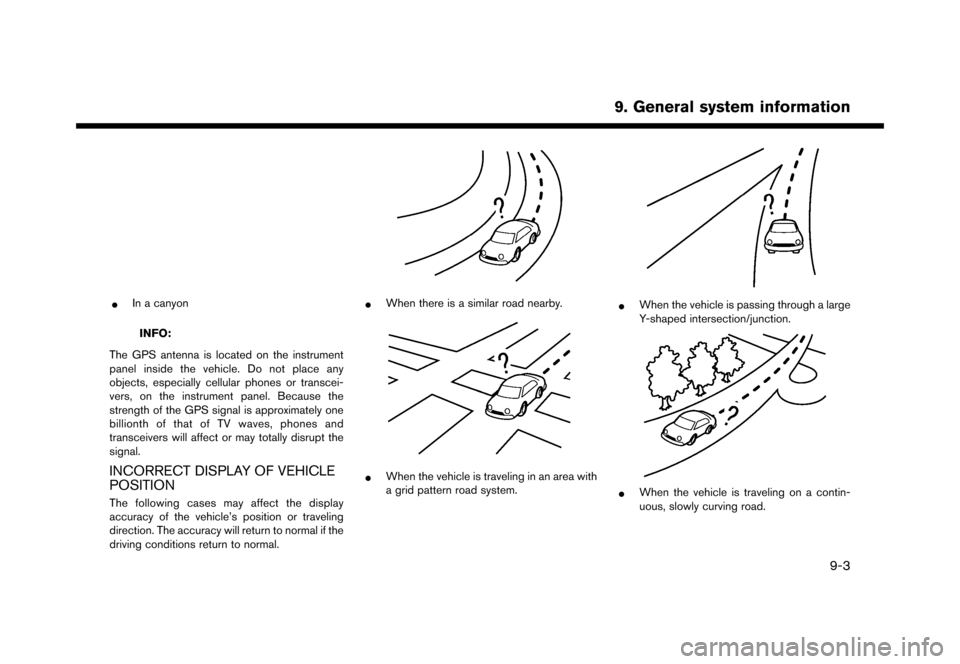

NAI0713
*
In a canyon
INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially cellular phones or transcei-
vers, on the instrument panel. Because the
strength of the GPS signal is approximately one
billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt the
signal.
INCORRECT DISPLAY OF VEHICLE
POSITION
ENJN1502-120906-B4EC1A08-66C4-4494-8E5E-6CB5C47F02B9The following cases may affect the display
accuracy of the vehicle's position or traveling
direction. The accuracy will return to normal if the
driving conditions return to normal.
NAI0426
*
When there is a similar road nearby.
NAI0427
*
When the vehicle is traveling in an area with
a grid pattern road system.
NAI0428
*
When the vehicle is passing through a large
Y-shaped intersection/junction.
NAI0429
*
When the vehicle is traveling on a contin-
uous, slowly curving road.
&RQGLWLRQ
9-3
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @

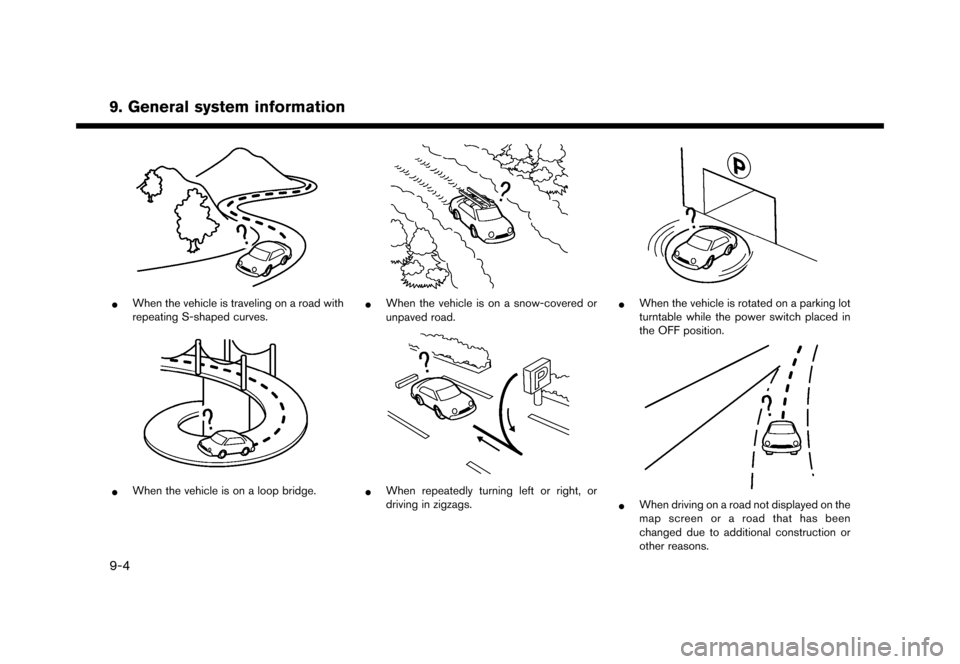

NAI0430
*
When the vehicle is traveling on a road with
repeating S-shaped curves.
NAI0431
*
When the vehicle is on a loop bridge.
NAI0432
*
When the vehicle is on a snow-covered or
unpaved road.
NAI0433
*
When repeatedly turning left or right, or
driving in zigzags.
NAI0434
*
When the vehicle is rotated on a parking lot
turntable while the power switch placed in
the OFF position.
NAI0435
*
When driving on a road not displayed on the
map screen or a road that has been
changed due to additional construction or
other reasons.
&RQGLWLRQ
9-4
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @
NAI0436
*
When the GPS positioning accuracy is low.
INFO:
. The vehicle icon may be misaligned when
starting the vehicle just after the READY to
drive indicator light is turned on.
. The vehicle icon may also be misaligned if
different sized tires or tire chains are
installed.
. The system has a function that automatically
corrects the vehicle icon position when it is
misaligned from the actual position.
. Vehicle position correction by GPS may not
function when the vehicle is stopped.
. If the vehicle icon position does not return to
normal even after driving for a while, correct the vehicle icon position manually.
DETAILED MAP COVERAGE AREAS
(MCA) FOR NAVIGATION SYSTEM
ENJN1502-120906-A7515219-FB6B-4303-A8B1-B6FF7C9DABCDThis system is designed to help guiding to the
destination, and it also performs other functions
as outlined in this manual. However, the system
must be used safely and properly. Information
concerning road conditions, traffic signs and the
availability of services may not always be up-to-
date. The system is not a substitute for safe,
proper and legal driving.
Map data covers select metropolitan areas.
Map data includes two types of areas: ªDetailed
coverage areasº providing all detailed road data
and other areas showing ªMain roads onlyº.
INFO:
Detailed map data is not available in many areas
and is generally limited to select major metropo-
litan areas.
WHEN GRAY/DARK GREEN ROAD
IS DISPLAYED ON MAP
ENJN1502-120906-B4E64482-6BC5-421A-8E74-FD830C019E3A. When you are driving on a road displayed in
gray after the vehicle has deviated from the
suggested route during route guidance,
automatic rerouting may not start immedi-
ately. .
The navigation system does not provide
route guidance for roads displayed in dark
green. Therefore, if the destination is set on a
road displayed in dark green, the enlarged
map display will return to the ordinary map
screen at some point on a suggested route
that is near the destination. Also, voice
guidance will stop at some point on a
suggested route that is near the destination.
. Places information and street names near
roads displayed in gray may not be contained
in the map data.
&RQGLWLRQ
9-5
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @

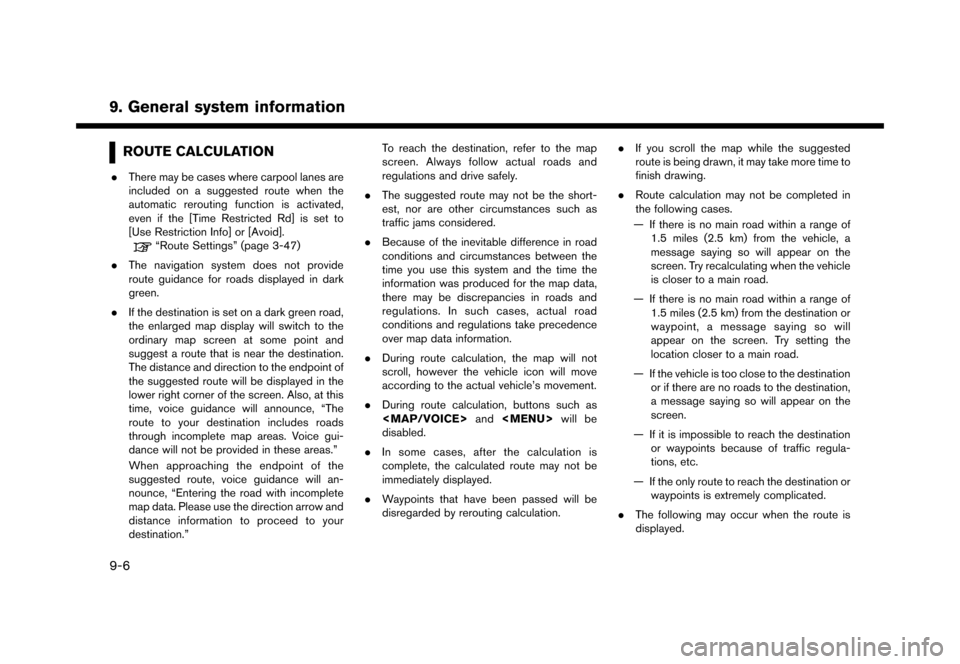

ROUTE CALCULATIONENJN1502-120906-EE073CB3-3FAF-4421-BD08-BF04F3C95D6B.There may be cases where carpool lanes are
included on a suggested route when the
automatic rerouting function is activated,
even if the [Time Restricted Rd] is set to
[Use Restriction Info] or [Avoid].
ªRoute Settingsº (page 3-47)
. The navigation system does not provide
route guidance for roads displayed in dark
green.
. If the destination is set on a dark green road,
the enlarged map display will switch to the
ordinary map screen at some point and
suggest a route that is near the destination.
The distance and direction to the endpoint of
the suggested route will be displayed in the
lower right corner of the screen. Also, at this
time, voice guidance will announce, ªThe
route to your destination includes roads
through incomplete map areas. Voice gui-
dance will not be provided in these areas.º
When approaching the endpoint of the
suggested route, voice guidance will an-
nounce, ªEntering the road with incomplete
map data. Please use the direction arrow and
distance information to proceed to your
destination.º To reach the destination, refer to the map
screen. Always follow actual roads and
regulations and drive safely.
. The suggested route may not be the short-
est, nor are other circumstances such as
traffic jams considered.
. Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the
information was produced for the map data,
there may be discrepancies in roads and
regulations. In such cases, actual road
conditions and regulations take precedence
over map data information.
. During route calculation, the map will not
scroll, however the vehicle icon will move
according to the actual vehicle's movement.
. During route calculation, buttons such as


> (GLW    0RGHO (1-1 (91$01&*. @
Ð If you calculate a route on a main road, thestarting point of the route may not exactly
match the current vehicle location.
Ð The endpoint of the route may not exactly match the destination.
Ð If you calculate a route on a main road, the system may display a route from another
main road. This may be because the
position of the vehicle icon is not accu-
rate. In this case, park the vehicle in a safe
location and reset the vehicle icon, or
continue driving to see if the position of
the vehicle icon is automatically adjusted
before recalculating the route.
Ð There are cases in which the system shows an indirect route to reach the
destination or waypoints, if you set them
from stored or facility information. In order
to correct this, you must be careful about
the traffic direction, especially when lanes
with different travel directions are shown
separately, such as interchanges and
service areas.
Ð This system makes no distinction be- tween limited traffic control and total
control (blockage) . It may show an
indirect route even if the road is usable. Ð Even if the ferry preference is set to OFF, a
route that uses a ferry line may be
suggested.ROUTE GUIDANCEENJN1502-120906-D4460D59-8C4D-4A28-8361-F3C3C250F896
INFO:
The system will announce street names when the
system language is set to English. Street names
are not announced when the system is set to
French/Spanish.
REPEATING VOICE GUIDANCEENJN1502-120906-43C350DF-CAB4-4E5D-8440-651D34A03D54This function is available throughout route
guidance, from the time after the route calcula-
tion is completed until the vehicle arrives at the
destination. Push and hold the
