2016 MAZDA MODEL CX-5 Owners Manual (in English)

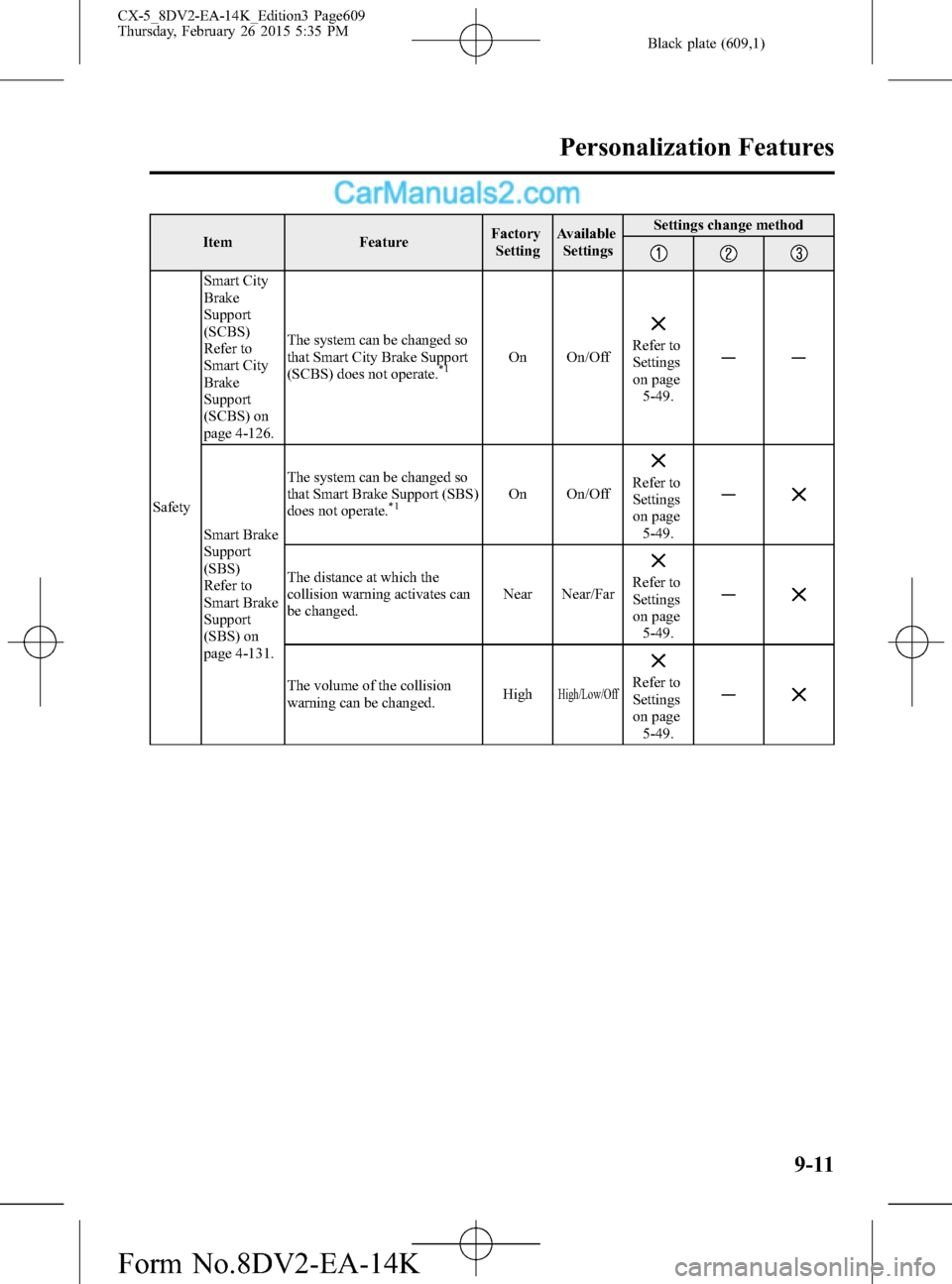

Black plate (609,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
SafetySmart City
Brake
Support
(SCBS)
Refer to
Smart City
Brake
Support
(SCBS) on
page 4-126.The system can be changed so
that Smart City Brake Support
(SCBS) does not operate.
*1On On/OffRefer to
Settings
on page
5-49.――
Smart Brake
Support
(SBS)
Refer to
Smart Brake
Support
(SBS) on
page 4-131.The system can be changed so
that Smart Brake Support (SBS)
does not operate.
*1On On/OffRefer to
Settings
on page
5-49.―
The distance at which the
collision warning activates can
be changed.Near Near/FarRefer to
Settings
on page
5-49.―
The volume of the collision
warning can be changed.HighHigh/Low/OffRefer to
Settings
on page
5-49.―
Personalization Features
9-11
CX-5_8DV2-EA-14K_Edition3 Page609
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (610,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
SafetyLane
Departure
Warning
System
(LDWS)
Refer to
Lane
Departure
Warning
System
(LDWS) on
page 4-96.The warning sound for the Lane
Departure Warning System
(LDWS) can be changed.
*2BeepBeep/Rumbl.Refer to
Settings
on page
5-49.―
The volume of the
warning sound for the
Lane Departure
Warning System
(LDWS) can be
changed.Rumbl. HighHigh/Mid/LowRefer to
Settings
on page
5-49.―
Beep High High/LowRefer to
Settings
on page
5-49.―
The sensitivity of the warning
for the Lane Departure Warning
System (LDWS) can be
changed.Low High/LowRefer to
Settings
on page
5-49.―
The warning timing in which
the Lane Departure Warning
System (LDWS) determines
that the vehicle may be
deviating from its lane can be
changed.Before At/Before
Refer to
Settings
on page
5-49.―
Blind Spot
Monitoring
(BSM)
system
Refer to
Blind Spot
Monitoring
(BSM)
System on
page 4-102.The volume of the Blind Spot
Monitoring (BSM) warning
beep can be changed.
*3HighHigh/
Low/
OffRefer to
Settings
on page
5-49.―
9-12
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page610
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (611,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
SafetyDistance
Recognition
Support
System
(DRSS)
Refer to
Distance
Recognition
Support
System
(DRSS) on
page 4-108.The system can be changed so
that Distance Recognition
Support System (DRSS) does
not operate.
*1On On/OffRefer to
Settings
on page
5-49.―
The distance at which the
vehicle ahead indicator in the
display flashes can be changed.NearFar/Medium/
NearRefer to
Settings
on page
5-49.―
VehiclePower door
lock
Refer to
Auto
Lock/Unlock
Function on
page 3-15.Changes the auto lock/unlock
function setting for all the doors
according to the vehicle speed,
the vehicle power supply
condition, and the selector lever
position.Lock:
When
Driving
Unlock:
IGN OffLock:
When
Driving
Unlock: In
Park/
Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
Off
Refer to
Settings
on page
5-49.
Refer to
Auto
Lock/Un-
lock
Function
on page
3-15.
Keyless
entry system
Refer to
Keyless
Entry
System on
page 3-4.The method for unlocking the
doors using the transmitter can
be changed.Driver's:
Once, All
Doors:
TwiceAll Doors:
Once/
Driver's:
Once, All
Doors:
TwiceRefer to
Settings
on page
5-49.Refer to
Transmit-
ter on
page 3-5.
The time required for the doors
to relock automatically after
unlocking with the transmitter
can be changed.60
seconds90
seconds/
60
seconds/
30
secondsRefer to
Settings
on page
5-49.―
Personalization Features
9-13
CX-5_8DV2-EA-14K_Edition3 Page611
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (612,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleAdvanced
keyless entry
system
Refer to
Advanced
Keyless
Entry
System on
page 3-9.The method for unlocking the
doors using the request
switch/transmitter can be
changed.Driver's:
Once, All
Doors:
TwiceAll Doors:
Once/
Driver's:
Once, All
Doors:
Twice
Refer to
Settings
on page
5-49.
Refer to
Transmit-
ter on
page 3-5.
Refer to
Locking,
Unlocking
with
Request
Switch
(With the
advanced
keyless
function)
on page
3-12.
The volume of the answer-back
beep during advanced keyless
entry system operation can be
changed.MediumHigh/
Medium/
Low/
OffRefer to
Settings
on page
5-49.
Refer to
Locking,
Unlocking
with
Request
Switch
(With the
advanced
keyless
function)
on page
3-12.
The function to automatically
lock the doors when leaving the
vehicle while carrying the key
can be changed.Off On/OffRefer to
Settings
on page
5-49.―
The time required for the doors
to relock automatically after
unlocking with the request
switch/transmitter can be
changed.60
seconds90
seconds/
60
seconds/
30
seconds
Refer to
Settings
on page
5-49.―
9-14
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page612
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (613,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleIllumination
entry
Refer to
Illuminated
Entry
System on
page 5-129.The time required for the
interior lamp to turn off
automatically can be changed
(prevents battery depletion
when a door is open/ajar).30
minutes60
minutes/
30
minutes/
10
minutes
Refer to
Settings
on page
5-49.―
The time required for the
interior lamp to turn off
automatically after all doors are
closed can be changed.15
seconds60
seconds/
30
seconds/
15
seconds/
7.5
secondsRefer to
Settings
on page
5-49.―
Auto-wiper
control
Refer to
Windshield
Wipers and
Washer on
page 4-64.The auto-wiper control function
can be changed.On On/Off
*4Refer to
Settings
on page
5-49.―
Daytime
running
lights
Refer to
Daytime
Running
Lights on
page 4-62.The function of the daytime
running lights can be changed.OnOn/
Off――
Auto
headlight off
Refer to
Headlights
on page
4-58.The time required for headlights
to turn off after ignition is
switched off can be changed.30
seconds120
seconds/
90
seconds/
60
seconds/
30
seconds/
Off
*5
Refer to
Settings
on page
5-49.―
Auto-light
control
Refer to
Headlights
on page
4-58.The headlight illumination
on/off sensitivity based on
surrounding lightness/darkness
can be changed.MediumHigh/
Med.
High/
Medium/
Med.
Low/
Low
Refer to
Settings
on page
5-49.―
Personalization Features
9-15
CX-5_8DV2-EA-14K_Edition3 Page613
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (614,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleHigh Beam
Control
System
(HBC)
Refer to
High Beam
Control
System
(HBC) on
page 4-93.The High Beam Control System
(HBC) function can be
changed.
*1On On/OffRefer to
Settings
on page
5-49.―
Adaptive
Front
Lighting
System
(AFS)
Refer to
Adaptive
Front
Lighting
System
(AFS) on
page 4-92.The adaptive front lighting
system (AFS) function can be
changed.
*1On On/OffRefer to
Settings
on page
5-49.―
Lights-on
reminder*6
Refer to
Lights-On
Reminder on
page 7-34.The volume of the lights-on
reminder warning alarm can be
changed.OffHigh/Low/OffRefer to
Settings
on page
5-49.―
Coming
home light
system
Refer to
Coming
Home Light
System on
page 4-61.The time required for the
headlights to turn off after
closing all of the doors can be
changed.30
seconds120
seconds/
90
seconds/
60
seconds/
30
seconds/
Off
Refer to
Settings
on page
5-49.―
9-16
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page614
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (615,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleLeaving
home light
system
Refer to
Leaving
Home Light
System on
page 4-62.The leaving home light system
function can be changed.On On/Off
Refer to
Settings
on page
5-49.―
Turn
indicator
Refer to
Turn and
Lane-
Change
Signals on
page 4-63.The turn indicator beep volume
level can be changed.High High/Low
Refer to
Settings
on page
5-49.―
Three-flash
turn signal
Refer to
Three-Flash
Turn Signal
on page
4-64.The three-flash turn function
can be changed.On On/Off
Refer to
Settings
on page
5-49.―
Rear
window
defogger
Refer to
Rear
Window
Defogger on
page 4-69.The operation time for the rear
window defogger can be
changed.15
minutes15
minutes/
Continu-
ous――
SystemDistance
unitThe distance unit can be
changed.mi or km mi/km
Refer to
Settings
on page
5-49.―
LanguageThe display language can be
changed.*7EnglishEnglish/
French/
SpanishRefer to
Settings
on page
5-49.―
Temperature
unitThe temperature unit can be
changed.°F or °C °F/°CRefer to
Settings
on page
5-49.―
Personalization Features
9-17
CX-5_8DV2-EA-14K_Edition3 Page615
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (616,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
Fuel
Econo-
my
Moni-
tor
Refer
to Fuel
Econo-
my
Moni-
tor on
page
4-84.Ending
displaySetting can be changed so that
the ending display of the Fuel
Economy Monitor is displayed.Off On/OffRefer to
Fuel
Economy
Monitor
on page
4-84.―
Fuel
economy
resetting
procedureSetting can be changed so that
the fuel economy reset is linked
with the trip meter reset.Off On/OffRefer to
Fuel
Economy
Monitor
on page
4-84.―
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*2 For vehicles with an audio system other than the on-screen function type, the warning sound cannot be
changed. The warning sound is only a beep.
*3 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.
*4 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*5 When set to Off, the lights-on reminder is operable.
*6 The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to
Off. Refer to Lights-On Reminder on page 7-34.
*7 Available only in display from the center display.
9-18
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page616
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
