When trouble arises
7-2. Steps to take in an emergency

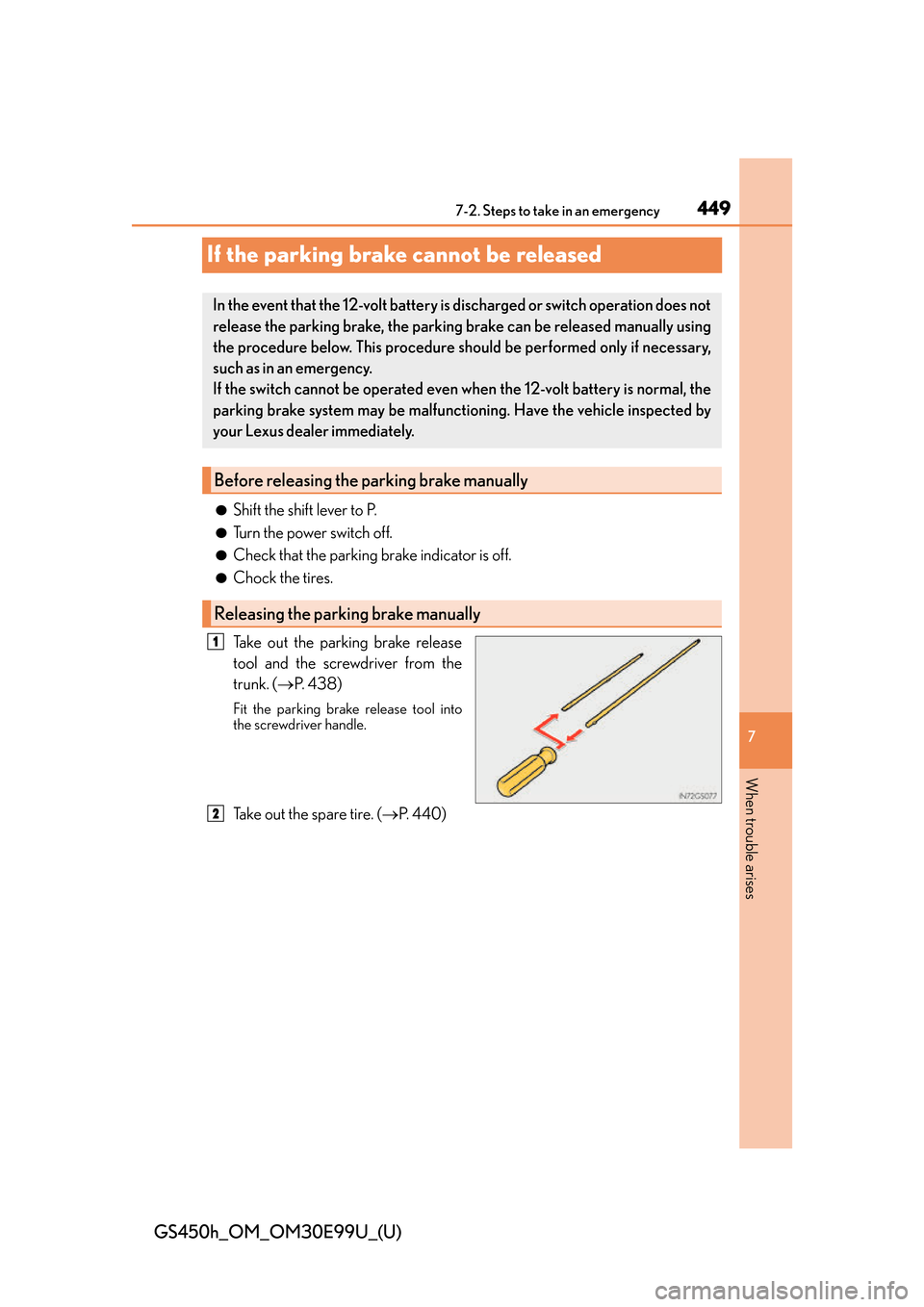

If the parking brake cannot be released
●Shift the shift lever to P.
●Turn the power switch off.
●Check that the parking brake indicator is off.
●Chock the tires.
Take out the parking brake release
tool and the screwdriver from the
trunk. ( P. 4 3 8 )
Fit the parking brake release tool into
the screwdriver handle.
Take out the spare tire. ( P. 4 4 0 )
In the event that the 12-volt battery is discharged or switch operation does not
release the parking brake, the parking brake can be released manually using
the procedure below. This procedure should be performed only if necessary,
such as in an emergency.
If the switch cannot be operated even when the 12-volt battery is normal, the
parking brake system may be malfunctioning. Have the vehicle inspected by
your Lexus dealer immediately.
Before releasing the parking brake manually
Releasing the parking brake manually
1
2

4507-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
Remove the plug.
Insert the tool and press it down
firmly while turning it counterclock-
wise until it stops.
■Manual operation of the parking brake
The parking brake cannot be set manually.
3
4
WA R N I N G
■When releasing the parking brake manually
●Shift the shift lever to P, turn the power switch off and chock the tires. Failure to do so
may cause the vehicle to move, resulting in an accident.
●Turn the power switch off and check that the parking brake indicator is off. Failure to
do so may cause the system to operate and turn the inserted parking brake release
tool, resulting in an injury.

451
GS450h_OM_OM30E99U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the electronic key does not operate properly
■Doors
Use the mechanical key ( P. 1 1 7 ) i n
order to perform the following oper-
ations:
Locks all the doors
Closes the windows and moon
roof
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof* (turn and hold)
*: This setting must be customized at your Lexus dealer.
■Tr u n k
Turn the mechanical key clockwise
to open.
If communication between the electronic key and vehicle is interrupted
(  P. 135) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In su ch cases, the doors and trunk can be
opened and the hybrid system can be started by following the procedure
below.
Locking and unlocking the doors, un locking the trunk and key linked
functions
1
2
3
4

4527-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a
buzzer sounds and the power switch will
turn to ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the power switch will
turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact your Lexus
dealer.
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when stopping the
hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 377)
■Changing power switch modes
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and mode s will be changed each time the switch is
pressed.( P. 181)
■When the electronic key does not work properly
●Make sure that the smart access system wi th push-button start has not been deacti-
vated in the custom ization setting. If it is off, turn the function on.
(Customizable features: P. 4 9 1 )
●Check if battery-saving mo de is set. If it is set, cancel the function. ( P. 1 3 4 )
Starting the hybrid system
1
2
WA R N I N G
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof afte r checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof.
Also, do not allow children to operate the mech anical key. It is possible for children and
other passengers to get caught in the power window or moon roof.
3
4
3

453
GS450h_OM_OM30E99U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the 12-volt battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below.
Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and doors
locked. ( P. 7 8 )
Open the hood ( P. 3 4 7 ) , r e m o v e
the engine compartment covers
( P. 350) and open the fuse box
cover.
Remove all of the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
Open the exclusive jump starting
terminal cover.
The following procedures may be used to start the hybrid system if the 12-volt
battery is discharged.
You can also call your Lexus dealer or a qualified repair shop.
1
2
1
2
3

4547-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)

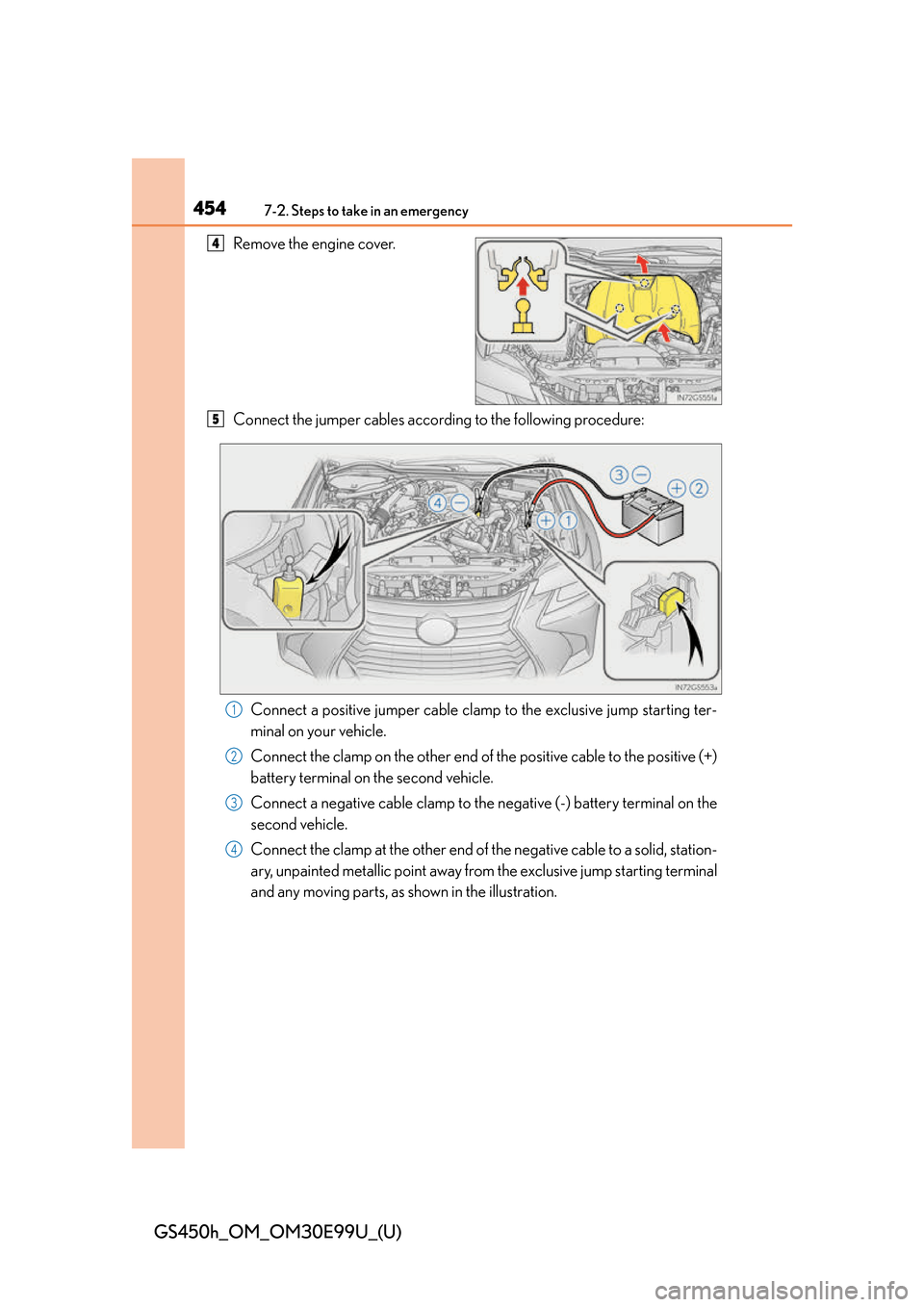

Remove the engine cover.
Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the exclusive jump starting terminal
and any moving parts, as shown in the illustration.4
5
1
2
3
4

4557-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator does not come
on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the hybrid system starts, have th e vehicle inspected at your Lexus dealer
as soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and th e draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
■When recharging or replacing the 12-volt battery
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will return to the mode it was in before the 12-volt battery was
discharged. Before disconnecting the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
6
7
8
9
10

4567-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)

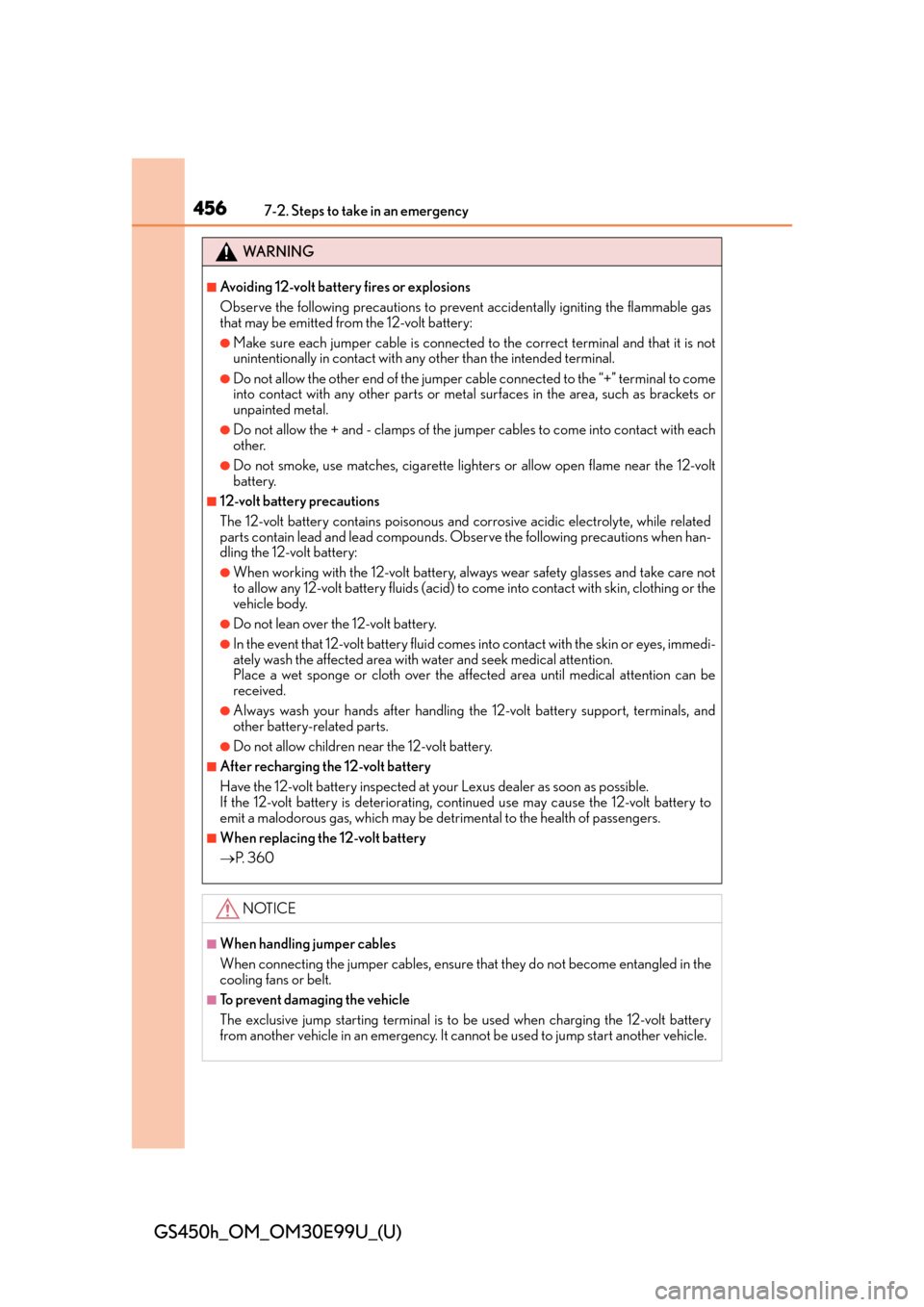

WA R N I N G
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas
that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jump er cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the 12-volt
battery.
■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related
parts contain lead and lead compounds. Ob serve the following precautions when han-
dling the 12-volt battery:
●When working with the 12-volt battery, alwa ys wear safety glasses and take care not
to allow any 12-volt battery fluids (acid) to come into contact with skin, clothing or the
vehicle body.
●Do not lean over the 12-volt battery.
●In the event that 12-volt battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at your Lexus dealer as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to
emit a malodorous gas, which may be de trimental to the health of passengers.
■When replacing the 12-volt battery
P. 3 6 0
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure th at they do not become entangled in the
cooling fans or belt.
■To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt battery
from another vehicle in an emergency. It ca nnot be used to jump start another vehicle.
