2016 Lexus GS450h Owner's Manual / LEXUS 2016 GS450H OWNERS MANUAL (OM30E99U)

345
GS450h_OM_OM30E99U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsPa r t s a n d t o o l s
12-volt battery con-
dition ( P. 3 5 8 )•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
( P. 3 5 6 )
• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power con-
trol unit coolant level
( P. 3 5 4 )
•“To y o t a Super Long Life Coolant” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with 55%
coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 3 5 1 )
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 3 7 9 )• Fuse with same amperage rating as original
Headlight aim
( P. 3 8 4 )• Phillips-head screwdriver
Light bulbs
( P. 3 8 6 )
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead screwdriver
•Wrench
Radiator and con-
denser ( P. 3 5 5 )
Tire inflation pres-
sure ( P. 3 7 0 )• Tire pressure gauge• Compressed air source
Wa s h e r f l u i d
( P. 3 5 7 )• Water or washer fluid containi ng antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

346
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance
WA R N I N G
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Make sure that the “POWER ON” on the multi-information display and the
“READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-
ble.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. ( P. 3 5 5 )
■Safety glasses
Wear safety glasses to prevent flying or fallin g material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

347
GS450h_OM_OM30E99U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

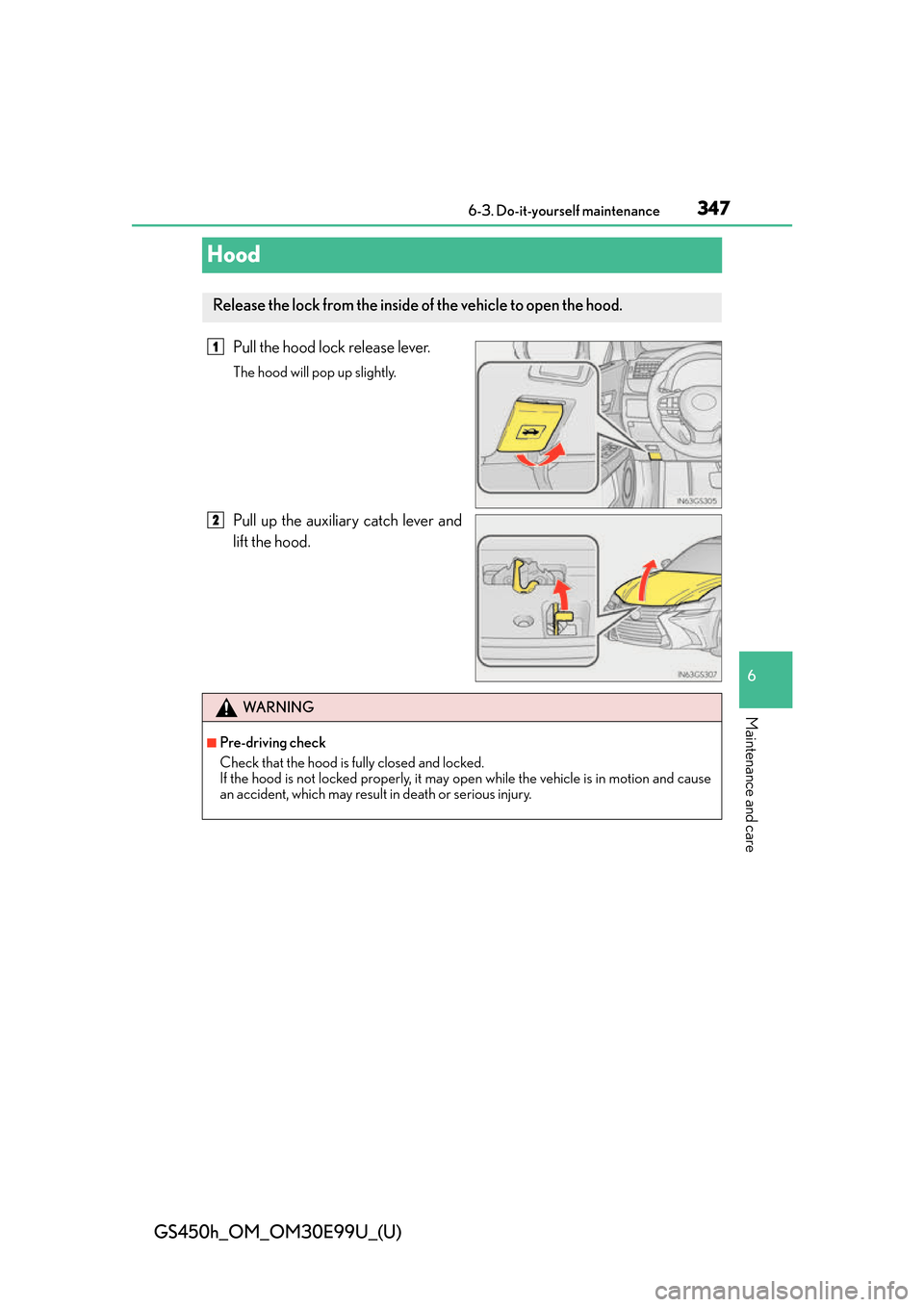

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
WA R N I N G
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

348
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance

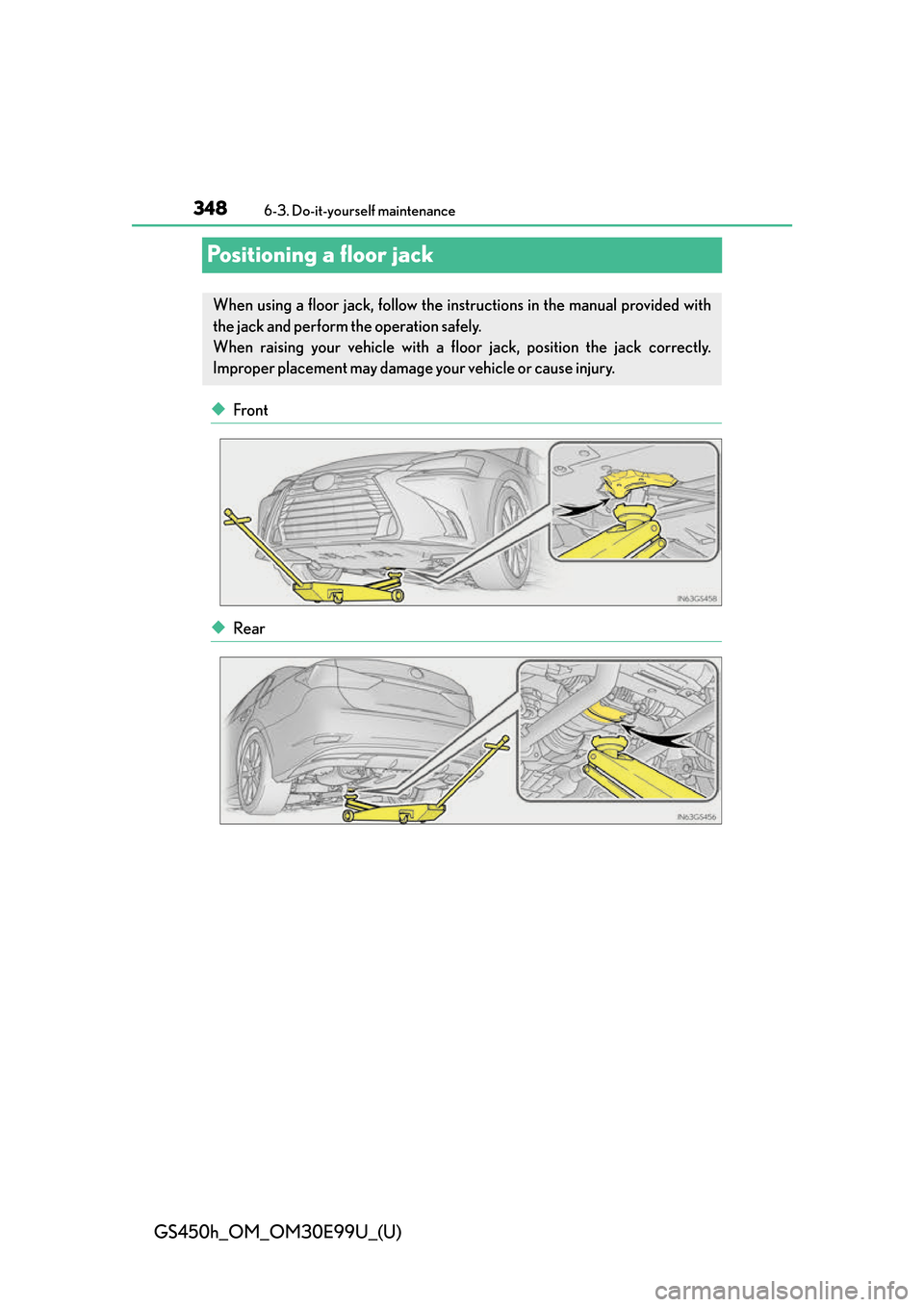

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

349
GS450h_OM_OM30E99U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
■12-volt battery
 P. 3 5 8
Engine oil level dipstick
(P. 3 5 1 )
Engine coolant reservoir (P. 3 5 4 )
Engine oil filler cap ( P. 3 5 2 )
Power control unit coolant
reservoir ( P. 3 5 4 ) Brake fluid reservoir
(P. 3 5 6 )
Fuse box ( P. 3 7 9 )
Wa s h e r f l u i d t a n k ( P. 3 5 7 )
Electric cooling fans
Condenser ( P. 3 5 5 )
Radiator ( P. 3 5 5 )1
2
3
4
5
6
7
8
9
10

350
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance
■Removing the engine compartment cover
Right-hand side
Center
■Installing the clipsPush up center portion
Insert
Press
Engine compartment cover
1
2
3
NOTICE
■Checking the engine compartment cover after installation
Make sure that the cover is securely installed in its original position.

GS450h_OM_OM30E99U_(U)
3516-3. Do-it-yourself maintenance
6
Maintenance and care
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the oil level.Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
Flat dipstickNon-flat dipstick
6

352
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine o il may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, or when driving while accel-
erating or decelerating frequently
●When leaving the engi ne idling for a long time, or when driving frequently through
heavy traffic
Engine oil selection P. 4 6 9
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3
