Electronic key battery
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

378
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance
■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation afte r replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

379
GS450h_OM_OM30E99U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Engine compartment
Remove the engine compartment
cover ( P. 350) and remove all of
the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
When installing the li d, check that the
lock plate and the tabs on either side
are connected correctly.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2

380
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance

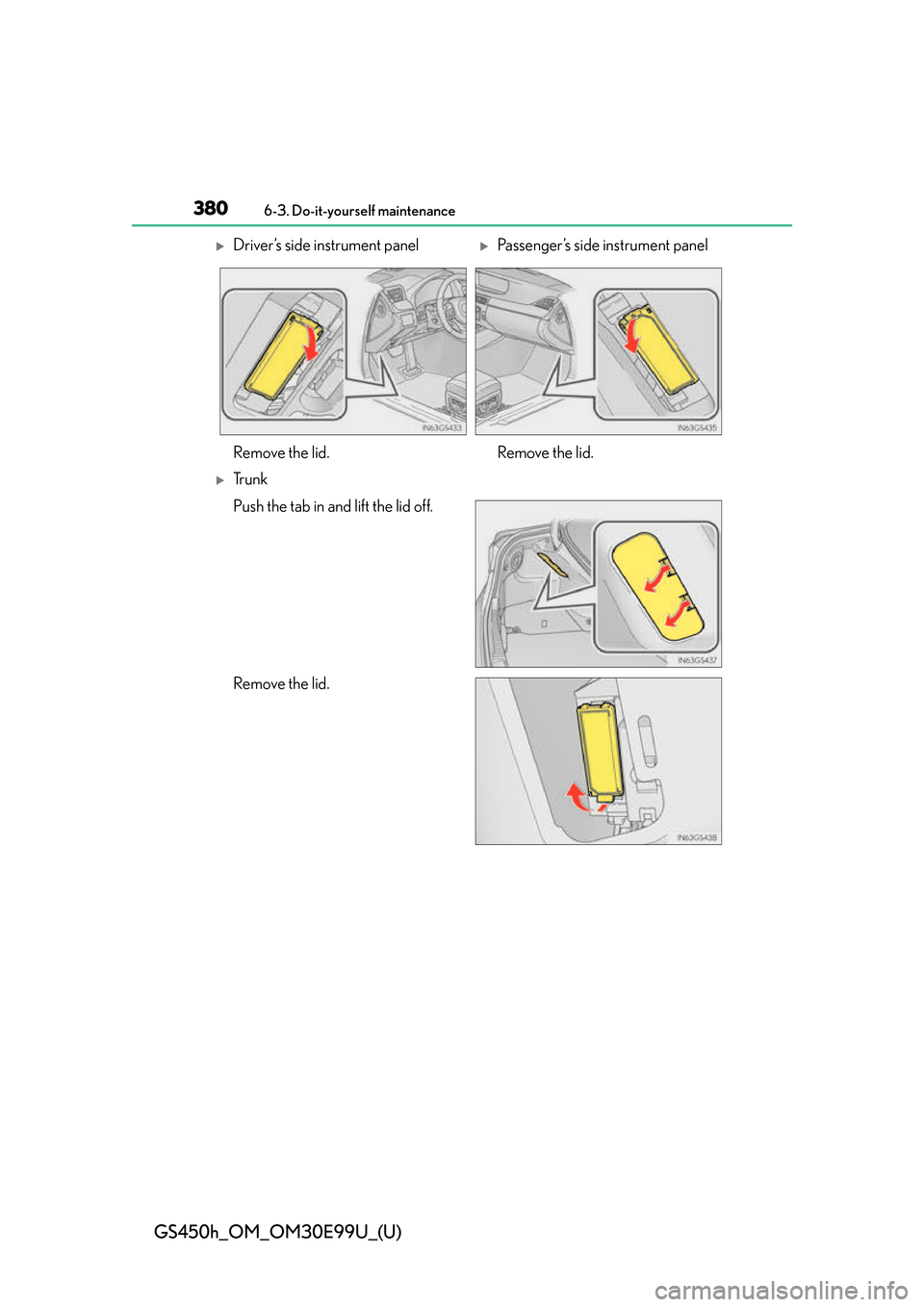

Tr u n k
Push the tab in and lift the lid off.
Remove the lid.
Driver’s side instrument panelPassenger’s side instrument panel
Remove the lid. Remove the lid.

GS450h_OM_OM30E99U_(U)
3816-3. Do-it-yourself maintenance
6
Maintenance and care
The upper part of the 12-volt battery
Pull the strap upwards to lift up the
12-volt battery cover.
When one or more of the fuses in this
unit are blown, the unit needs to be
replaced as a whole.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
3

382
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Ty p e C a n d D :
Contact your Lexus dealer.
4
1
2
Ty p e ATy p e B
Ty p e CTy p e D

GS450h_OM_OM30E99U_(U)
3836-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (P. 3 8 6 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Le xus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WA R N I N G
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rati ng than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determ ined and repaired by your Lexus dealer as
soon as possible.

384
GS450h_OM_OM30E99U_(U)
6-3. Do-it-yourself maintenance

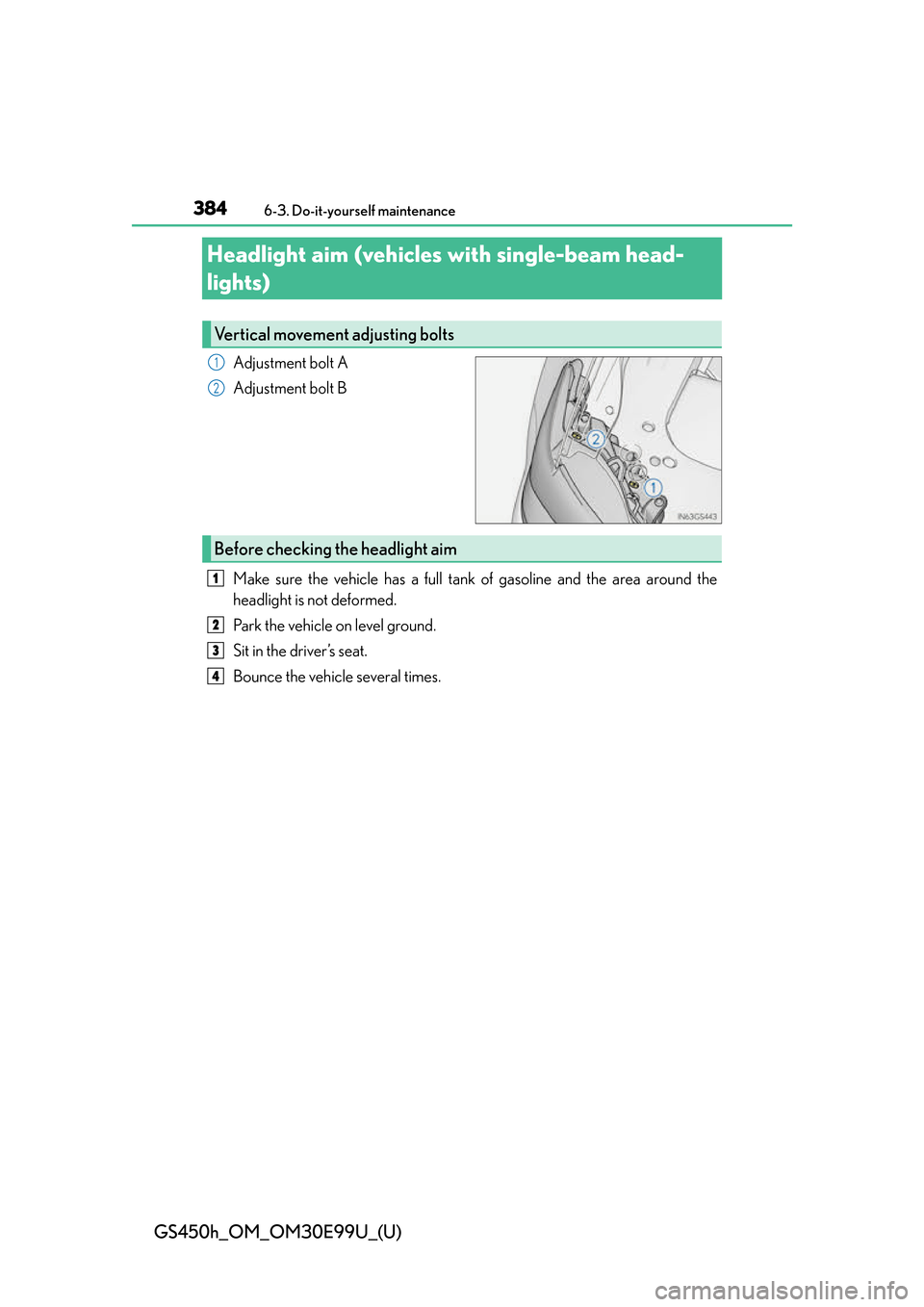

Headlight aim (vehicles with single-beam head-
lights)
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4
