2016 INFINITI QX60 Owner's Manual

1. Driver side automatic switch
2. Front passenger side automatic switch
3. Left rear passenger automatic switch
4. Right rear passenger automatic switch
5. Window lock button
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close the front and rear
passenger windows.
The window can be partially opened by pushing
the switch
Adown lightly until the desired win-
dow position is reached. To close the window
partially, pull the switch
Bup until the desired
window position is reached.
Locking passengers’ windows
When the window lock buttonCis depressed,
only the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window partially, push the switch down lightly
until the desired window position is reached. To
close the window partially, pull the switch up until
the desired window position is reached.
SIC4352SIC4353
Instruments and controls2-59

Rear power window switch
The rear power window switches open or close
only the corresponding windows. To partially
open the window, push the switch down lightly
until the desired window position is reached. To
partially close the window, pull the switch up
lightly until the desired window position is
reached.
Automatic operation
To fully open a window equipped with automatic
operation, push the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
To fully close a window equipped with automatic
operation, pull the switch up to the second detent
and release it; it need not be held. To stop the
window, push the switch down while the window
is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
it is recommended you visit an INFINITI retailer to
re-initialize the power window auto-reverse sys-
tem.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
LIC0410LIC0410
2-60Instruments and controls

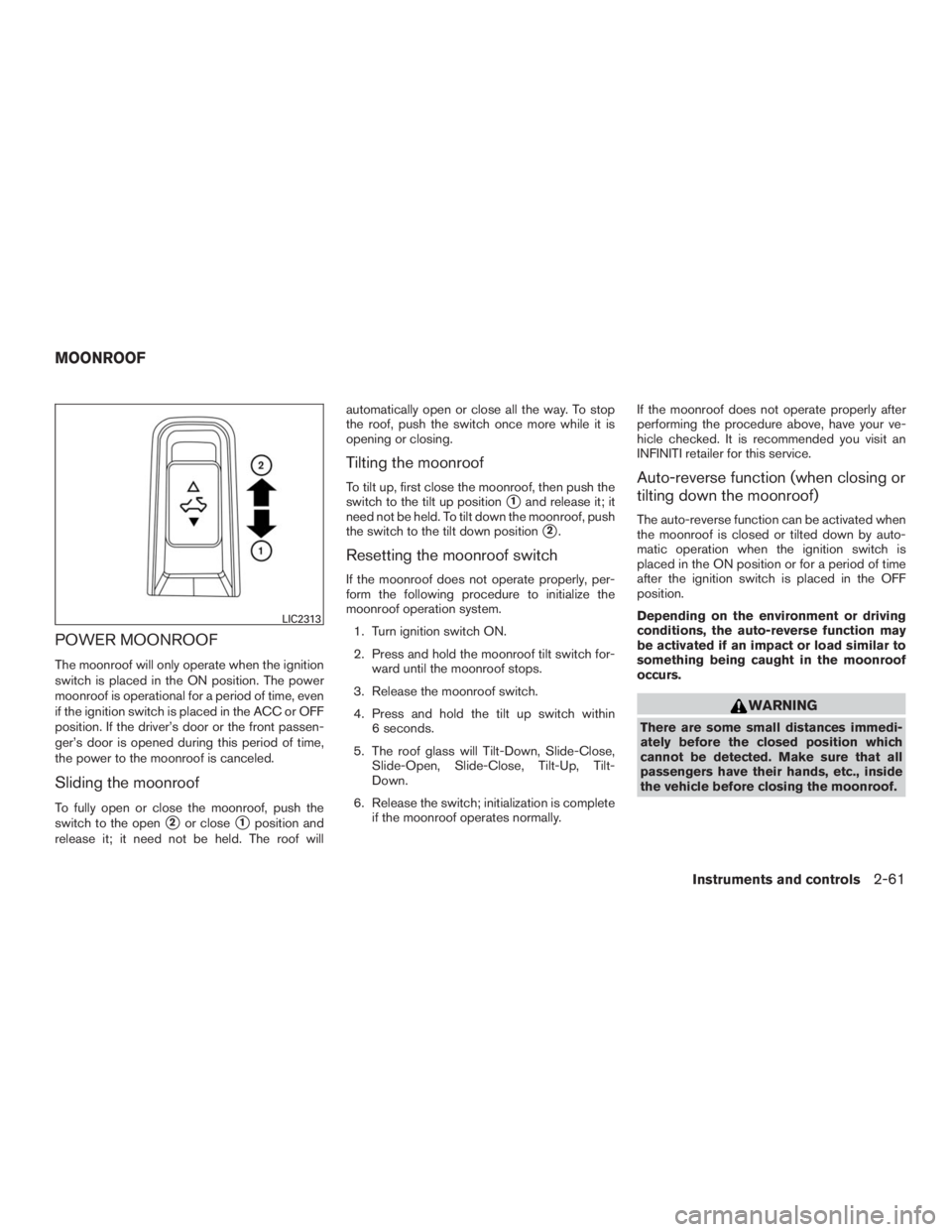

POWER MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The power
moonroof is operational for a period of time, even
if the ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
2or close1position and
release it; it need not be held. The roof willautomatically open or close all the way. To stop
the roof, push the switch once more while it is
opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
1and release it; it
need not be held. To tilt down the moonroof, push
the switch to the tilt down position
2.
Resetting the moonroof switch
If the moonroof does not operate properly, per-
form the following procedure to initialize the
moonroof operation system.
1. Turn ignition switch ON.
2. Press and hold the moonroof tilt switch for-
ward until the moonroof stops.
3. Release the moonroof switch.
4. Press and hold the tilt up switch within
6 seconds.
5. The roof glass will Tilt-Down, Slide-Close,
Slide-Open, Slide-Close, Tilt-Up, Tilt-
Down.
6. Release the switch; initialization is complete
if the moonroof operates normally.If the moonroof does not operate properly after
performing the procedure above, have your ve-
hicle checked. It is recommended you visit an
INFINITI retailer for this service.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
LIC2313
MOONROOF
Instruments and controls2-61

When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
●Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
●Do not place heavy objects on the
moonroof or surrounding area.
Sunshade
Open and close the sunshade by sliding it for-
ward or backward.
If the moonroof does not close
Have your moonroof checked and repaired. It is
recommended you visit an INFINITI retailer for
this service.
POWER MOONROOF
The front moonroof is a power moonroof, the rear
moonroof is fixed glass. The power moonroof will
only operate when the ignition switch is placed in
the ON position. The moonroof is operational for
a period of time, even if the ignition switch is
placed in the ACC or OFF position. If the driver’s
door or the front passenger’s door is opened
during this period of time, the power to the moon-
roof is canceled.
LIC2313
DUAL PANEL MOONROOF (if so
equipped)
2-62Instruments and controls

Sliding the moonroof
To slide the moonroof:
●To fully open the moonroof, push the switch
1toward the open position until it reaches
the second detent. If the switch
1is
pushed to the first detent, only the sunshade
will open.
●To fully close the moonroof, push the switch
2toward the close position until it reaches
the second detent. If the switch
2is
pushed to the first detent, the moonroof will
close but the sunshade will remain open.
●To open or close the moonroof part way,
release the switch
1or2while the moon-
roof is sliding open or closed. The moonroof
will stop at the desired position.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
1and release it; it
need not be held. To tilt down the moonroof, push
the switch to the tilt down position
2.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch isplaced in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 secondsafter it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
●Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
●Do not place heavy objects on the
moonroof or surrounding area.
If the moonroof does not close
Have your moonroof checked and repaired. It is
recommended you visit an INFINITI retailer for
this service.
Instruments and controls2-63

Panoramic sunshade
The panoramic sunshade operates when the ig-
nition switch is in the ON position. The sunshade
switch is located near the roof console. When
opening or closing the sunshade the switch need
not be held.
To open the sunshade:
●To fully open the sunshade, push the switch
1toward the open position.
To close the sunshade:
●To fully close the sunshade, push the switch
2toward the close position.
WARNING
●To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, the arm rail and sun-
shade inlet port.
●Do not allow children near the rear sun-
shade system. They could be injured.
●Do not place objects on or near the rear
sunshade. This could cause improper
operation or damage it.
●Do not pull or push the rear sunshade.
This could cause improper operation or
damage it.
CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
●Do not push the sunshade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.●Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
●Do not hang any object on the arm rail
as this may result in improper operation
or damage the sunshade.
●Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
LIC2228
2-64Instruments and controls

When the ON switch1is pressed, the footwell
lights, step lights, map lights and rear personal
lights will automatically turn on and stay on for a
period of time when:
●The doors are unlocked by the Intelligent
Key, a key or the request switch while all
doors are closed and the ignition switch is in
the OFF position.
●The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
●When individually pushed.When the OFF switch
2is pushed, the interior
lights do not illuminate even when pushed.
NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
CONSOLE LIGHT (if so equipped)
The console light1will turn on whenever the
parking lights or headlights are illuminated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
SIC4357LIC2213
INTERIOR LIGHTS
Instruments and controls2-65

MAP LIGHTS
To turn the map lights on, push the switches. To
turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
PERSONAL LIGHTS
To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.
LUGGAGE COMPARTMENT LIGHT
The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. For additional information, refer to “Inte-
rior lights” in this section.The lights will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
SIC4356
Rear personal lights
LIC1083
2-66Instruments and controls
