Clock
This allows you to set the time format and
the summer time.
• Time format: Change the time format
between the “12h” and
“24h”.
• Summer time: Set the summer time
between the “On” and
“Off”.
The unit sets the
clock automatically by
detecting the summer
time whether it is the
summer time season
or not. Even though the
summer time is set to
"On", the unit sets the
clock to normal time
(not +1 hour) when it's
not summer time sea-
son.Units
This allows you to set the unit of distance
displayed on your navigation system.
Change the unit between the “km” and
“mls”.
Navigation Demo
This is a demonstration function. After
a route is set, a simulation of route
guidance to a destination is automati-
cally displayed.
• Navigation Demo
- Off: Demo mode is set off.
- 1x: Sets the demo drive only once.
- Loop: Repeat demo drive
• Speed: Sets the speed of demo drive.Factory Settings
This allows you to initialize various set-
tings to the default settings.
- All: Initializes all the settings to the
default settings.
- Phone: Initializes all the settings relat-
ed with phone.
- Navigation:
Initializes all the settings
related with navigation.
- Audio/Media/Radio: Initializes all the
settings related
with Audio/
Media/ Radio.
17
Setup
N

TrafficThere are three kinds of screen menus.
TMC
Change the TMC (Traffic Message
Channel) to “Off”, “Auto” or “On”.
- Auto: When the TMC event is found
on current route, the naviga-
tion system searches the detour
route automatically without any
announcement.
- Off: Cancels the TMC function.
- On: When the TMC event is found on
current route, the navigation sys-
tem displays the pop-up screen
of the event information.
Automatic TMC Station
When the TMC event is found on cur-
rent route, the strongest TMC station is
received automatically.
Favourite TMC Station
The unit receives the TMC station that
the user set. This is activated when you
cancel the [Automatic TMC Station].NavigationThere are four kinds of screen menus.
Motorway Junction View
This displays the motorway junction on
the map screen.
Enhanced Lane Guidance
This displays the enhanced lane on the
map screen.
Plan Different Routes
This displays the plan different routes
on the map screen.
Speed Alert
This displays the speed alert on the
map screen.AudioThere are five kinds of screen menus.
SDVC (Speed Dependent Volume Control)
When the speed of your vehicle is more
than 40 km/h, the volume level outputs
higher than original volume level.
You can set the SDVC to Off, Low, Mid
(Middle), or High.
- Off: Outputs the original volume
level regardless of the speed of your
vehicle.
- Low, Mid, High: This outputs auto-
matically the volume level according
to the speed of your vehicle.
Navigation Volume
You can set or cancel the voice
announcement for navigation. Even
though the setting is "Off", when start-
ing new route guidance, it is set to "On"
automatically.
Touchscreen Click
You can set the touchscreen sound to
On/Off.
18
Setup

Sound (Default : Center)
- Balance: Touch
b or B to adjust the
sound the left and right speakers.
- Fader: Touch
v or V to adjust the
sound of the front and rear speakers.
- Bass, Mid, Treble: Touch
b or B to
adjust the Bass, Middle or Treble.
Note
Touch [Center] to return to the default
settings.
Power BassYou can set the Power Bass to Off, Low,
Mid (Middle), or High.
- Off: Outputs the original sound.
- Low, Mid, High: Set the Low, Mid
(Middle), or High to
boost the low-pitched
sound.
DisplayThere are two kinds of screen menus.
Brightness
You can set the brightness of the
screen.
Set the display brightness to Low, Mid
(Middle), or High.Map Mode
To improve the visibility of the map
screen between day and night, you can
change the combination of the colours
of the map.
- Auto: The map screen is displayed by
autolight signal or illumination
signal.
- Day: The map screen is always
displayed with bright colours.
- Night: The map screen is always
displayed with dark colours.
19
Setup
Balance/
FaderBass/
Middle/
Treble
Autolight Off
(Day)
Autolight On
(Night)
Autolight is
not detected
Illumination
On
Map: Day
Map: Night
Map: NightIllumination
Off
Map: Day
Map: Night
Map: Day

What is GPS?The Global Positioning System (GPS)
is a satellite-based navigation system
made up of a network of 24 satel-
lites placed into orbit by the U.S.
Department of Defense.
GPS was originally intended for military
applications, but in the 1980s, the gov-
ernment made the system available for
civilian use.
GPS works in any weather conditions,
anywhere in the world, 24 hours a day.
There are no subscription fees or setup
charges to use GPS.
About satellite signals
Your unit must acquire satellite signals
to operate. If you are indoors, near
tall buildings or trees, or in a parking
garage, the unit cannot acquire satel-
lites.
Acquiring satellite signals
Before the unit can find your current
location and navigate a route, you must
do the following steps:
1. Go outside to an area free from tall
obstructions.
2.
Turn on the unit.
Acquiring satellite signals can take a
few minutes.
Initial navigation screen
After the ignition switch is placed in the
ACC or ON position, when you enter
a navigation mode for the first time,
the caution screen is displayed on the
screen. Read the caution carefully and
then touch [Agree].
Indicators of the map screen
How to view a map screen
The navigation system displays various
information on the screen.
•
/
Indicates the direction of the map.
Touch to switch the orientation of the
map.
•
Indicates the current vehicle location
and the direction of travel.
•
Touch [Menu] to access the map
menu.
20
Getting started with navigation
GPSGPSGPS
GPS

•
Indicates the scale of the map.
•
Indicates the arriving time, distance
and remaining time to the destina-
tion.
•
Appears on the upper right corner of
the screen when a route is set.
Indicates the distance to the next
guide point and the turning direction
at that guide point.
•
Indicates the speed limit on the road
that you’re driving now.
Changing the scale of a map
1. Touch on the map screen.
2. Touch [+] to view the map in detail.
Touch [-] to view the map a wider
area.

50 m n 100 m n 200 m n 300
m
n 500 m n 750 m n 1 km n
2 km
n 5 km n 10 km n 20 km
n 50 km n 100 km n 200 km n
500 km
3. If you want to set the auto zoom,
touch
.
21
Getting started with navigation
Adjusting the navigation
volume
If you want to adjust the navigation vol-
ume, follow the below method.
Method 1
Rotate the volume knob (
) on the
control panel or press the volume (VOL+/
VOL-) on the steering wheel remote con-
trol during the voice guidance.
Method 2
If you want to adjust the navigation vol-
ume, rotate the volume knob (
) on the
control panel or press the volume (VOL+/
VOL-) on the steering wheel remote con-
trol during the voice guidance after press-
ing
on the control panel.
,
During
the voice
guidance
During
the voice
guidance
,,

Navigation menu overviewGeneral operations of destina-
tion menu
1. Turn the unit on.
2. Press NAV on the control. The navi-
gation menu appears on the screen.
3. Touch [Navigation], [Advanced] or
[Favourites] to select the desired
option.4. Touch the preferred setting method.
• Address: Finds a destination by
setting an address. (Page 23)
• Last Destinations: Sets a destina-
tion to a location that you have
lastly set. (Page 24)
• Address Book: Sets a destination
to a location stored in the address
book. (Page 24)
• POI: Searches for a destination
from various categories of busi-
nesses or locations. (Page 24-26)
• Parking: Sets a parking as your
destination. (Page 28)
• Continue/Stop Guidance: Sets the
guidance to On/Off. (Page 28)
• GPS Input: Sets a latitude and
a longitude as your destination.
(Page 27)
• Using Map: Searches for a destina-
tion by scrolling the map. (Page 28)
• Tour Planner: Adds new destination
or way point. (Page 29-30)
• Store Destination: Stores your desti-
nation in the address book. (Page 31)
• Store Position: Stores your position
in the address book. (Page 31)
• Home 1/ Work2/ 3~12: You can
set a home location, work location
or etc you want for the place you
return to most often. (Page 32)
22
Destination input menu
/
[Advanced] menu
[Favourites] menu

Address Search
You can find the destination by search-
ing the address.
1. Press [NAV] > Touch [Address].
2. Set the preferred country.
If the country has already been set,
follow the step 3.
3. Set the preferred city name and
then touch [OK].
4. Touch the city in the list.5. Set the part characters of street
name and then touch [OK].
6. Touch the street in the list.
7. Touch the house number and then
touch [OK].
8. Set the route options and then
touch [OK]. Refer to the “Route Options” on the
page 36.
9. Touch [Start].
• If you want to store your destina-
tion in the address book, touch
[Store]. And input the name of
your destination then touch [OK].
• If you want to view the map of your
destination, touch [Show Map]
then [Start].
10. Touch the preferred route, then
touch [Start]. Refer to the Note
regarding route criteria on the page
36.
Drive in accordance with the screen
and voice information.
23
Destination input menu

24
Destination input menu

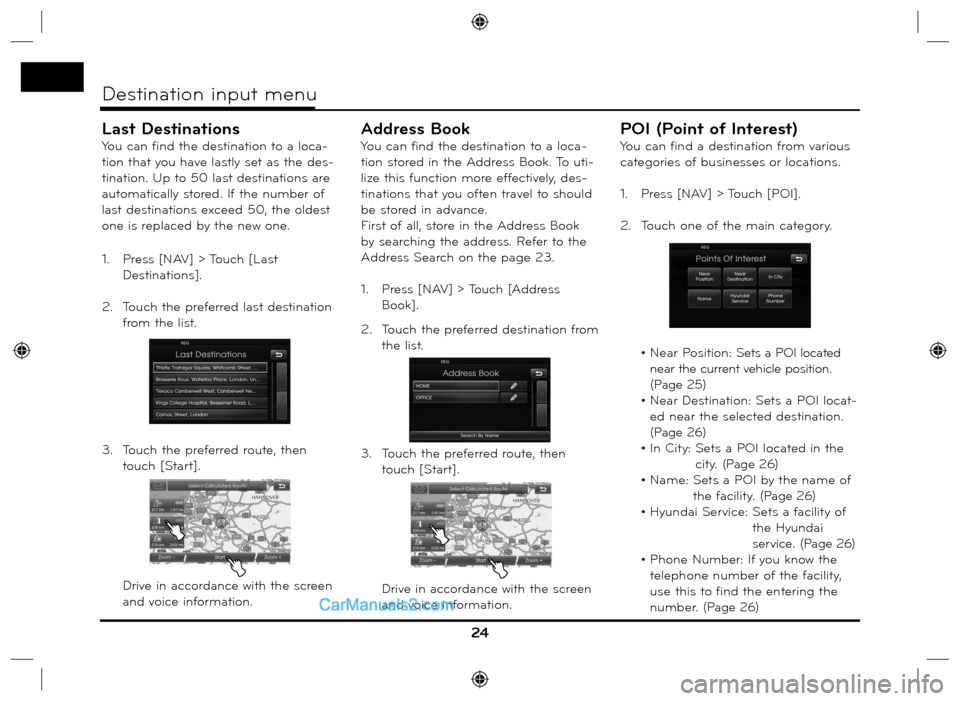

Last Destinations
You can find the destination to a loca-
tion that you have lastly set as the des-
tination. Up to 50 last destinations are
automatically stored. If the number of
last destinations exceed 50, the oldest
one is replaced by the new one.
1. Press [NAV] > Touch [Last
Destinations].
2. Touch the preferred last destination
from the list.
3. Touch the preferred route, then
touch [Start].
Drive in accordance with the screen
and voice information.
Address Book
You can find the destination to a loca-
tion stored in the Address Book. To uti-
lize this function more effectively, des-
tinations that you often travel to should
be stored in advance.
First of all, store in the Address Book
by searching the address. Refer to the
Address Search on the page 23.
1. Press [NAV] > Touch [Address
Book].
2. Touch the preferred destination from
the list.
3. Touch the preferred route, then
touch [Start].
Drive in accordance with the screen
and voice information.
POI (Point of Interest)
You can find a destination from various
categories of businesses or locations.
1. Press [NAV] > Touch [POI].
2. Touch one of the main category.

• Near Position: Sets a POI located
near the current vehicle position.
(Page 25)
• Near Destination: Sets a POI locat-
ed near the selected destination.
(Page 26)
• In City:
Sets a POI located in the
cit y. (Page 26)
• Name: Sets a POI by the name of
the facility. (Page 26)
• Hyundai Service:
Sets a facility of
the Hyundai
ser vice. (Page 26)
• Phone Number: If you know the
telephone number of the facility,
use this to find the entering the
number. (Page 26)
