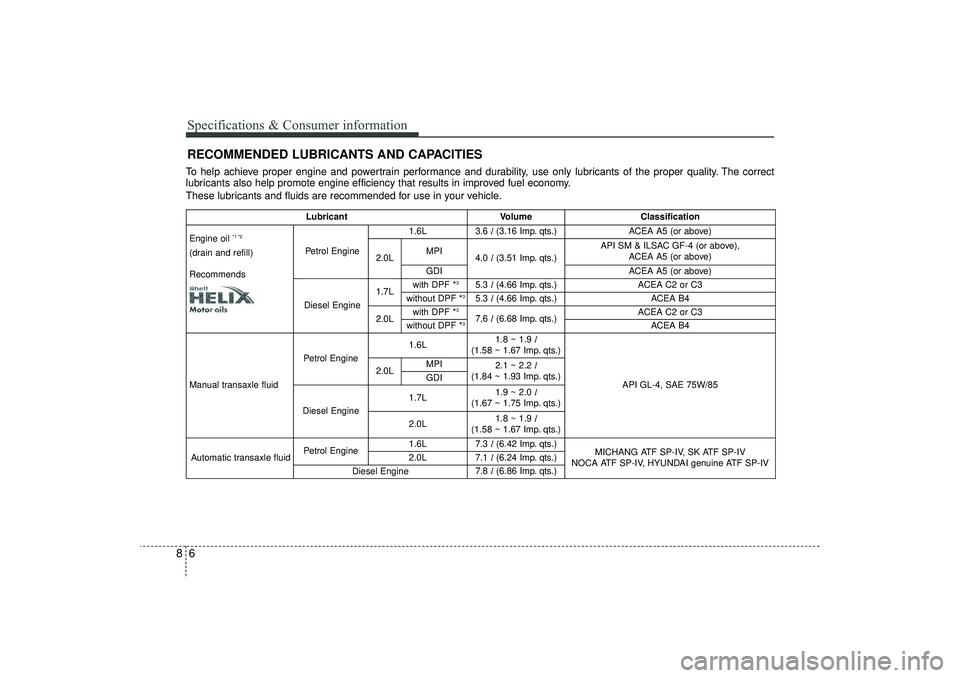

Specifications & Consumer information68To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant
Volume
Classification
Engine oil
*1 *2
(drain and refill)
Recommends
Petrol Engine
1.6L
3.6 l(3.16 Imp. qts.)
ACEA A5 (or above)
2.0L
MPI
4.0 l(3.51 Imp. qts.)
API SM & ILSAC GF-4 (or above),
ACEA A5 (or above)
GDI
ACEA A5 (or above)
Diesel Engine
1.7L
with DPF *
3
5.3 l(4.66 Imp. qts.)
ACEA C2 or C3
without DPF *
3
5.3 l(4.66 Imp. qts.)
ACEA B4
2.0L
with DPF *
3
7,6 l(6.68 Imp. qts.)
ACEA C2 or C3
without DPF *
3
ACEA B4
Manual transaxle fluid
Petrol Engine
1.6L
1.8 ~ 1.9 l
(1.58 ~ 1.67 Imp. qts.)
API GL-4, SAE 75W/85
2.0L
MPI
2.1 ~ 2.2 l
(1.84 ~ 1.93 Imp. qts.)
GDI
Diesel Engine
1.7L
1.9 ~ 2.0 l
(1.67 ~ 1.75 Imp. qts.)
2.0L
1.8 ~ 1.9 l
(1.58 ~ 1.67 Imp. qts.)
Automatic transaxle fluid
Petrol Engine
1.6L
7.3 l(6.42 Imp. qts.)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
2.0L
7.1 l(6.24 Imp. qts.)
Diesel Engine
7.8 l(6.86 Imp. qts.)
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 6

87
Specifications & Consumer information
LubricantVolume Classification
Coolant
Petrol Engine
6.7 l(5.89 Imp. qts.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminium radiator)
Diesel Engine
8.5 l(7.47 Imp. qts.)
Brake/clutch fluid
0.7 ~ 0.8 l
(0.62 ~ 0.70 Imp. qts.)
FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD) 0.65
l( 0.57 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 0.6
l(0.52 Imp. qts.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel Petrol Engine
58 l(12.7 Imp. gal.)
Refer to “Fuel requirements” in section 1
Diesel Engine
Recommended Engine oil (For Europe)
Supplier Product
Petrol Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
*1Refer to the recommended SAE viscosity numbers on 8-8 page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3Diesel Particulate Filter
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 7

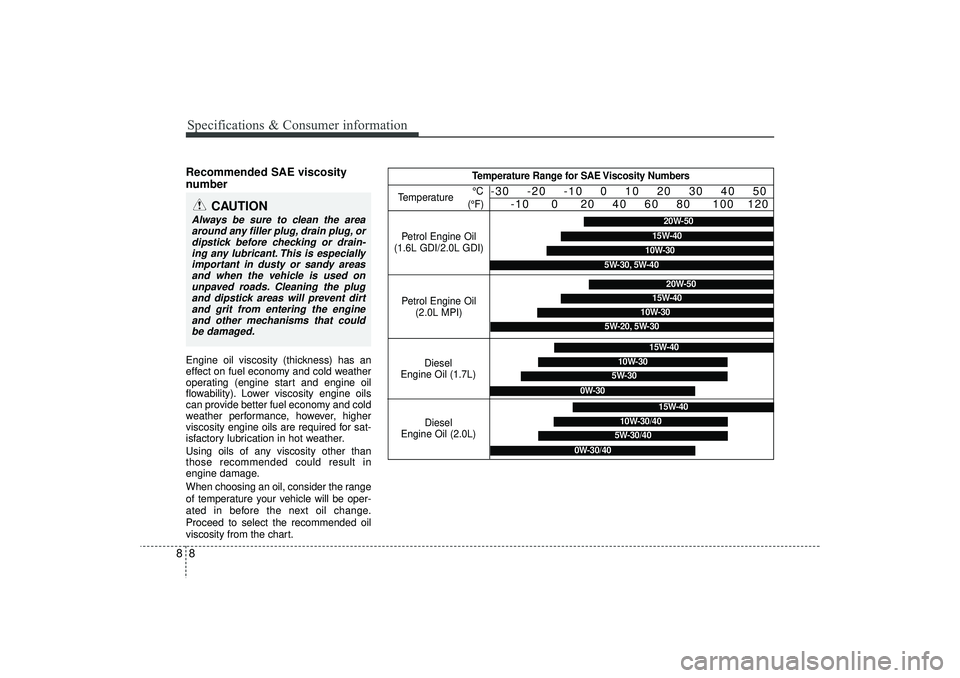

Specifications & Consumer information88Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the areaaround any filler plug, drain plug, or dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine and other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
Diesel
Engine Oil (2.0L)
5W-30/40
15W-40
10W-30/40
0W-30/40
Petrol Engine Oil
(1.6L GDI/2.0L GDI)
20W-50
10W-3015W-40
5W-30, 5W-40
Petrol Engine Oil (2.0L MPI)
20W-50
15W-40
10W-30
5W-20, 5W-30
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 8

89
Specifications & Consumer information

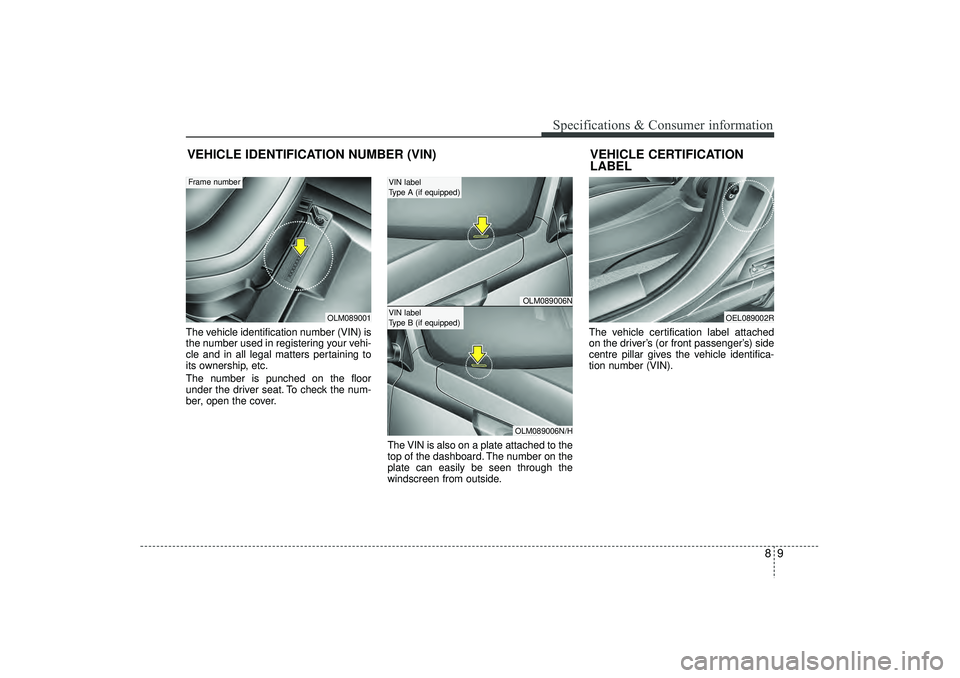

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the driver seat. To check the num-
ber, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windscreen from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).VEHICLE IDENTIFICATION NUMBER (VIN)
OLM089001
Frame number
VEHICLE CERTIFICATION
LABEL
OLM089006NOLM089006N/H
VIN label
Type A (if equipped)VIN label
Type B (if equipped)
OEL089002R
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 9

Specifications & Consumer information10
8The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your vehicle.TYRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The engine number is stamped on the engine block as shown in the drawing.
OEL083008R
■Petrol engine (1.6L)■Petrol engine (2.0L)
■Diesel engine (1.7L)■Diesel engine (2.0L)OEL080003/OEL083010/OEL080004/OLM089004
EL(FL) UK 8.QXP 3/13/2015 5:44 PM Page 10

811
Specifications & Consumer information
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.comAIR CONDITIONER
COMPRESSOR LABEL
OHC081001
DECLARATION OF
CONFORMITY
CE0678
■Example
