2016 HYUNDAI IX35 Owners Manual

Features of your vehicle220

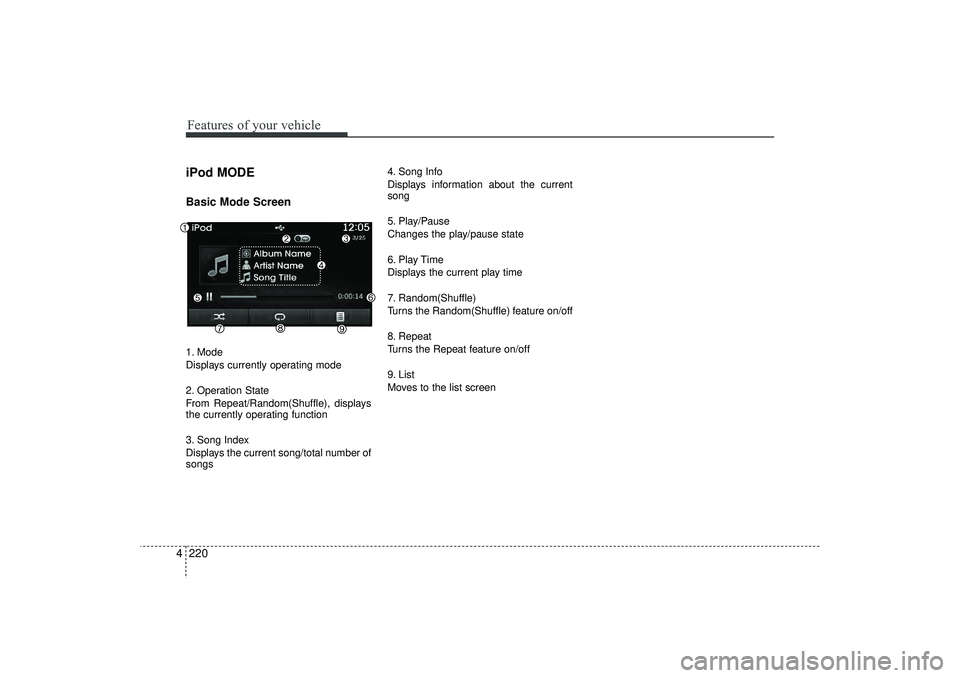

4iPod MODEBasic Mode Screen1. Mode
Displays currently operating mode
2. Operation State
From Repeat/Random(Shuffle), displays
the currently operating function
3. Song Index
Displays the current song/total number of
songs 4. Song Info
Displays information about the current
song
5. Play/Pause
Changes the play/pause state
6. Play Time
Displays the current play time
7. Random(Shuffle)
Turns the Random(Shuffle) feature on/off
8. Repeat
Turns the Repeat feature on/off
9. List
Moves to the list screen
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 220

4 221
Features of your vehicle
Using iPod
®Mode
Playing/Pausing iPod SongsOnce an iPod
®is connected, the mode will
automatically start and begin playing an
iPod
®song.
Whilst playing, press the button to
pause and press button to play.
✽ ✽ NOTICE iPod
®s with unsupported communica-
tion protocols may not properly operate
in the audio system.
Changing SongsPress the key to move to the
previous or next song.✽ ✽ NOTICE • Pressing the key after the
song has been playing for 2 seconds
will start the current song from the
beginning.
• Pressing the key before the song has been playing for 1 seconds
will start the previous song.
• Slight time differences may exist depending your iPod
®product.
Rewinding / Fast-forwarding SongsWhilst playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current song.
SEEK
TRACK
SEEK
TRACKSEEK
TRACK
SEEK
TRACK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 221

Features of your vehicle222

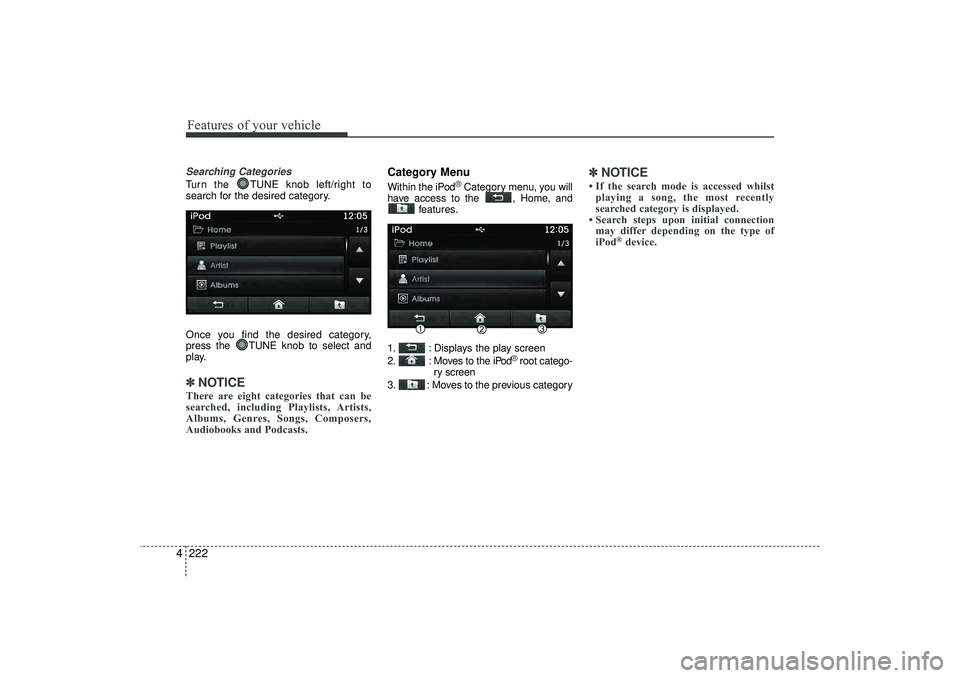

4Searching CategoriesTurn the TUNE knob left/right to
search for the desired category.
Once you find the desired category,
press the TUNE knob to select and
play.✽ ✽
NOTICE There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts.
Category MenuWithin the iPod
®Category menu, you will
have access to the , Home, and features.
1. : Displays the play screen
2. : Moves to the iPod
®root catego-
ry screen
3. : Moves to the previous category
✽ ✽ NOTICE • If the search mode is accessed whilst
playing a song, the most recently
searched category is displayed.
• Search steps upon initial connection may differ depending on the type of
iPod
®device.
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 222

4 223
Features of your vehicle

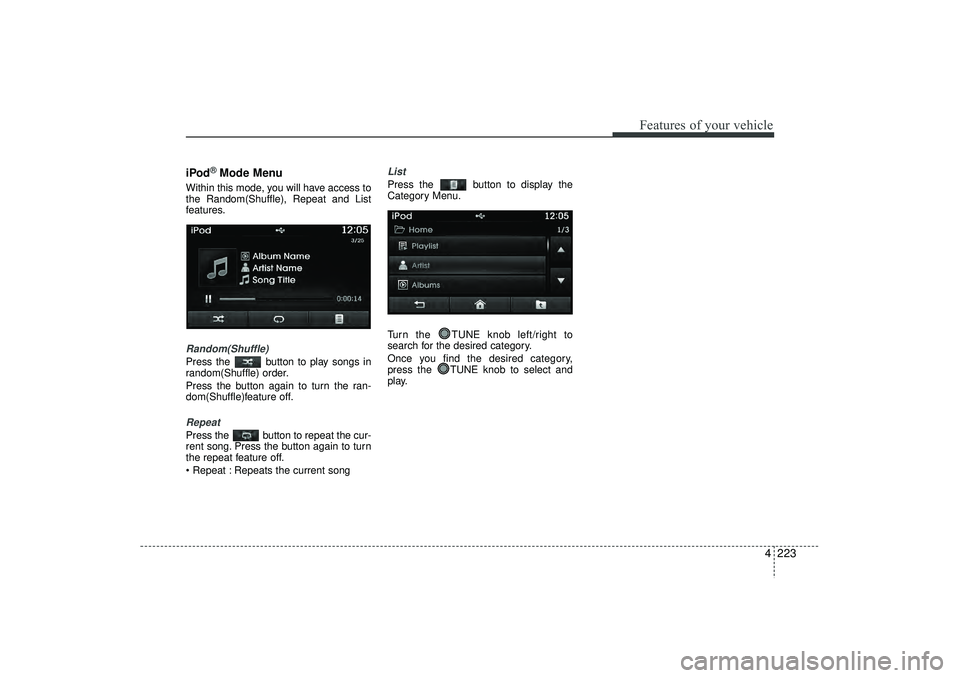

iPod
®Mode Menu
Within this mode, you will have access to
the Random(Shuffle), Repeat and List
features.Random(Shuffle)Press the button to play songs in
random(Shuffle) order.
Press the button again to turn the ran-
dom(Shuffle)feature off.RepeatPress the button to repeat the cur-
rent song. Press the button again to turn
the repeat feature off.
 Repeat : Repeats the current song
ListPress the button to display the
Category Menu.
Turn the TUNE knob left/right to
search for the desired category.
Once you find the desired category,
press the TUNE knob to select and
play.
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 223

Features of your vehicle224

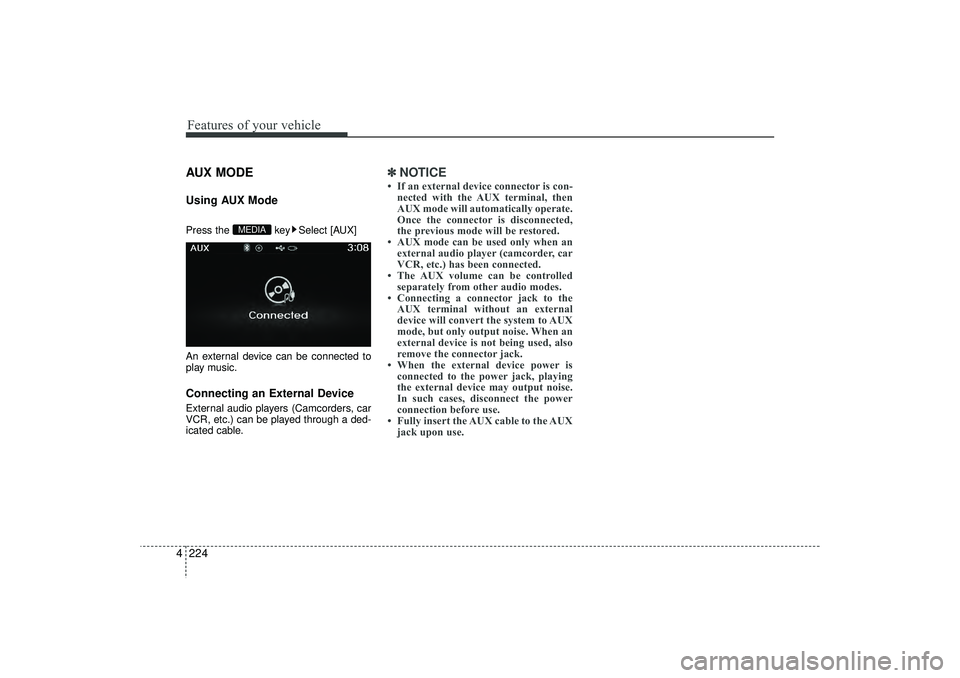

4AUX MODE Using AUX ModePress the key Select [AUX]
An external device can be connected to
play music.Connecting an External DeviceExternal audio players (Camcorders, car
VCR, etc.) can be played through a ded-
icated cable.
✽ ✽
NOTICE • If an external device connector is con-
nected with the AUX terminal, then
AUX mode will automatically operate.
Once the connector is disconnected,
the previous mode will be restored.
• AUX mode can be used only when an external audio player (camcorder, car
VCR, etc.) has been connected.
• The AUX volume can be controlled separately from other audio modes.
• Connecting a connector jack to the AUX terminal without an external
device will convert the system to AUX
mode, but only output noise. When an
external device is not being used, also
remove the connector jack.
• When the external device power is connected to the power jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
• Fully insert the AUX cable to the AUX jack upon use.
MEDIA
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 224

4 225
Features of your vehicle

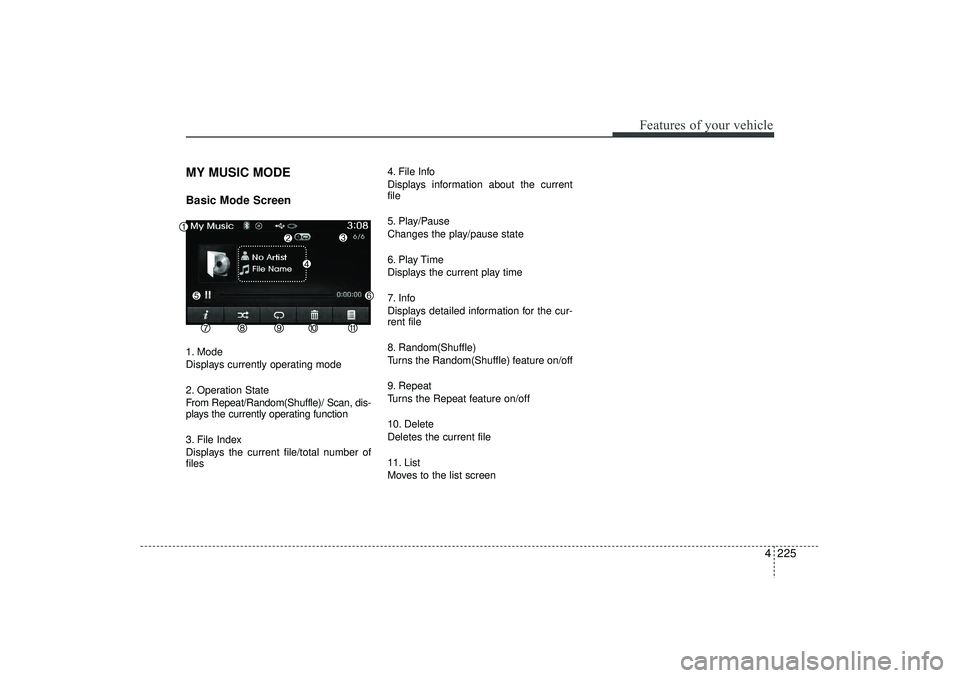

MY MUSIC MODEBasic Mode Screen1. Mode
Displays currently operating mode
2. Operation State
From Repeat/Random(Shuffle)/ Scan, dis-
plays the currently operating function
3. File Index
Displays the current file/total number of
files4. File Info
Displays information about the current
file
5. Play/Pause
Changes the play/pause state
6. Play Time
Displays the current play time
7. Info
Displays detailed information for the cur-
rent file
8. Random(Shuffle)
Turns the Random(Shuffle) feature on/off
9. Repeat
Turns the Repeat feature on/off
10. Delete
Deletes the current file
11. List
Moves to the list screen
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 225

Features of your vehicle226

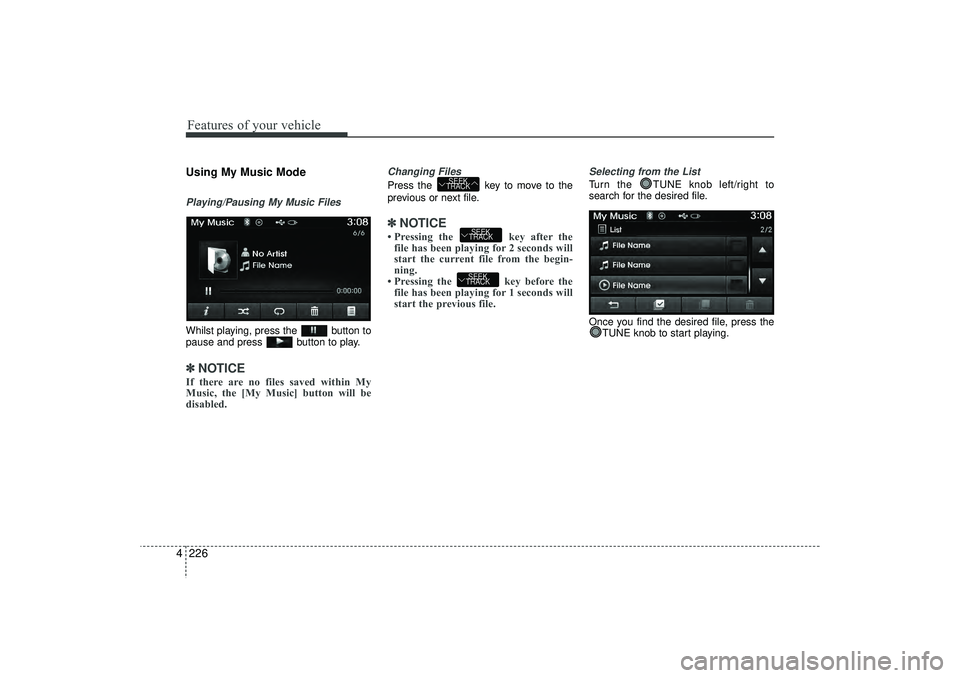

4Using My Music ModePlaying/Pausing My Music FilesWhilst playing, press the button to
pause and press button to play.✽ ✽
NOTICE If there are no files saved within My
Music, the [My Music] button will be
disabled.
Changing FilesPress the key to move to the
previous or next file.✽ ✽NOTICE • Pressing the key after the
file has been playing for 2 seconds will
start the current file from the begin-
ning.
• Pressing the key before the file has been playing for 1 seconds will
start the previous file.
Selecting from the ListTurn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press the
TUNE knob to start playing.
SEEK
TRACKSEEK
TRACK
SEEK
TRACK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 226

4 227
Features of your vehicle

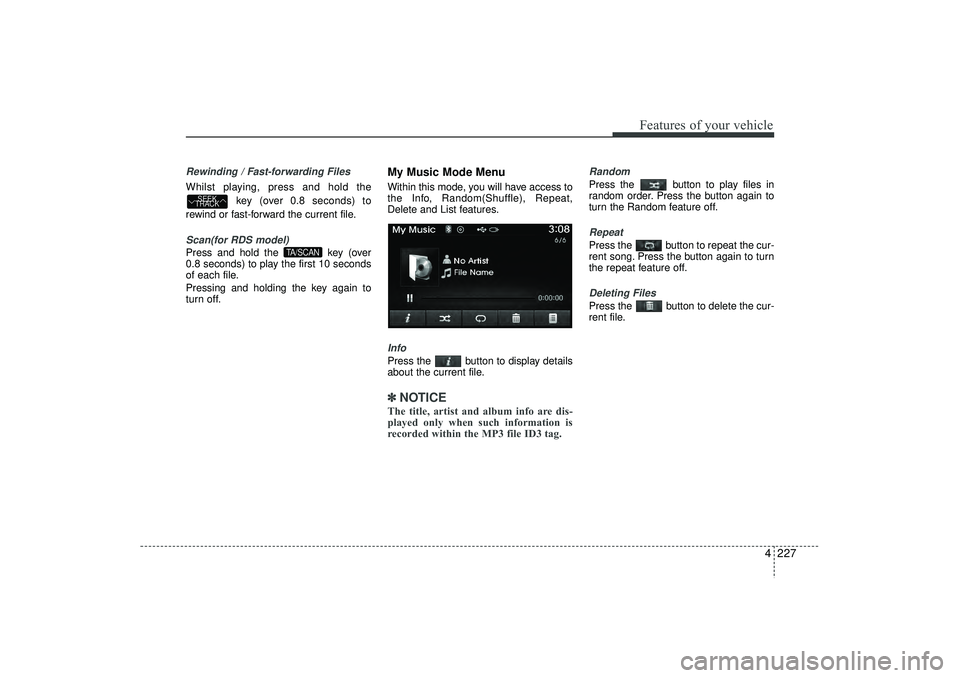

Rewinding / Fast-forwarding FilesWhilst playing, press and hold thekey (over 0.8 seconds) to
rewind or fast-forward the current file.Scan(for RDS model)Press and hold the key (over
0.8 seconds) to play the first 10 seconds
of each file.
Pressing and holding the key again to
turn off.
My Music Mode MenuWithin this mode, you will have access to
the Info, Random(Shuffle), Repeat,
Delete and List features.InfoPress the button to display details
about the current file.✽ ✽ NOTICE The title, artist and album info are dis-
played only when such information is
recorded within the MP3 file ID3 tag.
RandomPress the button to play files in
random order. Press the button again to
turn the Random feature off.RepeatPress the button to repeat the cur-
rent song. Press the button again to turn
the repeat feature off.Deleting FilesPress the button to delete the cur-
rent file.
TA/SCAN
SEEK
TRACK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 227
