2016 HYUNDAI IX35 Owners Manual

Features of your vehicle172

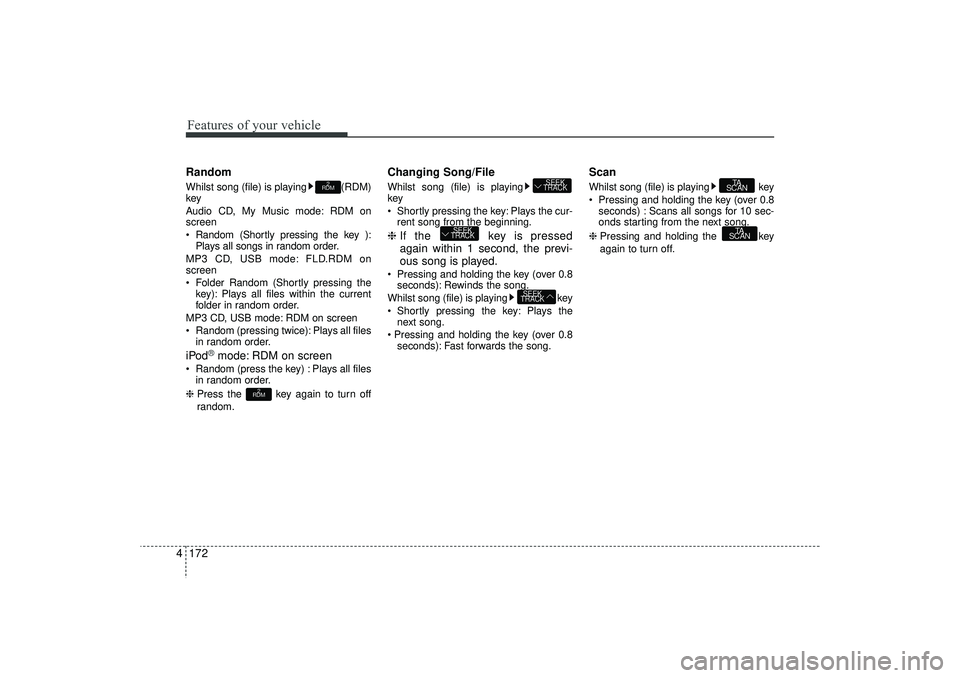

4RandomWhilst song (file) is playing (RDM)
key
Audio CD, My Music mode: RDM on
screen
 Random (Shortly pressing the key ):
Plays all songs in random order.
MP3 CD, USB mode: FLD.RDM on
screen
 Folder Random (Shortly pressing the key): Plays all files within the current
folder in random order.
MP3 CD, USB mode: RDM on screen
 Random (pressing twice): Plays all files in random order.iPod
®mode: RDM on screen
 Random (press the key) : Plays all filesin random order.
❈ Press the key again to turn off
random.
Changing Song/FileWhilst song (file) is playing
key
 Shortly pressing the key: Plays the cur-
rent song from the beginning.❈ If the key is pressed
again within 1 second, the previ-
ous song is played. Pressing and holding the key (over 0.8
seconds): Rewinds the song.
Whilst song (file) is playing key
 Shortly pressing the key: Plays the next song.
 Pressing and holding the key (over 0.8 seconds): Fast forwards the song.
ScanWhilst song (file) is playing key
 Pressing and holding the key (over 0.8seconds) : Scans all songs for 10 sec-
onds starting from the next song.
❈ Pressing and holding the key
again to turn off.
TA
SCANTA
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
2
RDM
2
RDM
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 172

4 173
Features of your vehicle

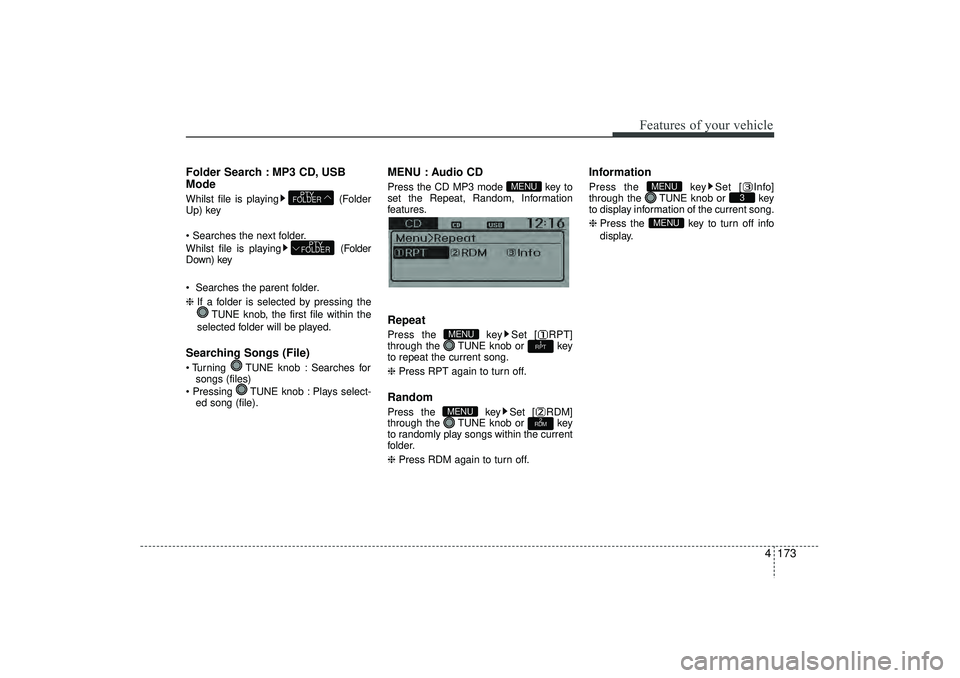

Folder Search : MP3 CD, USB
ModeWhilst file is playing(Folder
Up) key
 Searches the next folder.
Whilst file is playing (Folder
Down) key
 Searches the parent folder.
❈ If a folder is selected by pressing the
TUNE knob, the first file within the
selected folder will be played.Searching Songs (File) Turning TUNE knob : Searches for songs (files)
 Pressing TUNE knob : Plays select- ed song (file).
MENU : Audio CDPress the CD MP3 mode key to
set the Repeat, Random, Information
features.
Information features.RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn off.RandomPress the key Set [ RDM]
through the TUNE knob or key
to randomly play songs within the current
folder.
❈ Press RDM again to turn off.
InformationPress the key Set [ Info]
through the TUNE knob or key
to display information of the current song.
❈ Press the key to turn off info
display.
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
PTY
FOLDERPTY
FOLDER
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 173

Features of your vehicle174

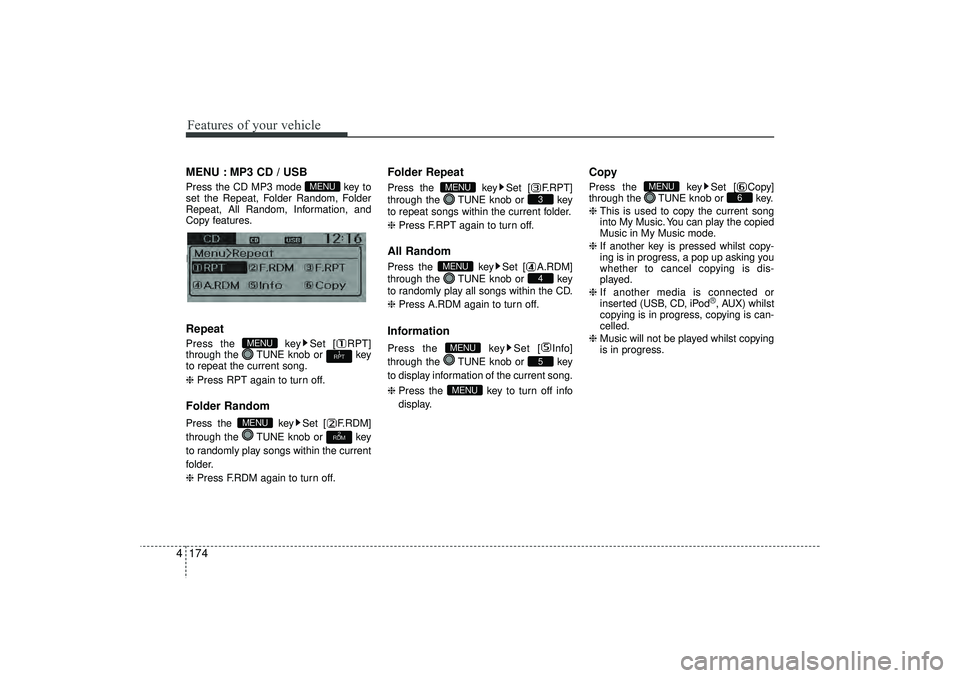

4MENU : MP3 CD / USBPress the CD MP3 mode key to
set the Repeat, Folder Random, Folder
Repeat, All Random, Information, and
Copy features.
Information, and Copy features.RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn off.Folder RandomPress the key Set [ F.RDM]
through the TUNE knob or key
to randomly play songs within the current
folder.
❈ Press F.RDM again to turn off.
Folder RepeatPress the key Set [ F.RPT]
through the TUNE knob or key
to repeat songs within the current folder.
❈ Press F.RPT again to turn off.All RandomPress the key Set [ A.RDM]
through the TUNE knob or key
to randomly play all songs within the CD.
❈ Press A.RDM again to turn off.InformationPress the key Set [ Info]
through the TUNE knob or key
to display information of the current song.
❈ Press the key to turn off info
display.
CopyPress the key Set [ Copy]
through the TUNE knob or key.
❈ This is used to copy the current song
into My Music. You can play the copied
Music in My Music mode.
❈ If another key is pressed whilst copy-
ing is in progress, a pop up asking you
whether to cancel copying is dis-
played.
❈ If another media is connected or
inserted (USB, CD, iPod
®, AUX) whilst
copying is in progress, copying is can-
celled.
❈ Music will not be played whilst copying
is in progress.
6
MENU
MENU
5
MENU
4
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 174

4 175
Features of your vehicle

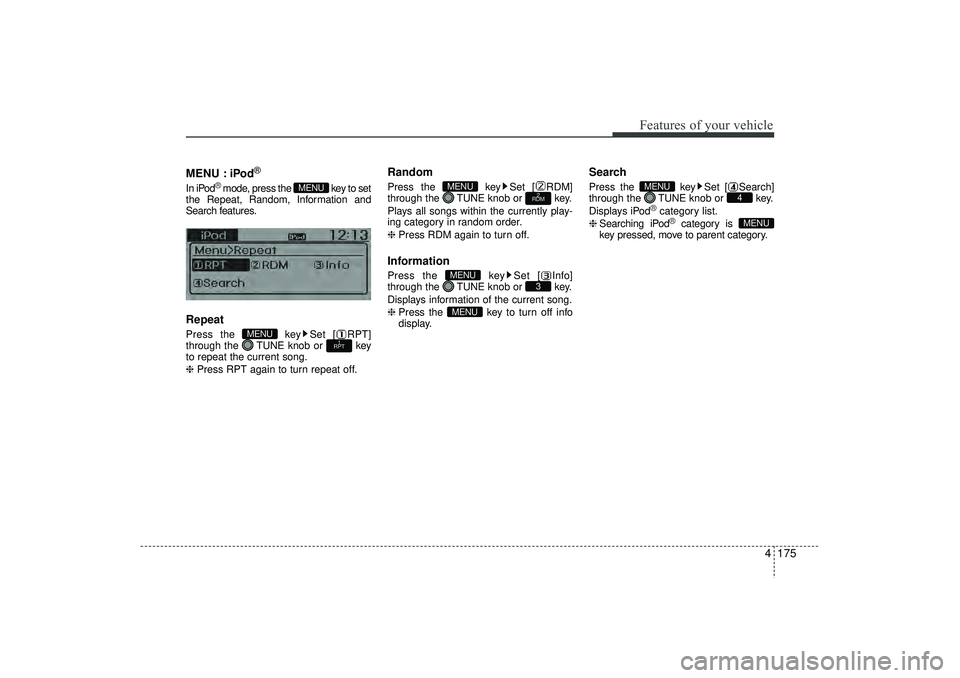

MENU : iPod
®
In iPod
®mode, press the key to set
the Repeat, Random, Information and
Search features.
RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn repeat off.
RandomPress the key Set [ RDM]
through the TUNE knob or key.
Plays all songs within the currently play-
ing category in random order.
❈ Press RDM again to turn off.InformationPress the key Set [ Info]
through the TUNE knob or key.
Displays information of the current song.
❈ Press the key to turn off info
display.
SearchPress the key Set [ Search]
through the TUNE knob or key.
Displays iPod
®category list.
❈ Searching iPod®
category is
key pressed, move to parent category.
MENU4
MENU
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 175

Features of your vehicle176
4MENU : My Music Mode
(if equipped)In My Music mode, press the key
to set the Repeat, Random, Information,
Delete, Delete All, and Delete Selection
features.RepeatPress the key Set [ RPT]
through the TUNE knob or key.
Repeats the currently playing song.
❈ Press RPT again to turn repeat off.
RandomPress the key Set [ RDM]
through the TUNE knob or key.
Plays all songs in random order.
❈ Press RDM again to turn random off.InformationPress the key Set [ Info]
through the TUNE knob or key.
Displays information of the current song.
❈ Press the key to turn off info
display.
DeletePress the key Set [ Delete]
through the TUNE knob or key.
Deletes currently playing file
In the play screen, pressing delete will
delete the currently playing song.
Deletes file from list
➀ Select the file you wish to delete by
using the TUNE knob.
➁ Press the key and select the
delete menu to delete the selected file.
MENU
4
MENU
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 176

4 177
Features of your vehicle

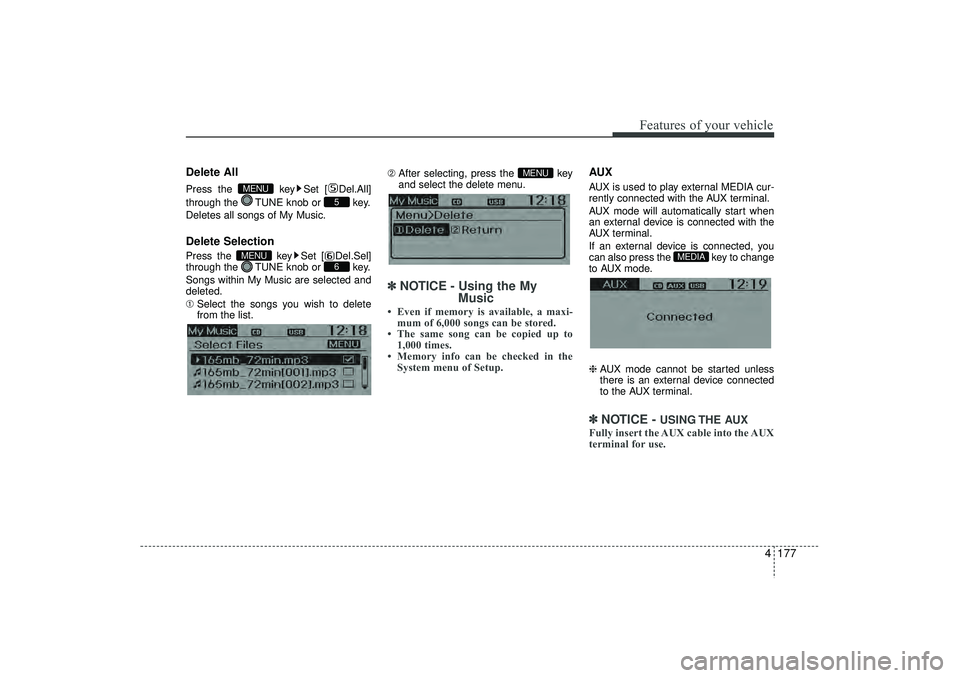

Delete AllPress the key Set [ Del.All]
through the TUNE knob or key.
Deletes all songs of My Music.Delete SelectionPress the key Set [ Del.Sel]
through the TUNE knob or key.
Songs within My Music are selected and
deleted.
➀ Select the songs you wish to delete
from the list. ➁
After selecting, press the key
and select the delete menu.
✽ ✽
NOTICE - Using the My
Music• Even if memory is available, a maxi-
mum of 6,000 songs can be stored.
• The same song can be copied up to 1,000 times.
• Memory info can be checked in the System menu of Setup.
AUXAUX is used to play external MEDIA cur-
rently connected with the AUX terminal.
AUX mode will automatically start when
an external device is connected with the
AUX terminal.
If an external device is connected, you
can also press the key to change
to AUX mode.
❈ AUX mode cannot be started unless
there is an external device connected
to the AUX terminal.✽ ✽
NOTICE -
USING THE AUX
Fully insert the AUX cable into the AUX
terminal for use.
MEDIA
MENU
6
MENU
5
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 177

Features of your vehicle178

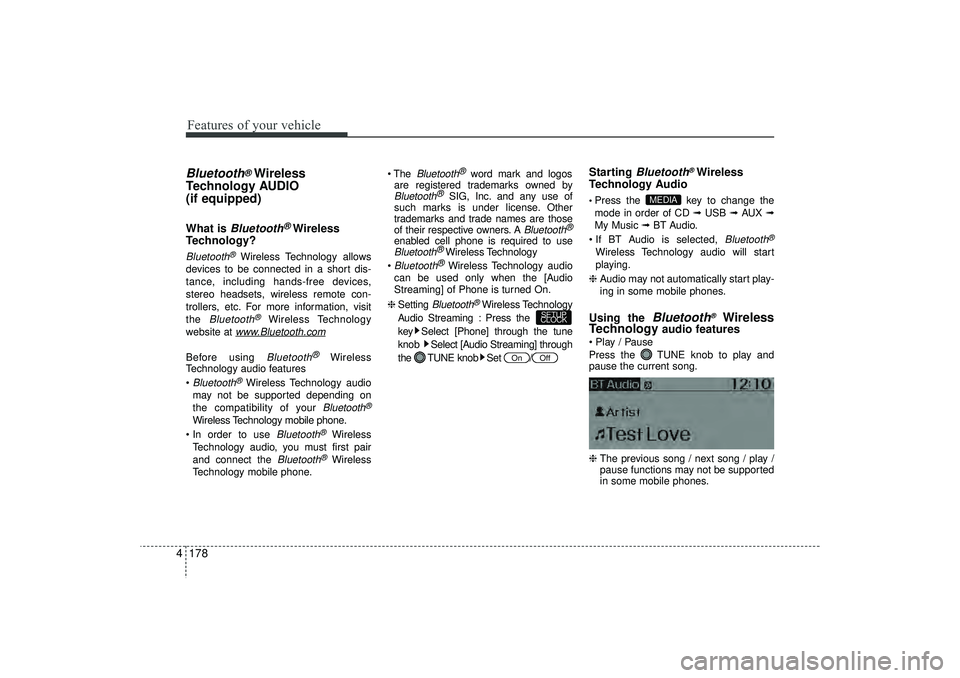

4Bluetooth
®Wireless
Technology AUDIO
(if equipped)
What is
Bluetooth
®Wireless
Technology?
Bluetooth
®Wireless Technology allows
devices to be connected in a short dis-
tance, including hands-free devices,
stereo headsets, wireless remote con-
trollers, etc. For more information, visit
the
Bluetooth
®
Wireless Technology
website at
www
.Bluetooth.com
Before using
Bluetooth
®
Wireless
Technology audio features

Bluetooth
®Wireless Technology audio
may not be supported depending on
the compatibility of your
Bluetooth
®
Wireless Technology mobile phone.
 In order to use
Bluetooth
®
Wireless
Technology audio, you must first pair
and connect the
Bluetooth
®Wireless
Technology mobile phone.  The
Bluetooth
®
word mark and logos
are registered trademarks owned by
Bluetooth
®
SIG, Inc. and any use of
such marks is under license. Other
trademarks and trade names are those
of their respective owners. A
Bluetooth
®
enabled cell phone is required to useBluetooth
®Wireless Technology

Bluetooth
®Wireless Technology audio
can be used only when the [Audio
Streaming] of Phone is turned On.
❈ Setting
Bluetooth
®Wireless Technology
Audio Streaming : Press the
key Select [Phone] through the tune
knob Select [Audio Streaming] through
the TUNE knob Set /
Starting
Bluetooth
®Wireless
Technology Audio
 Press the key to change the
mode in order of CD ➟ USB ➟ AUX ➟
My Music ➟ BT Audio.
 If BT Audio is selected,
Bluetooth
®
Wireless Technology audio will start
playing.
❈ Audio may not automatically start play-
ing in some mobile phones.Using the
Bluetooth
®
Wireless
Technology
audio features
 Play / Pause
Press the TUNE knob to play and
pause the current song.
❈ The previous song / next song / play /
pause functions may not be supported
in some mobile phones.
MEDIA
Off
On
SETUP
CLOCK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 178

4 179
Features of your vehicle

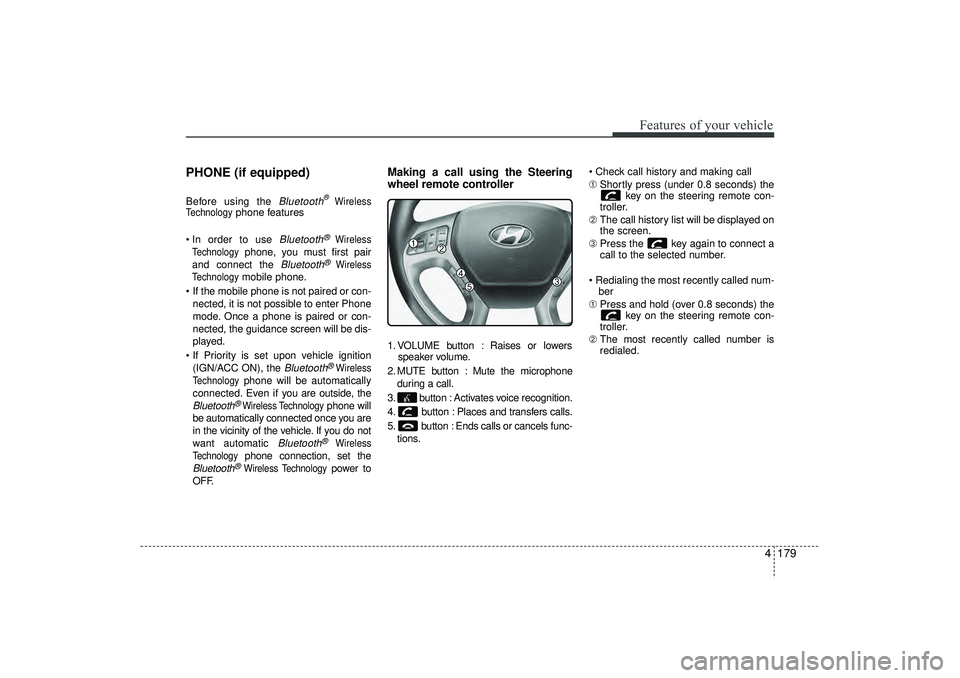

PHONE (if equipped)Before using the
Bluetooth
®Wireless
Technology
phone features
 In order to use
Bluetooth
®
Wireless
Technology
phone, you must first pair
and connect the
Bluetooth
®
Wireless
Technology
mobile phone.
 If the mobile phone is not paired or con- nected, it is not possible to enter Phone
mode. Once a phone is paired or con-
nected, the guidance screen will be dis-
played.
 If Priority is set upon vehicle ignition (IGN/ACC ON), the
Bluetooth
®Wireless
Technology
phone will be automatically
connected. Even if you are outside, the
Bluetooth
®Wireless Technology
phone will
be automatically connected once you are
in the vicinity of the vehicle. If you do not
want automatic
Bluetooth
®
Wireless
Technology
phone connection, set the
Bluetooth
®Wireless Technology
power to
OFF.
Making a call using the Steering
wheel remote controller1. VOLUME button : Raises or lowers speaker volume.
2. MUTE button : Mute the microphone during a call.
3. button : Activates voice recognition.
4. button : Places and transfers calls.
5. button : Ends calls or cancels func- tions.  Check call history and making call
➀
Shortly press (under 0.8 seconds) the
key on the steering remote con-
troller.
➁ The call history list will be displayed on
the screen.
\b Press the key again to connect a
call to the selected number.
 Redialing the most recently called num- ber
➀ Press and hold (over 0.8 seconds) the
key on the steering remote con-
troller.
➁ The most recently called number is
redialed.
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 179
