2016 HONDA PILOT Owners Manual

64
uuChild Safety uSafety of Infants and Small Children
Safe Driving
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
Marks
Third row seat
Rigid Type
Lower Anchors
Flexible Type
16 PILOT-31TG76000.book 64 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

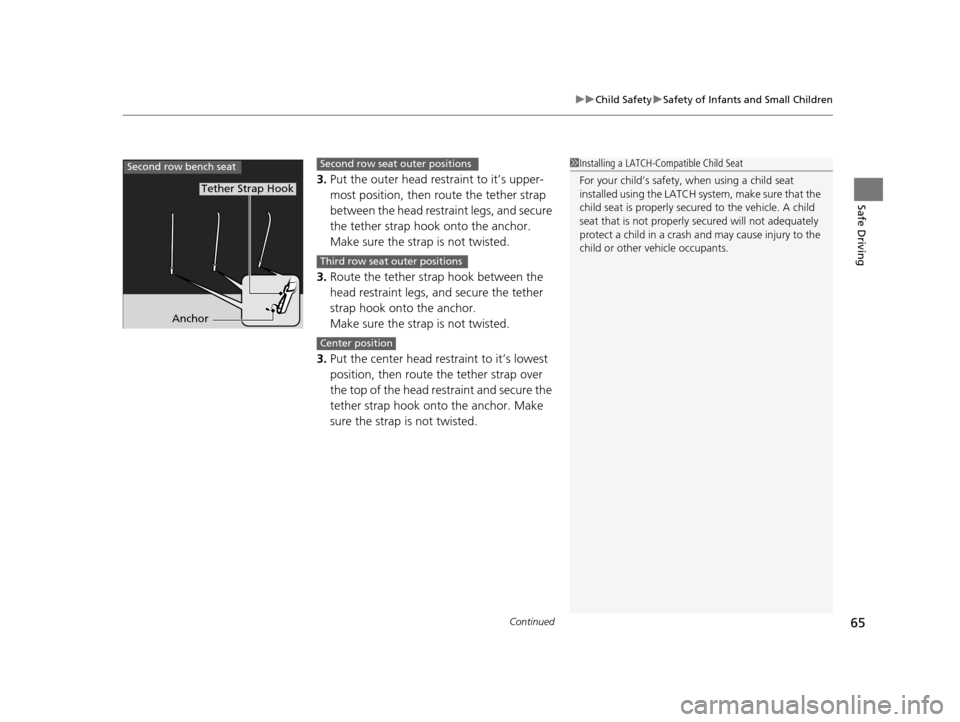

Continued65
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Put the outer head restraint to it’s upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.
Make sure the strap is not twisted.
3. Route the tether strap hook between the
head restraint legs, and secure the tether
strap hook onto the anchor.
Make sure the strap is not twisted.
3. Put the center head restraint to it’s lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook onto the anchor. Make
sure the strap is not twisted.
1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether Strap Hook
Anchor
Second row bench seatSecond row seat outer positions
Third row seat outer positions
Center position
16 PILOT-31TG76000.book 65 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

66
uuChild Safety uSafety of Infants and Small Children
Safe Driving
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 58
Tether Strap Hook
Second row captain seat
Anchor
All positions
Tether Strap Hook
Third row seat
Anchor
16 PILOT-31TG76000.book 66 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

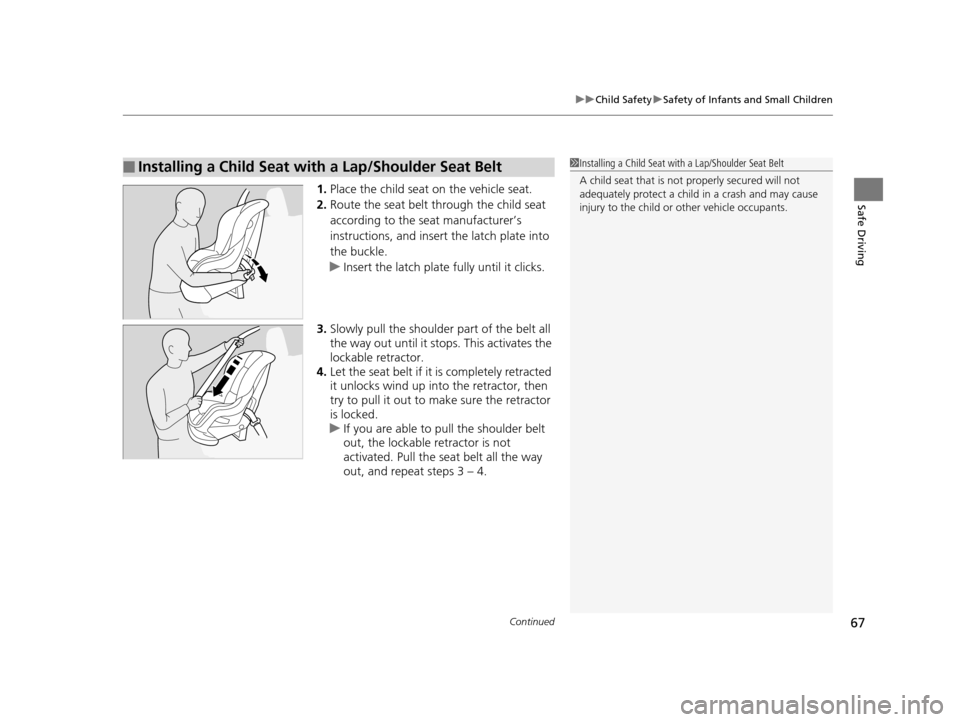

Continued67
uuChild Safety uSafety of Infants and Small Children
Safe Driving1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt if it is completely retracted
it unlocks wind up into the retractor, then
try to pull it out to make sure the retractor
is locked.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
16 PILOT-31TG76000.book 67 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

uuChild Safety uSafety of Infants and Small Children
68
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 58
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
16 PILOT-31TG76000.book 68 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

Continued69
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child restraint system that comes
with a tether but can be installed with a seat
belt, the tether may be used for additional
security.
■Adding Security with a Tether
Tether Anchorage Points
Second row bench seat
1Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Second row captain seat
Tether Anchorage Points
Tether Anchorage Points
Third row seat
16 PILOT-31TG76000.book 69 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

70
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using a second row anchor
1. Put the outer head restraint to it’s upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.
Make sure the strap is not twisted.
1. Put the center head restraint to it’s lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook onto the anchor. Make
sure the strap is not twisted.
2. Tighten the tether strap as instructed by the
child seat manufacturer.
Anchor
Second row bench seat
Tether Strap HookOuter positions
Center position
Second row captain seat
Tether Strap Hook
Anchor
All positions
16 PILOT-31TG76000.book 70 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

71
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using a third row anchor
1. Route the tether strap hook between the
head restraint legs, and secure the tether
strap hook onto the anchor.
Make sure the strap is not twisted.
2. Open the anchor cover.
3. Secure the tether strap hook onto the
anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap Hook
Anchor
Third row seat
16 PILOT-31TG76000.book 71 ページ ２０１５年６月１５日　月曜日　午前１１時３０分
