2016 HONDA PILOT Owners Manual

24
Quick Reference Guide
VSA® OFF Button (P516)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and hold the button until
you hear a beep.
Cruise Control (P486)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
*/
MAIN* button, then press the –/SET
button once you have achieved the
desired speed (above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P534)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) (P523, 627)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically every time you start the engine.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P550)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded gasoli ne with a pump octane number
87 or higher recommended
Fuel tank capacity: 19.5 US gal (73.8 ℓ)
16 PILOT-31TG76000.book 24 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

25
Quick Reference Guide
Maintenance (P555)
Under the Hood (P563)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P575)
● Inspect all lights regularly.
Wiper Blades (P581)
● Replace blades if they leave streaks
across the windshield.
Tires (P585)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
16 PILOT-31TG76000.book 25 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

26
Quick Reference Guide
Handling the Unexpected (P605)
Flat Tire (P607)
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P624)
● Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P615)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P628)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P622)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P633)
● Call a professional towing service if you
need to tow your vehicle.
16 PILOT-31TG76000.book 26 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

27
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
while pressing the ENGINE START/STOP
button.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Canadian models
Models with shift lever
16 PILOT-31TG76000.book 27 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

28
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, push the
lever to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The exterior lights are left on.
●The power mode is in ACCESSORY.
●Auto Idle-stop* is in operation.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake pedal is not fully released.
16 PILOT-31TG76000.book 28 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

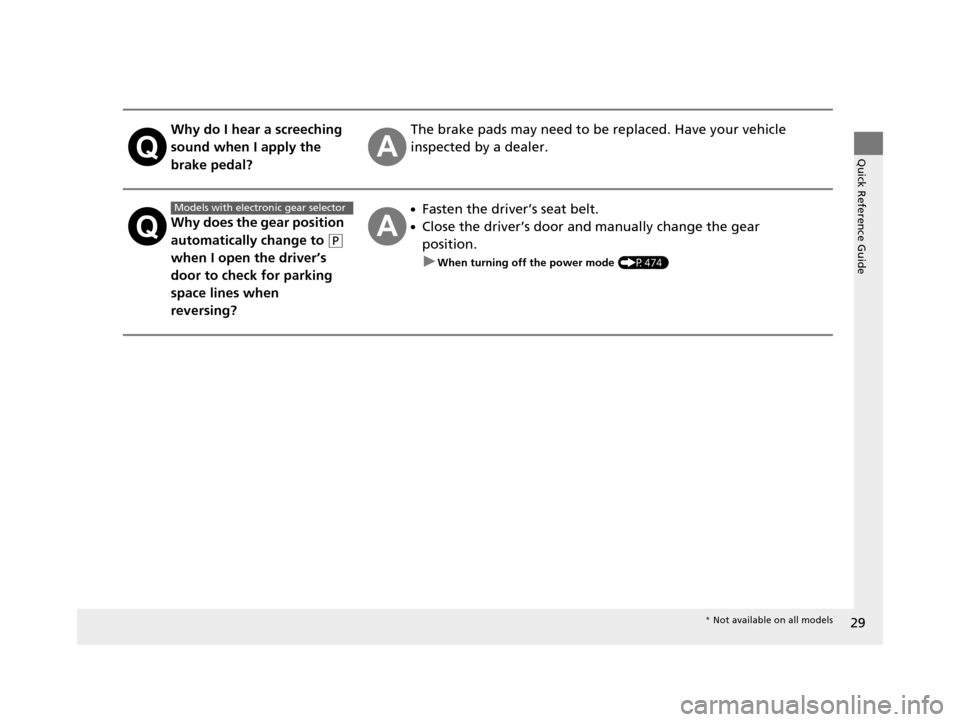

29
Quick Reference Guide
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Why does the gear position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver’s door and manually change the gear
position. u
When turning o ff the power mode (P474)
Models with electronic gear selector
* Not available on all models
16 PILOT-31TG76000.book 29 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

30
16 PILOT-31TG76000.book 30 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

31
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 32
Important Handling Information
*....... 34
Your Vehicle’s Safety Features ............ 35
Seat Belts About Your Seat Belts ........................ 37
Fastening a Seat Belt .......................... 40
Seat Belt Inspection ............................ 44 Airbags
Airbag System Components ............... 45
Types of Airbags ................................ 48
Front Airbags (SRS) ............................ 48
Side Airbags....................................... 52
Side Curtain Airbags .......................... 54
Airbag System Indicators .................... 55
Airbag Care ....................................... 57 Child Safety
Protecting Child Passengers ............... 58
Safety of Infants a nd Small Children .. 60
Safety of Larger Children ................... 72
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 74
Safety Labels Label Locations .................................. 75
* Not available on all models
