2016 HONDA PILOT Owners Manual

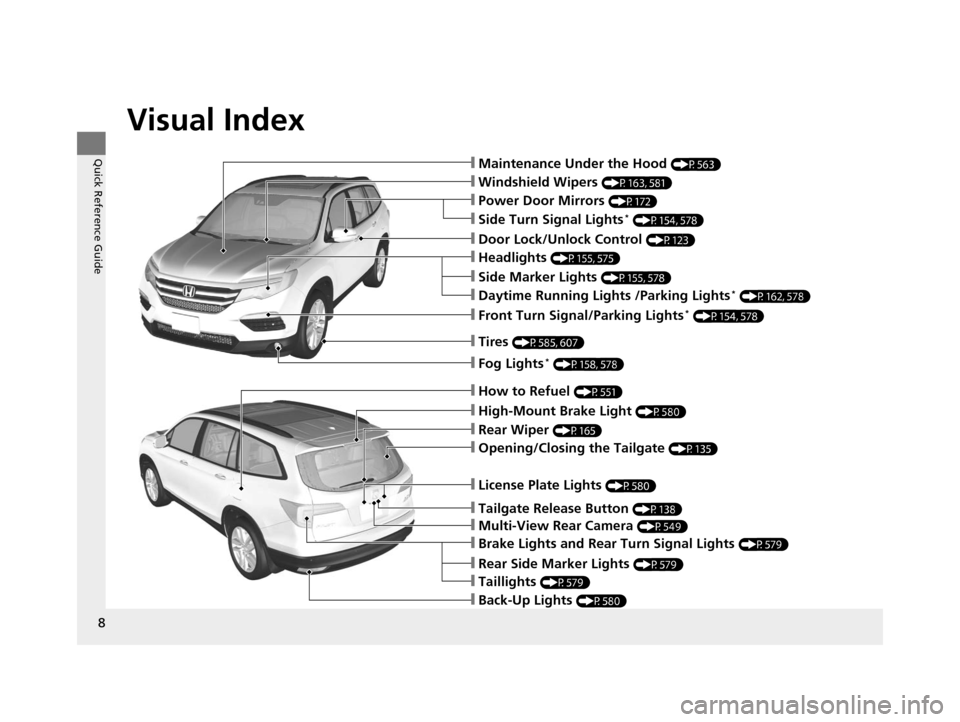

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P563)
❙Windshield Wipers (P163, 581)
❙Tires (P585, 607)
❙Door Lock/Unlock Control (P123)
❙Power Door Mirrors (P172)
❙Headlights (P155, 575)
❙Side Marker Lights (P155, 578)
❙Front Turn Signal/Parking Lights* (P154, 578)
❙Fog Lights* (P158, 578)
❙Side Turn Signal Lights* (P154, 578)
❙Daytime Running Lights /Parking Lights* (P162, 578)
❙How to Refuel (P551)
❙High-Mount Brake Light (P580)
❙Opening/Closing the Tailgate (P135)
❙Rear Wiper (P165)
❙Multi-View Rear Camera (P549)
❙Tailgate Release Button (P138)
❙License Plate Lights (P580)
❙Rear Side Marker Lights (P579)
❙Taillights (P579)
❙Brake Lights and Rear Turn Signal Lights (P579)
❙Back-Up Lights (P580)
16 PILOT-31TG76000.book 8 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

9
Quick Reference Guide
Auto Idle-stop Function*
To improve fuel economy, the engine stops and then restarts as detailed belo w. When Auto Idle-stop is on, the Auto Idle-stop indicator
(green) comes on. (P479)
At Automatic transmissionEngine status
Deceleration
Stop the vehicle and depress the brake
pedal.
StopKeep the brake pedal depressed.
Start-up Release the brake pedal.
On
Off
Restarting
* Not available on all models
16 PILOT-31TG76000.book 9 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

10
Quick Reference Guide
Eco Assist System
Ambient Meter
●Changes color to reflect your driving style.
Green: Fuel efficient driving
Light green: Moderate acceleration/deceleration
White: Aggressive acceleration/deceleration
● The ambient meter color changes in accordance
with your brake or accelerator pedal operation.
ECON Mode Indicator
(P94)
Comes on when the ECON button is
pressed.
ECON Button (P483)
Helps maximize fuel economy.
16 PILOT-31TG76000.book 10 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

11
Quick Reference Guide
Safe Driving (P31)
Airbags (P45)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P58)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P74)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P36)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P37)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
16 PILOT-31TG76000.book 11 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

12
Quick Reference Guide
Instrument Panel (P77)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
(VSA
®) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorParking Brake and
Brake System
Indicator (Red)Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P113)/Multi-Information Display (MID) (P114)/System Indicators (P78)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Smart Entry System
Indicator
*Ambient
Meter Gear Position Indicator Fuel Gauge
Tachometer
Temperature
Gauge
Speedometer
MID
M (sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
*
Brake System
Indicator (Amber)
All-wheel drive system
(AWD) Indicator*
Blind spot information
(BSI) Indicator*
System Indicators
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator*
Road Departure Mitigation
(RDM) Indicator*
Security System Alarm
Indicator
U.S.
Canada U.S.
Canada
Fog Light Indicator*
Auto Idle-stop System
Indicator (Amber)*
Auto Idle-stop
Indicator (Green)*
ECON Mode Indicator
Auto high-beam
system Indicator
*
Lane Keeping Assist
System ( LKAS) Indicator*
CRUISE MAIN
Indicator*
CRUISE CONTROL
Indicator*
Adaptive Cruise
Control ( ACC)
Indicator
*
Intelligent Traction
Management Indicator
16 PILOT-31TG76000.book 12 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

13
Quick Reference Guide
Controls (P119)
Clock (P120)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock , then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
aSelect , then select Settings.
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the dates, hours and minutes by
selecting / .
dSelect OK to set the time.
Models with Display Audio
34
ENGINE START/STOP
Button
(P151)
Press the button to change the vehicle’s
power mode.
* Not available on all models
16 PILOT-31TG76000.book 13 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

14
Quick Reference Guide
Turn Signals (P154)
Lights (P155)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P163)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring: Low Sensitivity*1
: Lower speed, fewer sweeps*2
: High Sensitivity*1
: Higher speed, more sweeps*2
AUTO should always be turned OFF before
the following situation:
● Cleaning the windshield
● Driving through a car wash
● Driving when it not rain
Steering Wheel (P170)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
Models with automatic intermittent wipers
16 PILOT-31TG76000.book 14 ページ ２０１５年６月１５日　月曜日　午前１１時３０分

15
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P132)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P, 140)
● Press the tailgate release button to
unlock and open the tailgate when you
carry the smart entry remote.
● Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Tailgate Release Button
Models with smart entry remote
Models with power tailgate
Power Door Mirrors
(P172)
● With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
● Press the folding button
* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
Power Windows (P147)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
* Not available on all models
16 PILOT-31TG76000.book 15 ページ ２０１５年６月１５日　月曜日　午前１１時３０分
