2016 Citroen JUMPER Owner's Manual

79
jumper_en_Chap03_Ergo-et-confort_ed01-2015

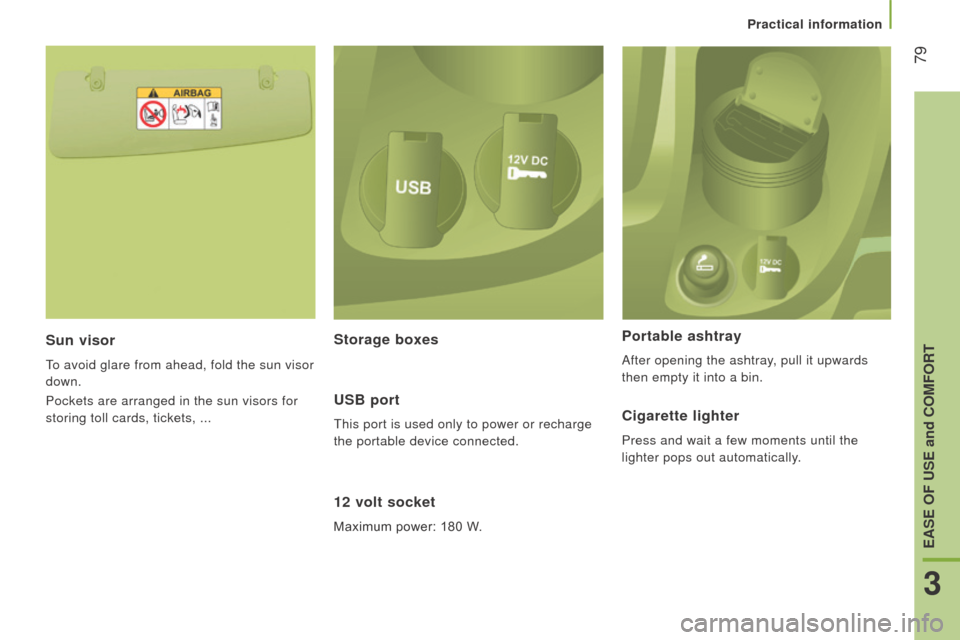

Sun visor
To avoid glare from ahead, fold the sun visor
down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...
12 volt socket
Maximum power: 180 W.
Portable ashtray
After opening the ashtray, pull it upwards
then empty it into a bin.
Storage boxes
u
SB port
This port is used only to power or recharge
the portable device connected.cigarette lighter
Press and wait a few moments until the
lighter pops out automatically.
Practical information
3
EASE OF uSE and cOMFOrt

80
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Controls located at the bottom
of the dashboard on the driver's
side allow the driver to switch the
passenger spotlamp on or off.
reading lamps
These are controlled by the switches.
The driver's switch controls both reading
lamps simultaneously.
The passenger switch controls either the
driver's reading lamp or the passenger's
reading lamp.
courtesy lamp
It can be activated by means of:
-
the switches located on the courtesy

lamp, with the ignition on -
runn I n G
position,
-

opening or closing one of the front

doors,
-

locking/unlocking the vehicle.
It switches of

f automatically:
-

if the switch is not pressed to the right or

to the left,
-

in all cases after 15 minutes, if the doors

remain open,
-

or when the ignition is switched on.
Overhead storage compartment
This is located above the sun visors.
Maximum load: approximately 20 kg.
Practical information

81
jumper_en_Chap03_Ergo-et-confort_ed01-2015
LOAd SPAcE FIttInGSSupport for stowing rail
Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.
Maximum load: 200 kg.
12 volt socket
Maximum power: 180 W.Lashing rings
Lashing rings are provided on the floor to
secure and make safe your loads: 8 for L1
and L2 length vehicles, 10 for L3 and L4
length vehicles.
Two additional rings are located on the
partition behind the cab.
Maximum load: 500 kg.
Side trim
The lower parts of the sides are fitted with
load protection trims.
As a safety precaution in case of sharp
braking, you are advised to place
heavy objects as far forwards towards the
cab as possible.
Practical information
3
EASE OF uSE and cOMFOrt

82
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Load retainer
on the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.
courtesy lamps
if fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
They can be activated by:
-

tilting the courtesy lamp (to the left or to

the right),
-

opening or closing the rear or side

doors.
This lighting switches off automatically, after
a few minutes, if the doors are left open.
reading lamps
Inetrior roof storage
This is a storage compartment located in
the load space, above the cab. i ts capacity
varies depending on the height of the van
(type H2 or H3).
Ladder type vertical partition
Depending on the country of sale, behind
the driver's seat, a ladder type vertical
partition protects the driver against the risk
of load movement.
Glazed partition
Depending on the country of sale, a glazed
partition separates the cabin from the load
space.
However, you can use the control to open/
close its sliding window.
uSB port
This port is used only to power or recharge
the portable device connected.
cigarette lighter
Press and wait a few moments until the
lighter pops out automatically. As a safety measure, do not place
heavy objects in the roof storage
space.
They are located above each row
of seats.
Practical information

83
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Sliding side windows
Depending on the vehicle's equipment, the
side windows of row 2 can be opened.
Squeeze the two controls then slide the
window.
torch
if your vehicle has one, the magnetic torch is
located at the rear courtesy lamp.
A
lamp is locatred in the centre of the torch
base.
r

emove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 batteries (
n iMH type),
remove the protective cover, located on the
torch. With the vehicle stationary, key in the
ignition switch or removed, recharging
and lighting from the torch stops after
around 15 minutes.
The torch batteries recharge automatically
while driving. To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.
While driving, the window must be


closed or secured in an intermediate
position.
Do not extend long objects outside the
vehicle via the window.
Practical information
3
EASE OF uSE and cOMFOrt

84
jumper_en_Chap03_Ergo-et-confort_ed01-2015
ExtErIOr FIttInGS
Protective grille
Depending on the country of sale, a
protective grille fitted to the inside of
the front bumper provides protection for
underbonnet components against flying
stones...
Very cold conditions protectors
Depending on the country of sale, protective
foam pads are present to avoid the ingress
of cold or snow to the upper part of the
underbonnet.
Located at the edge of each headlamp,
they are fitted to the front panel above the
radiator.
Slide them towards the outisde of the
vehicle to remove them.
Folding foot board
To faciltate the entry and exit of rear
passengers, your vehicle may be fitted with
a foot board, which is deployed on opening
the sliding side door.
Practical information

85
jumper_en_Chap03_Ergo-et-confort_ed01-2015
MIrrOrS
d
oor mirrors
These are divided into two zones:
A - Upper mirror
B - Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision.
o bjects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM,
r adio, ...).
Electrical controls
The ignition switch must be in the MAr
position.
T
urn the control to select the mirror zone.
1 Driver's mirror:
A1 - Upper mirror
B1 - Lower mirror
Then move the control in the direction of the
adjustment required.
2 Passenger mirror:
A2 - Upper mirror
B2 - Lower mirror
Then move the control in the direction of the
adjustment required.
rear view mirror
The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding
Press this control.
defrosting the mirrors
Press the rear screen defrosting
button.
Mirrors and windows
3
EASE OF uSE and cOMFOrt

86
jumper_en_Chap03_Ergo-et-confort_ed01-2015
ELEctrIc WIndOWS
A. d river's electric window
B.
Passenger's electric window Y

ou have two options:Manual operation
Press or pull control switch A/B, without
passing the point of resistance.
The window stops when you release the
control switch.
Automatic operation
Press or pull control switch A , beyond the
point of resistance: the window opens or
closes fully when the control is released.
Pressing the control switch again stops the
movement of the window.
Good practice
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
i

f the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control switch in question.
When the driver operates the passenger
electric windows, they must ensure that
no one is preventing correct closing of the
windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be particularly aware of children when
operating the windows.
Mirrors and windows
