2016 Citroen C3 PICASSO RHD Owner's Manual

119
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact
a CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Reactivation
When you remove the rear ward facing child
seat, with the ignition off, turn switch 1 to
the
"ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
With the ignition on, this warning
lamp comes on in the instrument
panel or in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.
According to version, this warning
lamp comes on either in the
instrument panel or on the seat belt
and passenger's front airbag warning
lamp display when the ignition is on
and until the airbag is reactivated.
Deactivation
Only the passenger's front airbag can be
deactivated:
F

w
ith the ignition off , insert the key in the
passenger airbag deactivation switch 1 ,
F

t
urn it to the "OFF" position,
F

t
hen, remove the key keeping the switch
in this position . To assure the safety of your child, it is
imperative that the passenger's front
airbag is deactivated when you install a
rear ward facing child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
8
Safety

120
Lateral airbags
Deployment
A lateral airbag is deployed unilaterally in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.
Curtain airbags
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
System which contributes towards improving
the protection of the driver and passengers
(with the exception of the rear centre
passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Safety

121
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre part
of the wheel.
Passengers must not place their feet on the dashboard.
Do not smoke as deployment of the airbags can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Do not fit or attach anything to the steering wheel or dashboard, this could cause injuries with
deployment of the airbags.
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags.
For information on the range of seat covers suitable for your vehicle, you can contact a
CITROËN

dealer.
For more information on accessories, refer to the corresponding section.
Do not fix or attach anything to the seat backs (clothing...). This could cause injury to the chest
or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the grab handles installed on the roof, they play a part
in securing the curtain airbags.
For the airbags to be fully effective, observe the safety recommendations below:
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
Advice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
8
Safety

122
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-
d
eactivate the Stop & Start system,
-
d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10 km/h),
- d o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Important!
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
Driving

123
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
Ignition switch
It has 3 positions:
- P osition 1: Stop
-

P
osition 2: Ignition on
-

P
osition 3: Starting
Ignition on
In this position the vehicle's electrical
equipment can be used or accessories
charged.
When the state of charge of the battery
drops to a reserve level, the system goes into
energy economy mode: the power supply is
automatically cut off to preserve the state of
charge of the battery.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle. In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Starting-switching off the engine
Starting the engine
F Apply the parking brake.
F
W ith a manual gearbox: place the lever in
neutral and fully depress the clutch pedal.
F

W
ith an electronic gearbox: place the lever
at position N and press the brake pedal
f i r m l y.
F

W
ith an automatic gearbox: place the lever
at position P and press the brake pedal
f i r m l y.
F

I
nsert the key in the ignition switch; the
system recognises the code.
F

U
nlock the steering column by
simultaneously turning the steering and the
key.
F

W
ith a petrol engine, operate the starter
motor by turning the key to position 3 until
the engine starts, without pressing the
accelerator pedal. Once the engine starts,
release the key.
F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine preheating system. In some circumstances, you may have
to apply some force to turn the steering
wheel (wheels on lock for example).
9
Driving

124
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below -23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.
If the engine does not start straight
away, switch the ignition off. Wait a
few moments before trying again. If
the engine does not start after a few
attempts, do not keep trying: you risk
damaging the starter motor and the
engine. Call on a CITROËN dealer or a
qualified workshop. In temperate conditions, do not
warm the engine up with the vehicle
stationary, but move off straight away
and drive at moderate engine speeds.
In wintry conditions, the warning lamp
will stay on longer. When the engine is
hot, it does not come on. Wait until this warning lamp goes off
in the instrument panel, then operate
the starter motor by turning the key to
position
3 until the engine starts, without
pressing the accelerator pedal. Once
the engine starts, release the key.
Switching the engine off
F Immobilise the vehicle.
F W ith the engine at idle, turn the key fully
towards you to position 1 (Stop) .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering wheel until it locks.
Never switch the ignition off until the
vehicle has come to a complete stop and
the parking brake has been applied. With
the engine stopped, the braking and
steering assistance systems are also cut
off: risk of loss of control of the vehicle. To facilitate unlocking of the steering
column, put the front wheels in the
straight ahead position before switching
the ignition off.
F

E
nsure that the parking brake is applied
correctly, particularly when on a slope.
Driving

125
Parking brake
Applying
F Pull the parking brake lever fully up to immobilise your vehicle.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible signal
and a message in the multifunction screen,
this indicates that the parking brake is still
on or has not been properly released.
Releasing
F Pull the parking brake lever gently, press the release button then lower the lever
fully.
When parking on a slope, direct your
wheels against the pavement, apply the
parking brake and engage a gear.
When you leave the vehicle, take the
key with you and lock the vehicle.
Energy economy mode
After switching off the engine (position 1 - Stop
),
you can still use functions such as the audio
and telematic system, the wipers, dipped beam,
courtesy lamps, etc., for maximum cumulative
period of 30 minutes.
For more information, refer to the "Energy
economy mode" section.
Key reminder
If the key is left in the ignition switch, an
audible signal sounds when the driver's
door is opened.
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
9
Driving

126

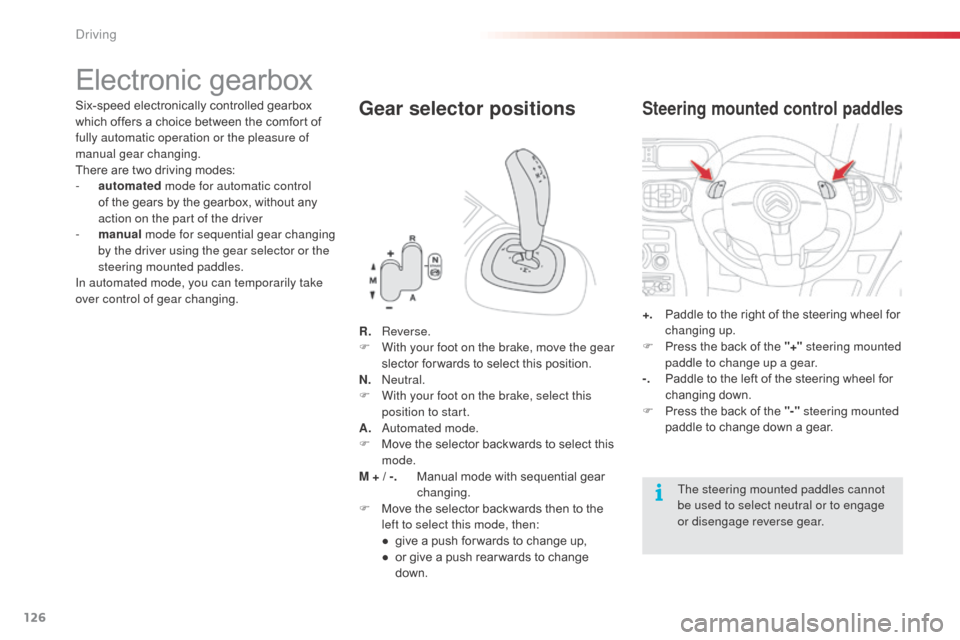

Electronic gearbox
Six-speed electronically controlled gearbox
which offers a choice between the comfort of
fully automatic operation or the pleasure of
manual gear changing.
There are two driving modes:
-
a
utomated mode for automatic control
of the gears by the gearbox, without any
action on the part of the driver
-

m
anual mode for sequential gear changing
by the driver using the gear selector or the
steering mounted paddles.
In automated mode, you can temporarily take
over control of gear changing.Gear selector positions
R. Reverse.
F W ith your foot on the brake, move the gear
slector for wards to select this position.
N.
N

eutral.
F

W
ith your foot on the brake, select this
position to start.
A.
A

utomated mode.
F

M
ove the selector backwards to select this
mode.
M + / -.

M

anual mode with sequential gear
changing.
F

M
ove the selector backwards then to the
left to select this mode, then:
●

g
ive a push for wards to change up,
●

o
r give a push rear wards to change
down. +.
P

addle to the right of the steering wheel for
changing up.
F P ress the back of the "+" steering mounted
paddle to change up a gear.
-.
P

addle to the left of the steering wheel for
changing down.
F

P
ress the back of the "-" steering mounted
paddle to change down a gear.
Steering mounted control paddles
The steering mounted paddles cannot
be used to select neutral or to engage
or disengage reverse gear.
Driving
