Low fuel levelfixed. When it first comes on there remains
approximately 5 litres of fuel in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 50 litres (petrol) or
48 litres (Diesel); depending on version: approximately
30 litres (petrol or Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Warning
/indicator lampis on Cause Action / Observations
Maximum
coolant
temperature fixed.
The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Engine oil
pressure fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt,
...).The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
1
Monitoring

121
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on the centre part
of the wheel.
Passengers must not place their feet on the dashboard.
Do not smoke as deployment of the airbags can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Do not fit or attach anything to the steering wheel or dashboard, this could cause injuries with
deployment of the airbags.
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateral airbags.
For information on the range of seat covers suitable for your vehicle, you can contact a
CITROËN

dealer.
For more information on accessories, refer to the corresponding section.
Do not fix or attach anything to the seat backs (clothing...). This could cause injury to the chest
or arms if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the grab handles installed on the roof, they play a part
in securing the curtain airbags.
For the airbags to be fully effective, observe the safety recommendations below:
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
Advice
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
8
Safety

184
BatteryProcedure for charging your battery when it is flat or for starting the engine using another battery.
Access to the battery
The battery is located under the bonnet.
To gain access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F

s
ecure the bonnet stay,
F

l
ift the plastic cover on the (+) terminal. First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.
F

C
onnect the red cable to the positive
terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B (or earth point on the other
vehicle).
F

C
onnect the other end of the green or black
cable to the negative terminal C
(or the engine mounting) of the broken-
down vehicle.
F

S
tart the engine of the other vehicle and
allow it to run for a few minutes.
Starting using another
battery
When the battery on your vehicle is discharged,
the engine can be started using a slave battery
(external or on another vehicle) and jump leads.
F

O
perate the starter of the broken-down
vehicle and let the engine run.
I

f the engine does not start immediately,
switch off the ignition and wait a few
moments before trying again.
F

W
ait until the engine returns to idle, then
disconnect the jump leads in reverse order.
Some functions are not available if the
battery is not sufficiently charged.
Practical information

185
Charging the battery using
a battery charger
F Follow the instructions for use provided by the manufacturer of the charger. Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion and fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.
Batteries contain harmful substances such
as sulphuric acid and lead. They must be
disposed of in accordance with regulations
and must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
11
Practical information

201
The system is protected in such a way that it will only
operate in your vehicle.
eMyWay
01 First steps - Control
panel
As a safety measure, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

Steering mounted
controls
03

General operation
04


Navigation
- Guidance
05

T
raffic information
06

Using
the telephone
07
Radio
08

Music media players
09


Audio
settings
10
Configuration
11

Screen menu
maps p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
202
204
205
207
220
223
233
236
242
243
244
GPS navigation system
Multimedia audio system
Bluetooth
® telephone
Frequently asked questions p.
248

255
Audio system
Your Audio system is coded in such a way that it will
only operate in your vehicle.
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.
Audio system / Bluetooth®
01 First steps
02
Steering mounted
controls
03

Main
menu
04
Audio
05

USB Box
06


Bluetooth
functions
07

Screen menu map(s)
Frequently

asked questions p.
p.
p.
p.
p.
p.
p.
p.
256
257
258
259
262
265
268
273
CONTENTS

275

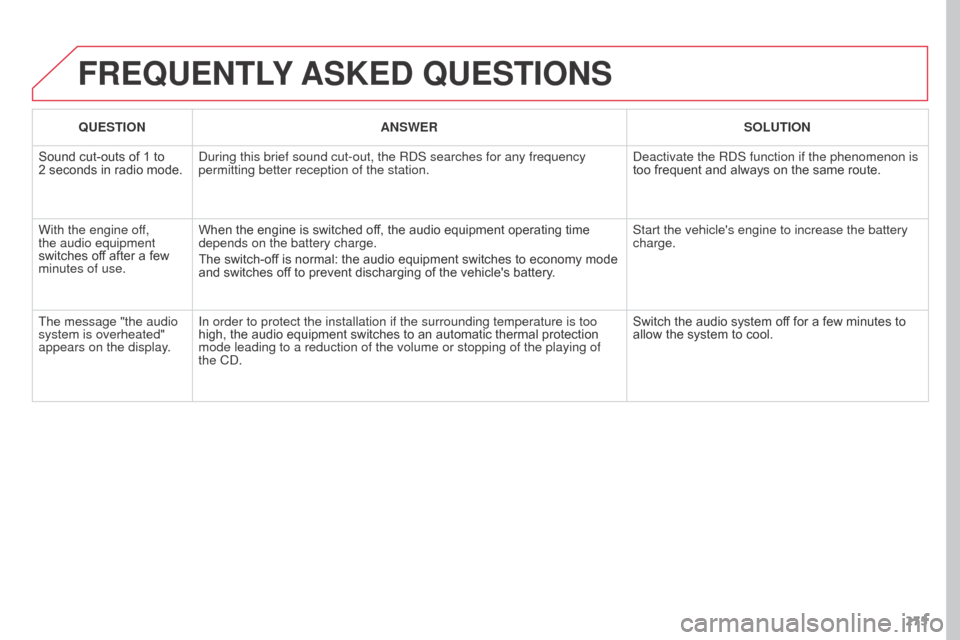

FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is t\
oo
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of \
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

280
ABS and EBFD systems .............................11 2
Accessories ................................................ 192
Additive, AdBlue


.................................... 20, 162
Additive, Diesel


........................................... 147
Adjusting headlamps


.................................... 77
Adjusting head restraints


........................51, 53
Adjusting seats


........................................ 50, 53
Adjusting the date


................................... 28, 37
Adjusting the height and reach of the steering wheel
...................................... 56
Adjusting the seat belt height


.....................114
Adjusting the time


................................... 28, 37
Advice on care and maintenance
..................................... 14

2, 143
Advice on driving


........................................ 12 2
Airbags


.................................................. 18, 118
Airbags, curtain
................................... 12

0, 121
Airbags, front ....................................... 118, 121
Airbags, lateral


.................................... 120, 121
Air conditioning


............................................... 8
Air conditioning, digital


...........................42, 46
Air conditioning, manual


.........................42, 44
Air vents


........................................................ 41
Anti-lock braking system (A BS)


........................................................ 112
Anti-pinch


...................................................... 62
Anti-theft


............................................... 62, 123
Armrest, front
................................................ 51
Audible warning


.......................................... 108
Audio streaming (Bluetooth)
..............................

..........240, 267
Audio system
............................................... 255Capacity, fuel tank
..............................

..........68
Cartridge, fragrance


.....................................49
CD


.......................................................237, 260
CD, MP3

..............................................2

37, 261
Central locking


........................................57, 64
Changing a bulb


...................................16 9 -176
Changing a fuse


...................................17 7-18 3
Changing a wheel
................................15 4 -16 0
Changing a wiper blade
........................80, 187
Changing the remote control battery


............59 Daytime running lamps, LED


................75, 173
Deactivating the passenger airbag


.............11 9
Deactivating the rear windows


.....................62
Deadlocking


..................................................58
Checking the engine oil level
................
25, 144
Checking the levels ..............................14 4 -146
Checking tyre pressures (using the kit)
..............................

..............152
Checks
...............

..................................142-148
Checks, routine


...................................147, 148
Child lock
...............................

......................10 6
Children
...............................

...93 -106, 117, 119
Child seats
................ 9

3 -95, 99, 100, 105, 117
Child seats, conventional


..............................99
Child seats, ISOFIX

....................................10

3
Closing the boot
......................................57, 66
Closing the doors


....................................57, 63
Configuration, vehicle


.......27, 30, 34, 268, 272
Control, electric windows
..............................61
Control, emergency boot release


.................66
Control, emergency door


..............................65
Control stalk, lighting
............................... 7

1-74
Control stalk, wipers
...............................78- 80
Cover, load space

.........................................90
C

ruise control
..............................................13

4
Cup holder

...............................
................83, 87
AB
C
D
Battery ................................................. 147, 184
Battery, charging ......................................... 185
Battery, remote control
........................... 5

9, 60
Blind, panoramic roof


.................................... 67
Blinds, side


.................................................... 87
BlueHDi


................................................. 22, 162
Bluetooth (hands-free)
........................ 2

24, 265
Bluetooth (telephone)


..........................224, 265
Bonnet


......................................................... 140
Boot


............................................................... 66
Boot floor, adjustable


..............................90, 91
Brake discs
.................................................. 14

8
Brake lamps
...............................

.................174
Brake pads


.................................................. 148
Braking assistance system

.........................11

2
Bulbs (changing)
...............................

...16 9 -176
Alphabetical index
