2015 TOYOTA PRIUS Owners Manual

129
1-5. Opening and closing the windows and moon roof
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
■
The moon roof can be operated when
The “POWER” switch is in ON mode.
■ Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is turned to ACCE SSORY mode or turned off. It cannot,
however, be operated once either front door is opened.
■ Open/close
Open
Push and hold “OPEN” at the
tilt up position and then
release.
Lightly push on either side of
the switch stops the moon roof
partway.
The moon roof stops slightly
before the fully open position
to reduce the wind noise.
Push and hold the switch again
to fully open.
Close
The moon roof will close while
pushing “CLOSE”.
The moon roof stops slightly
before fully close position.
Push and hold the switch again
to fully close.
ITN15P113

130 1-5. Opening and closing the windows and moon roof
PRIUS_OM_OM47A17U_DVD_(U)
■Jam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
■ To reduce moon roof wind noise
When the moon roof is opened automatically, it will stop slightly before the
fully open position. Driving with the moon roof in this position can help
reduce wind noise.
■ Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.
■ Solar Panel
The solar panel contains solar cells, and produces energy to operate the
Solar Ventilation System by receiving sunlight.
■ Moon roof open warning buzzer
The buzzer sounds when the “POWER” switch is turned off and the driver’s
door is opened with the moon roof open.
■ If the moon roof cannot be closed
If the moon roof cannot be closed, such as when the jam protection function
activates accidentally due to a malfunction, pressing and holding “CLOSE”
switch closes the moon roof.
After this, to make the automatic opening function and jam protection func-
tion available again, press and hold the “OPEN” switch until the moon roof
opens fully and then closes slightly.
If the functions do not activate, contact your Toyota dealer.

131
1-5. Opening and closing the windows and moon roof
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■
Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● When exiting the vehicle, turn the “POWER” switch off, carry the key and
exit the vehicle along with the child. There may be accidental operation,
due to mischief, etc., that may possibly lead to an accident.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.
■ Precautions for moon roof with Solar Panel
Be careful not to touch the solar panel surface in scorching sun weather con-
ditions as it will rise very high in temperature and may cause burns.

132 1-5. Opening and closing the windows and moon roof
PRIUS_OM_OM47A17U_DVD_(U)
NOTICE
■To prevent damage to the moon roof
●Before opening, make sure that there are no foreign objects such as
stones or ice around the opening.
● Do not hit the face or edge of the moon roof with hard objects.
● Do not continue to press and hold the switch after the moon roof has
opened or closed completely.
■ Operating the moon roof
There is the possibility that water or rain will get into the vehicle if you oper-
ate the moon roof after a rainfall, s nowfall or car wash. Wipe the moon roof
dry with a cloth before operating it.

133
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)

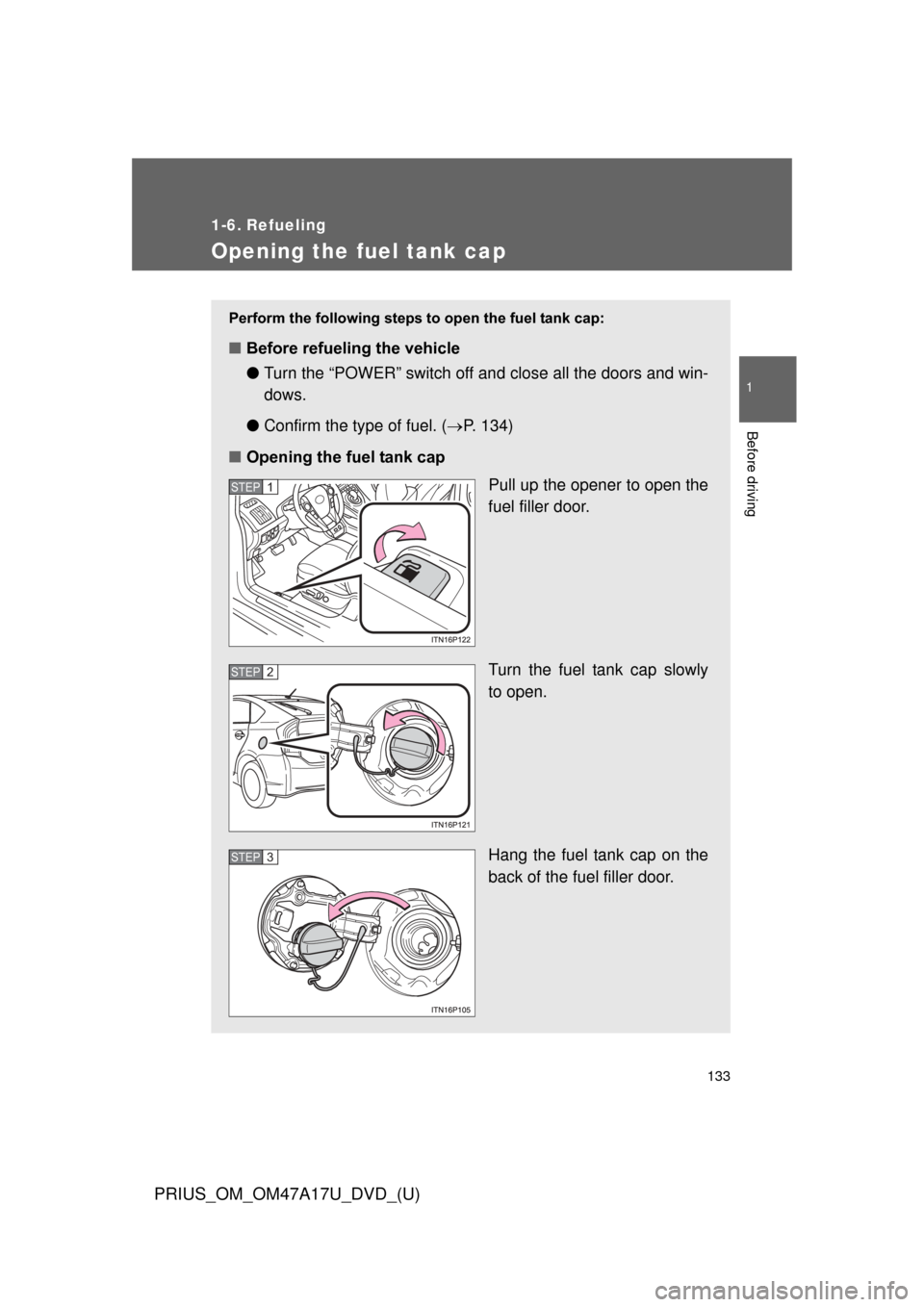

1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
●Turn the “POWER” switch off and close all the doors and win-
dows.
● Confirm the type of fuel. ( P. 134)
■ Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP 1
STEP 2
STEP 3

134 1-6. Refueling
PRIUS_OM_OM47A17U_DVD_(U)
Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
■Fuel types
Use unleaded gasoline. (Octane rating 87 [Research Octane Number 91] or
higher)
■ Gasoline price setting screen
After refueling more than approximately 1.3 gal. (5 L, 1.1 Imp.gal.) and turn-
ing the “POWER” switch to ON mode, the gasoline price setting scre\
en will
be automatically displayed on the multi-information display. ( P. 234)

135
1-6. Refueling
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel filler door, touch an
unpainted metal surface to discharge any st atic electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out of the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

136 1-6. Refueling
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
●Securely insert the fuel nozzle into the fuel filler neck
● Stop filling the tank after the fuel nozzle automatically clicks off
● Do not top off the fuel tank
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
