When trouble arises
537
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
*: The shape may differ depending on the grade, etc.
Center deck board*
Wheel nut wrench
Jack handle
Spare tire Towing
eyelet
Jack
Center
auxiliary box
*

538 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)

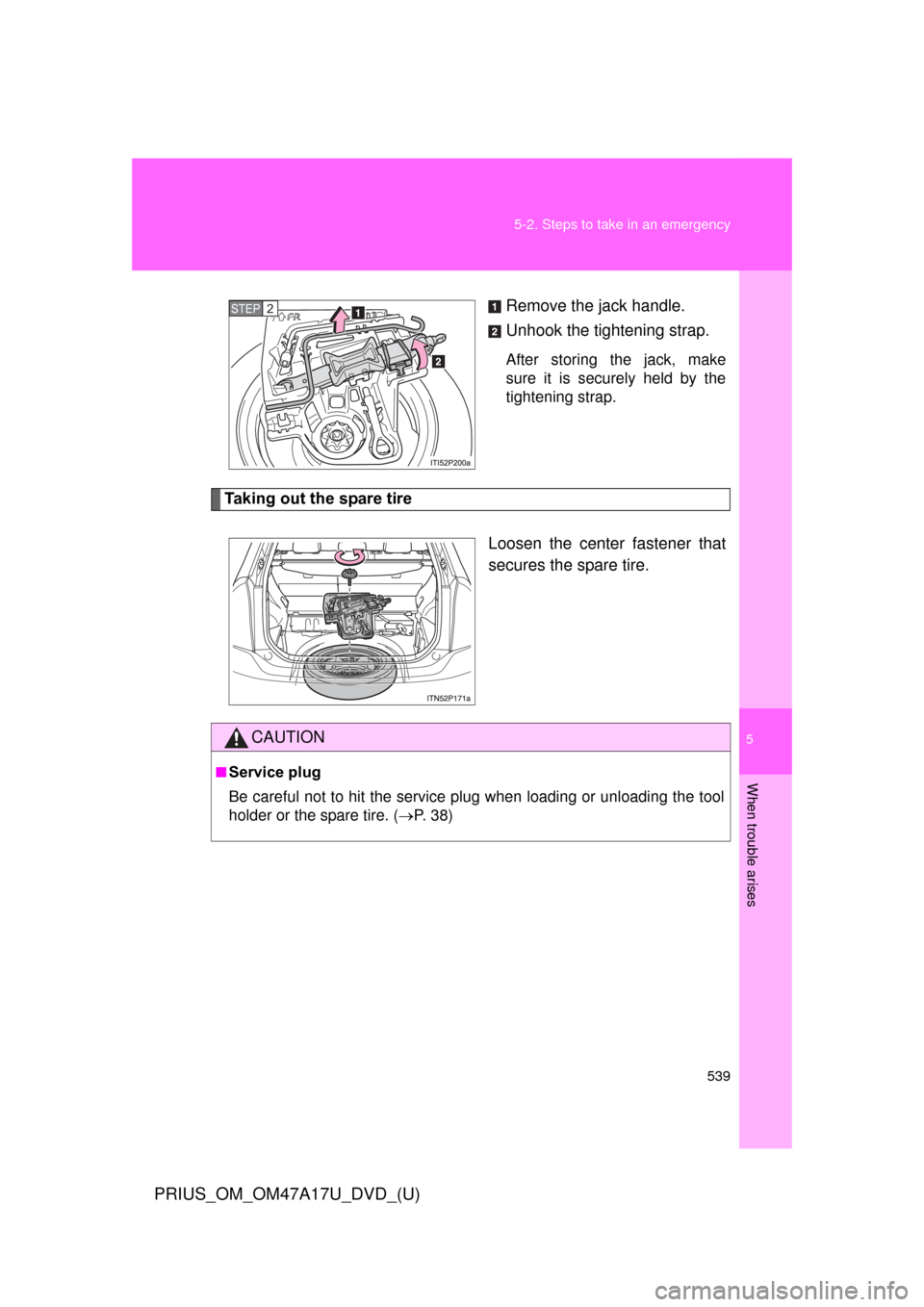

Taking out the jackRemove the center deck board and center auxiliary box.
Ty p e A Pull the strap up to open the cen-
ter deck board, lift up the center
auxiliary box, and unload it from
the vehicle.
Ty p e B Turn the knob to the UNLOCK
position to unfasten the lock,
and remove the center deck
board.
Fold the center deck board
toward the front of the vehicle,
and unload it from the vehicle.
Remove the center auxiliary
box.
STEP 1

5
When trouble arises
539
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Remove the jack handle.
Unhook the tightening strap.
After storing the jack, make
sure it is securely held by the
tightening strap.
Taking out the spare tire
Loosen the center fastener that
secures the spare tire.
STEP 2
CAUTION
■Service plug
Be careful not to hit the service plug when loading or unloading the tool
holder or the spare tire. (P. 3 8 )

540 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)

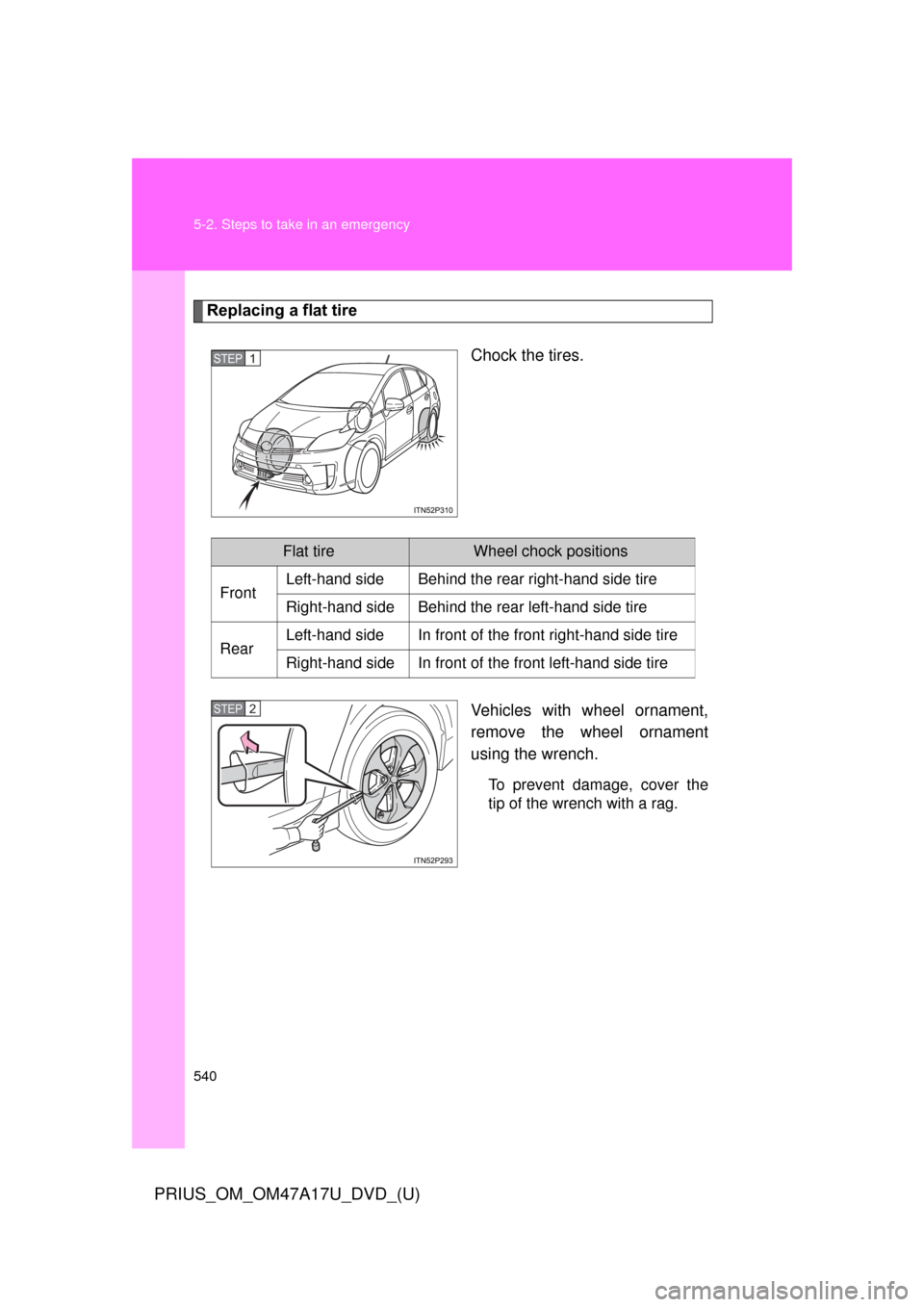

Replacing a flat tireChock the tires.
Vehicles with wheel ornament,
remove the wheel ornament
using the wrench.
To prevent damage, cover the
tip of the wrench with a rag.
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2

5
When trouble arises
541
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)

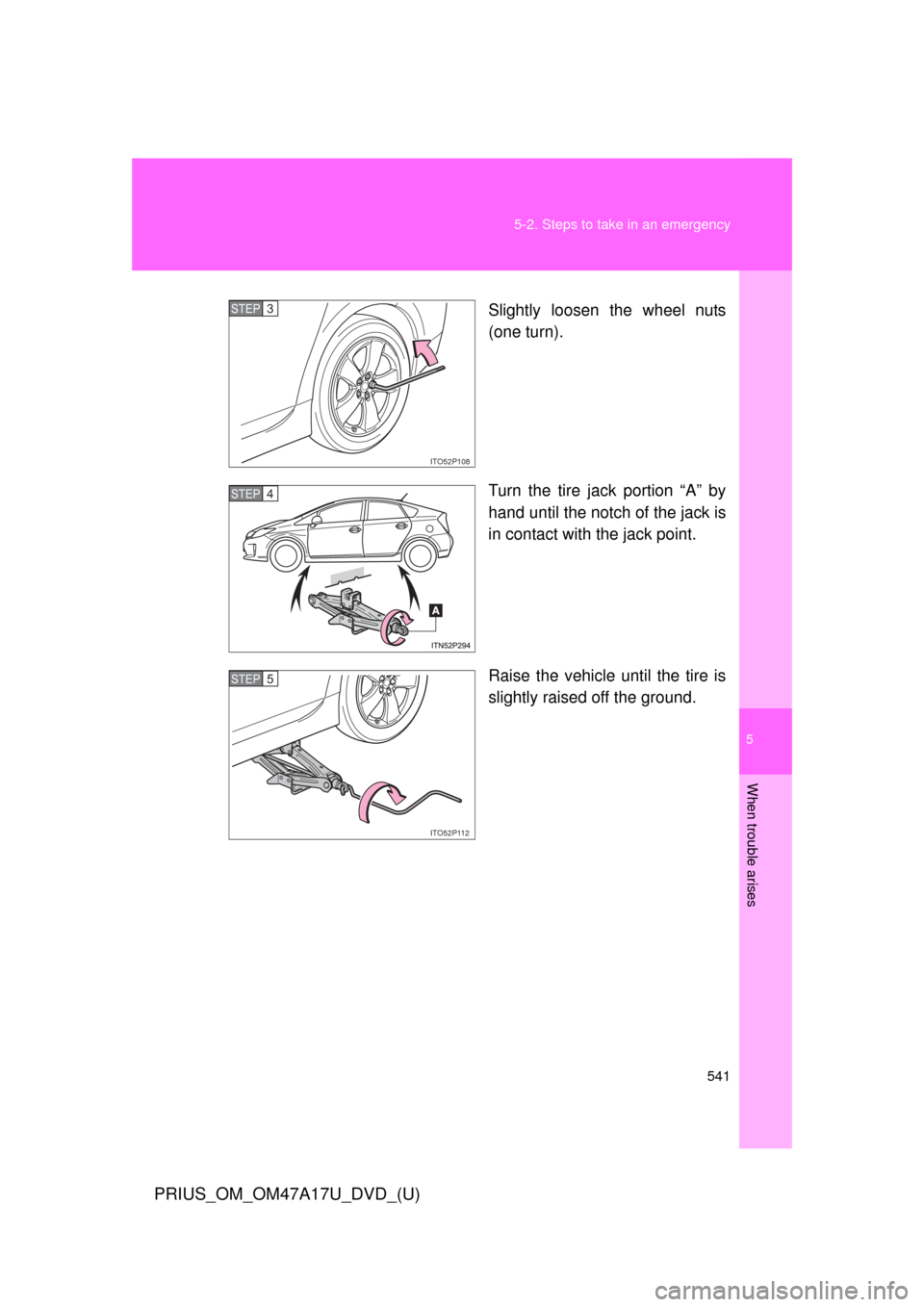

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
ITO52P108
STEP 3
STEP 4
ITO52P112
STEP 5

542 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
ITO52P114
STEP 6
STEP 1
STEP 2

5
When trouble arises
543
5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
Replacing an aluminum wheel
with a compact spare tire
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Replacing an aluminum wheel with an aluminum wheel
Turn the nut washers until they
come into contact with the disc
wheel.
Tapered portion
Disc wheel
seat
Disc wheel
Washer

544 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)

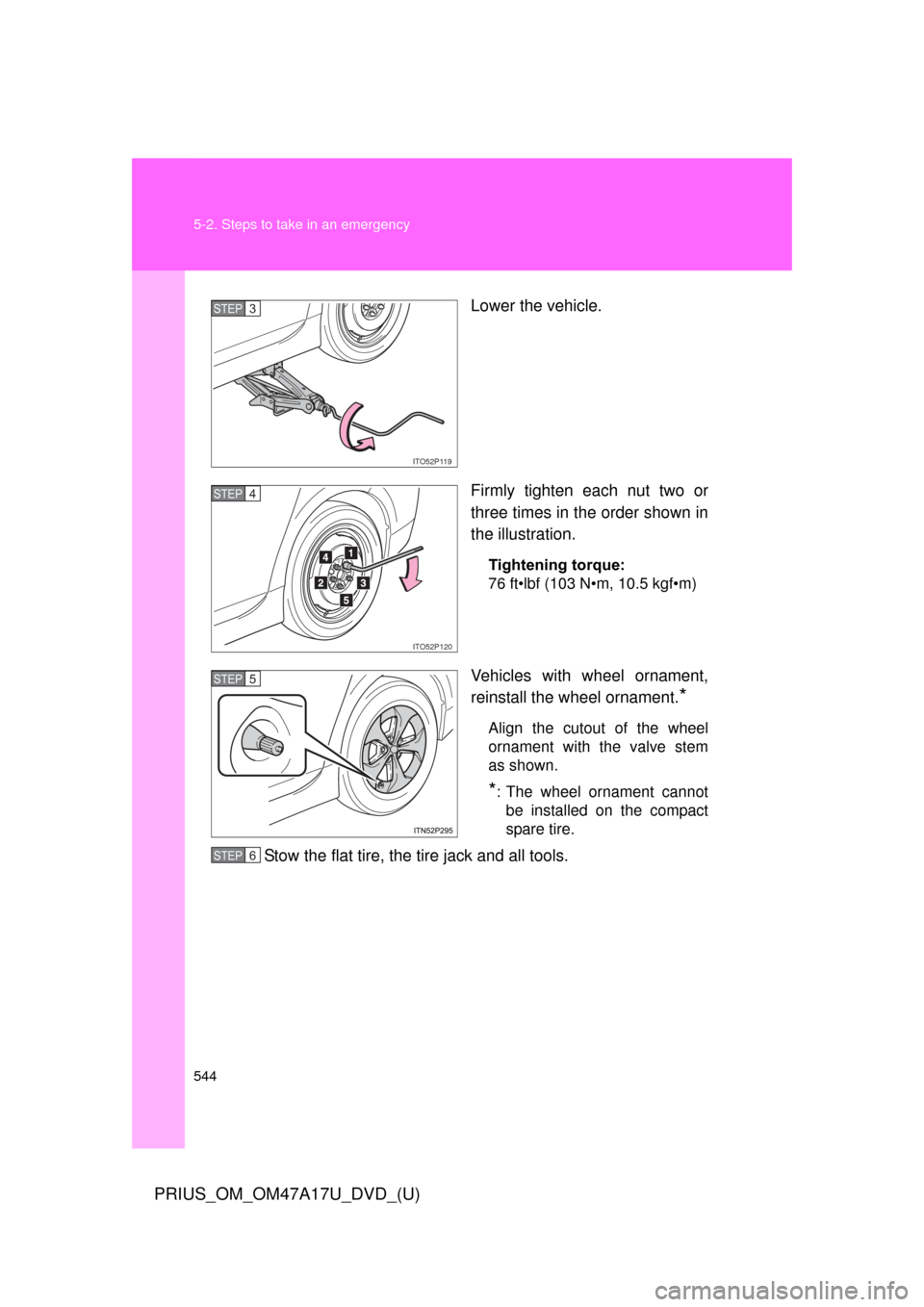

Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Vehicles with wheel ornament,
reinstall the wheel ornament.
*
Align the cutout of the wheel
ornament with the valve stem
as shown.
*: The wheel ornament cannotbe installed on the compact
spare tire.
Stow the flat tire, the tire jack and all tools.
ITO52P119
STEP 3
ITO52P120
STEP 4
STEP 5
STEP 6
