When driving
2-2.Instrument cluster
Gauges and meters
The units used on the display may differ depending on the target
region.

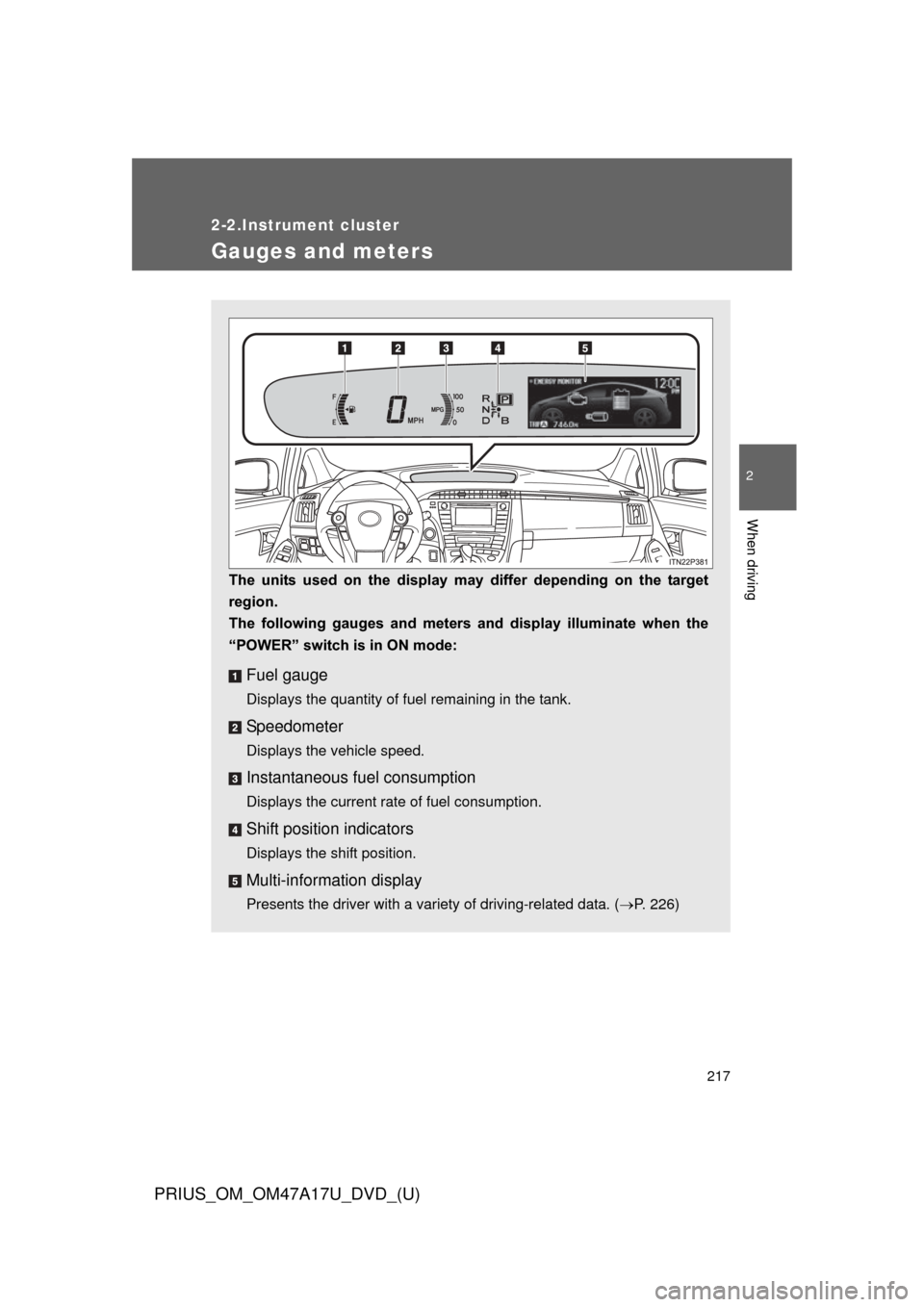

The following gauges and meters and display illuminate when the
“POWER” switch is in ON mode:
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Instantaneous fuel consumption
Displays the current rate of fuel consumption.
Shift position indicators
Displays the shift position.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 226)

218 2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
Touch tracer display (if equipped)When the audio control switches,
climate control switches, “DISP”
button or “TRIP” button of the
steering wheel are touched, the
touch tracer display will appear
in front of the gauges, with the
touched button highlighted to
allow the driver to identify the
button that is being operated.
The button can then be operated
by further presses.
If an audio/navigation system is
used that is not compatible with
the steering switches in this vehi-
cle, the audio switch display may
not operate correctly.

219
2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
2
When driving

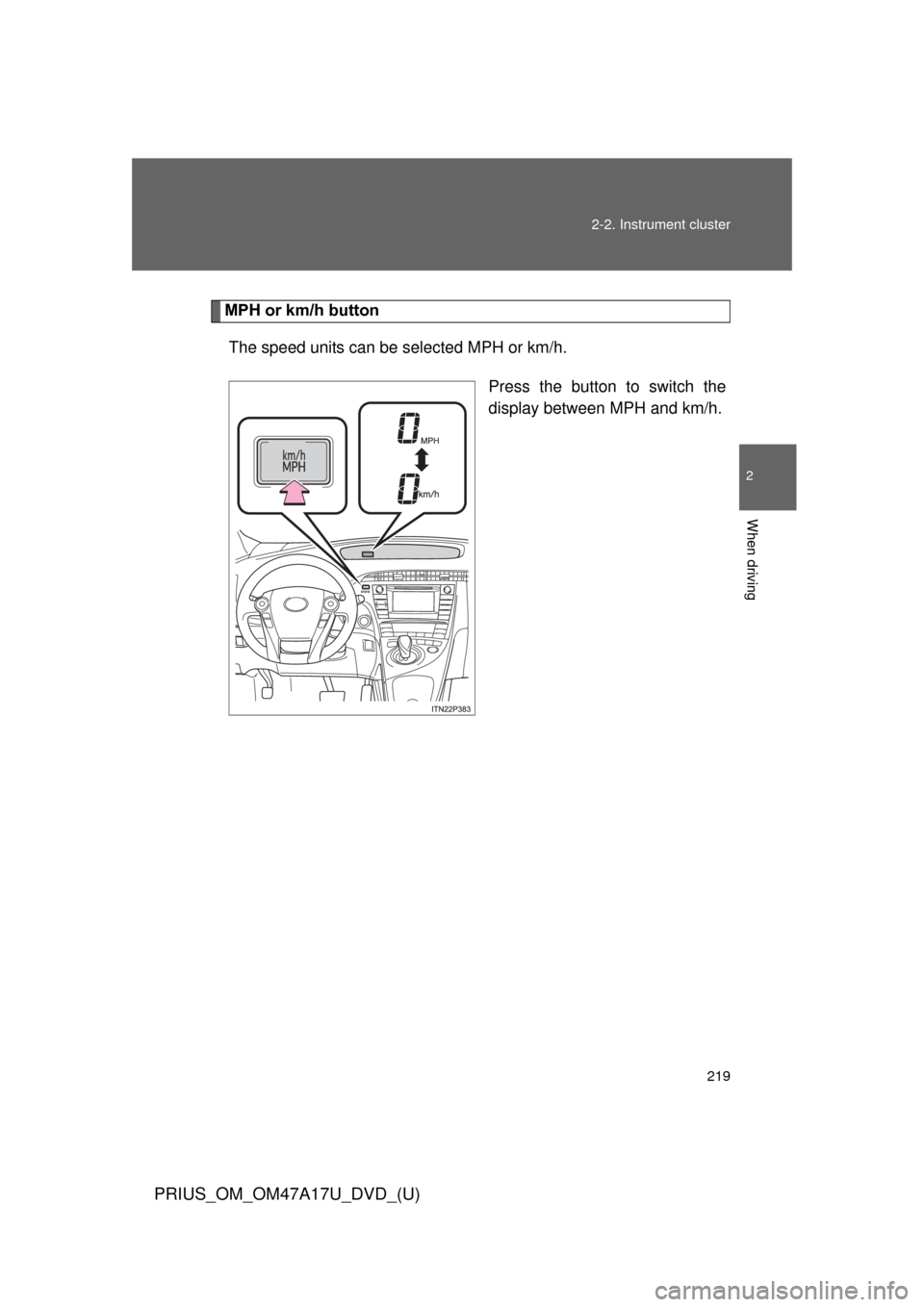

MPH or km/h button
The speed units can be selected MPH or km/h.
Press the button to switch the
display between MPH and km/h.

220 2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)

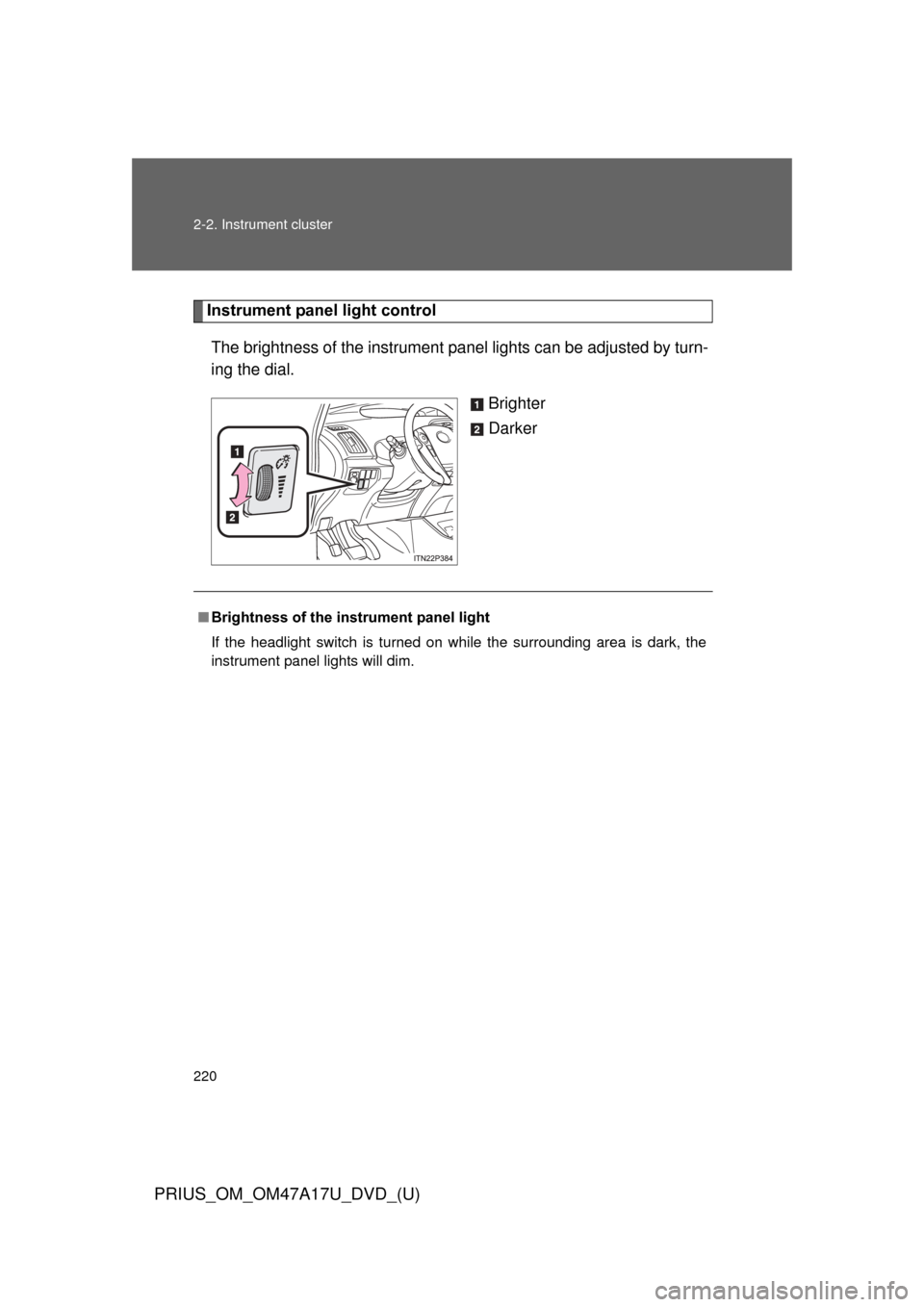

Instrument panel light controlThe brightness of the instrument pa nel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
■Brightness of the instrument panel light
If the headlight switch is turned on while the surrounding area is dark, the
instrument panel lights will dim.

221
2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
2
When driving
CAUTION
■
To prevent an accident
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning light
comes on or flashes. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 561)
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.Instrument cluster

222
2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
Indicators and warning lights
The indicator and warning lights on the instrument cluster and
instrument panel inform the driver of the status of the vehicle’s vari-
ous systems.

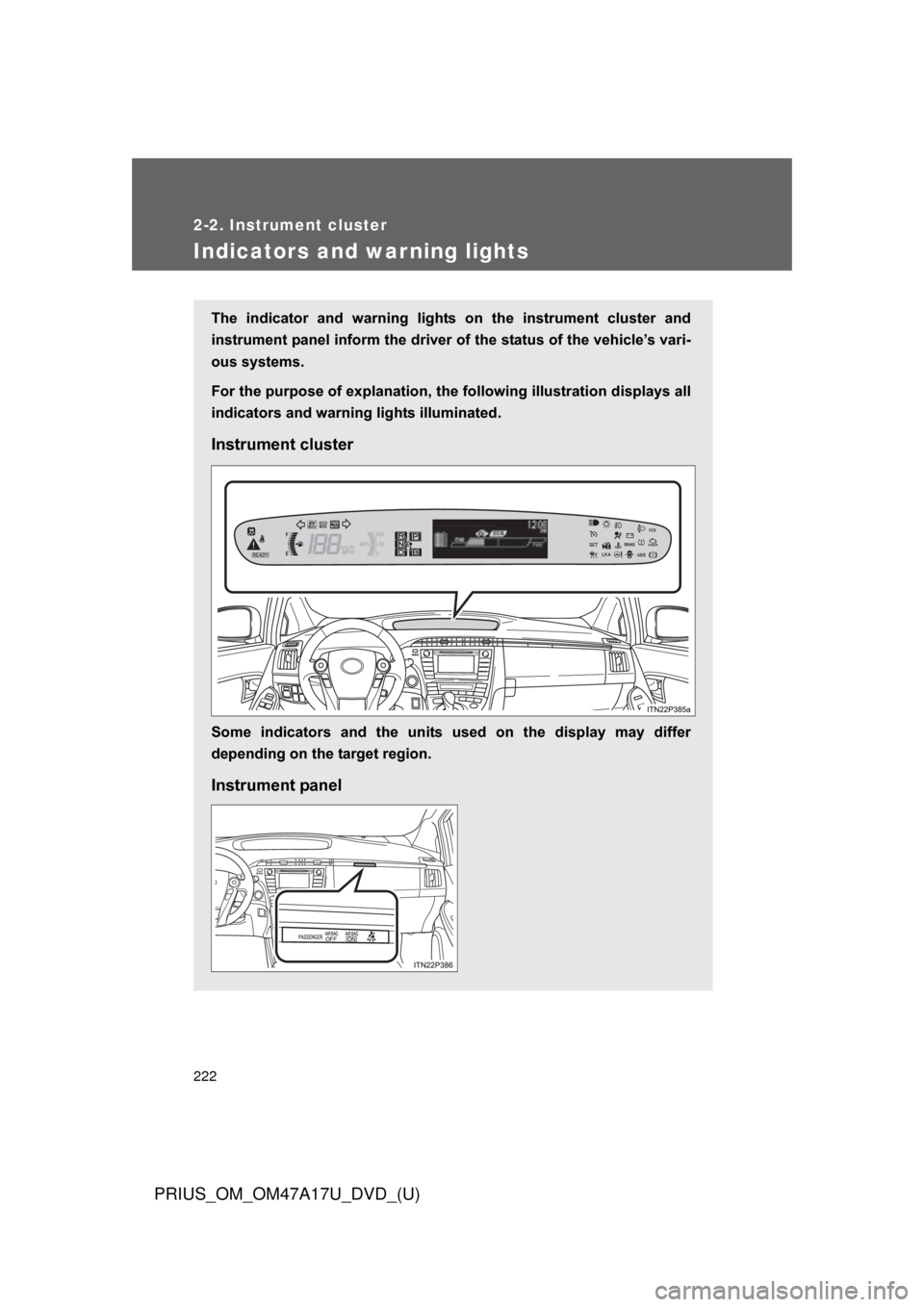

For the purpose of explanation, the fo llowing illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Some indicators and the units used on the display may differ
depending on the target region.
Instrument panel

223
2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
2
When driving
■

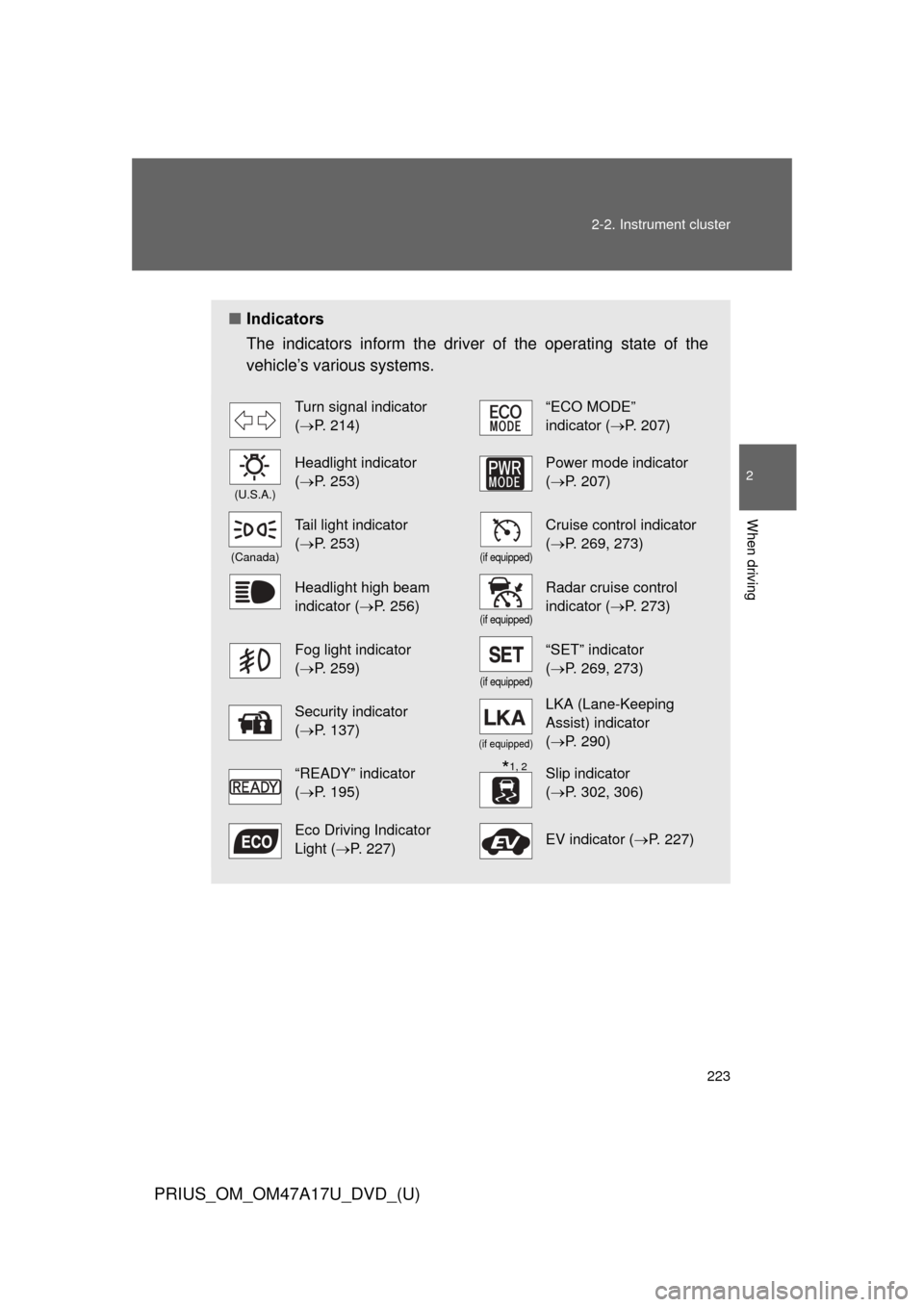

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 214)“ECO MODE”
indicator (P. 207)
(U.S.A.)
Headlight indicator
(P. 253)Power mode indicator
(P. 207)
(Canada)
Tail light indicator
(P. 253)
(if equipped)
Cruise control indicator
(P. 269, 273)
Headlight high beam
indicator ( P. 256)
(if equipped)
Radar cruise control
indicator (P. 273)
Fog light indicator
(P. 259)
(if equipped)
“SET” indicator
(P. 269, 273)
Security indicator
(P. 137)
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(P. 290)
“READY” indicator
(P. 195)Slip indicator
(P. 302, 306)
Eco Driving Indicator
Light ( P. 227)EV indicator ( P. 227)
*1, 2

224 2-2. Instrument cluster
PRIUS_OM_OM47A17U_DVD_(U)
*1: These lights turn on when the “POWER” switch is turned to the ONmode to indicate that a system check is being performed. They will
turn off after the hybrid system is on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashesfaster than usual to indicate that the system is operating.

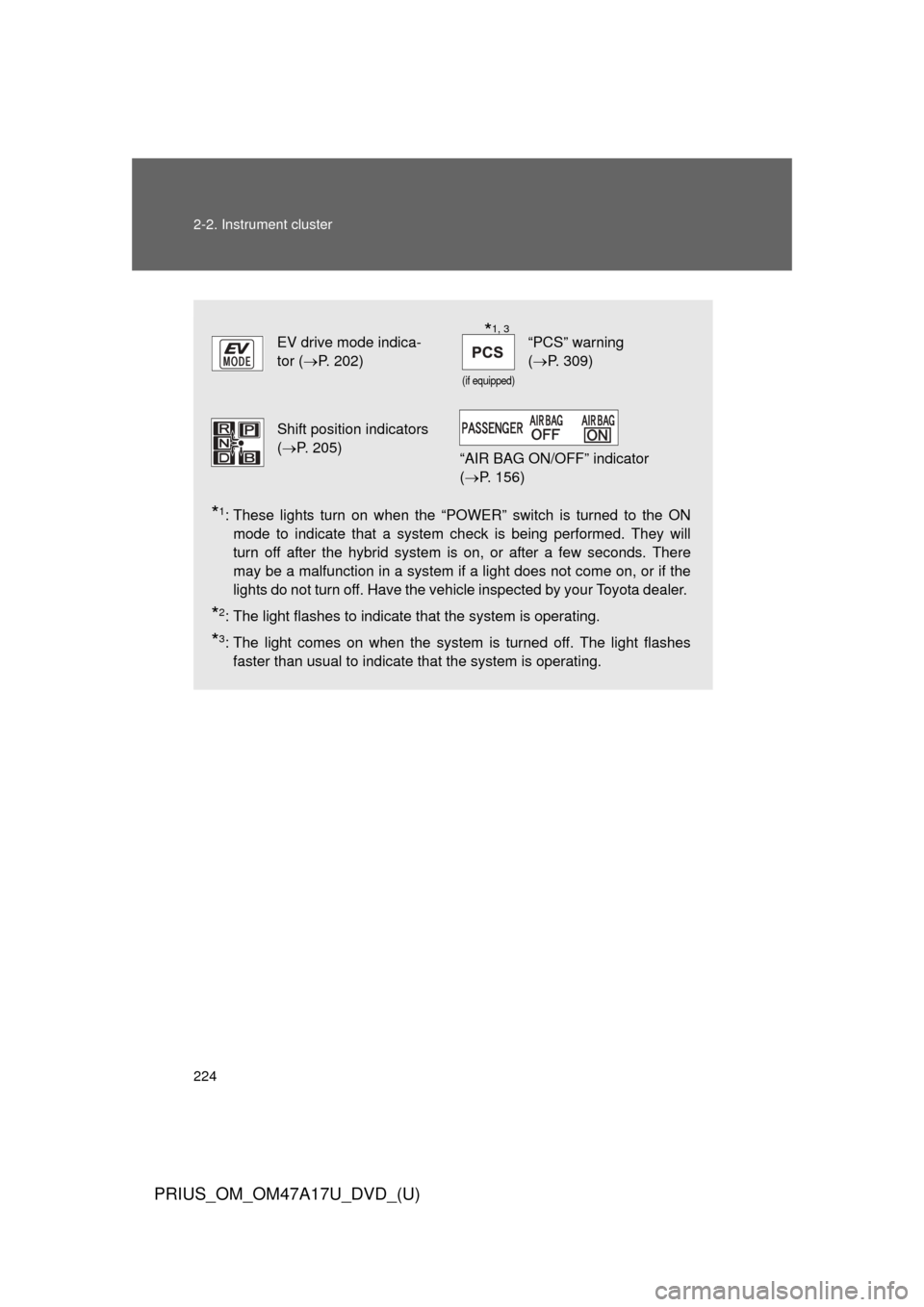

EV drive mode indica-
tor ( P. 202)
(if equipped)
“PCS” warning
(P. 309)
Shift position indicators
(P. 205)
“AIR BAG ON/OFF” indicator
( P. 156)
*1, 3
