2015 TOYOTA PRIUS Owners Manual

105
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
position to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatbacks is not securely locked,
the red marking will be visible on the
seatback lock release button. Make
sure that the red marking is not visible.

106
1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47A17U_DVD_(U)

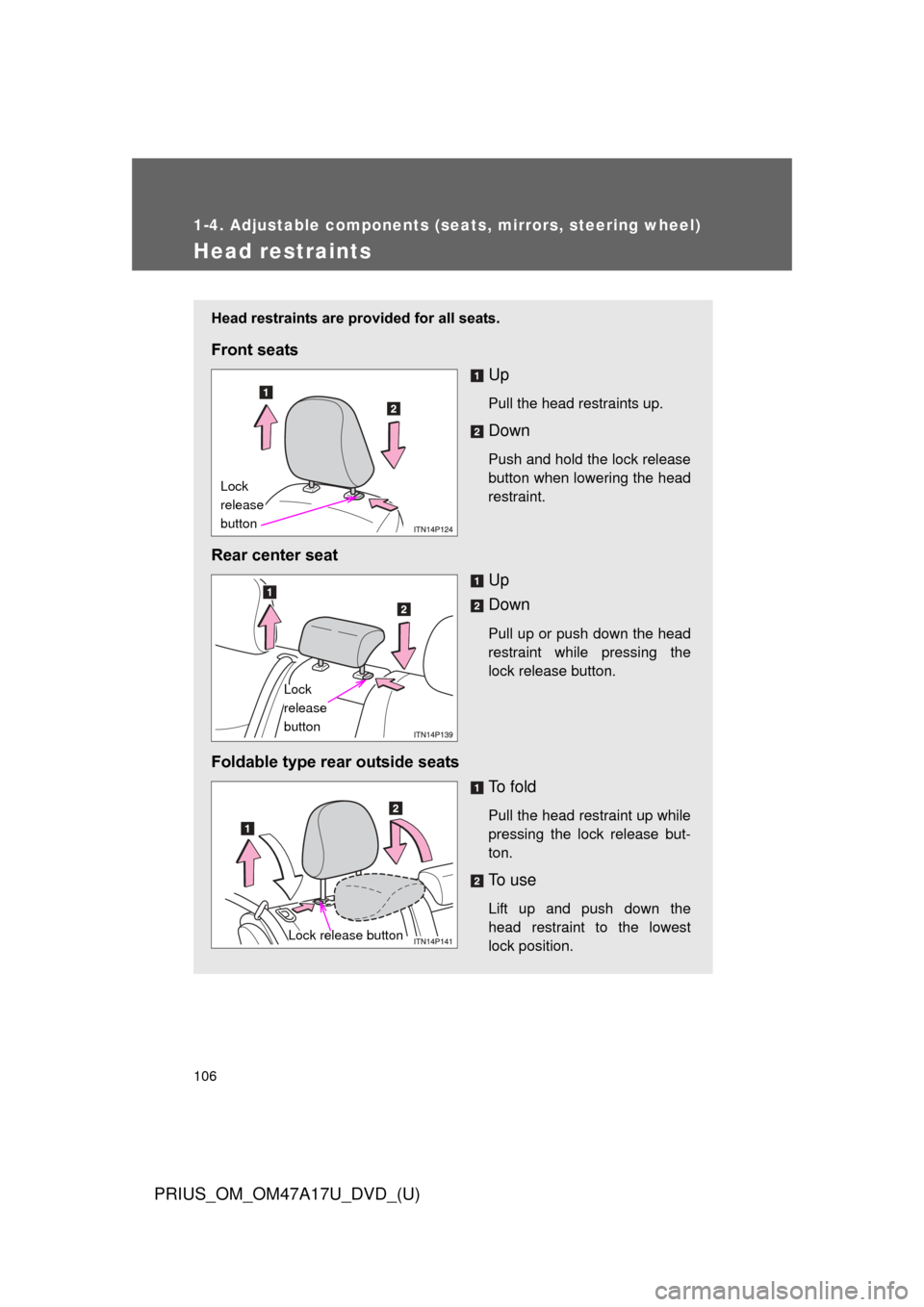

Head restraints
Head restraints are provided for all seats.
Front seatsUp
Pull the head restraints up.
Down
Push and hold the lock release
button when lowering the head
restraint.
Rear center seatUp
Down
Pull up or push down the head
restraint while pressing the
lock release button.
Foldable type rear outside seatsTo f o l d
Pull the head restraint up while
pressing the lock release but-
ton.
To u s e
Lift up and push down the
head restraint to the lowest
lock position.
Lock
release
button
Lock
release
button
Lock release button

107
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
■Removing the head restraints
Front and rear center seats
Foldable type rear outside seats
Non-foldable type rear outside seats
Pull the head restraint up while pressing
the lock release button.
Lock
release
button
Pull the head restraint up while pressing
the lock release buttons.
Lock release buttons
Pull the head restraint up while pressing
the lock release button.
Lock release button

108 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47A17U_DVD_(U)
■Installing the head restraints
Front and rear center seats
Rear outside seats
■ Adjusting the height of the head restraints
■ Adjusting the rear cent er seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock
release
button
Align the head restraint with the installa-
tion holes and push it down to the lowest
lock position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

109
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

110
1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47A17U_DVD_(U)

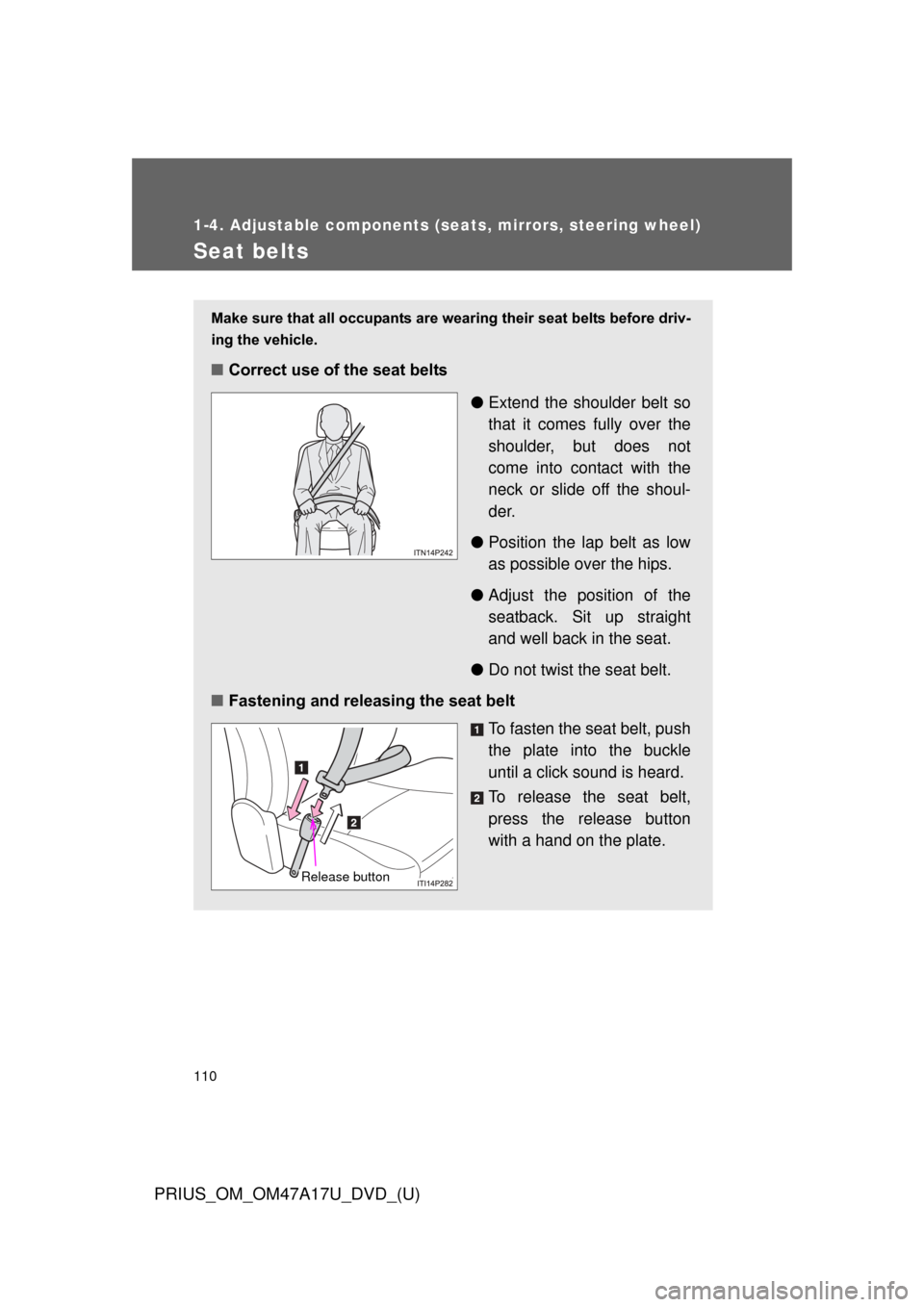

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button
with a hand on the plate.
Release button

111
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)

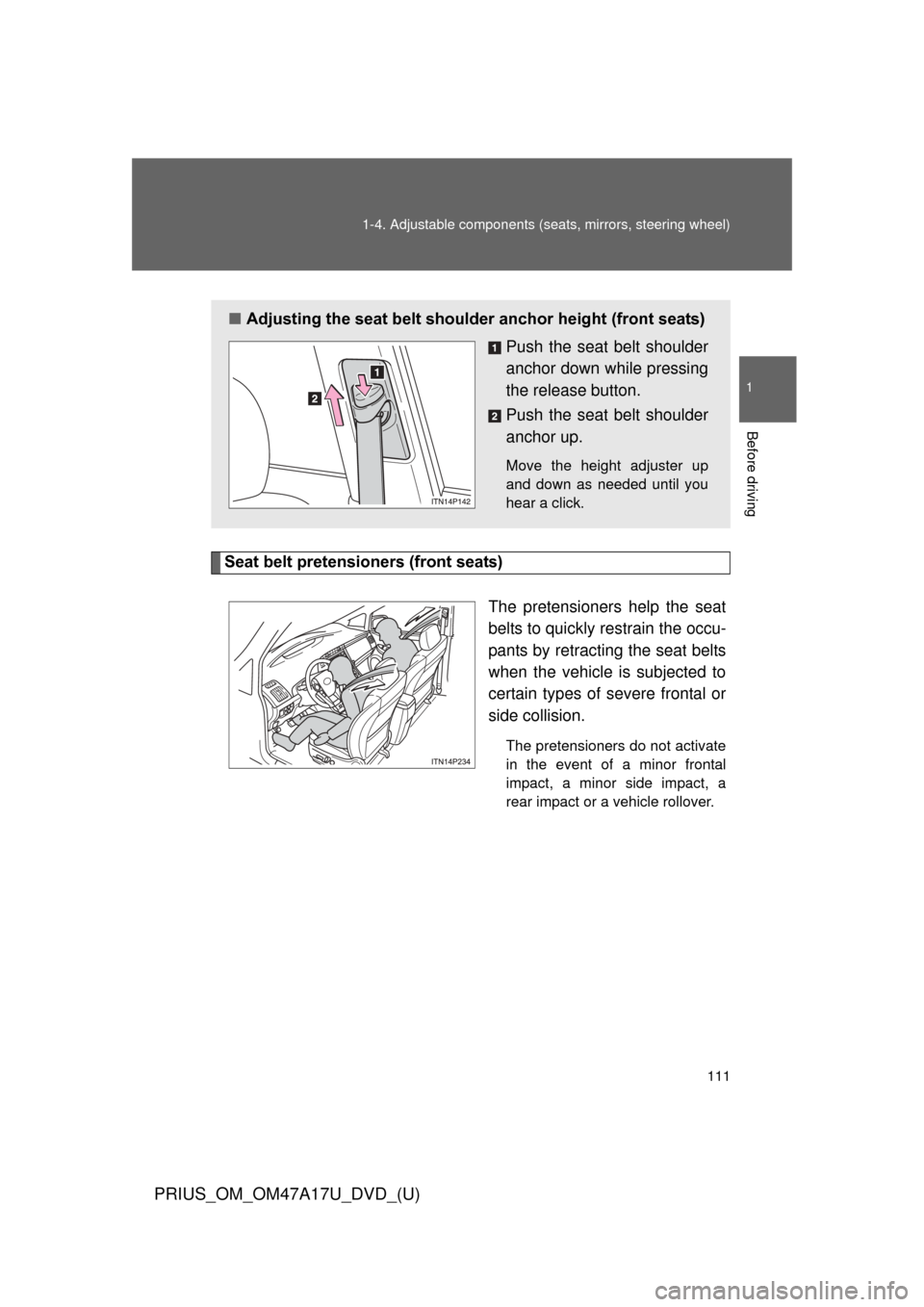

Seat belt pretensioners (front seats)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a
rear impact or a vehicle rollover.
■Adjusting the seat belt shoulde r anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.

112 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47A17U_DVD_(U)
Pre-collision seat belts (front seats of vehicles with pre-collision
system)
If the system determine s that a collision is unavoidable, the front seat
belts will retract before the collision. ( P. 308)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 167)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 162)
● When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 110 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
