Location of Jack 4) Take out Spare wheel cover. Pull the cover from top side and
then side way to remove from spare wheel.
5) Remove the spare wheel-mounting nut by wheel spanner
(provided in tool kit). Remove the spare wheel cover mounting
bracket and then spare wheel.
6) Block the wheel, which is diagonally opposite to the flat tyre.
Take out wheel cover and loosen the wheel nut of flat tyre (Do
not remove the nut at this stage).
7) Set the jack properly at correct jack point as shown in fig. and
slowly lift the vehicle with the help of jack handle.
8) Remove wheel-mounting nuts and take out flat tyre.
9) Roll the spare wheel into position and align the holes in the
wheel with studs. Then reinstall the wheel nuts (taper end
inward) and tighten them as much as you can by hand.
10) Lower the jack completely then tighten the wheel nuts one by
one. Put the wheel cover back.
11) Restore all the tools and jack at their respective location.
12) Place the flat tyre at spare wheel location, put spare wheel cover
mounting bracket and tighten the mounting nuts properly. For
assembling spare wheel cover, push the cover on the tyre and
then press at centre of cover to lock cover on to the bracket.
Ensure that the cover is locked on to the spare wheel cover
mounting bracket (the sound is heard during assembly).
ProCarManuals.com

122
M A I N T E N A N C EWHEELS & WHEELS & WHEELS & WHEELS &
WHEELS &
T TT T
T
YRES YRESYRES YRES
YRES
REAR JACKING POINT REAR JACKING POINTREAR JACKING POINT REAR JACKING POINT
REAR JACKING POINT
(Below Rear Axle Tube)
FRONT JACKING POINT FRONT JACKING POINTFRONT JACKING POINT FRONT JACKING POINT
FRONT JACKING POINT
(Below Long Member)
CAUTION CAUTIONCAUTION CAUTION
CAUTION
a) Do not lift the vehicle with someone inside.
b) Raise the vehicle only high enough to remove and change
tyre.
c) Do not work under the vehicle when supported by jack
otherwisepersonnel injury may occur.
d ) Do not start or run the vehicle while supported by jack.
NOTICE NOTICENOTICE NOTICE
NOTICE
Check tyre pressure and nut tightness of change wheel at
nearest Service station. Also, get the puncture tyre repaired.
ProCarManuals.com

123
WHEELS AND WHEELS AND WHEELS AND WHEELS AND
WHEELS AND
T TT T
T
YRES YRESYRES YRES
YRES
Wheel Alignment Wheel AlignmentWheel Alignment Wheel Alignment
Wheel Alignment
Correct wheel alignment helps to decrease tyre wear. You
should get your vehicle’s wheel alignment checked regularly.
In case uneven tyre wear is observed, vehicle’s wheel alignment
should be checked as soon as possible.
Wheel Balancing Wheel BalancingWheel Balancing Wheel Balancing
Wheel Balancing
Wheels are balanced at the factory. They may need to be
rebalanced at some time before they are worn out. The wheels
should be checked for balance if tyre or tube is repaired.
Whenever a tyre or wheel rim is changed tyre needs to be
balanced.
1. Permissible imbalance for tyre with rim = 250 gm-cm (max.)
2. Total balance weight should be within 140 gms on each
side.
3. Relocate the tyre if the weight required to balance is more
than 140 gm.
4. Balance weights are available from 10 gm to 80 gm, 90 gm
to 140 gm & 15 gm to 135 gm in steps of 10 gms.
5. Do not use more than one balance weight on one side.T TT T
T
yr yryr yr
yr
e ee e
e
Check for the inflation and condition of your TATA SAFARI tyres
periodically.
Inflation InflationInflation Inflation
Inflation
Check the pressure in the tyres when they are cold.
Refer to tyre information label fitted on fuel flap inside for
correct cold tyre pressure.
You should have your own tyre pressure gauge and use it
all times. This makes easier for you to tell if pressure loss
is caused by a tyre problem and not by variation between
gauges.
Keeping the tyres properly inflated gives you the best
combination of riding comfort. handling and tyre life.
Over inflation of tyres makes the vehicle ride bumpy and
harsh. Tyres are more prone to uneven wear and damage
from road hazards.
Under inflated tyres reduce your comfort in vehicle handling
and are prone to failures due to high temperature. They
also cause uneven wear.
M A I N T E N A N C E
ProCarManuals.com

124
Inspection InspectionInspection Inspection
Inspection
Every time you check inflation pressure, you should also
examine tyres for damage, foreign objects and wear.
You should look for :
•Bumps or bulges in the tread or the side of the tyre. Replace
the tyre if you find either of these conditions.
•Cuts, splits or cracks in the side of the tyre. Replace the tyre
if you see the fabric or cord.
•Excessive tread wear.
T TT T
T
yr yryr yr
yr
e R e Re R e R
e R
ota otaota ota
ota
tion tiontion tion
tion
To help increase tyre life and distribute wear more evenly you
WHEELS AND WHEELS AND WHEELS AND WHEELS AND
WHEELS AND
T TT T
T
YRES YRESYRES YRES
YRESM A I N T E N A N C E
should have tyres rotated at specified intervals or earlier
depending on the operation of vehicle.
The illustrations shows how to rotate tyres when normal spare
wheel is included in tyre rotation.
Spare Wheel Spare WheelSpare Wheel Spare Wheel
Spare Wheel

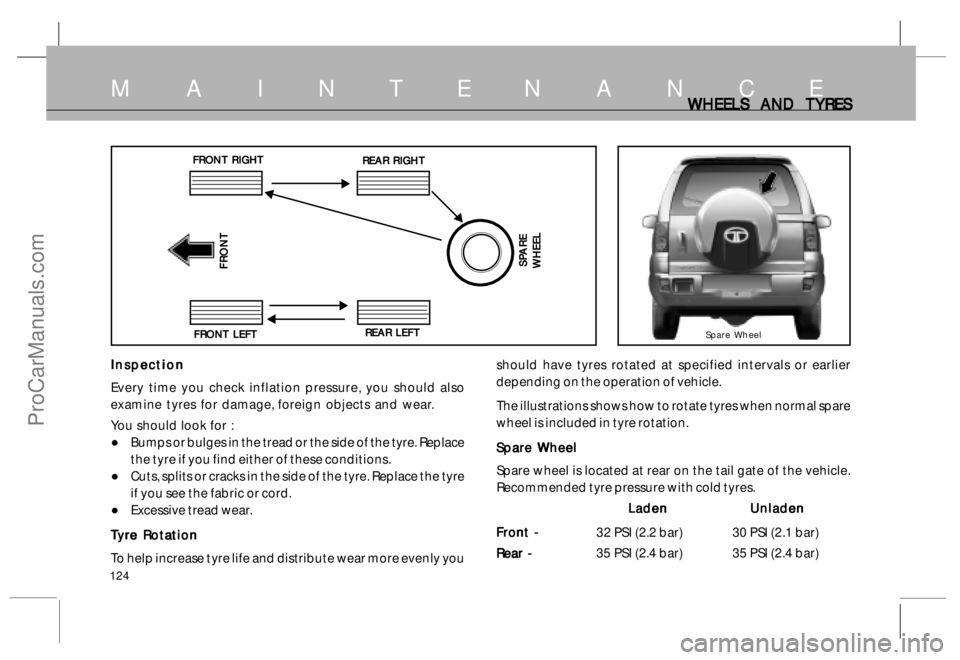

Spare wheel is located at rear on the tail gate of the vehicle.
Recommended tyre pressure with cold tyres.
Laden LadenLaden Laden
Laden
Unladen UnladenUnladen Unladen
Unladen
Front - Front -Front - Front -
Front - 32 PSI (2.2 bar) 30 PSI (2.1 bar)
Rear - Rear -Rear - Rear -
Rear - 35 PSI (2.4 bar) 35 PSI (2.4 bar)
Spare Wheel
FRONT FRONTFRONT FRONT
FRONT
FRONT LEFT FRONT LEFTFRONT LEFT FRONT LEFT
FRONT LEFTREAR LEFT REAR LEFTREAR LEFT REAR LEFT
REAR LEFT
SP SPSP SP
SP
ARE AREARE ARE
ARE
WHEEL WHEELWHEEL WHEEL
WHEEL
FRONT RIGHT FRONT RIGHTFRONT RIGHT FRONT RIGHT
FRONT RIGHT
REAR RIGHT REAR RIGHTREAR RIGHT REAR RIGHT
REAR RIGHT
ProCarManuals.com

125
R RR R
R
epair epairepair epair
epair
ing a ing a ing a ing a
ing a
T TT T
T
yr yryr yr
yr
e ee e
e
•Mark suitability the tyre position (if original colour dot mark is
not visible) with reference to valve stem hole to ensure that the
tyre is refitted in original location.
•Ensure that balancing weights are not disturbed during removal
of tyres.
•Check the balance weight prior to removal of tyre if found loose,
mark its location on rim & refit properly. Balance the wheel after
every dismantling and assembly of tyre on wheel rim.
•Tightening torque of wheel nut is 12-15 mkg.
•While fitting wheels on vehicle ensure that wheel bolts are free
from dust, scratches, dirt, dents, etc.
•Do not apply any oil on the wheel nut or bolt. Wipe off if present.
T TT T
T
YRES YRESYRES YRES
YRESM A I N T E N A N C E
ProCarManuals.com

126
VEHICLE C VEHICLE CVEHICLE C VEHICLE C
VEHICLE C
ARE AREARE ARE
ARE
Polishes : Polishes :Polishes : Polishes :
Polishes :
Polishes and cleaners can restore shine to the painted surface
that has oxidised and become dull. They normally contain mild
abrasives and solvents that remove the top layer of the finish
coat. Polish your car if the finish does not regain its original shine
after using wax.
Cleaning of Carpets : Cleaning of Carpets :Cleaning of Carpets : Cleaning of Carpets :
Cleaning of Carpets :
Vacuum clean the carpet regularly to remove dirt. Dirt will make
the carpet wear out faster. Periodically shampoo the carpet to
keep it looking new.
Use carpet cleaners (preferably foam type). Follow the
instructions that come with the cleaner, applying it with a
sponge or soft brush. Keep the carpeting as dry as possible
by not adding water to the foam.
Cleaning of Windows, Front & Rear Glasses : Cleaning of Windows, Front & Rear Glasses :Cleaning of Windows, Front & Rear Glasses : Cleaning of Windows, Front & Rear Glasses :
Cleaning of Windows, Front & Rear Glasses :
Clean the windows inside and outside with commercially
available glass cleaners.
This will remove the haze that builds up on the inside of
windows. Use a soft cloth or paper towels to clean all glass and
plastic surfaces.VEHICLE CARE : VEHICLE CARE :VEHICLE CARE : VEHICLE CARE :
VEHICLE CARE :
The car is subjected to many external influences such as climate,
road conditions, industrial pollution and proximity to the sea.
These conditions demand regular care of the car body. Dirt,
insects, bird droppings, oil, grease, fuel and stone chippings should
be removed as soon as possible.
W WW W
W
ashing : ashing :ashing : ashing :
ashing :
Do not wash the car in direct sunlight, wash in shade. Spray the
car thoroughly with a cold water jet (car on a washing pit or
hoist). Mix car shampoo in the wash water. No solvent (fuel,
thinners) need be used.
NOTICE NOTICENOTICE NOTICE
NOTICE
Avoid wiping of painted surface in dry condition as it may
leave scratches on the painted surface.
Use a soft bristle brush, sponge or soft cloth and rinse it
frequently while washing. When you have washed the whole
exterior, dry it with a chamois or soft cloth. After drying the car,
inspect it for chips and scratches that could allow corrosion to
start. Apply touch up paint where necessary.
For vehicles with Rear View Camera : Use cover for camera For vehicles with Rear View Camera : Use cover for cameraFor vehicles with Rear View Camera : Use cover for camera For vehicles with Rear View Camera : Use cover for camera
For vehicles with Rear View Camera : Use cover for camera
during washing. during washing.during washing. during washing.
during washing.
M A I N T E N A N C E
ProCarManuals.com

127
Maintaining the car when not in extended use : Maintaining the car when not in extended use :Maintaining the car when not in extended use : Maintaining the car when not in extended use :
Maintaining the car when not in extended use :
Park the car in covered, dry and if possible well-ventilated
premises.
Engage a gear.
Remove the cables from the battery terminals (first remove
the cable from the negative terminal).
Make sure the handbrake is not engaged.
Clean and protect the painted parts using protective wax.
Clean and protect the shiny metal parts using commercially
available special compounds.
Sprinkle talcum powder on the rubber windscreen wiper and
rear window wiper blades and lift them off the glass.
Slightly open the windows.
Cover the car with a cloth or perforated plastic sheet. Do
not use sheets of imperforated plastic as they do not allow
moisture on the car body to evaporate.
Inflate the tyres to 0.5 bar above the normal specified
pressure and check it at regular intervals.
Check the battery charge every six weeks.
Do not drain the engine cooling system.
VEHICLE C VEHICLE CVEHICLE C VEHICLE C
VEHICLE C
ARE AREARE ARE
ARE
Wiper Care : Wiper Care :Wiper Care : Wiper Care :
Wiper Care :
Wiper blade attack angle on windshield glass should be 90
0
i.e. perpendicular.
Remove wiper blade and root wiper arm on windshield glass
in the centre position. Check the gap between arm strip
and glass.
Adjust by twisting wiper arm as shown in the figure.
OK OKOK OK
OK FOR CHA FOR CHAFOR CHA FOR CHA
FOR CHA
T TT T
T
TERING & NOISY PR TERING & NOISY PRTERING & NOISY PR TERING & NOISY PR
TERING & NOISY PR
OBLEMS OBLEMSOBLEMS OBLEMS
OBLEMS
NO NONO NO
NO
T OK T OKT OK T OK
T OK Windshield
GlassVIE VIEVIE VIE
VIE
W W W W
W
WITHOUT WITHOUT WITHOUT WITHOUT
WITHOUT
WIPER BL WIPER BLWIPER BL WIPER BL
WIPER BL
ADE ADEADE ADE
ADE
M A I N T E N A N C E
ProCarManuals.com

128
VEHICLE C VEHICLE CVEHICLE C VEHICLE C
VEHICLE C
ARE AREARE ARE
ARE
FOLL FOLLFOLL FOLL
FOLL
O OO O
O
WING GUIDELINES WING GUIDELINES WING GUIDELINES WING GUIDELINES
WING GUIDELINES
WILL HELP WILL HELP WILL HELP WILL HELP
WILL HELP
Y YY Y
Y
OU OU OU OU
OU
T TT T
T
O BET O BETO BET O BET
O BET
TER TERTER TER
TER
PROTECT YOUR VEHICLE FROM CORROSION PROTECT YOUR VEHICLE FROM CORROSIONPROTECT YOUR VEHICLE FROM CORROSION PROTECT YOUR VEHICLE FROM CORROSION
PROTECT YOUR VEHICLE FROM CORROSION
PROPER CLEANING : PROPER CLEANING :PROPER CLEANING : PROPER CLEANING :
PROPER CLEANING :
In order to protect your vehicle from corrosion it is recommended
that you wash your vehicle thoroughly and frequently in case :
1. There is an heavy accumulation of dirt and mud especially on
the underbody.
2. It is driven in areas having high atmosphere pollution due to
smoke, soot, dust, iron dust & other chemical pollutants.
3. It is driven in coastal areas.
4. The underbody must be thoroughly pressure washed after
every three months.
In addition to regularly washing your vehicle, the following
precautions need to be taken.
PERIODIC INSPECTION : PERIODIC INSPECTION :PERIODIC INSPECTION : PERIODIC INSPECTION :
PERIODIC INSPECTION :
1 . Regularly inspect your vehicle for any damage in the paint
film such as deep scratches and immediately get them
repaired from an authorised service center, as these defects
tend to accelerate corrosion.
2 . Inspect mud liners for damages.
3 . Keep all drain holes clear from clogging.PR PRPR PR
PR
OPER P OPER POPER P OPER P
OPER P
ARKING : ARKING :ARKING : ARKING :
ARKING :
Always park your vehicle in shade to protect it from harsh sunlight
or in a well-ventilated garage so that there is no dampness on
any part of the vehicle.
W WW W
W
ASHING ASHING ASHING ASHING
ASHING
Y YY Y
Y
OUR OUR OUR OUR
OUR
VEHICLE : VEHICLE :VEHICLE : VEHICLE :
VEHICLE :
Follow these tips while washing your vehicle. Follow these tips while washing your vehicle.Follow these tips while washing your vehicle. Follow these tips while washing your vehicle.
Follow these tips while washing your vehicle.
HAND HAND HAND HAND
HAND
W WW W
W
ASH : ASH :ASH : ASH :
ASH :
1 . Always wash your vehicle in shade and when the surface
is at room temperature.
2. Wash with mild car wash soap like "Car Shampoo" and use
a soft 100% cotton cloth to avoid scratches. Please take help
of your dealer to buy the right products.
3. Please be sure that you remove your wristwatch and wear
soft gloves to avoid scratches due to finger rings or nails.
4. To remove stubborn stains and contaminants like tar, use
turpentine or cleaners like "Stain Remover" which is safe
for painted surfaces. Again your dealer can help you in
selecting the right product.
5. Avoid substances like petrol, diesel, kerosene, benzene or
other solvents that cause damage to paint.
6. Dry your vehicle thoroughly to prevent any damp spots.
7. Rinse all surfaces thoroughly to prevent any traces of soap
and other cleaners as this may lead to the formation of
stains on the painted surface later.
M A I N T E N A N C E
ProCarManuals.com
