2015 Peugeot Partner Tepee Owner's Manual

23
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Operation in the event of a
battery failure
Front and side passenger doors
In the event of a battery or of the
central locking fault, use the lock to
lock the doors mechanically.
- t
o open the door and get out of the
vehicle, pull the interior control.
-

t
o lock the door
, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn.
Driver's door
-

Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.
TAILGATE From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the tailgate and the
floor. To unlock the lock, move the
catch to the left then push the tailgate.
From outside
Locking/unlocking is by means of the
remote control.
to open, press the control below the
trim then raise the tailgate.
A

pull strap is available to close the
tailgate in the high position.
g

uide the closing of the tailgate to the
balance point of its travel then apply
a final press on the tailgate to close it
fully.
Access
ReADY tO Set OFF
3

24
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
HINGED REAR DOORS
From outside
to open, pull the handle towards you.Pull the lever to open the right-hand
door
.
to close, start with the right-hand door
then close the left-hand door
.
With the roof rear flap, the rear bumper
has been reinforced to serve as a
footrest when entering the vehicle.
t
he hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fitted with a central lock.
Tailgate screen
the opening rear screen allows you to
access the rear of the vehicle directly ,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.


t he tailgate and tailgate screen
cannot both be open at the
same time, to prevent damage to
the
screen.
Access

25
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014

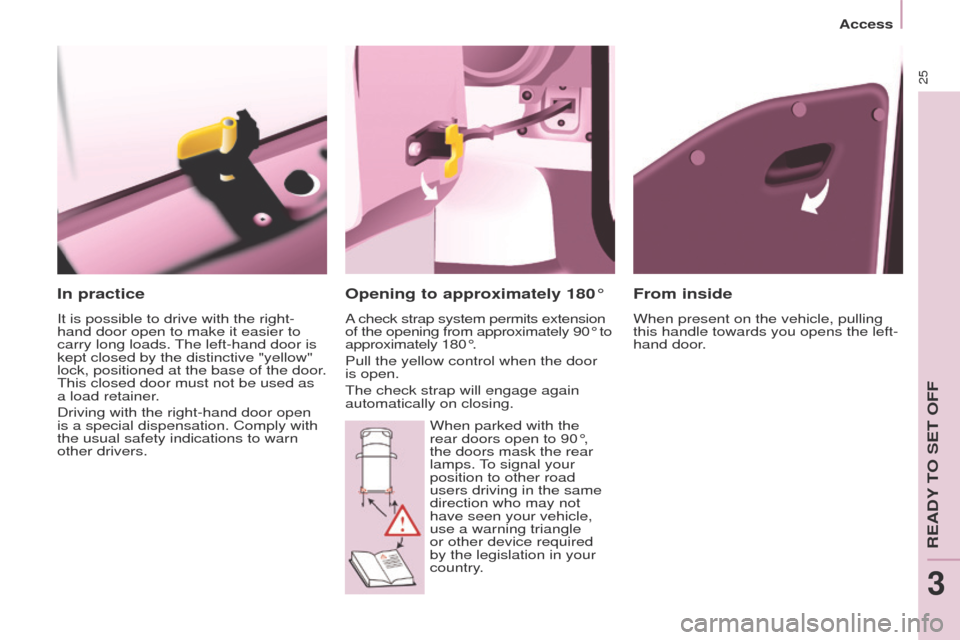

In practice
It is possible to drive with the right-
hand door open to make it easier to
carry long loads.
t
he left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
t

his closed door must not be used as
a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to warn
other drivers.
From inside
When present on the vehicle, pulling
this handle towards you opens the left-
hand door.
Opening to approximately 180°
A check strap system permits extension
of the opening from approximately 90° to
approximately 180°.
Pull the yellow control when the door
is open.
t

he check strap will engage again
automatically on closing.
When parked with the
rear doors open to 90°,
the doors mask the rear
lamps.
to signal your
position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your
country

.
Access
ReADY tO Set OFF
3

26
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
REAR ROOF FLAPSupport bar
A support bar is provided for
transporting long loads, after opening
the rear roof flap.
Fold back the support bar by lifting the
lever.
g
uide it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
e

nsure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads firmly.
t
he rear bumper has been
reinforced to serve as a footrest
when entering the vehicle.
t

he rear doors only lock when the
support bar is installed.
When the rear roof flap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
warn other drivers.
Reserve the use of the rear roof flap
for short journeys.
t
he side supports can be used as
hooking points.
-
lower the black paddle to secure
the rear roof flap.
Securing the rear roof flap places it on
the seal correctly and ensures sealing
without noise.
This rear roof flap is only compatible
with side-hinged rear doors.
T

o open the rear roof flap:
-

raise the black paddle of the toggle,
-


relieve the toggle by pressing the
rear roof flap (downwards) then
release the hook,
-

lift the rear roof flap,
-

pass the point of resistance to
secure the rear roof flap using the
support stays.
Never drive without the stays in place.
T

o close the rear roof flap:
-

check that the support bar is
secured correctly

,
-

lower the rear roof flap,
-


while pressing the rear roof flap
(downwards), take hold of the two
loops of the spring then place the
hook in its housing, Never attach any load to the rear roof
flap.
Never drive without the support bar in
place.
Access

27
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
CENTRAL LOCKING
An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits
central unlocking of the vehicle.
t

he control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
t

he doors can still be opened from the
inside. Door open warning lampt
he control switch L e D:
-
flashes when the doors are locked with
the vehicle stationary and the engine off,
- comes on when the doors are
locked and from the time the
ignition is switched on.
Anti-intrusion security
If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
t

he characteristic central locking noise
is heard.
t
he L e D in the switch on
the dashboard central switch panel
comes

on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
Activating / deactivating the
function
With the ignition on, press
and hold this switch to
activate or deactivate the
function.
Driving with the doors locked may
make access to the interior more
difficult in an emergency.
Access
ReADY tO Set OFF
3

28
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Dials
1. Distance recorder in kilometres /
miles.
2.

Screen.
3.


Fuel level, coolant temperature.
4.


Rev counter
.
5.
t
rip distance recorder / service
indicator zero reset.
6.


Instrument panel lighting dimmer
.
Level 2 display screen
INSTRUMENT PANEL
Level 1 display screen
Displays
- Speed limiter / Cruise control.
-
Kilometres / Miles travelled.
-


Service indicator
, total kilometres /
miles.
-

Presence of water in the Diesel
filter

.
-

Diesel pre-heating.
Screens
the format of the information
presented in the screen depends on
the vehicle's equipment.
Instruments and controls

29
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Centre console with screen
Instrument panel without screen
-
turn to the right to increase the
hours (hold the button to the right
for rapid scrollin

g),
-

turn to the left: 24H or 12H is
displayed,
-


turn to the right to select 24H or
12H,
-


turn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display

.
ADJUSTING THE TIME
to adjust the time and date
indicated in the screen, refer to
the "Adjusting the date and time"
section of chapter 10.
Centre console without screen
the display - time sequence
is linked according to model
(version).
t

he access to
the "Date" adjustment is
only active when the model
version offers a date in words.to adjust the time of the clock,

use the left-hand button on the
instrument panel then carry out
the operations in the following
order:
-

turn to the left: the minutes flash,
-


turn to the right to increase the
minutes (hold the button to the right
for rapid scrollin

g),
-

turn to the left: the hours flash,
Instruments and controls
ReADY tO Set OFF
3

30
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
WARNING LAMPS
each time the vehicle is started: a series of warning lamps comes on appl\
ying a self-test check. t hey go off almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial
warning may be accompanied by an audible signal and a message which appe\
ars in the screen.
Do not ignore these warnings.
Warning lamp is indicatesSolution - action
STOP on, associated
with another
warning
lamp and
accompanied
by a message
in the screen.major faults linked with
the "Brake fluid level",
"
e ngine oil pressure and
temperature", "Coolant
temperature", "
e lectronic
brake force distribution" and
"Power steering" warning
lamps. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Parking
brake
/ Brake
fluid level /
EBFD on.
that the parking brake is applied
or has not been released fully.Releasing the parking brake switches off the
warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.
remaining on,
even though the
level is correct. a major fault.
Have it checked by a P
euge O t
dealer or a
qualified workshop.
