2015 PEUGEOT 4008 Owners Manual

239
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

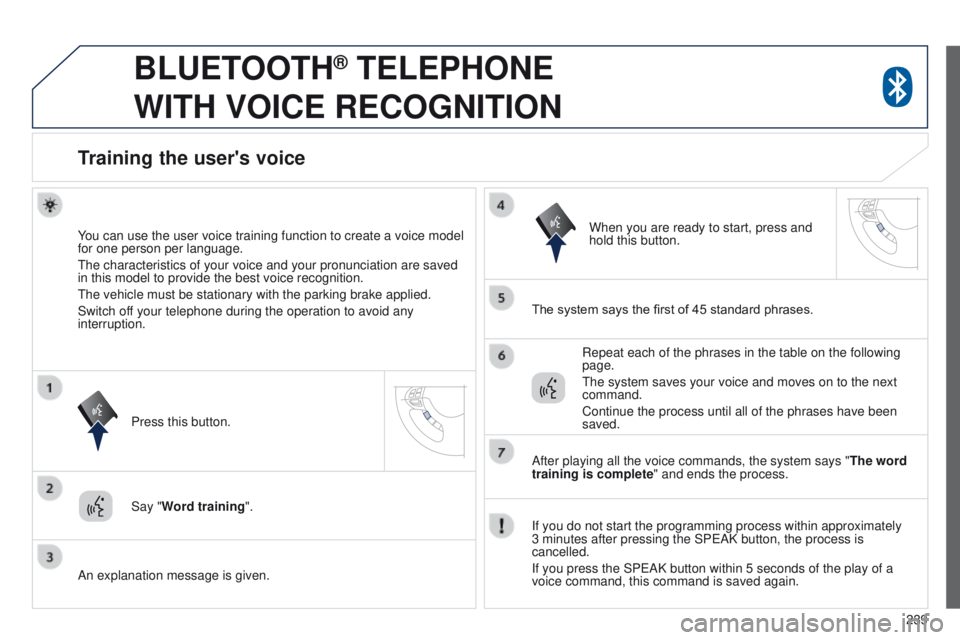

Training the user's voice
You can use the user voice training function to create a voice model
for one person per language.
t

he characteristics of your voice and your pronunciation are saved
in this model to provide the best voice recognition.
t

he vehicle must be stationary with the parking brake applied.
Switch off your telephone during the operation to avoid any
interruption.
Press this button. The system says the first of 45 standard phrases.
Say "Word training ". When you are ready to start, press and
hold this button.
Repeat each of the phrases in the table on the following
page.
t

he system saves your voice and moves on to the next
command.
Continue the process until all of the phrases have been
saved.
An explanation message is given. After playing all the voice commands, the system says "
The word
training is complete" and ends the process.
If you do not start the programming process within approximately
3 minutes after pressing the SP
e AK button, the process is
cancelled.
If you press the SP
e AK button within 5 seconds of the play of a
voice command, this command is saved again.

240
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

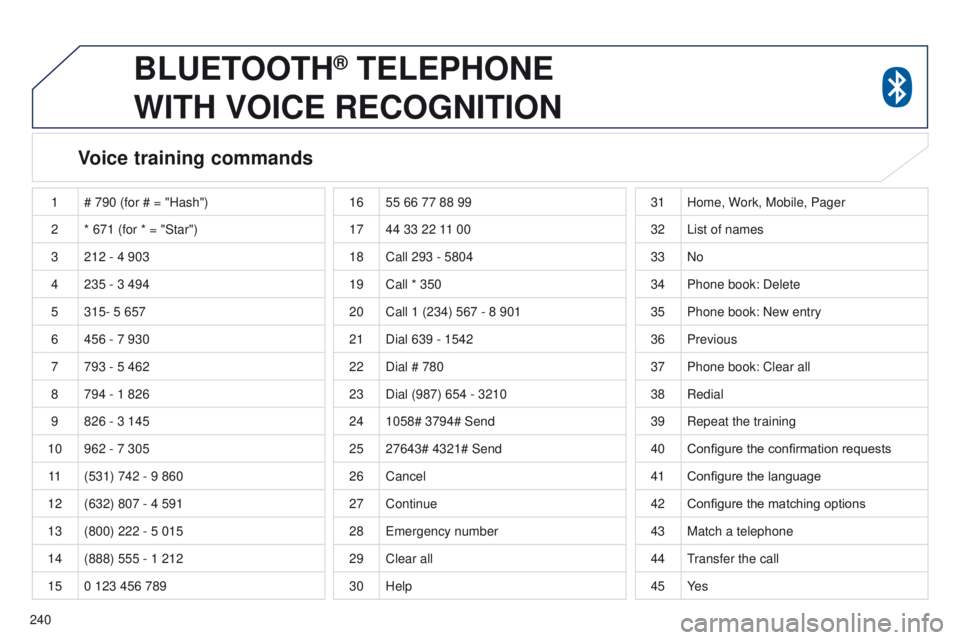

Voice training commands
1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4 903
4 235 - 3 494
5 315- 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305 11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5 015
14 (888) 555 - 1 212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28
e

mergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
Configure the confirmation requests
41 Configure the language
42 Configure the matching options
43 Match a telephone
44
transfer the call
45 Ye

s

241
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
For reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth® mobile phone
with the audio system's hands-free function must be done with the
vehicle stationary.
t

he systems says "Please say the 4 digits of a pairing code".
Press this button. The system confirms the validity of the number spoken,
answer "Ye s".
Say "No" to return to step 7.
Say "Pairing options ".

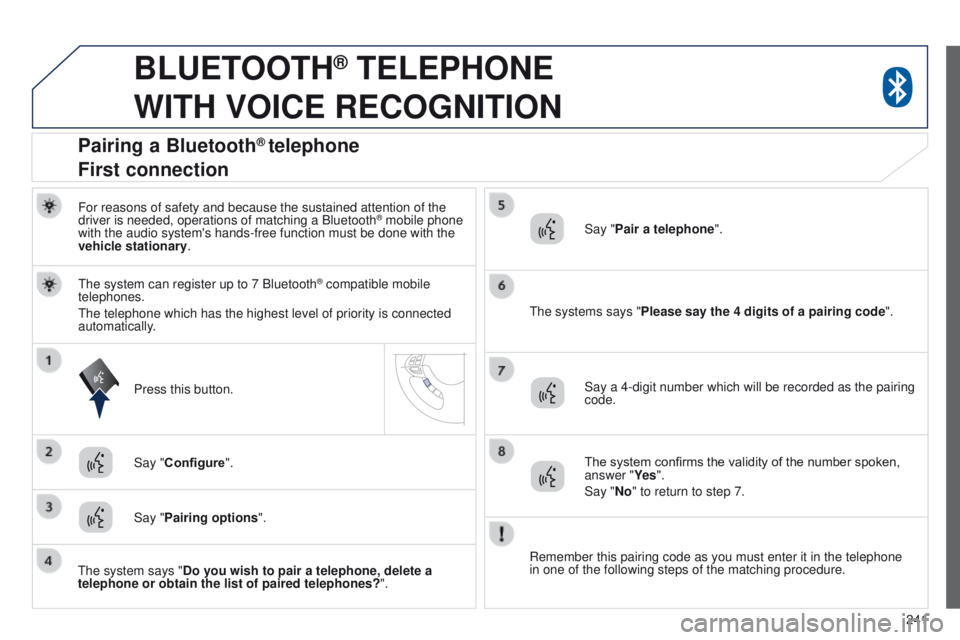

Pairing a Bluetooth® telephone
First connection
Say "Pair a telephone".
Say "Configure".
t

he system can register up to 7 Bluetooth
® compatible mobile
telephones.
t

he telephone which has the highest level of priority is connected
automatically.
t

he system says "Do you wish to pair a telephone, delete a
telephone or obtain the list of paired telephones? ".Say a 4-digit number which will be recorded as the pairing
code.
Remember this pairing code as you must enter it in the telephone
in one of the following steps of the matching procedure.

242Consult your mobile telephone's user manual and enter
the pairing code recorded in step 7 in the telephone.
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION

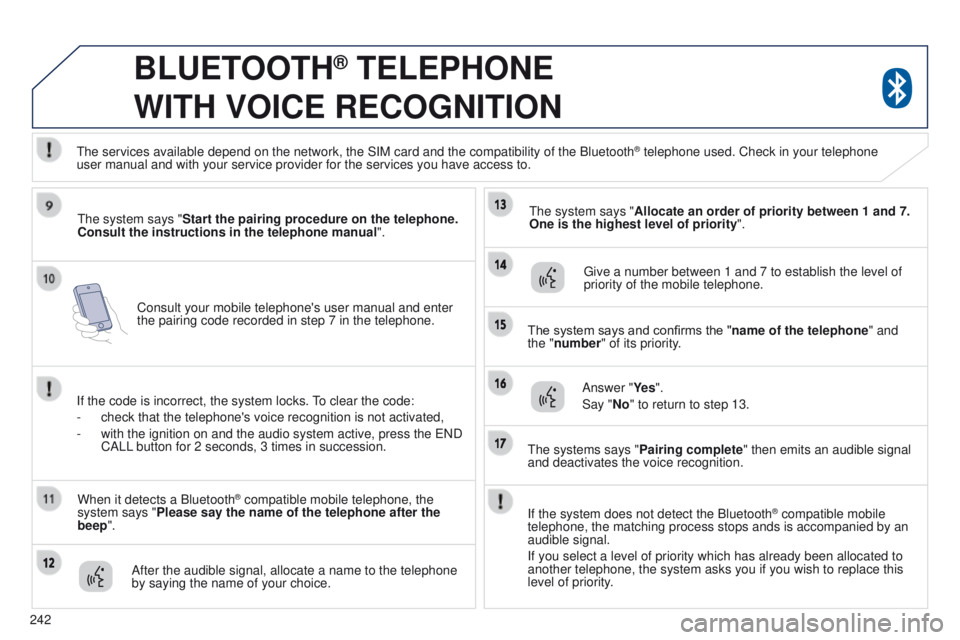

the system says "Start the pairing procedure on the telephone.
Consult the instructions in the telephone manual ".
If the code is incorrect, the system locks.
to clear the code:
-


check that the telephone's voice recognition is not activated,
-


with the ignition on and the audio system active, press the
e ND
CALL button for 2 seconds, 3 times in succession.
When it detects a Bluetooth
® compatible mobile telephone, the
system says "Please say the name of the telephone after the
beep".
After the audible signal, allocate a name to the telephone
by saying the name of your choice.
t
he system says "Allocate an order of priority between 1 and 7.
One is the highest level of priority ".
g
ive a number between 1 and 7 to establish the level of
priority of the mobile telephone.
The system says and confirms the "name of the telephone " and
the "number" of its priority.
Answer "Ye s ".
Say "No" to return to step 13.
t
he systems says "Pairing complete" then emits an audible signal
and deactivates the voice recognition.
t

he services available depend on the network, the SIM card and the compat\
ibility of the Bluetooth
® telephone used. Check in your telephone
user

manual and with your service provider for the services you have access t\
o.
If the system does not detect the Bluetooth
® compatible mobile
telephone, the matching process stops ands is accompanied by an
audible signal.
If you select a level of priority which has already been allocated to
another telephone, the system asks you if you wish to replace this
level of priority.

243
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
Say "Dial".
t

he system says "Number please".

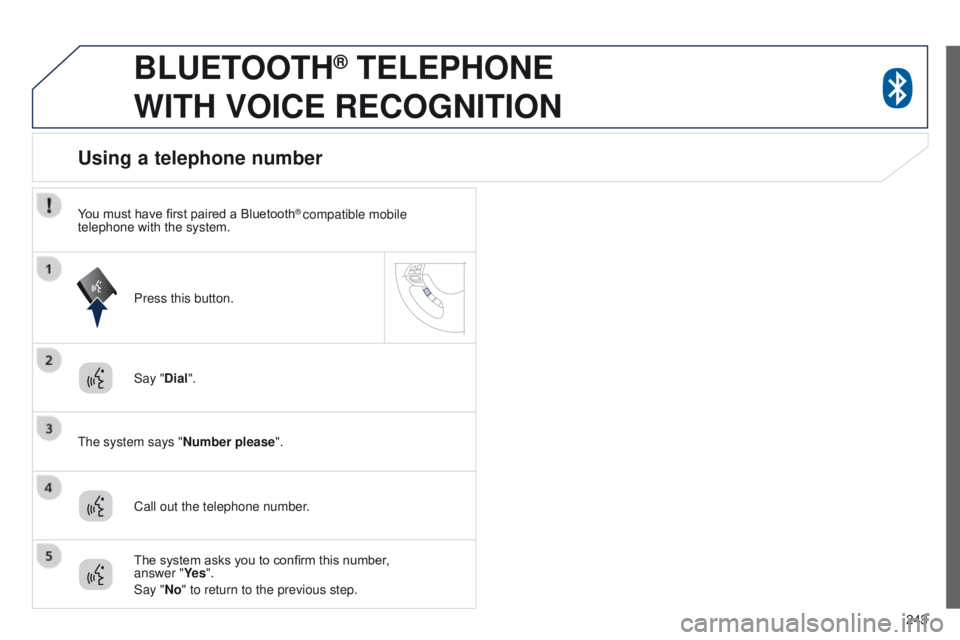

Using a telephone number
Call out the telephone number. Press this button.
The system asks you to confirm this number,
answer "Ye s ".
Say "No" to return to the previous step.
You must have first paired a Bluetooth
® compatible mobile
telephone with the system.

244
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
the system has its own phone book, independent of that of the
mobile telephone.
It can contain up to 32 names for each language.
e

ach name in the phone book is associated with 4 locations:
HOM
e , WORK, MOBIL e and PA ge R.
t

he system says "Select one of the following items: New Entry,
Change, List of names, Delete or Clear all, or say Cancel to
return to the main menu ".
Say "New entry".
t

he system says "HOME, WORK, MOBILE OR PAGER".
g

ive the location which corresponds to the number that
you wish to record.
The system asks you to confirm the location. Answer "Ye s ".
Say "No" to return to step 7.
If a telephone number has already been recorded for this location,
the system says "The current number is -number-, number
please".

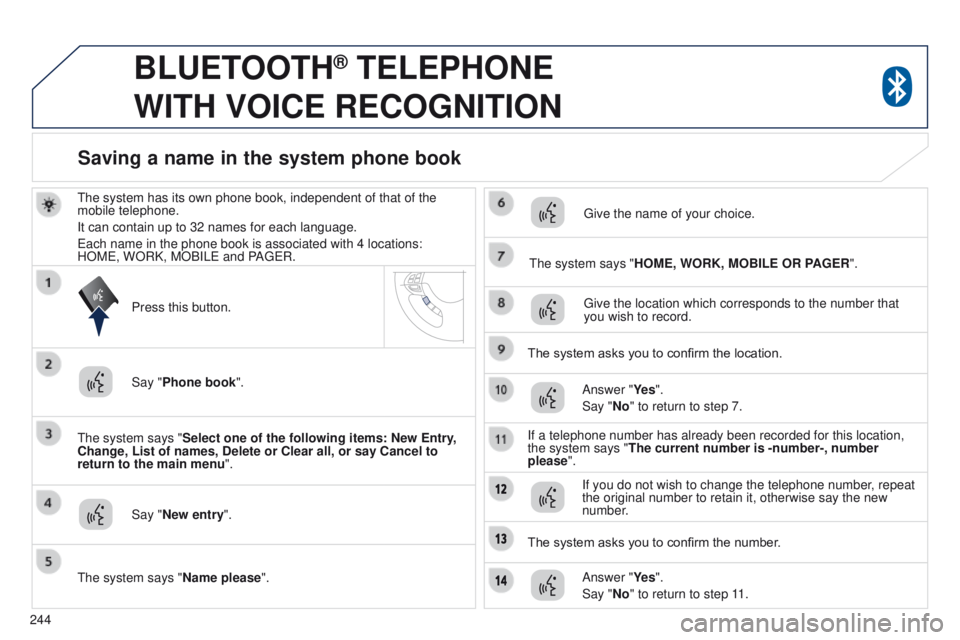

Saving a name in the system phone book
Press this button.
Say "Phone book ".
t

he system says "Name please ".
g
ive the name of your choice.
If you do not wish to change the telephone number, repeat
the original number to retain it, otherwise say the new
number.
Answer "Ye s ".
Say "No" to return to step 11.
The system asks you to confirm the number.

245
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
Say "Call".
t

he system says "Name please ".

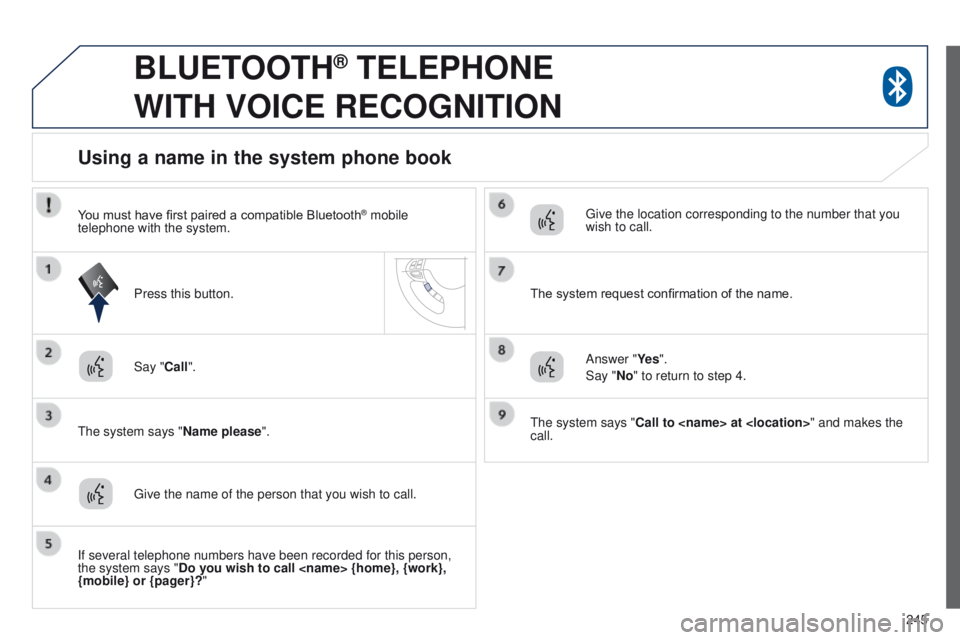

Using a name in the system phone book
give the name of the person that you wish to call.
Press this button.
g
ive the location corresponding to the number that you
wish to call.
You must have first paired a compatible Bluetooth
® mobile
telephone with the system.
If several telephone numbers have been recorded for this person,
the system says "Do you wish to call {home}, {work},
{mobile} or {pager}?" The system request confirmation of the name.
Answer "Ye s ".
Say "No" to return to step 4.
t

he system says "Call to at " and makes the
call.

246
BLUETOOTH® TELEPHONE
WITH


VOICE

RECOGNITION
the telephone ring is sent to the speaker by the front passenger's
seat.
If an audio source (CD, radio, ...) is in operation when the call is
received, it is placed on M
ute and only the incoming call is heard.
When the ignition switch is in the ACC or ON position, the audio
system is activated automatically if an incoming call is received,
even if it was originally off.
At the end of the call, the audio system returns to its previous state.

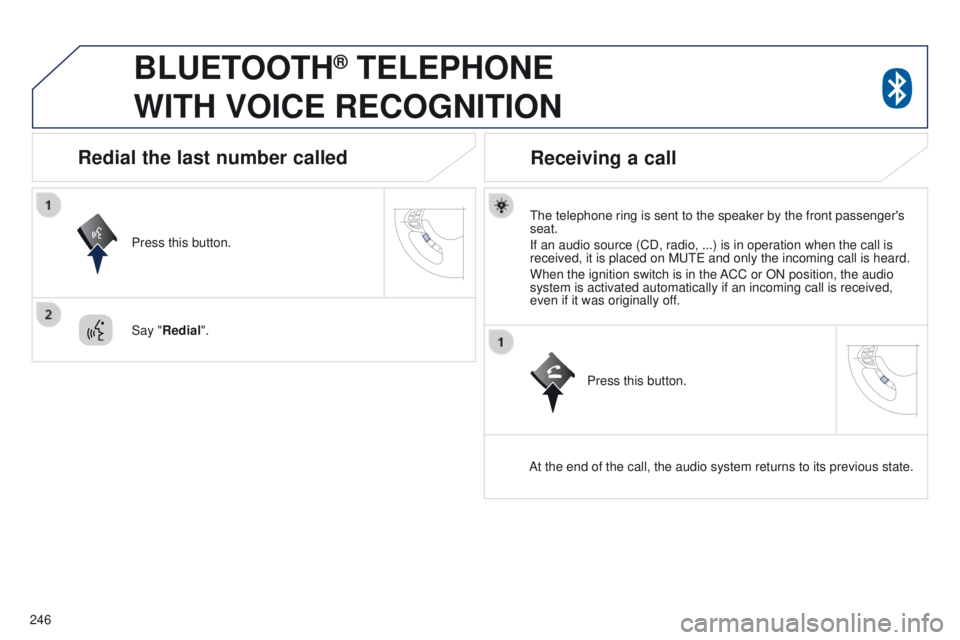

Redial the last number called
Press this button.
Say "Redial".
Receiving a call
Press this button.
