2015 PEUGEOT 4008 Owners Manual

79
4008_en_Chap03_confort_ed01-2014
Rear view mirror
Adjustable mirror providing a central rearward view.equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Steering wheel adjustment
F When stationary , lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
3
Comfort

80
4008_en_Chap03_confort_ed01-2014
Ventilation
Air intake
the air circulating in the passenger compartment
is filtered and originates either from the outside
via the grille located at the base of the windscreen
or from the inside in air recirculation mode.
Air treatment
the incoming air follows various routes
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-
p

assage through a heating circuit (heating),
-

p
assage through a cooling circuit
(air conditioning).
Control panel
the controls of this system are grouped
together on control panel A on the centre
console. 1. W
indscreen demisting-defrosting vents.
2. F ront side window demisting-defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.5. A
ir outlets to the front footwells.
6. A ir outlets to the rear footwells.
7.


t
em
perature sensor.
8.
S

unshine / rain sensor.
Air distribution
Comfort

81
4008_en_Chap03_confort_ed01-2014
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F
e
n
sure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. t
h
anks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
t
o e
nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I
f the system does not produce cold air, switch it off and contact a P
e
uge
Ot
dealer or
a qualified workshop.

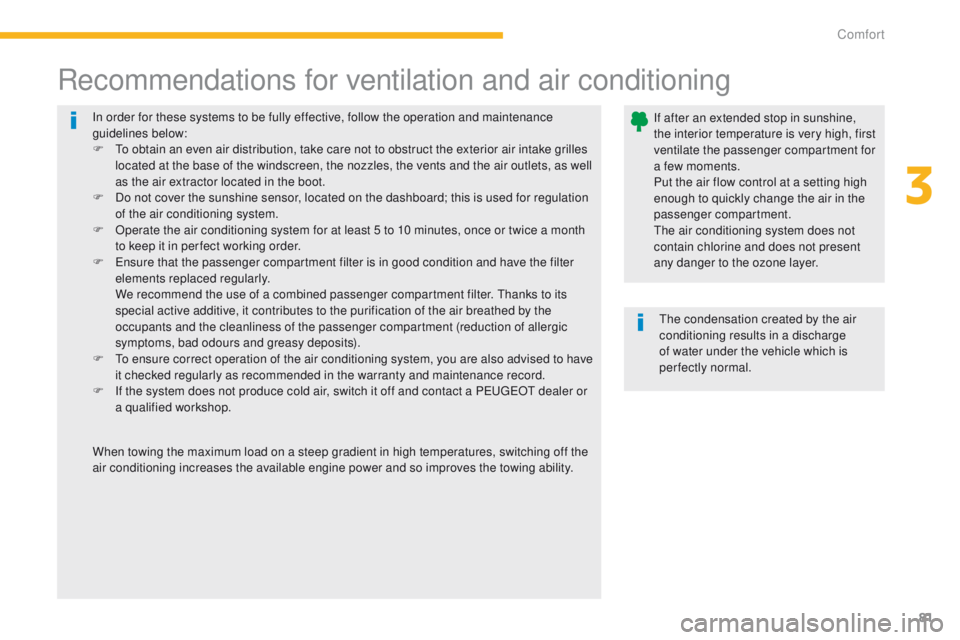

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
th

e air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
th

e condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
3
Comfort

82
4008_en_Chap03_confort_ed01-2014

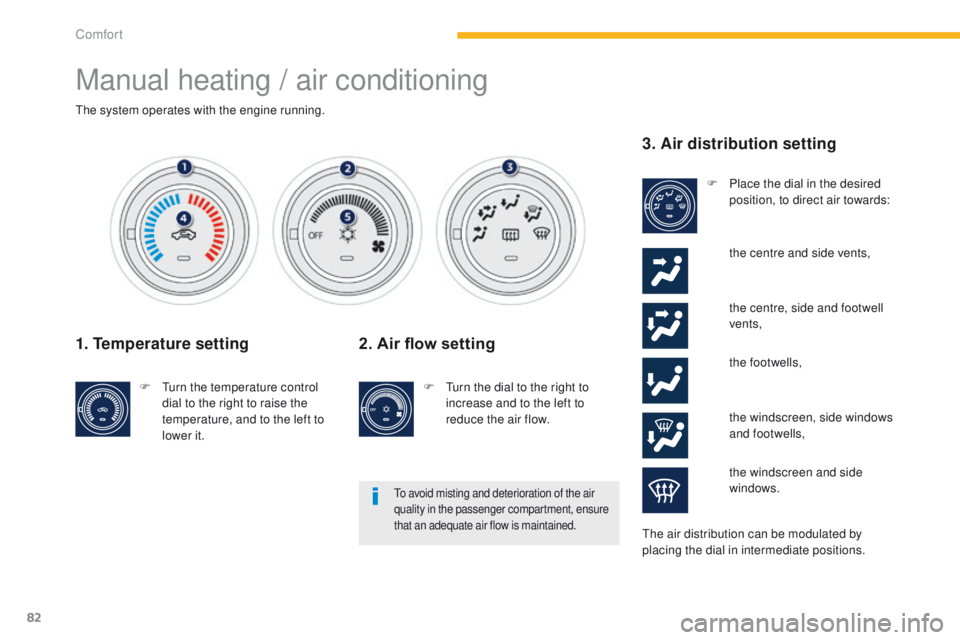

Manual heating / air conditioning
the system operates with the engine running.
1. Temperature setting
F turn the temperature control dial to the right to raise the
temperature, and to the left to
lower it.
to avoid misting and deterioration of the air
quality in the passenger compartment, ensure
that an adequate air flow is maintained.
3. Air distribution setting
F Place the dial in the desired position, to direct air towards:
t

he centre and side vents,
th

e air distribution can be modulated by
placing the dial in intermediate positions.
2. Air flow setting
F turn the dial to the right to increase and to the left to
reduce the air flow.
t
he centre, side and footwell
vents,
t
he footwells,
t

he windscreen, side windows
and footwells,
t

he windscreen and side
windows.
Comfort

83
4008_en_Chap03_confort_ed01-2014

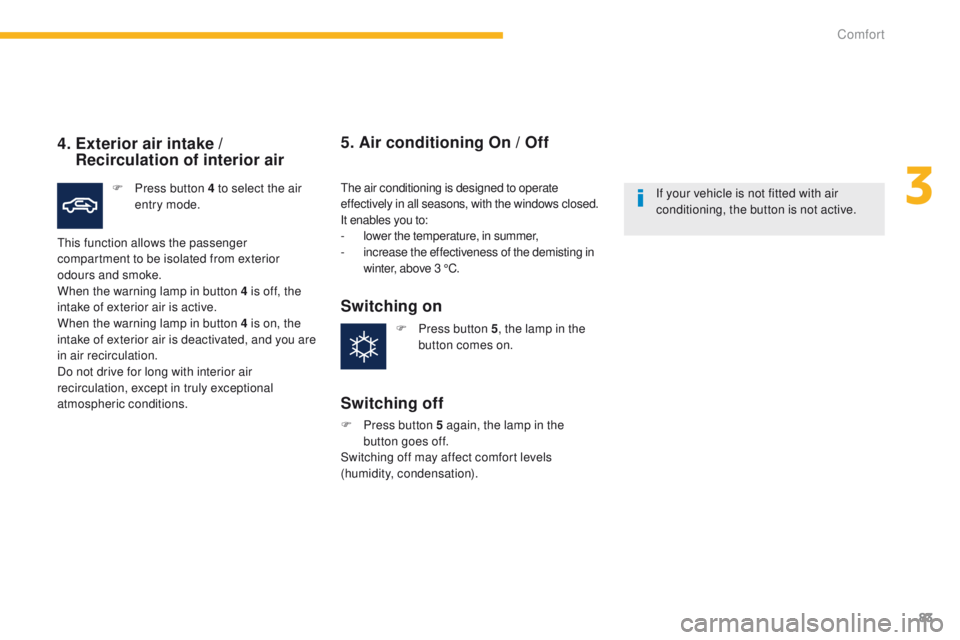

4. Exterior air intake / Recirculation of interior air
F Press button 4 to select the air
entry mode.
th

is function allows the passenger
compartment to be isolated from exterior
odours and smoke.
When the warning lamp in button
4 is off, the
intake of exterior air is active.
When the warning lamp in button
4 is on, the
intake of exterior air is deactivated, and you are
in air recirculation.
Do not drive for long with interior air
recirculation, except in truly exceptional
atmospheric conditions.th e air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
-
l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting in
winter, above 3 °C.
5. Air conditioning On / Off
Switching on
Switching off
F Press button 5 again, the lamp in the button goes off.
Switching off may affect comfort levels
(humidity, condensation). If your vehicle is not fitted with air
conditioning, the button is not active.
F
P
ress button 5
, the lamp in the
button comes on.
3
Comfort

84
4008_en_Chap03_confort_ed01-2014

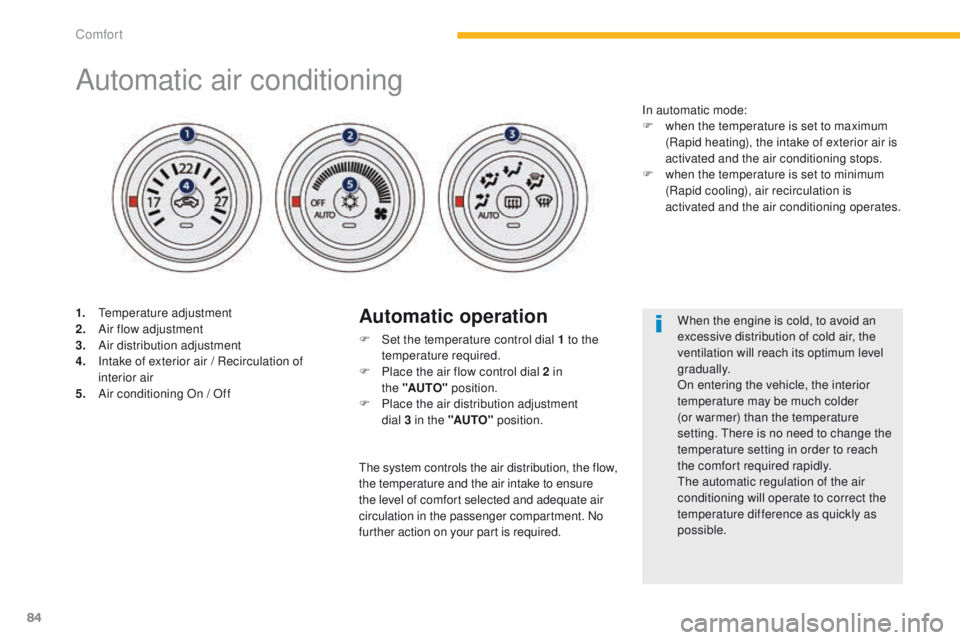

Automatic air conditioning
1. temperature adjustment
2. Air flow adjustment
3.
A

ir distribution adjustment
4.
I

ntake of exterior air / Recirculation of
interior air
5.
A

ir conditioning On / OffAutomatic operation
F Set the temperature control dial 1 to the temperature required.
F

P
lace the air flow control dial 2 in
the
"AUTO" position.
F

P
lace the air distribution adjustment
dial 3 in the "AUTO" position. When the engine is cold, to avoid an
excessive distribution of cold air, the
ventilation will reach its optimum level
gradually.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the temperature
setting.
t
h
ere is no need to change the
temperature setting in order to reach
the comfort required rapidly.
th

e automatic regulation of the air
conditioning will operate to correct the
temperature difference as quickly as
possible.
In automatic mode:
F

w
hen the temperature is set to maximum
(Rapid heating), the intake of exterior air is
activated and the air conditioning stops.
F
w
hen the temperature is set to minimum
(Rapid cooling), air recirculation is
activated and the air conditioning operates.
th

e system controls the air distribution, the flow,
the temperature and the air intake to ensure
the level of comfort selected and adequate air
circulation in the passenger compartment. No
further action on your part is required.
Comfort

85
4008_en_Chap03_confort_ed01-2014

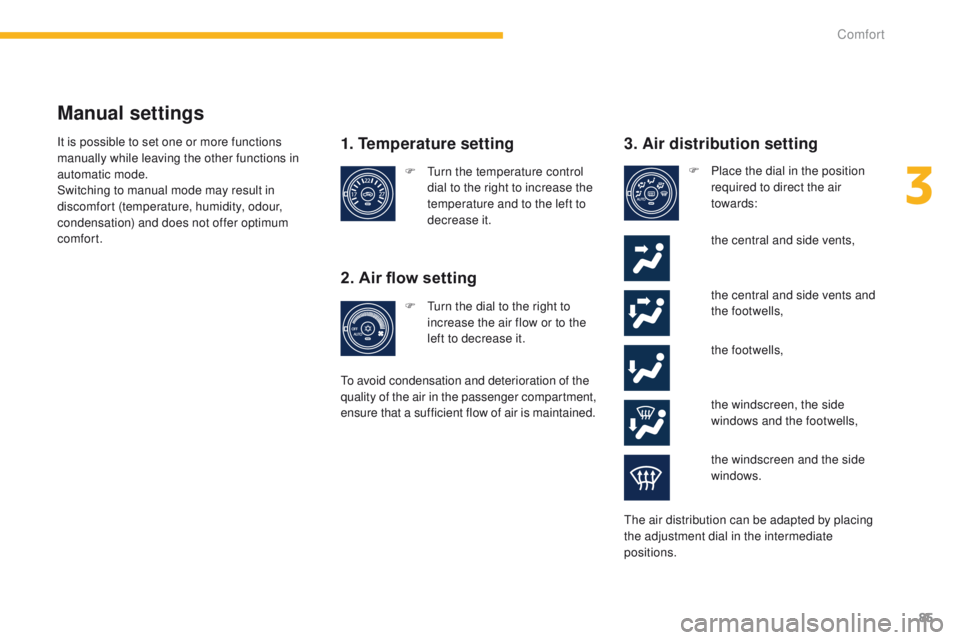

Manual settings
1. Temperature setting
2. Air flow setting
the central and side vents and the footwells,
F
t
u

rn the temperature control
dial to the right to increase the
temperature and to the left to
decrease it.
F
tu
rn the dial to the right to
increase the air flow or to the
left to decrease it.
to

avoid condensation and deterioration of the
quality of the air in the passenger compartment,
ensure that a sufficient flow of air is maintained.
3. Air distribution setting
F Place the dial in the position required to direct the air
towards:
t

he central and side vents,
t

he footwells,
t

he windscreen, the side
windows and the footwells,
t

he windscreen and the side
windows.
th

e air distribution can be adapted by placing
the adjustment dial in the intermediate
positions.
It is possible to set one or more functions
manually while leaving the other functions in
automatic mode.
Switching to manual mode may result in
discomfort (temperature, humidity, odour,
condensation) and does not offer optimum
comfort.
3
Comfort

86
4008_en_Chap03_confort_ed01-2014

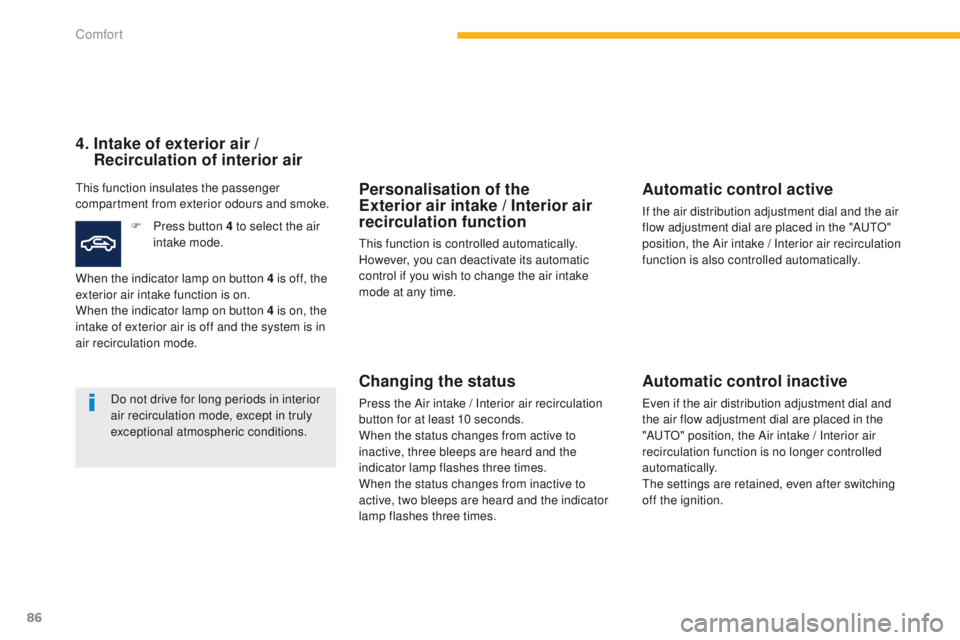

Personalisation of the
Exterior air intake / Interior air
recirculation function
this function is controlled automatically.
However, you can deactivate its automatic
control if you wish to change the air intake
mode at any time.
Changing the status
Press the Air intake / Interior air recirculation
button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.
Automatic control active
If the air distribution adjustment dial and the air
flow adjustment dial are placed in the "AutO "
position, the Air intake / Interior air recirculation
function is also controlled automatically.
Automatic control inactive
even if the air distribution adjustment dial and
the air flow adjustment dial are placed in the
"A
u

t
O
" position, the Air intake / Interior air
recirculation function is no longer controlled
automatically.
th

e settings are retained, even after switching
off the ignition.
4. Intake of exterior air / Recirculation of interior air
this function insulates the passenger
compartment from exterior odours and smoke.
F

P
ress button 4 to select the air
intake mode.
When the indicator lamp on button 4 is off, the
exterior air intake function is on.
When the indicator lamp on button 4 is on, the
intake of exterior air is off and the system is in
air recirculation mode.
Do not drive for long periods in interior
air recirculation mode, except in truly
exceptional atmospheric conditions.
