Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
ta

ke used oil to a P
e
uge
Ot
dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
To p p i n g u p
the reservoir must be topped up without delay
by a Pe ugeOt dealer or a qualified workshop.
Additive level
(1.6 HDi 110 Diesel versions
with particle filter)
the additive reservoir low level is indicated by
the display of this message.
Fluid specification
For optimum cleaning, this fluid must not be
topped up with or replaced with plain water.

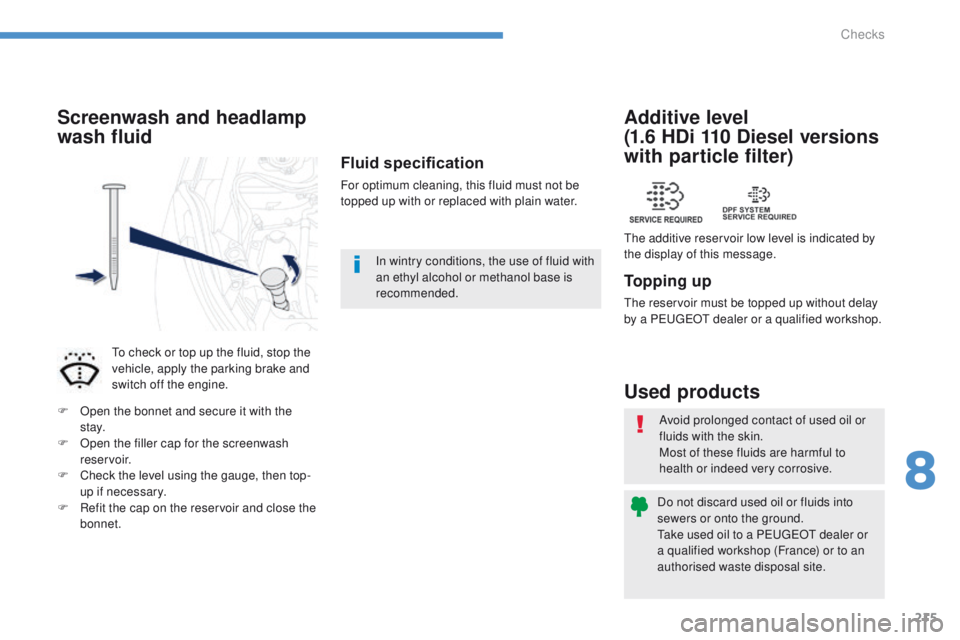

Screenwash and headlamp
wash fluid
to check or top up the fluid, stop the
vehicle, apply the parking brake and
switch off the engine.
F

O

pen the bonnet and secure it with the
st ay.
F

O

pen the filler cap for the screenwash
reservoir.
F

C

heck the level using the gauge, then top-
up if necessary.
F

R

efit the cap on the reservoir and close the
bonnet. In wintry conditions, the use of fluid with
an ethyl alcohol or methanol base is
recommended.
8
Checks

216
4008_en_Chap08_verifications_ed01-2014
Checks

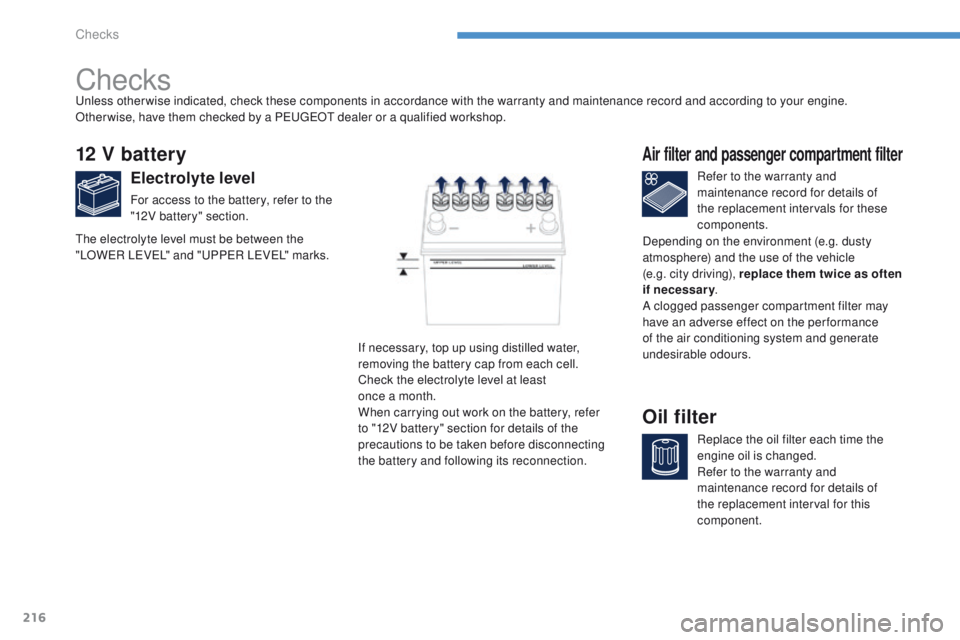

12 V battery
Electrolyte level
For access to the battery, refer to the
"12V battery" section.Refer to the warranty and
maintenance record for details of
the replacement intervals for these
components.
Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Refer to the warranty and
maintenance record for details of
the replacement interval for this
component.
Oil filter
If necessary, top up using distilled water,
removing the battery cap from each cell.
Check the electrolyte level at least
once a month.
When carrying out work on the battery, refer
to "12V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.
un

less other wise indicated, check these components in accordance with the warranty and maintenance record and according to your engine.
Other wise, have them checked by a P
e

uge
Ot

dealer or a qualified workshop.
th

e electrolyte level must be between the
"LOW
eR LeVeL

" and "
uP

P
eR LeVeL

" marks.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
Checks

217
4008_en_Chap08_verifications_ed01-2014
Manual gearbox
Refer to the warranty and
maintenance record for servicing of
the gearbox.
"CVT" gearbox
Refer to the warranty and
maintenance record for servicing of
the "CV
t" g
earbox.

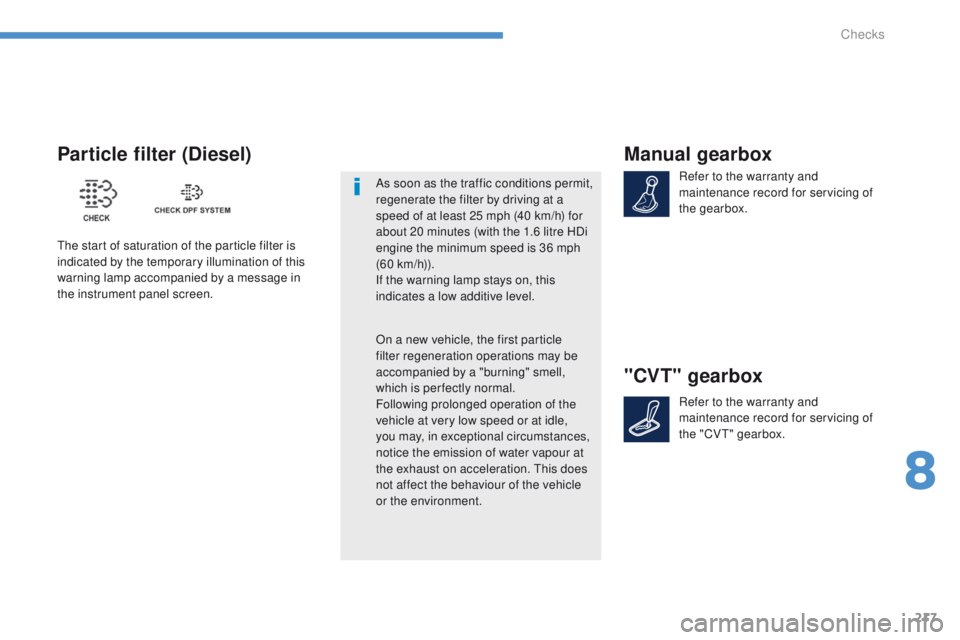

Particle filter (Diesel)
the start of saturation of the particle filter is
indicated by the temporary illumination of this
warning lamp accompanied by a message in
the instrument panel screen. As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 25 mph (40 km/h) for
about 20 minutes (with the 1.6 litre HDi
engine the minimum speed is 36 mph
(60 km/h)).
If the warning lamp stays on, this
indicates a low additive level.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration.
t
h
is does
not affect the behaviour of the vehicle
or the environment.
8
Checks

218
4008_en_Chap08_verifications_ed01-2014

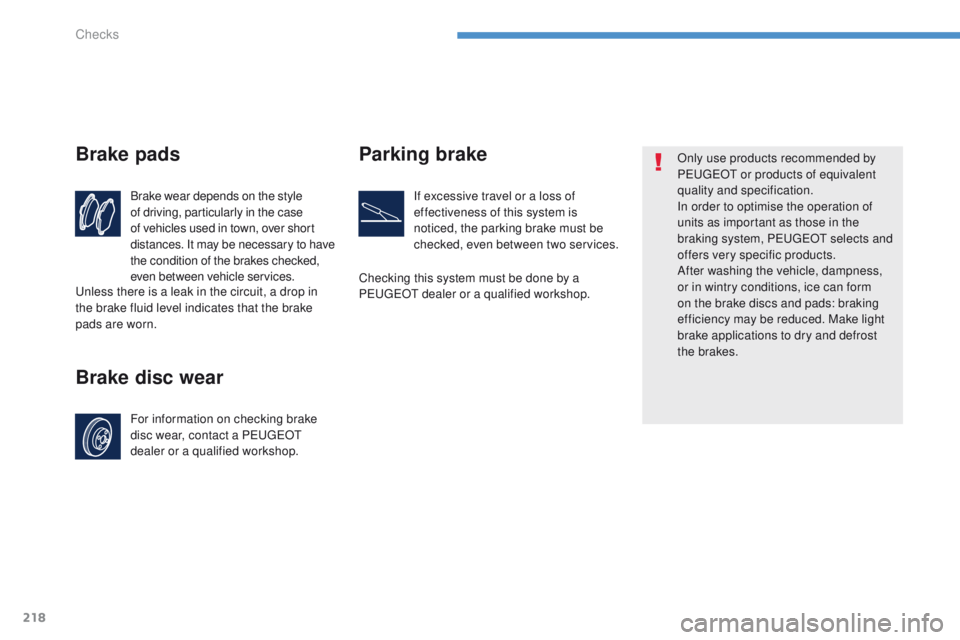

Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a PeugeOt
dealer or a qualified workshop.
Brake disc wear Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Only use products recommended by
P
e

uge
Ot
or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
P
e

uge
Ot
dealer or a qualified workshop.
un

less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Checks

219
4008_en_Chap09_caracteristiques-techniques_ed01-2014
* the maximum power corresponds to the value type-approved on a test bed, under conditions defined in eu ropean legislation (Directive 1999/99/eC ).

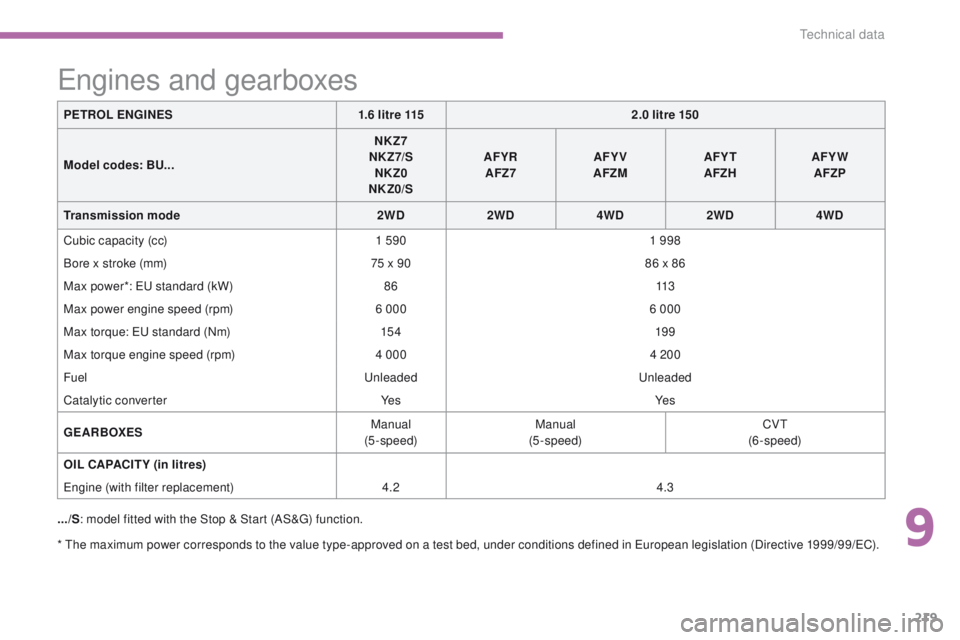

engines and gearboxes
.../S: model fitted with the Stop & Start (AS&g) f unction.
PETROL ENGINES
1.6 litre 1152.0 litre 150
Model codes: BU... NKZ7

NK Z 7/S
NKZ0
NKZ0/S AFYR

AFZ7 AFYV
AFZM AFYT
AFZH AFYW
AFZP
Transmission mode 2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: eu standard (kW)
86 113
Max power engine speed (rpm) 6 0006 000
Max torque: eu standard (Nm)
15 4 19 9
Max torque engine speed (rpm) 4 0004 200
Fuel
u
nleaded
u
nleaded
Catalytic converter Ye sYe s
GEARBOXES Manual
(5-speed) Manual
(5-speed) CV
t(
6-speed)
OIL CAPACITY (in litres)
eng
ine (with filter replacement)
4.24.3
9
technical data

220
4008_en_Chap09_caracteristiques-techniques_ed01-2014
Petrol weights and towed loads (kg)
the values for maximum towed weights type
approved according to the sales zone (see the
tables on the following pages).
th
e exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
th

ey are also mentioned in sales brochures.
For more details, contact a P
e

uge
Ot
dealer
or a qualified workshop.th e kerb weight is equal to the unladen
weight + driver (75 kg).th e gtW a nd towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
th

e speed of a towing vehicle must not exceed
60 mph (100 km/h) (comply with the legislation
in force in your country).
High ambient temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the ambient temperature
is above 37 °C, limit the towed load.
th

e weight of the braked trailer can be
increased, within the
gt
W l
imit, if the
gV

W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
technical data

221
4008_en_Chap09_caracteristiques-techniques_ed01-2014
PETROL ENGINES1.6 litre 115
Gearboxes Manual (5-speed)
Model codes: BU... NKZ0

NKZ0/S
Transmission mode 2WD
-
u
n
laden weight 1 310
-

K
erb weight 1 385
-
g
r
oss vehicle weight
(
g
V
W) 1 870
-
g
r
oss vehicle weight (
gV
W)
when towing 1 925
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 025
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 10 0
-


u
nb
raked trailer 685
-
R

ecommended nose weight 55

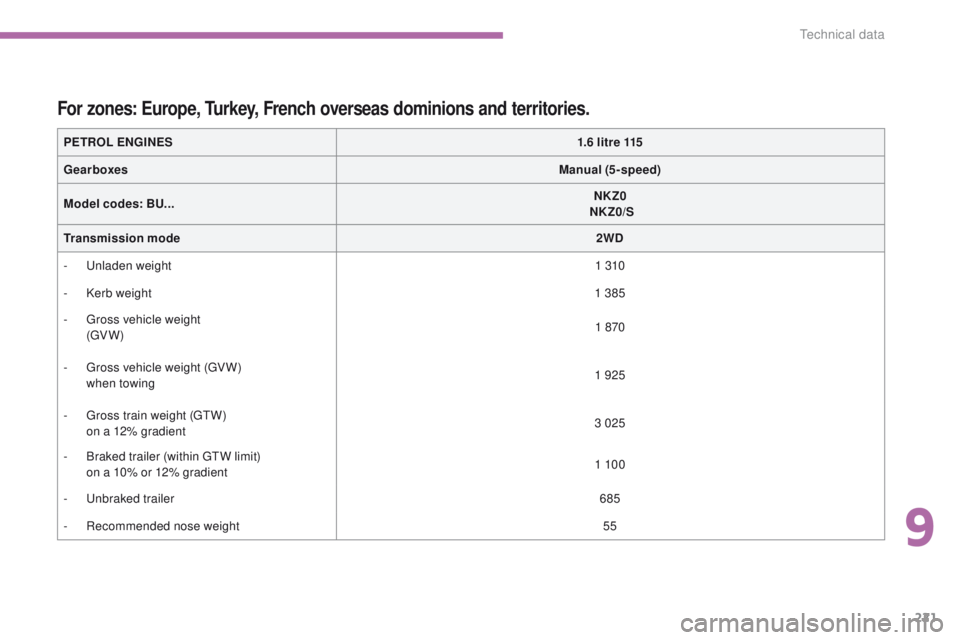

For zones: Europe, Turkey, French overseas dominions and territories.
9
technical data

222
4008_en_Chap09_caracteristiques-techniques_ed01-2014
For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas dominions and territories (2.0 litre 150 engine).
PETROL ENGINES1.6 litre 1152.0 litre 150
Gearboxes Manual
(5 - speed) Manual (5-speed)
CVT (6- speed)
Model codes: BU... NKZ7AFZ7AFZM AFZHAFZP
Transmission mode 2WD2WD 4WD2WD 4WD
-
u
n
laden weight 1 3151 355 1 4201 385 1 450
-

K
erb weight 1 3901 4301 4951 460 1 525
-
g
r
oss vehicle weight
(
g
V
W) 1 870
1 9701 9701 9701 970
-
g
r
oss vehicle weight
(
gV

W) when towing 1 925
2 035 2 0352 0352 035
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 025
3 335 3 3353 3353 335
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 10 0
1 300 1 3001 3001 300
-


u
nb
raked trailer 68571574 5725 750
-
R

ecommended nose weight 5565656565
technical data
