2015 PEUGEOT 4008 Owners Manual

15
4008_en_Chap01_controle-de-marche_ed01-2014
Warning/indicator lampis on Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
th

e anti-lock braking system has a
fault.
th

e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a P
e

uge
Ot

dealer or a qualified workshop without delay.
Front seat belt
not fastened /
unfastened
fixed, then flashing,
accompanied by
an audible signal.the driver has not fastened or has
unfastened their seat belt.
Pull the strap, then insert the tongue in the buckle.
Airbags and
pretensioners temporarily.
When you switch on the ignition, this
warning lamp comes on for a few
seconds, then goes off. If it does not go off, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. Fault with one of the airbag or seat
belt pretensioner systems. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Under-inflation fixed,
accompanied by
a message
th

e tyre pressure for one or more
wheels is too low. Check the tyre pressures as soon as possible.
th

is check should preferably be done with the tyres cold.
You must reinitialise the system after every adjustment of
one or more tyre pressures and after replacing one or more
wheels.
For more information refer to the "
un

der-inflation detection"
section.
flashing
then fixed,
accompanied by
a message.
th

e system has a fault and/or one
or more wheels does not have a
detected sensor.
th

e tyre pressures are no longer monitored.
Have the system checked by a Peuge
O

t dealer or a
qualified workshop.
1
Monitoring

16
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the instrument panel screen.Warning /indicator lampis on Cause Action / Observations
Left-hand
direction
indicator flashing with audible
warning.
th

e lighting stalk has been pressed
downwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
P
e

uge
Ot
dealer or a qualified workshop.
Right-hand
direction
indicator flashing with audible
warning.
th

e lighting stalk has been pushed
upwards. If this indicator lamp flashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
P
e

uge
Ot
dealer or a qualified workshop.
Sidelamps or
dipped beam
headlamps fixed.
th

e sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
th

e lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed.
th

e front foglamps are switched on.
tu
rn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamp fixed.
th

e rear foglamp is switched on.
tu
rn the ring on the stalk rear wards to switch off the
rear foglamp.
Monitoring

17
4008_en_Chap01_controle-de-marche_ed01-2014
Warning/indicator lampis on Cause Action / Observations
Cruise control fixed
th

is comes on when the cruise
control has been activated. Press the "ON/OFF" button to activate/deactivate the
cruise control.
Active stability
control and
traction control
(ASC/TCL) flashing.
Operation of the ASC/
tC

L systems.
th
e systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.
fixed. Fault in the ASC/
tC

L systems. Have it checked by a P
e
uge
Ot
dealer or a qualified
workshop.
Stop & Star t
(Auto Stop
& Go)
function fixed.
When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start
(AS&
g) f

unction has put the engine
into S
tO

P mode.
th
e warning lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
tO

P mode is temporarily
unavailable.
or
S
tA

R
t
mode is invoked
automatically. See "Stop & Start (AS&
g) f

unction" for special cases
with S
tO

P mode and S
tA
R
t
mode.
Diesel engine
pre-heating
fixed.
the

engine is cold and:
-

t
he ignition switch is at
the ON position (ignition on), or
-
the START/STOP starting button
has been pressed (ignition on). With key starting, wait until the warning lamp has gone
off before starting.
With the Keyless
e
n
try and Starting system, the engine
will only start after the warning lamp has gone off.
th

e duration for which the warning lamp is on is
determined by the climatic conditions (up to 30 seconds
in severe weather).
If the engine does not start, switch the ignition off and
then on again and wait again until the warning lamp
goes off, then start the engine.
1
Monitoring

18
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.this is may be accompanied by an audible signal and a message in the screen.
Warning /indicator lampis on Cause Action / Observations
ASC/TCL fixed.
th

e ASC/
tC
L off switch, located at
the bottom of the dashboard (driver's
side) has been pressed.
ASC/
tC

L is deactivated.
ASC: active stability control.
tC

L: traction control.Press the button to activate the ASC/
tC

L.
th

e ASC/
tC
L system is automatically activated on
starting the vehicle.
Stop & Star t
system
(Auto Stop & Go) fixed.
th

e off switch for the Stop & Start
(AS&
g) s

ystem, located at the bottom
of the dashboard (driver's side) has
been pressed.
th

e Stop & Start (AS&
g) s
ystem is
deaactivated. Press the switch again to activate the Stop & Start
(AS&
g) s

ystem.
Monitoring

19
4008_en_Chap01_controle-de-marche_ed01-2014

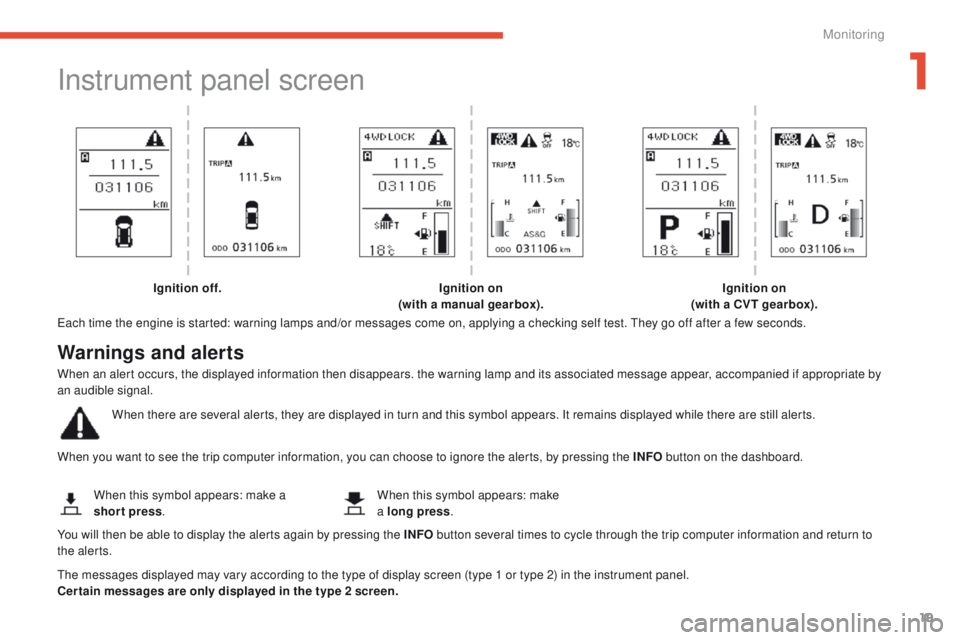

Instrument panel screen
each time the engine is started: warning lamps and/or messages come on, applying a checking self test. th ey go off after a few seconds.
When you want to see the trip computer information, you can choose to ignore the alerts, by pressing the INFO button on the dashboard.
th

e messages displayed may vary according to the type of display screen (type 1 or type 2) in the instrument panel.
Cer tain messages are only displayed in the type 2 screen. When this symbol appears: make a
short press
. When this symbol appears: make
a long press
.
Ignition off.
Ignition on
(with a manual gearbox). Ignition on
(with a CVT gearbox).
Warnings and alerts
When an alert occurs, the displayed information then disappears. the warning lamp and its associated message appear, accompanied if appropriate by
an audible signal.
When there are several alerts, they are displayed in turn and this symbol appears. It remains displayed while there are still alerts.
You will then be able to display the alerts again by pressing the INFO button several times to cycle through the trip computer information and return to
the alerts.
1
Monitoring

20

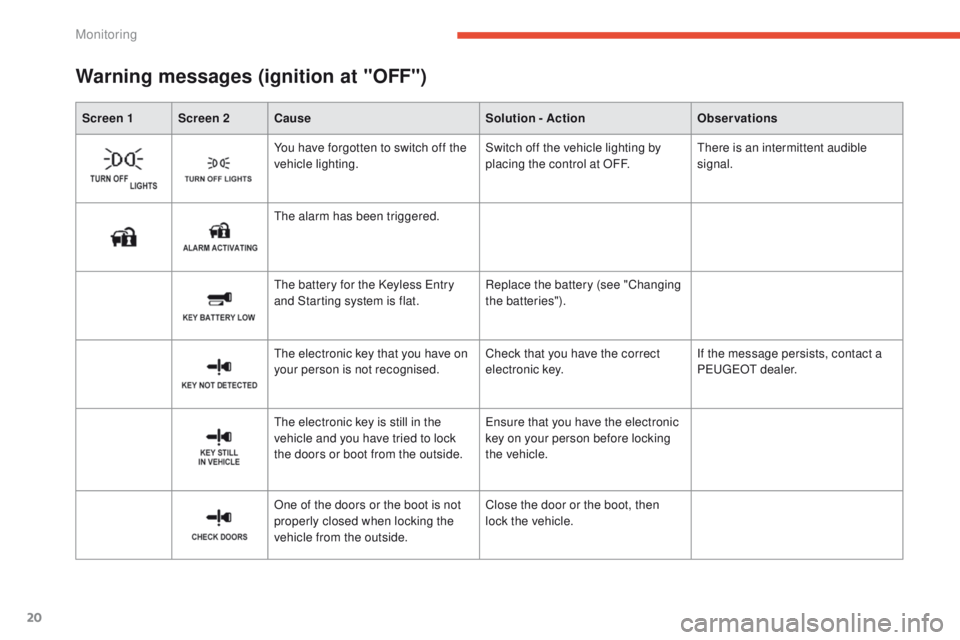

Screen 1 Screen 2Cause Solution - ActionObservations
Warning messages (ignition at "OFF")
You have forgotten to switch off the
vehicle lighting.Switch off the vehicle lighting by
placing the control at OFF.ther
e is an intermittent audible
signal.
th

e alarm has been triggered.
th

e battery for the Keyless e
n
try
and Starting system is flat. Replace the battery (see "Changing
the batteries").
th

e electronic key that you have on
your person is not recognised. Check that you have the correct
electronic key.If the message persists, contact a
P
e

uge
Ot d
ealer.
th

e electronic key is still in the
vehicle and you have tried to lock
the doors or boot from the outside.
en

sure that you have the electronic
key on your person before locking
the vehicle.
One of the doors or the boot is not
properly closed when locking the
vehicle from the outside. Close the door or the boot, then
lock the vehicle.
Monitoring

21
4008_en_Chap01_controle-de-marche_ed01-2014

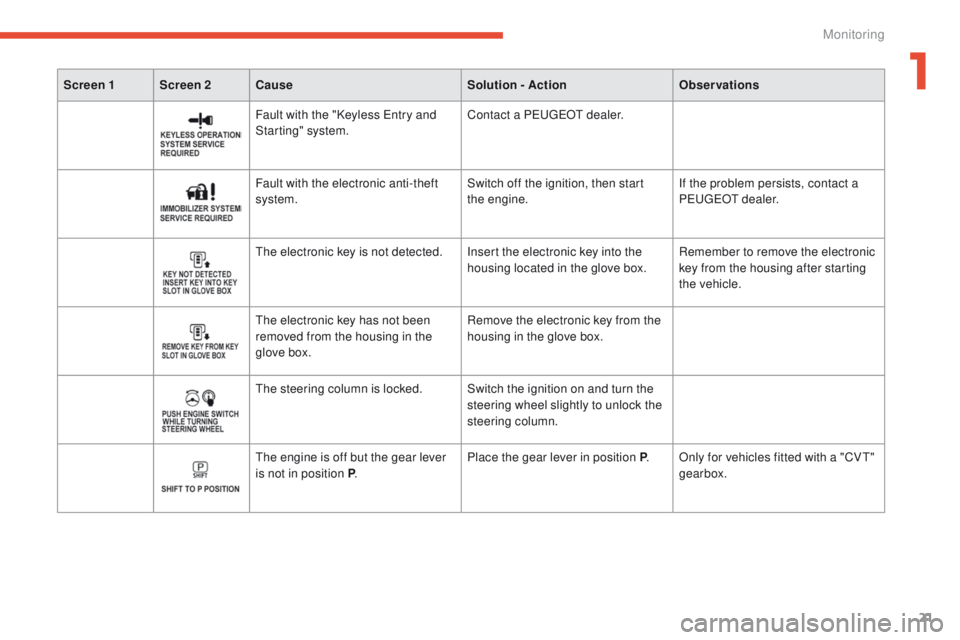

Screen 1 Screen 2Cause Solution - ActionObservations
Fault with the "Keyless entry and
Starting" system. Contact a Pe
ugeOt dealer.
Fault with the electronic anti-theft
system. Switch off the ignition, then start
the


engine.If the problem persists, contact a
P
e

uge
Ot d
ealer.
th

e electronic key is not detected. Insert the electronic key into the housing located in the glove box. Remember to remove the electronic
key from the housing after starting
the vehicle.
th

e electronic key has not been
removed from the housing in the
glove box. Remove the electronic key from the
housing in the glove box.
th

e steering column is locked. Switch the ignition on and turn the steering wheel slightly to unlock the
steering column.
th

e engine is off but the gear lever
is not in position P . Place the gear lever in position P
. Only for vehicles fitted with a "CV
t"
g

earbox.
1
Monitoring

22

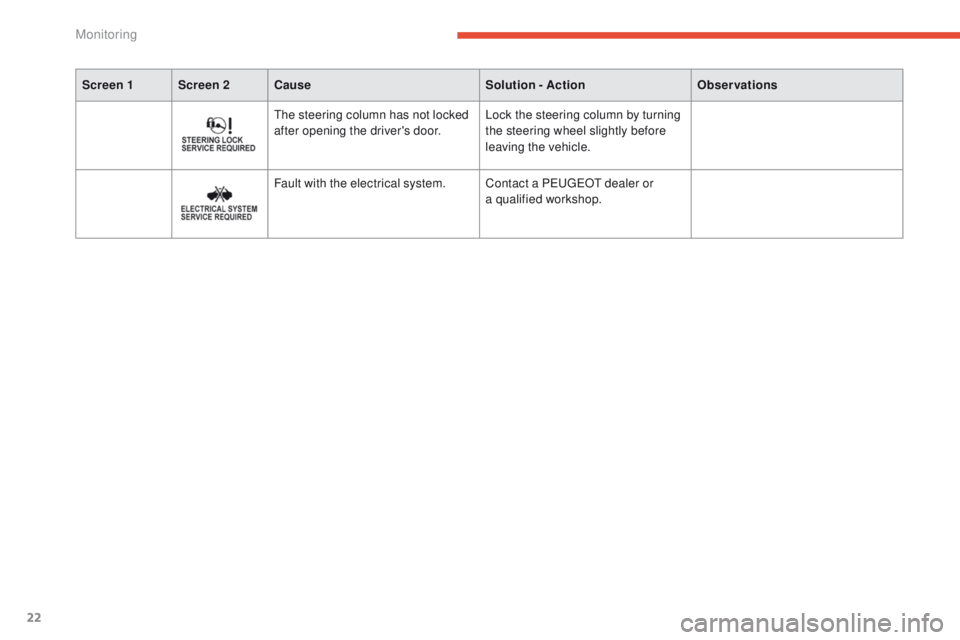

Screen 1 Screen 2Cause Solution - ActionObservations
the steering column has not locked
after opening the driver's door.Lock the steering column by turning
the steering wheel slightly before
leaving the vehicle.
Fault with the electrical system. Contact a P
e

uge
Ot
dealer or
a qualified workshop.
Monitoring
