2015 PEUGEOT 4008 Owners Manual

31
4008_en_Chap01_controle-de-marche_ed01-2014
Screen 1 Screen 2SystemCause ObservationsSolution - Action
Prevention messages
Service indicatorInforms the driver that the
next service is overdue.th is is displayed for a few
seconds when the ignition is
switched on. Contact a Pe
ugeOt dealer
or a qualified workshop.
Rest reminder Informs the driver that they
should stop to take a break.
th

is is displayed when the
driving time that you set
previously is reached.
An audible signal sounds
3 times and then every
5
minutes until the vehicle
stops. You are advised to take a
break approximately every
two hours.
1
Monitoring

32

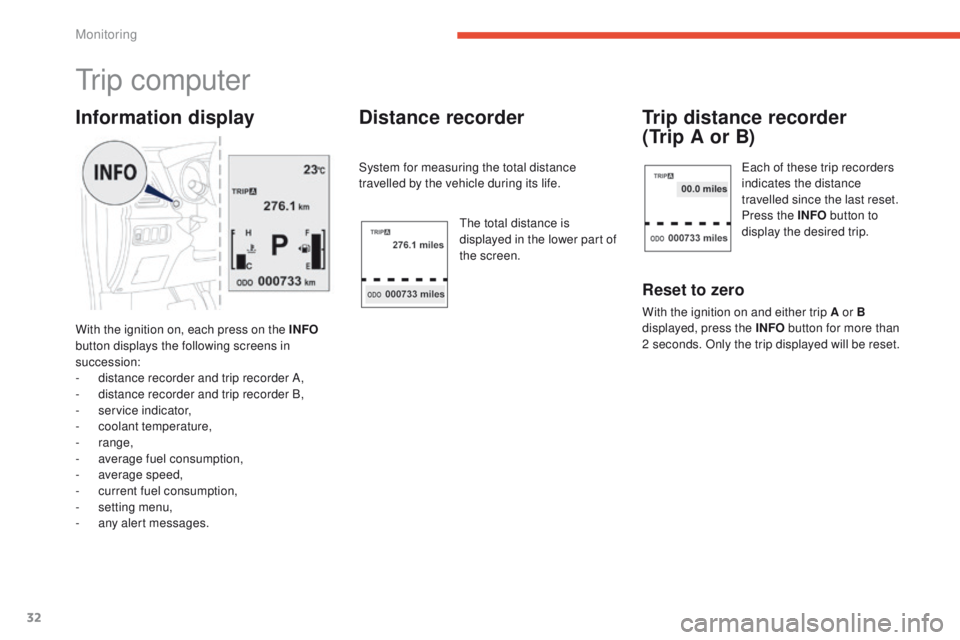

tr i p c o m p u t e r
With the ignition on, each press on the INFO
button displays the following screens in
succession:
-

d
istance recorder and trip recorder A,
-

d
istance recorder and trip recorder B,
-
ser

vice indicator,
-
c

oolant temperature,
-


range,
-
a

verage fuel consumption,
-
a

verage speed,
-

c
urrent fuel consumption,
-
se

tting menu,
-

a
ny alert messages.
Information display Distance recorder
System for measuring the total distance
travelled by the vehicle during its life.
th

e total distance is
displayed in the lower part of
the screen.
Trip distance recorder
(Trip A or B)
Reset to zero
With the ignition on and either trip A or B
displayed, press the INFO button for more than
2 seconds. Only the trip displayed will be reset.
each of these trip recorders
indicates the distance
travelled since the last reset.
Press the INFO button to
display the desired trip.
Monitoring

33
4008_en_Chap01_controle-de-marche_ed01-2014
Service indicator
System which informs the driver when the
next service is due in accordance with the
manufacturer's servicing schedule.
th
e point at which the next service is due is
calculated from the last service indicator zero
reset.
It is determined by two parameters:
-

t
he distance travelled (in miles (km)),
-

t
he time elapsed since the last service
(in


months).
th

e distance remaining to be travelled may be
weighted by the time factor, depending on the
use made of the vehicle.
Example: the screen indicates that 7300 miles
(kilometres) remain before the next service
is due.Service overdue
Example: the screen indicates that the service
is overdue. th is service must be carried out by
a P
e

uge
Ot
dealer or a qualified workshop.
Operation
the symbol "-- " remains displayed until
the first service of a new vehicle has
been carried out.
ea
ch time the ignition is switched on, the
"ROUTINE MAINTENANCE REQUIRED"
symbol is displayed for a few seconds to indicate
that the service must be carried out without delay.
When the ignition is switched on, you must press
the
INFO button several times in succession until
the service indicator is displayed. t
he
distance
recorder display line indicates the number of miles
or kilometres remaining and the time elapsed line
indicates the number of months remaining before
the next service is due.
1
Monitoring

34
Resetting the service indicator
to zero
After a certain distance and a certain
time, the display of "---" is reset
automatically and the display indicates
the time remaining before the next
service is due.
Your Pe
ugeOt
dealer or a qualified workshop
carries out this operation after each service.
If you have carried out your vehicle's service
yourself, the zero reset procedure is the
following:
F

s

witch off the ignition,
F

p

ress the INFO button several times in
succession until the service indicator is
displayed,
F

p

ress and hold the INFO button for a few
seconds until the spanner flashes ,
F

p

ress the INFO button while the spanner
is flashing to change the display "--- "
to "CLEAR" then the time remaining
before the next service is due is displayed.
Monitoring

35
4008_en_Chap01_controle-de-marche_ed01-2014

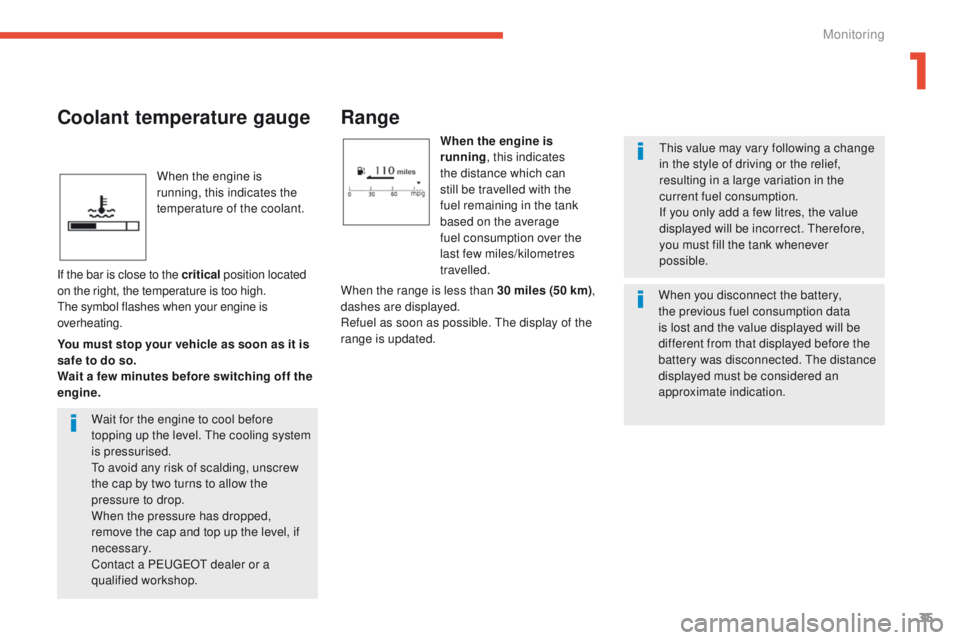

When the engine is
running, this indicates the
temperature of the coolant.
Range
When the engine is
running, this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over the
last few miles/kilometres
travelled.th is value may vary following a change
in the style of driving or the relief,
resulting in a large variation in the
current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect.
t
h
erefore,
you must fill the tank whenever
possible.
Coolant temperature gauge
If the bar is close to the critical position located
on the right, the temperature is too high.
the

symbol flashes when your engine is
overheating.
You must stop your vehicle as soon as it is
safe to do so.
Wait a few minutes before switching off the
engine. When the range is less than 30 miles (50 km)
,
dashes are displayed.
Refuel as soon as possible.
t
h
e display of the
range is updated.
Wait for the engine to cool before
topping up the level. th e cooling system
is pressurised.
to a

void any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Contact a P
e

uge
Ot
dealer or a
qualified workshop. When you disconnect the battery,
the previous fuel consumption data
is lost and the value displayed will be
different from that displayed before the
battery was disconnected.
t
h
e distance
displayed must be considered an
approximate indication.
1
Monitoring

36

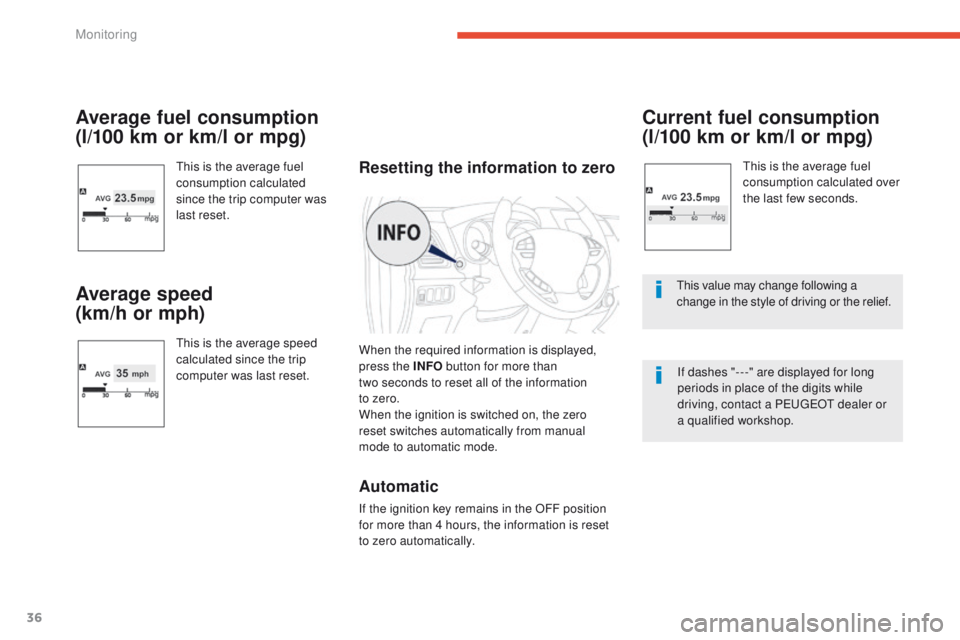

Average fuel consumption
(l/100 km or km/l or mpg)
this is the average fuel
consumption calculated
since the trip computer was
last reset.
Average speed
(km/h or mph)
this is the average speed
calculated since the trip
computer was last reset.
Current fuel consumption
(l/100 km or km/l or mpg)
this is the average fuel
consumption calculated over
the last few seconds.
th

is value may change following a
change in the style of driving or the relief.
If dashes "- - -" are displayed for long
periods in place of the digits while
driving, contact a P
e

uge
Ot
dealer or
a qualified workshop.Resetting the information to zero
When the required information is displayed,
press the INFO button for more than
two
seconds to reset all of the information
to


zero.
When the ignition is switched on, the zero
reset
switches automatically from manual
mode
to automatic mode.
Automatic
If the ignition key remains in the OFF position
for more than 4 hours, the information is reset
to zero automatically.
Monitoring

37
4008_en_Chap01_controle-de-marche_ed01-2014

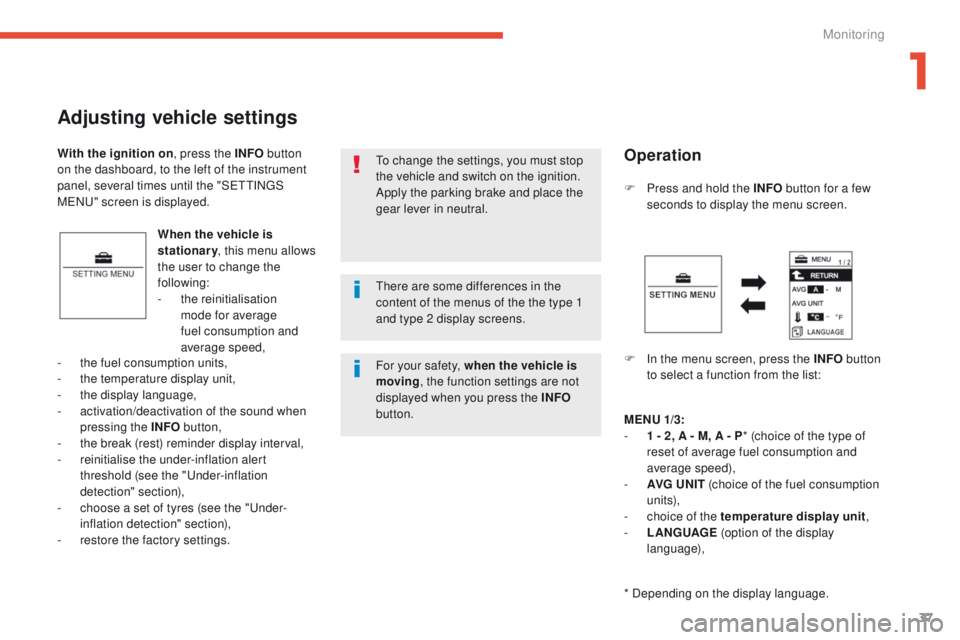

Adjusting vehicle settings
When the vehicle is
stationary, this menu allows
the user to change the
following:
-
th

e reinitialisation
mode for average
fuel consumption and
average speed, F

P
ress and hold the INFO
button for a few
seconds to display the menu screen.
F
I
n the menu screen, press the INFO button
to select a function from the list:
-

t

he fuel consumption units,
-

t

he temperature display unit,
-
t

he display language,
-
a

ctivation/deactivation of the sound when
pressing the INFO button,
-
t

he break (rest) reminder display interval,
-
r

einitialise the under-inflation alert
threshold (see the "
un

der-inflation
detection" section),
-

c

hoose a set of tyres (see the "
un
der-
inflation detection" section),
-

r

estore the factory settings.
to c
hange the settings, you must stop
the vehicle and switch on the ignition.
Apply the parking brake and place the
gear lever in neutral.
With the ignition on
, press the INFO button
on the dashboard, to the left of the instrument
panel, several times until the "S
e
tt
I
N
gS
MeNu" s

creen is displayed.
Operation
MENU
1/3:
- 1 - 2 , A - M, A - P * (choice of the type of
reset of average fuel consumption and
average speed),
-

AV
G UN IT (choice of the fuel consumption
un i t s),
-

c
hoice of the temperature display unit ,
-

L
ANGUAGE (option of the display
language),
* Depending on the display language.
th

ere are some differences in the
content of the menus of the the type 1
and type 2 display screens.
For your safety, when the vehicle is
moving , the function settings are not
displayed when you press the INFO
button.
1
Monitoring

38
MENU 2/3:
- a ctivation / deactivation of the INFO
button sound ,
-

A
LERT (changing of the "R
e

S
t

R
eM

IND
eR
" display interval),
-

s
election of the sound of the direction
indicators,
-

a
ctivation / deactivation of the current
fuel consumption ,
Press and hold the INFO button for a
few seconds to return to the previous
screen.
When the menu screen is displayed, if
no operation is carried out within
15 seconds, the Settings Menu screen
is displayed.
MENU 3/3:
-
R EINITIALISE (reinitialise the under-
inflation alert threshold),
-

c
hoice of set of tyres,
-

R
ESET (restore factory settings).
Choice of the reset mode for
average fuel consumption and
average speed
You can choose between two average fuel
consumption and average speed reset modes:
-

a
utomatic reset,
-
m

anual reset.
In the menu screen:
F

p
ress the INFO button to select:
F

p
ress and hold the INFO button for
a few seconds to switch in succession from
reset mode 1 - A (automatic)* to reset
mode 2
- M - P (manual)* .
th

e mode selected is confirmed.
* According to display language.
Monitoring
