2015 Peugeot 301 Owner's Manual

02
215
301_en_Chap12b_RDE1_ed01-2014

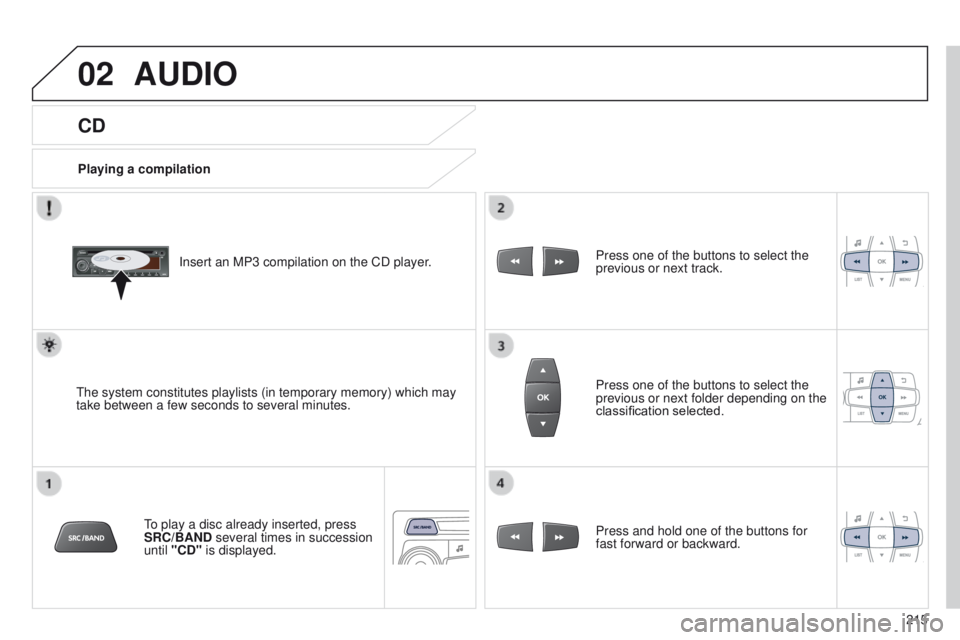

CD
AUDIO
Playing a compilationInsert an MP3 compilation on the CD player.
The system constitutes playlists (in temporary memory) which may
take between a few seconds to several minutes. To play a disc already inserted, press
SRC/BAND several times in succession
until "CD" is displayed. Press one of the buttons to select the
previous or next track.
Press one of the buttons to select the
previous or next folder depending on the
classification selected.
Press and hold one of the buttons for
fast forward or backward.

02
216
301_en_Chap12b_RDE1_ed01-2014
Select a line in the list.
Jump a page.Go back one level. Select a folder /Playlist.
Start play of the track selected.
Go back to the first level to select the track classification:
- By Folders: all folders containing audio files recognised on the
peripheral, in alphabetical order, ignoring the folder structure.
-
By Playlist: depending on the playlists saved.
Press LIST
to display the compilation
folder structure.
AUDIO

02
217
301_en_Chap12b_RDE1_ed01-2014
AUDIO

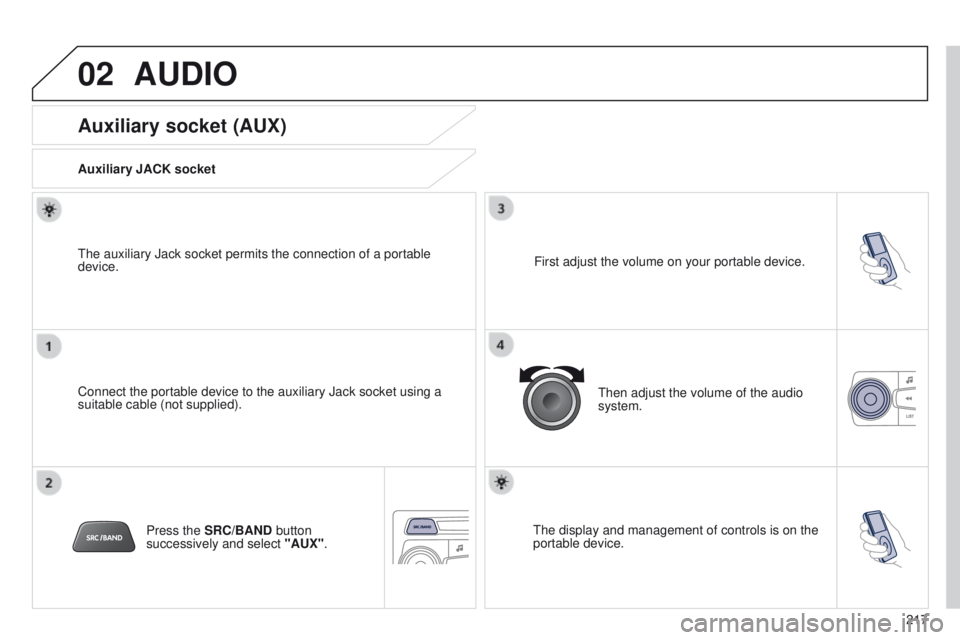

Auxiliary socket (AUX)
Auxiliary JACK socket
Connect the portable device to the auxiliary Jack socket using a
suitable cable (not supplied). The auxiliary Jack socket permits the connection of a portable
device.Press the SRC/BAND button
successively and select "AUX". First adjust the volume on your portable device.
Then adjust the volume of the audio
system.
The display and management of controls is on the
portable device.

02
218
301_en_Chap12b_RDE1_ed01-2014
AUDIO

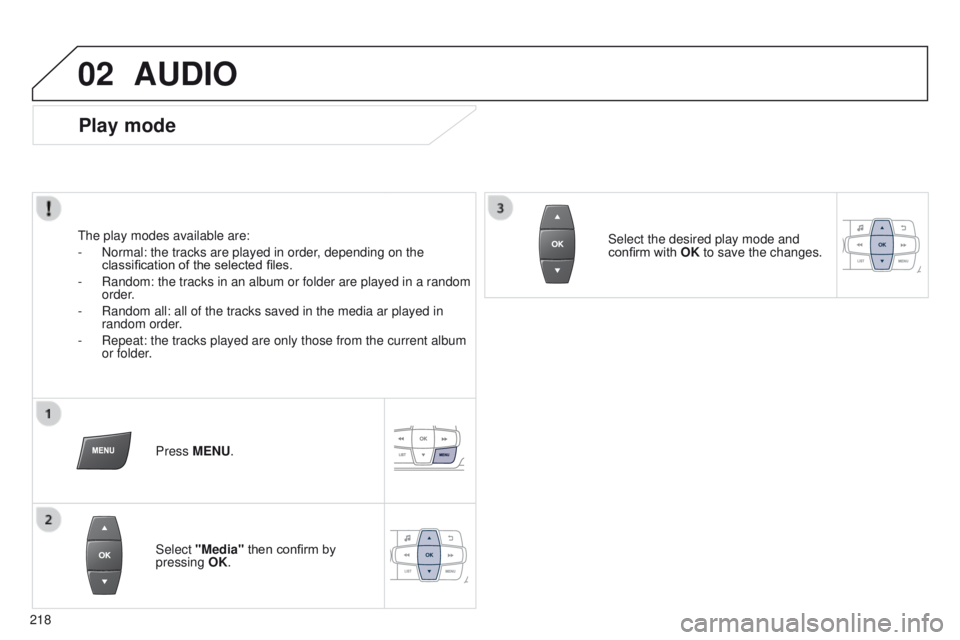

Play mode
The play modes available are:
-
Normal: the tracks are played in order
, depending on the
classification of the selected files.
-

Random: the tracks in an album or folder are played in a random
order

.
-

Random all: all of the tracks saved in the media ar played in
random order

.
-

Repeat: the tracks played are only those from the current album
or folder

.Press MENU.
Select "Media" then confirm by
pressing OK. Select the desired play mode and
confirm with OK to save the changes.

03
219
301_en_Chap12b_RDE1_ed01-2014
Press ¯ to display the audio settings
menu.
The settings available are:
-

AMBIANCE,
-

BASS,
-

TREBLE,
-

LOUDNESS,
-

BALANCE (L/R),
-


AUT

O VOLUME. The AMBIANCE, TREBLE and BASS
settings are different and
independent for each sound source.
Select the settings to adjust. Adjust the setting then confirm by
pressing
OK.
AUDIO SETTINGS

04
220
301_en_Chap12b_RDE1_ed01-2014
Radio
MENU
Traffic
RDS
TEXT INFO
Media
Play
Normal
Random
Displaying
SCROLLING
1
2
2
2
1
2
3
3
1
2
Random all
Repeat3
3
Unit
Celsius
Fahrenheit
1
2
2
SCREEN MENU MAP(S)
TEXT INFO2
Language1
MAIN FUNCTION
Option A1
Option A11
Option A
Option B...1
2
3
1

221
301_en_Chap12b_RDE1_ed01-2014
FREqUENTLY ASKED q UESTIONS
qUESTION ANSWER SOLUTION
There is a dif ference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambiance, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambiance, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Fader, Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambiance
setting is deselected.
When changing the
ambiance setting, treble
and bass are reset to
zero. Choosing an ambiance imposes settings for treble and bass. Modifying
one without the other is not possible.
Modify the treble and bass settings or the
ambiance setting to obtain the desired sound
quality.
The following tables contain answers to the most frequently asked questi\
ons.

222
301_en_Chap12b_RDE1_ed01-2014
FREqUENTLY ASKED q UESTIONS
qUESTION ANSWER SOLUTION
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5
MHz is
displayed...). The vehicle is too far from the transmitter used by the station listened\

to or there is no transmitter in the geographical area through which the\

vehicle is travelling.
Switch on the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Switch off the RDS function if the phenomenon is
too frequent and always on the same route.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station does not broadcast traffic information.
Tune to a radio station which broadcasts traffic
information.
The stored stations are
not found (no sound,
87.5

MHz is displayed...). An incorrect waveband is selected.
Press the SRC button to return to the waveband
(AM, FM1, FM2) on which the stations are stored.
