2015 Peugeot 301 Owner's Manual

159
301_en_Chap09_info-pratiques_ed01-2014
MatsRemovable carpet protection.
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
FittingRemovalRefitting
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of
the cruise control
/ speed limiter.
To remove the mat on the driver's side:
F

m

ove the seat as far back as possible,
F

un

clip the fixings,
F

r

emove the mat.
To refit the mat on the driver's side:
F

p

osition the mat correctly,
F

r

efit the fixings by pressing,
F

c

heck that the mat is secured correctly.
9
Practical information

160
301_en_Chap09_info-pratiques_ed01-2014
Roof bars
For safety reasons and to avoid damaging the
roof, it is essential to use the transverse bars
listed for your vehicle.When fitting roof bars, use only the four fixing
points located in the roof frame. The points are
masked by the vehicle doors when closed.
The roof bar fixings include a stud to be fitted to
the hole at each fixing point.
Observe the fitting instructions and the
conditions of use in the guide supplied with
the
bars.Maximum authorised weight on the roof
bars: 75
kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
Practical information

161
301_en_Chap10_verifications_ed01-2014
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
B

ETTER

PERFORMANCE
!
Innovation, the key to success
The TOTAL Research and Development and
PEUGEOT teams work together to develop high
quality lubricants that meet the requirements
of PEUGEOT vehicles. For you, this is the
assurance that the performance of your engine
is optimised while also ensuring its durability.
The 208 HYbrid FE demonstrates the ability of
PEUGEOT and TOTAL to develop innovative
technologies and provide other ways of moving
towards the future.
208 HYbrid FE, a technology demonstrator with exceptional characteristics:
1.9 l/100 km (148.7 mpg) and 0 to 100 km/h (0 to 62 mph) in 8 seconds.
Reduced exhaust emissions,
a true reality
TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is important
to observe the servicing recommendations
made by PEUGEOT to assure correct operation.
RECOMMENDS
10
Checks

162
301_en_Chap10_verifications_ed01-2014

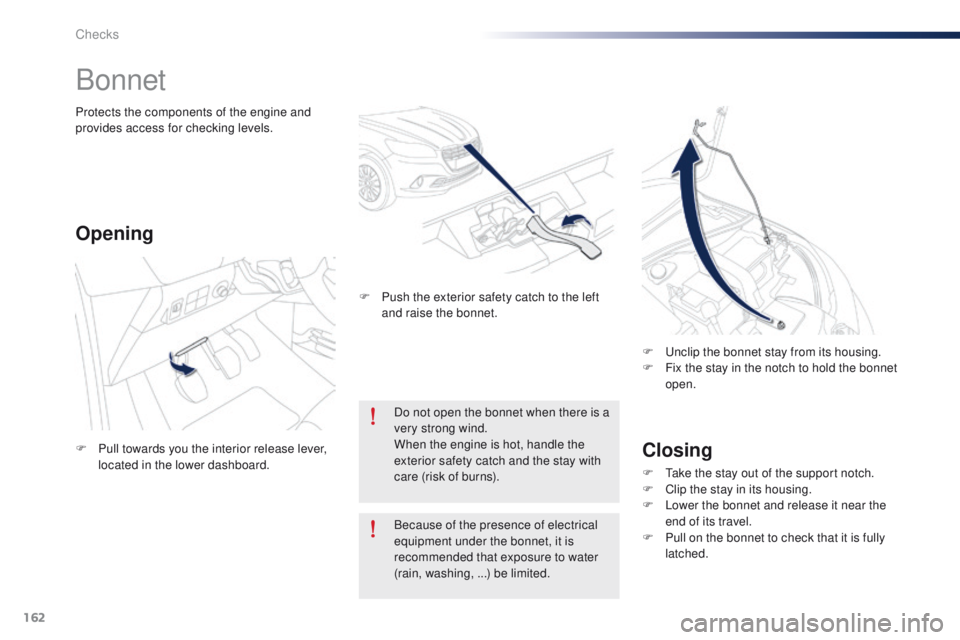

Bonnet
Closing
F Take the stay out of the support notch.
F C lip the stay in its housing.
F

L
ower the bonnet and release it near the
end of its travel.
F

P
ull on the bonnet to check that it is fully
latched.
F

U
nclip the bonnet stay from its housing.
F
F
ix the stay in the notch to hold the bonnet
open.
Do not open the bonnet when there is a
very strong wind.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns).
Opening
F Push the exterior safety catch to the left and raise the bonnet.
F

P

ull towards you the interior release lever,
located in the lower dashboard.
Protects the components of the engine and
provides access for checking levels.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.
Checks

163
301_en_Chap10_verifications_ed01-2014
Petrol engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3.
A

i r f i l t e r.
4.
B

rake fluid reservoir.
5.


Battery.
6.


Fusebox.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
To avoid damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
10
Checks

164
301_en_Chap10_verifications_ed01-2014
To avoid damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
Diesel engine
1. Screenwash fluid reservoir.
2. Coolant header tank.
3.
A

i r f i l t e r.
4.
B

rake fluid reservoir.
5.


Battery.
6.


Fusebox.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
9.
P

riming pump.
Checks

165
301_en_Chap10_verifications_ed01-2014

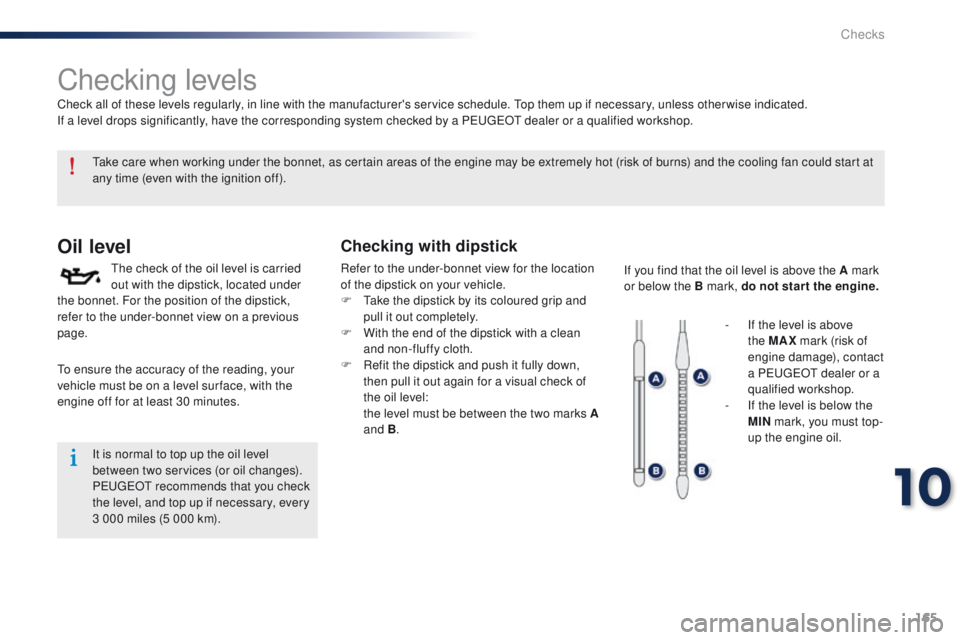

Checking levels
Oil level
The check of the oil level is carried
out with the dipstick, located under
the bonnet. For the position of the dipstick,
refer to the under-bonnet view on a previous
page.
Checking with dipstick
Refer to the under-bonnet view for the location
of the dipstick on your vehicle.
F

T
ake the dipstick by its coloured grip and
pull it out completely.
F

W
ith the end of the dipstick with a clean
and non-fluffy cloth.
F

R
efit the dipstick and push it fully down,
then pull it out again for a visual check of
the oil level:
the level must be between the two marks
A
and B . If you find that the oil level is above the A mark
or below the B mark, do not star t the engine.
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
It is normal to top up the oil level
between two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 km).
To ensure the accuracy of the reading, your
vehicle must be on a level sur face, with the
engine off for at least 30 minutes.
-

I
f the level is above
the MAX mark (risk of
engine damage), contact
a PEUGEOT dealer or a
qualified workshop.
-

I
f the level is below the
MIN mark, you must top-
up the engine oil.
10
Checks

166
301_en_Chap10_verifications_ed01-2014
Topping-up the engine oil
Oil grade
The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.
Refer to the under-bonnet view for the location
of the oil filler cap on your vehicle.
F
U
nscrew the filler cap for access to the
filler orifice.
F

P
our in the oil in small quantities, avoiding
spills onto the engine (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

T
op-up again if necessary.
F

A
fter checking and topping up, carefully
refit the oil filler cap and the dipstick to its
housing.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emissions control system, never use
additives in the engine oil.
