2015 NISSAN LEAF navigation system


> (GLW    0RGHO 1DYL(9 @
LNE0135X

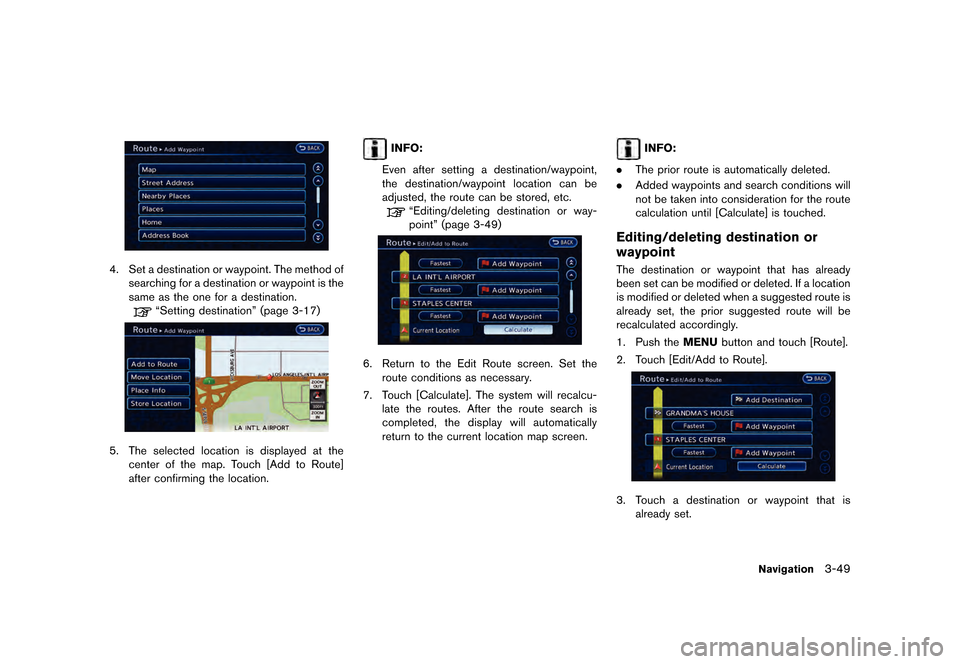

4. Set a destination or waypoint. The method ofsearching for a destination or waypoint is the
same as the one for a destination.
ªSetting destinationº (page 3-17)
LNE0136X
5. The selected location is displayed at thecenter of the map. Touch [Add to Route]
after confirming the location.
INFO:
Even after setting a destination/waypoint,
the destination/waypoint location can be
adjusted, the route can be stored, etc.
ªEditing/deleting destination or way-
pointº (page 3-49)
LNE0137X
6. Return to the Edit Route screen. Set the route conditions as necessary.
7. Touch [Calculate]. The system will recalcu- late the routes. After the route search is
completed, the display will automatically
return to the current location map screen.
INFO:
. The prior route is automatically deleted.
. Added waypoints and search conditions will
not be taken into consideration for the route
calculation until [Calculate] is touched.
Editing/deleting destination or
waypoint
GUID-CD749FF6-3A0C-4C28-9B11-71083532CB3DThe destination or waypoint that has already
been set can be modified or deleted. If a location
is modified or deleted when a suggested route is
already set, the prior suggested route will be
recalculated accordingly.
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
LNE0138X
3. Touch a destination or waypoint that is
already set.
Navigation3-49
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-50Navigation
LNE0139X

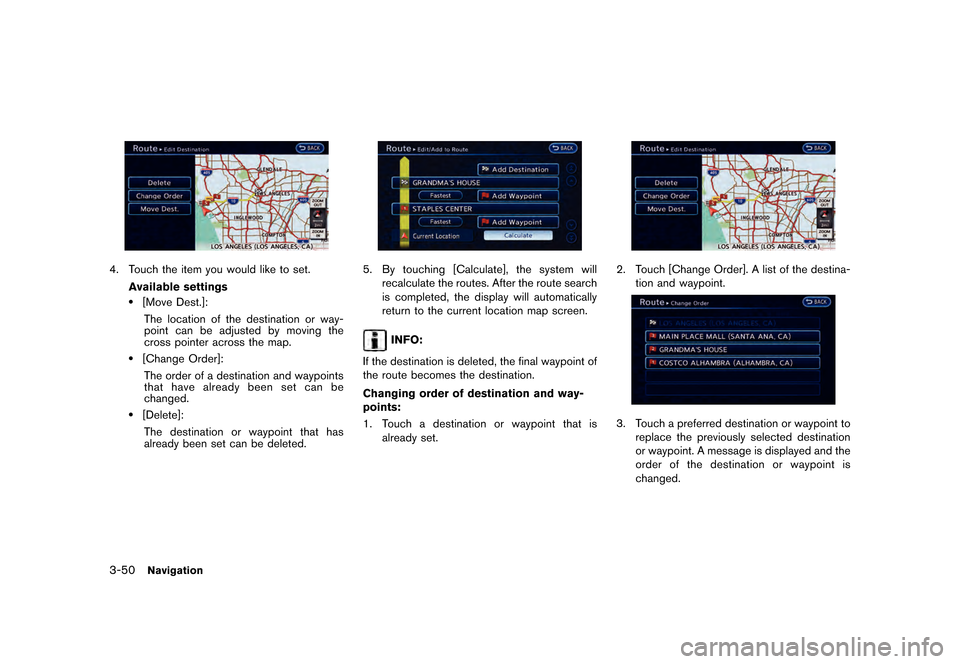

4. Touch the item you would like to set.Available settings
.[Move Dest.]:The location of the destination or way-
point can be adjusted by moving the
cross pointer across the map.
.[Change Order]:The order of a destination and waypoints
that have already been set can be
changed.
.[Delete]:The destination or waypoint that has
already been set can be deleted.
LNE0140X
5. By touching [Calculate], the system will
recalculate the routes. After the route search
is completed, the display will automatically
return to the current location map screen.
INFO:
If the destination is deleted, the final waypoint of
the route becomes the destination.
Changing order of destination and way-
points:
1. Touch a destination or waypoint that is
already set.
LNE0139X
2. Touch [Change Order]. A list of the destina-
tion and waypoint.
LNE0347X
3. Touch a preferred destination or waypoint toreplace the previously selected destination
or waypoint. A message is displayed and the
order of the destination or waypoint is
changed.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNE0349X
4.By touching [Calculate], the system will
recalculate the routes. After the route search
is completed, the display will automatically
return to the current location map screen.

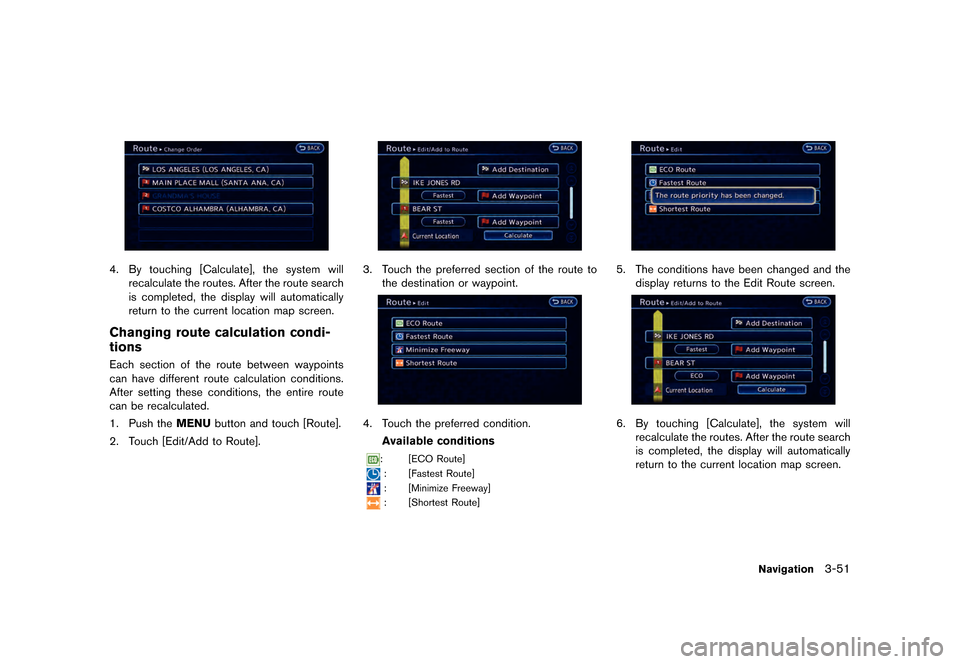

Changing route calculation condi-
tions
GUID-2CFF4089-B7EE-40B4-A210-DBBEF76EF02BEach section of the route between waypoints
can have different route calculation conditions.
After setting these conditions, the entire route
can be recalculated.
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
LNE0907X
3. Touch the preferred section of the route to the destination or waypoint.
LNE0908X
4. Touch the preferred condition.
Available conditions
: [ECO Route]
: [Fastest Route]
: [Minimize Freeway]
: [Shortest Route]
LNE0909X
5. The conditions have been changed and thedisplay returns to the Edit Route screen.
LNE0910X
6.By touching [Calculate], the system will
recalculate the routes. After the route search
is completed, the display will automatically
return to the current location map screen.
Navigation3-51
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-52Navigation
INFO:
. The recalculated route may not be the
shortest route because the system priori-
tizes roads that are easy to drive on for
safety reasons.
. If the route conditions are set from [Route
Settings], all sections in the route are
subject to the same route conditions. This
applies even if different route conditions
have been set for different sections in [Edit/
Add to Route].

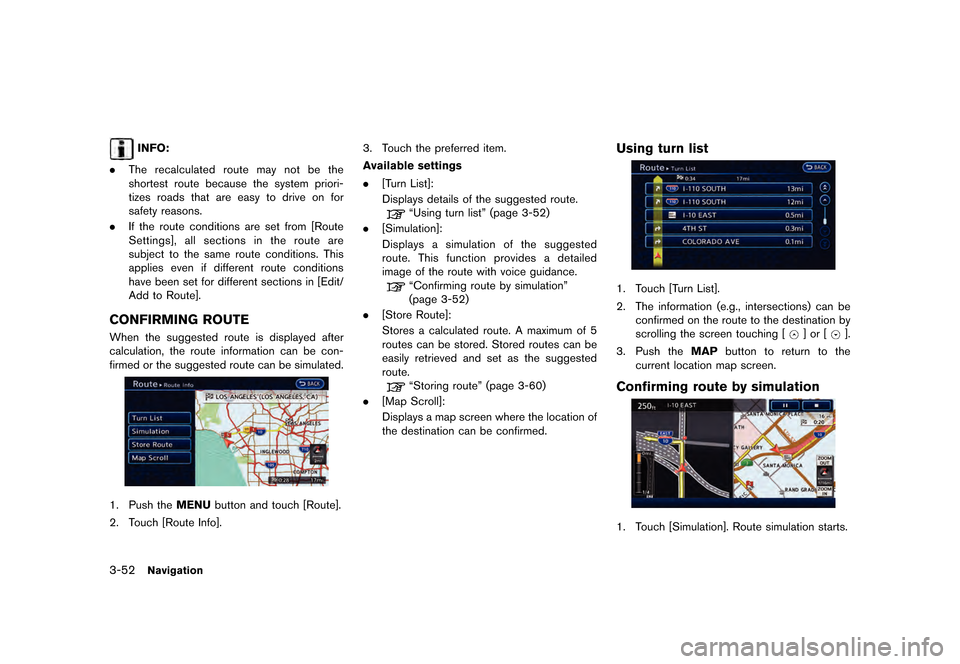

CONFIRMING ROUTEGUID-8380AE42-38D8-42D3-97CA-30057A7ADCE9When the suggested route is displayed after
calculation, the route information can be con-
firmed or the suggested route can be simulated.
LNE0145X
1. Push the MENUbutton and touch [Route].
2. Touch [Route Info]. 3. Touch the preferred item.
Available settings
.
[Turn List]:
Displays details of the suggested route.
ªUsing turn listº (page 3-52)
. [Simulation]:
Displays a simulation of the suggested
route. This function provides a detailed
image of the route with voice guidance.
ªConfirming route by simulationº
(page 3-52)
. [Store Route]:
Stores a calculated route. A maximum of 5
routes can be stored. Stored routes can be
easily retrieved and set as the suggested
route.
ªStoring routeº (page 3-60)
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
Using turn listGUID-2C53AF7F-F745-4271-9D64-1569FF4BD698
LNE0146X
1. Touch [Turn List].
2. The information (e.g., intersections) can be
confirmed on the route to the destination by
scrolling the screen touching [
] or [].
3. Push the MAPbutton to return to the
current location map screen.
Confirming route by simulationGUID-CEB3C1D4-E5CE-4780-89A4-E951C4C77B5C
LNE0147X
1. Touch [Simulation]. Route simulation starts.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-54Navigation
INFO:
. When a waypoint has been set on the route,
the system will search for only one route,
even if route recalculation is performed.
. When the vehicle deviates from the sug-
gested route, the route from the current
location to the destination is automatically
searched again.
ªDetailed route settingsº (page 3-56)

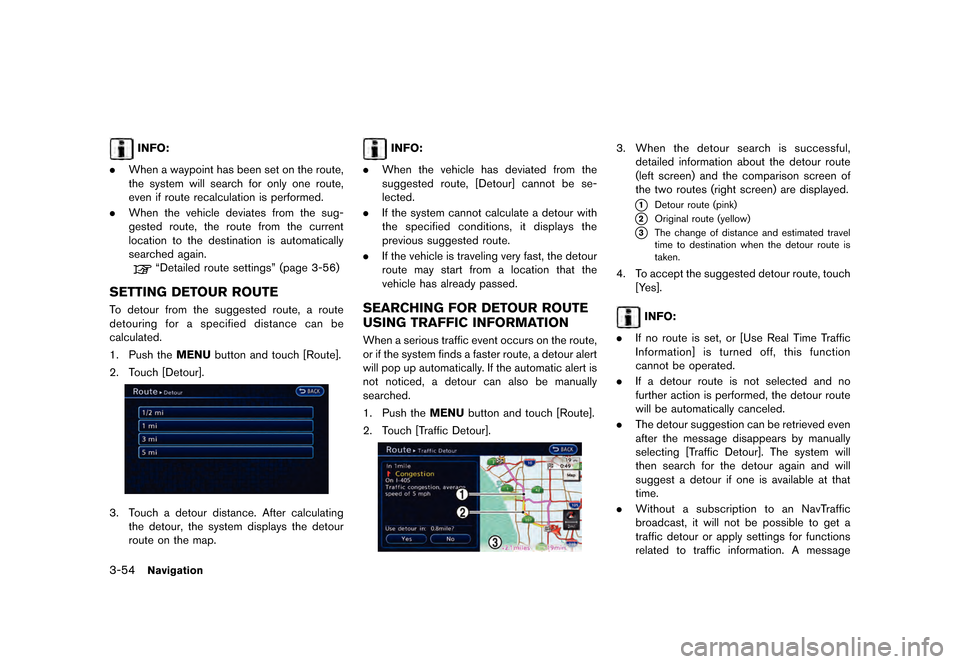

SETTING DETOUR ROUTEGUID-69587962-3FE9-4EAB-B845-77B0F01E889CTo detour from the suggested route, a route
detouring for a specified distance can be
calculated.
1. Push the MENUbutton and touch [Route].
2. Touch [Detour].
LNE0154X
3. Touch a detour distance. After calculating the detour, the system displays the detour
route on the map.
INFO:
. When the vehicle has deviated from the
suggested route, [Detour] cannot be se-
lected.
. If the system cannot calculate a detour with
the specified conditions, it displays the
previous suggested route.
. If the vehicle is traveling very fast, the detour
route may start from a location that the
vehicle has already passed.
SEARCHING FOR DETOUR ROUTE
USING TRAFFIC INFORMATION
GUID-0A49E97D-AC1D-49EB-B83A-39F16B0B4406When a serious traffic event occurs on the route,
or if the system finds a faster route, a detour alert
will pop up automatically. If the automatic alert is
not noticed, a detour can also be manually
searched.
1. Push the MENUbutton and touch [Route].
2. Touch [Traffic Detour].
LNE0155X
3. When the detour search is successful,
detailed information about the detour route
(left screen) and the comparison screen of
the two routes (right screen) are displayed.
*1Detour route (pink)
*2Original route (yellow)
*3The change of distance and estimated travel
time to destination when the detour route is
taken.
4. To accept the suggested detour route, touch
[Yes].
INFO:
. If no route is set, or [Use Real Time Traffic
Information] is turned off, this function
cannot be operated.
. If a detour route is not selected and no
further action is performed, the detour route
will be automatically canceled.
. The detour suggestion can be retrieved even
after the message disappears by manually
selecting [Traffic Detour]. The system will
then search for the detour again and will
suggest a detour if one is available at that
time.
. Without a subscription to an NavTraffic
broadcast, it will not be possible to get a
traffic detour or apply settings for functions
related to traffic information. A message
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
appears when a related menu item is
selected.
ªNotes on Nav Traffic informationº
(page 10-38)

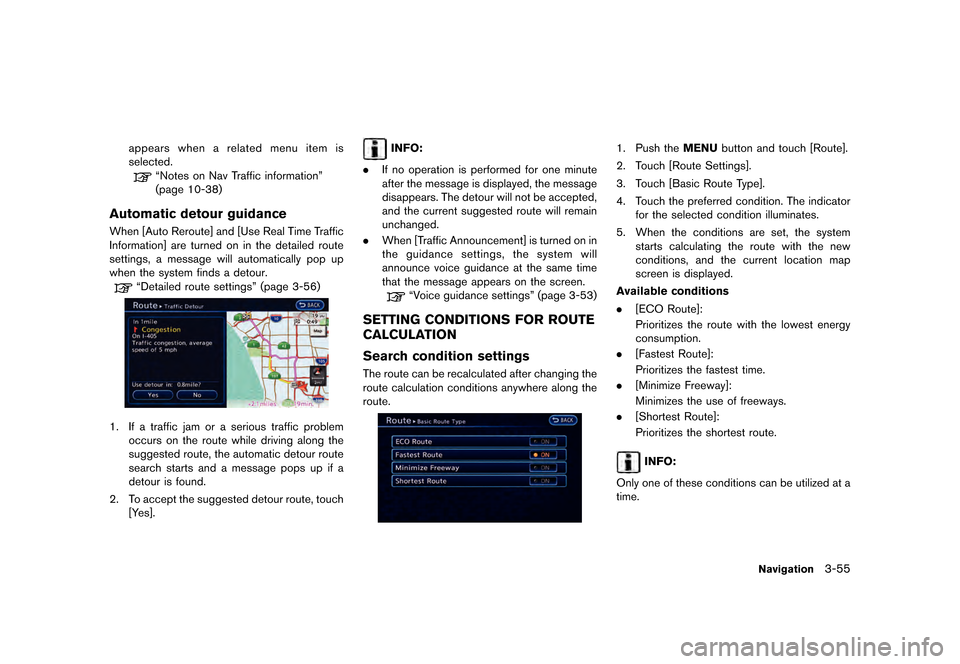

Automatic detour guidanceGUID-854F6AA1-84E5-4CCD-AD90-94804E5267B5When [Auto Reroute] and [Use Real Time Traffic
Information] are turned on in the detailed route
settings, a message will automatically pop up
when the system finds a detour.
ªDetailed route settingsº (page 3-56)
LNE0156X
1. If a traffic jam or a serious traffic problemoccurs on the route while driving along the
suggested route, the automatic detour route
search starts and a message pops up if a
detour is found.
2. To accept the suggested detour route, touch [Yes].
INFO:
. If no operation is performed for one minute
after the message is displayed, the message
disappears. The detour will not be accepted,
and the current suggested route will remain
unchanged.
. When [Traffic Announcement] is turned on in
the guidance settings, the system will
announce voice guidance at the same time
that the message appears on the screen.
ªVoice guidance settingsº (page 3-53)
SETTING CONDITIONS FOR ROUTE
CALCULATION
GUID-EC0E25BE-AFAB-4DA5-8CA3-803C4E2B9B28
Search condition settingsGUID-825FF3A0-E936-4F64-AEE0-DF31FE64F223The route can be recalculated after changing the
route calculation conditions anywhere along the
route.
LNE0911X
1. Push the MENUbutton and touch [Route].
2. Touch [Route Settings].
3. Touch [Basic Route Type].
4. Touch the preferred condition. The indicator for the selected condition illuminates.
5. When the conditions are set, the system starts calculating the route with the new
conditions, and the current location map
screen is displayed.
Available conditions
. [ECO Route]:
Prioritizes the route with the lowest energy
consumption.
. [Fastest Route]:
Prioritizes the fastest time.
. [Minimize Freeway]:
Minimizes the use of freeways.
. [Shortest Route]:
Prioritizes the shortest route.
INFO:
Only one of these conditions can be utilized at a
time.
Navigation3-55
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-56Navigation

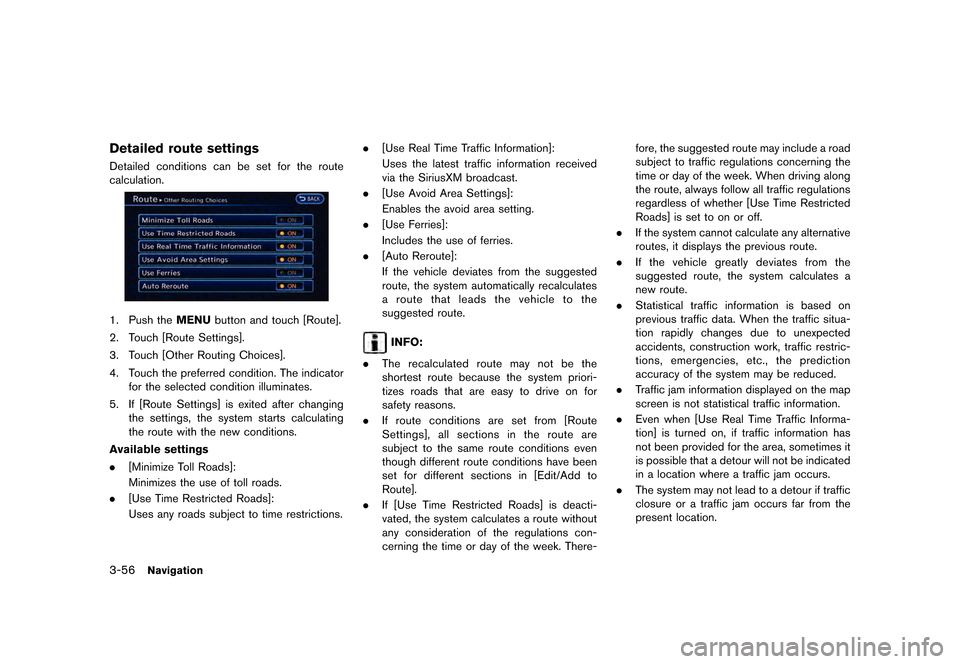

Detailed route settingsGUID-7BFCF6AB-A2AC-4153-8FB6-ED6583B12AE7Detailed conditions can be set for the route
calculation.
LNE0158X
1. Push theMENUbutton and touch [Route].
2. Touch [Route Settings].
3. Touch [Other Routing Choices].
4. Touch the preferred condition. The indicator for the selected condition illuminates.
5. If [Route Settings] is exited after changing the settings, the system starts calculating
the route with the new conditions.
Available settings
. [Minimize Toll Roads]:
Minimizes the use of toll roads.
. [Use Time Restricted Roads]:
Uses any roads subject to time restrictions. .
[Use Real Time Traffic Information]:
Uses the latest traffic information received
via the SiriusXM broadcast.
. [Use Avoid Area Settings]:
Enables the avoid area setting.
. [Use Ferries]:
Includes the use of ferries.
. [Auto Reroute]:
If the vehicle deviates from the suggested
route, the system automatically recalculates
a route that leads the vehicle to the
suggested route.
INFO:
. The recalculated route may not be the
shortest route because the system priori-
tizes roads that are easy to drive on for
safety reasons.
. If route conditions are set from [Route
Settings], all sections in the route are
subject to the same route conditions even
though different route conditions have been
set for different sections in [Edit/Add to
Route].
. If [Use Time Restricted Roads] is deacti-
vated, the system calculates a route without
any consideration of the regulations con-
cerning the time or day of the week. There- fore, the suggested route may include a road
subject to traffic regulations concerning the
time or day of the week. When driving along
the route, always follow all traffic regulations
regardless of whether [Use Time Restricted
Roads] is set to on or off.
. If the system cannot calculate any alternative
routes, it displays the previous route.
. If the vehicle greatly deviates from the
suggested route, the system calculates a
new route.
. Statistical traffic information is based on
previous traffic data. When the traffic situa-
tion rapidly changes due to unexpected
accidents, construction work, traffic restric-
tions, emergencies, etc., the prediction
accuracy of the system may be reduced.
. Traffic jam information displayed on the map
screen is not statistical traffic information.
. Even when [Use Real Time Traffic Informa-
tion] is turned on, if traffic information has
not been provided for the area, sometimes it
is possible that a detour will not be indicated
in a location where a traffic jam occurs.
. The system may not lead to a detour if traffic
closure or a traffic jam occurs far from the
present location.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
.The system calculates to reduce the time
required for the entire route from the start to
the destination. If there are no appropriate
routes, the system may lead to a route where
a traffic jam occurs instead of leading to a
detour.

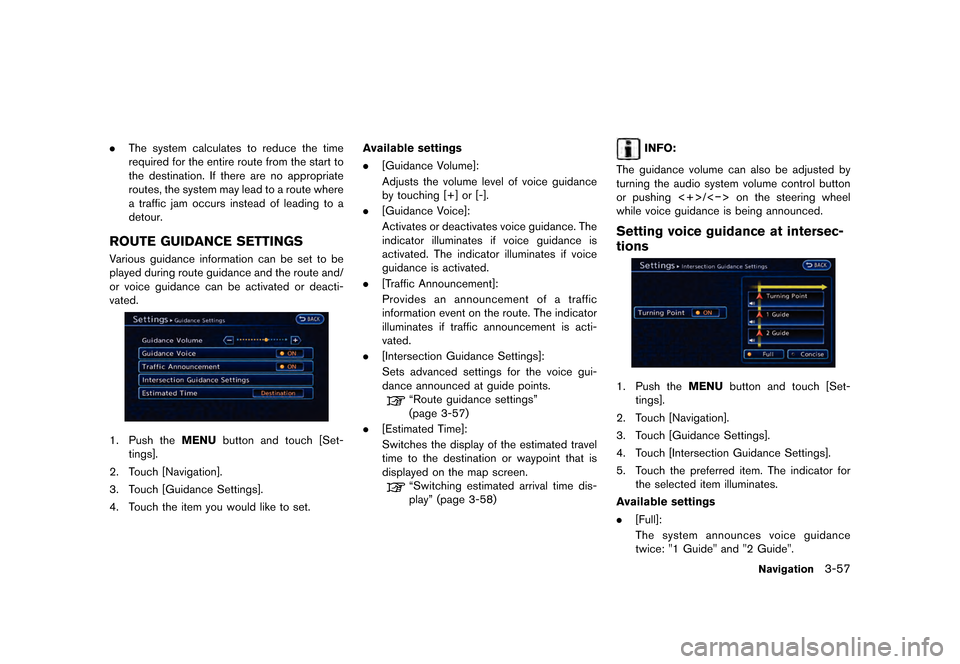

ROUTE GUIDANCE SETTINGSGUID-B305A766-8852-4620-9FC5-A9AFBECB3ECDVarious guidance information can be set to be
played during route guidance and the route and/
or voice guidance can be activated or deacti-
vated.
LNE0159X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Guidance Settings].
4. Touch the item you would like to set. Available settings
.
[Guidance Volume]:
Adjusts the volume level of voice guidance
by touching [+] or [-].
. [Guidance Voice]:
Activates or deactivates voice guidance. The
indicator illuminates if voice guidance is
activated. The indicator illuminates if voice
guidance is activated.
. [Traffic Announcement]:
Provides an announcement of a traffic
information event on the route. The indicator
illuminates if traffic announcement is acti-
vated.
. [Intersection Guidance Settings]:
Sets advanced settings for the voice gui-
dance announced at guide points.
ªRoute guidance settingsº
(page 3-57)
. [Estimated Time]:
Switches the display of the estimated travel
time to the destination or waypoint that is
displayed on the map screen.
ªSwitching estimated arrival time dis-
playº (page 3-58)
INFO:
The guidance volume can also be adjusted by
turning the audio system volume control button
or pushing <+>/<
