2015 NISSAN LEAF navigation system


> (GLW    0RGHO 1DYL(9 @

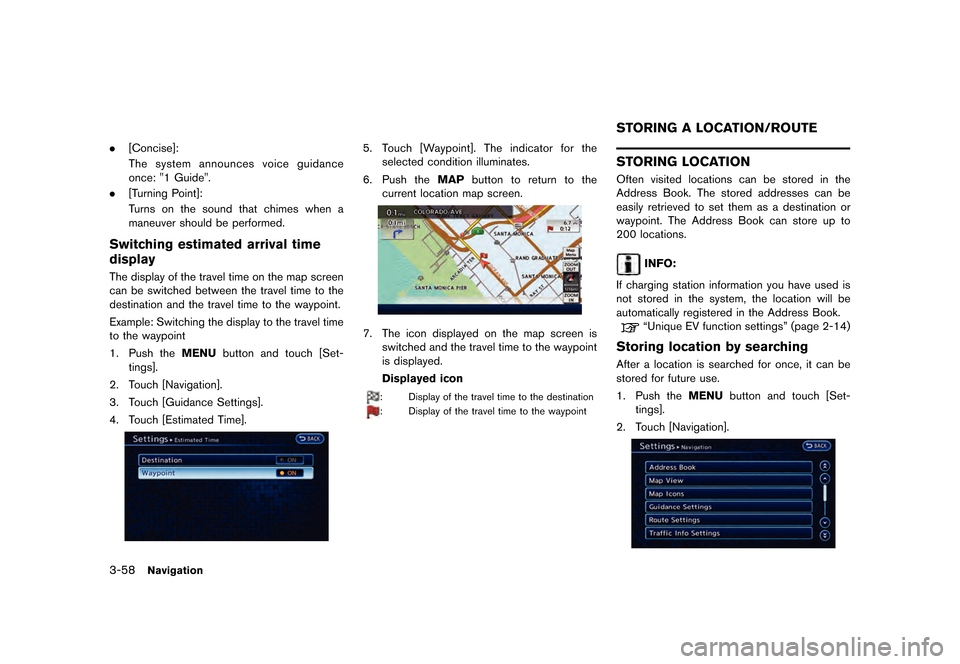

3-58Navigation
.[Concise]:
The system announces voice guidance
once: "1 Guide".
. [Turning Point]:
Turns on the sound that chimes when a
maneuver should be performed.
Switching estimated arrival time
display
GUID-BBA50524-9E39-4B45-91CA-5DC29C4F3FA1The display of the travel time on the map screen
can be switched between the travel time to the
destination and the travel time to the waypoint.
Example: Switching the display to the travel time
to the waypoint
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Guidance Settings].
4. Touch [Estimated Time].
LNE0161X
5. Touch [Waypoint]. The indicator for the
selected condition illuminates.
6. Push the MAPbutton to return to the
current location map screen.
LNE0162X
7. The icon displayed on the map screen is switched and the travel time to the waypoint
is displayed.
Displayed icon
: Display of the travel time to the destination
: Display of the travel time to the waypoint
GUID-D56E2757-E480-448D-84DE-0D0260214C62
STORING LOCATIONGUID-544965B9-F333-49EA-BE90-4D6BE51EE5F0Often visited locations can be stored in the
Address Book. The stored addresses can be
easily retrieved to set them as a destination or
waypoint. The Address Book can store up to
200 locations.
INFO:
If charging station information you have used is
not stored in the system, the location will be
automatically registered in the Address Book.
ªUnique EV function settingsº (page 2-14)
Storing location by searchingGUID-6B0517E8-1830-49EB-812C-0BAA64EC0CEAAfter a location is searched for once, it can be
stored for future use.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNE0163X
STORING A LOCATION/ROUTE
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

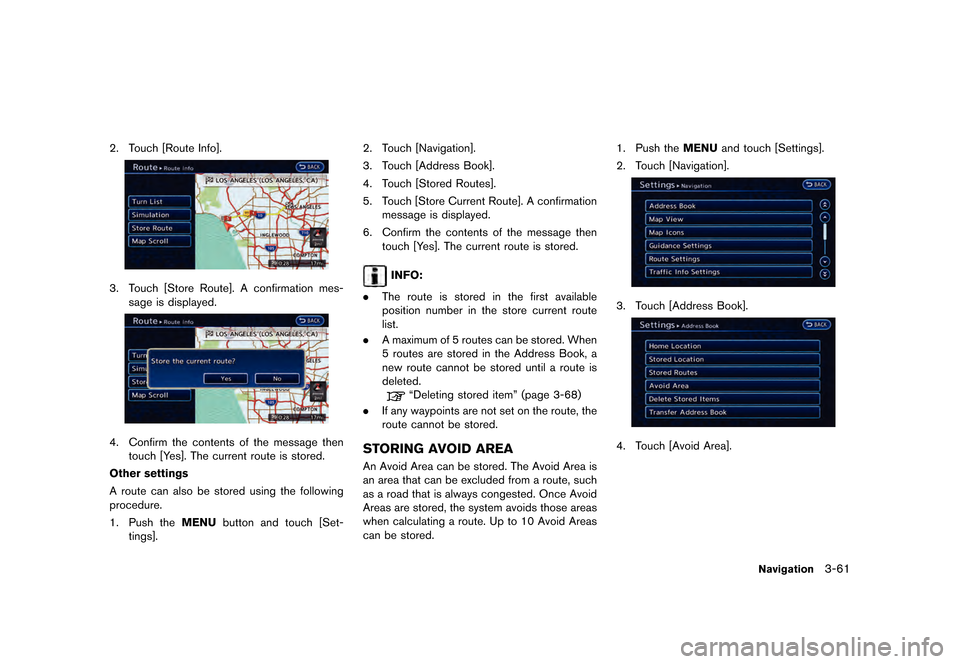

2. Touch [Route Info].
LNE0176X
3. Touch [Store Route]. A confirmation mes-sage is displayed.
LNE0177X
4. Confirm the contents of the message thentouch [Yes]. The current route is stored.
Other settings
A route can also be stored using the following
procedure.
1. Push the MENUbutton and touch [Set-
tings]. 2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Stored Routes].
5. Touch [Store Current Route]. A confirmation
message is displayed.
6. Confirm the contents of the message then touch [Yes]. The current route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
ªDeleting stored itemº (page 3-68)
. If any waypoints are not set on the route, the
route cannot be stored.
STORING AVOID AREAGUID-495A7589-BA25-41EF-82F6-33DEBDE7742EAn Avoid Area can be stored. The Avoid Area is
an area that can be excluded from a route, such
as a road that is always congested. Once Avoid
Areas are stored, the system avoids those areas
when calculating a route. Up to 10 Avoid Areas
can be stored. 1. Push the
MENUand touch [Settings].
2. Touch [Navigation].
LNE0178X
3. Touch [Address Book].
LNE0179X
4. Touch [Avoid Area].
Navigation3-61
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

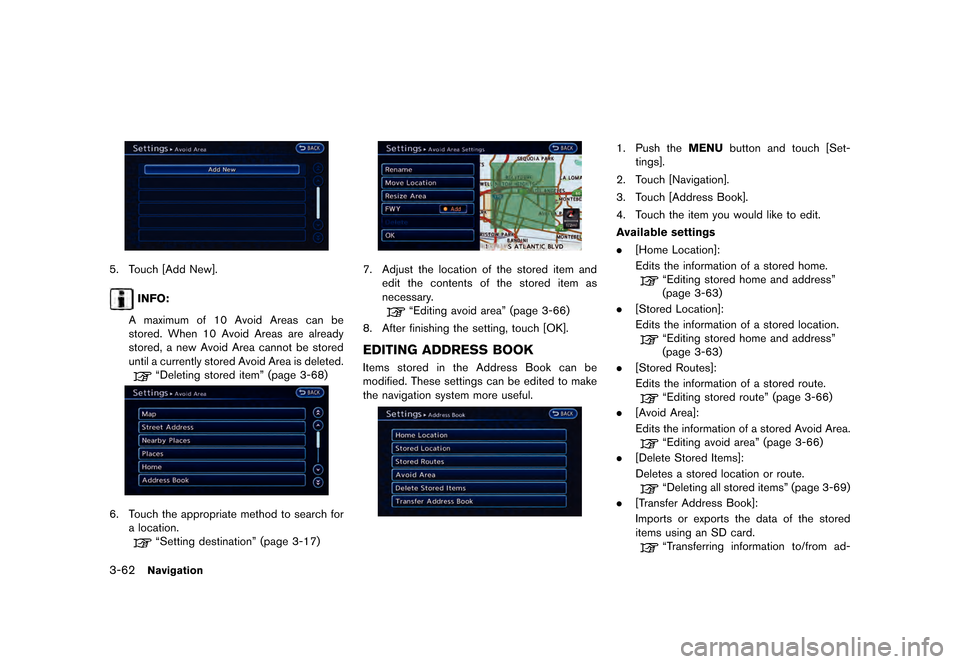

3-62Navigation
LNE0180X
5. Touch [Add New].
INFO:
A maximum of 10 Avoid Areas can be
stored. When 10 Avoid Areas are already
stored, a new Avoid Area cannot be stored
until a currently stored Avoid Area is deleted.
ªDeleting stored itemº (page 3-68)
LNE0181X
6. Touch the appropriate method to search for a location.
ªSetting destinationº (page 3-17)
LNE0182X
7. Adjust the location of the stored item andedit the contents of the stored item as
necessary.
ªEditing avoid areaº (page 3-66)
8. After finishing the setting, touch [OK].
EDITING ADDRESS BOOKGUID-39CF1CB1-4830-4B51-BE7E-70154B58A89CItems stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
LNE0183X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch the item you would like to edit.
Available settings
. [Home Location]:
Edits the information of a stored home.
ªEditing stored home and addressº
(page 3-63)
. [Stored Location]:
Edits the information of a stored location.
ªEditing stored home and addressº
(page 3-63)
. [Stored Routes]:
Edits the information of a stored route.
ªEditing stored routeº (page 3-66)
. [Avoid Area]:
Edits the information of a stored Avoid Area.
ªEditing avoid areaº (page 3-66)
. [Delete Stored Items]:
Deletes a stored location or route.
ªDeleting all stored itemsº (page 3-69)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using an SD card.
ªTransferring information to/from ad-
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

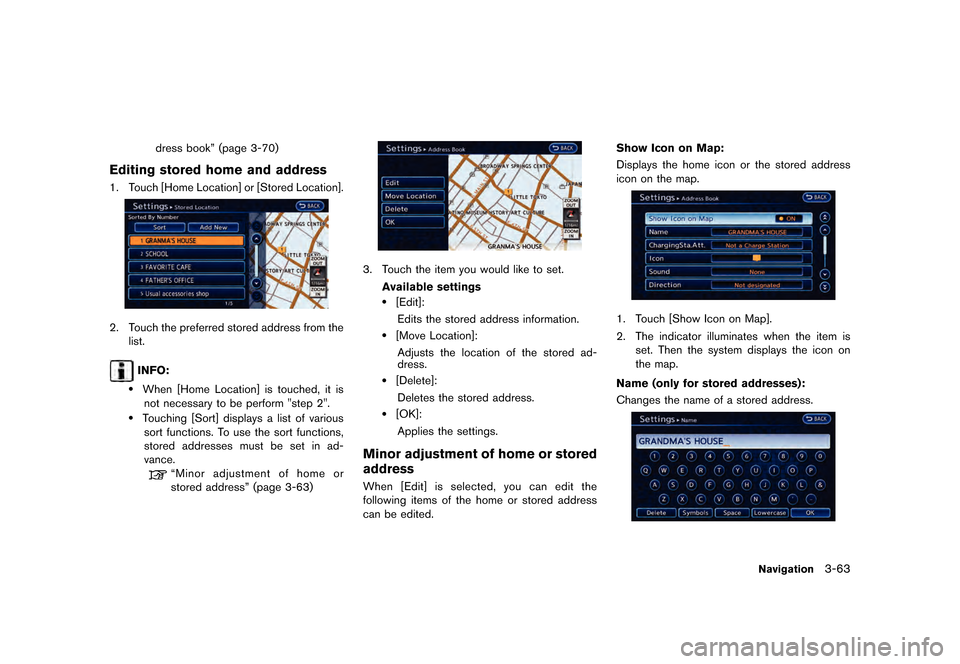

dress bookº (page 3-70)
Editing stored home and addressGUID-D9E4FAC6-0EAD-4C1E-9D3C-A1EBC19926E11. Touch [Home Location] or [Stored Location].
LNE0184X
2. Touch the preferred stored address from thelist.
INFO:
.When [Home Location] is touched, it isnot necessary to be perform "step 2".
.Touching [Sort] displays a list of various
sort functions. To use the sort functions,
stored addresses must be set in ad-
vance.
ªMinor adjustment of home or
stored addressº (page 3-63)
LNE0185X
3. Touch the item you would like to set.
Available settings
.[Edit]:Edits the stored address information.
.[Move Location]:Adjusts the location of the stored ad-
dress.
.[Delete]:Deletes the stored address.
.[OK]:
Applies the settings.
Minor adjustment of home or stored
address
GUID-EFC94F68-9CBF-4857-9316-88B5EE1BD9F4When [Edit] is selected, you can edit the
following items of the home or stored address
can be edited. Show Icon on Map:
Displays the home icon or the stored address
icon on the map.
LNE0186X
1. Touch [Show Icon on Map].
2. The indicator illuminates when the item is
set. Then the system displays the icon on
the map.
Name (only for stored addresses):
Changes the name of a stored address.
LNE0187X
Navigation3-63
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

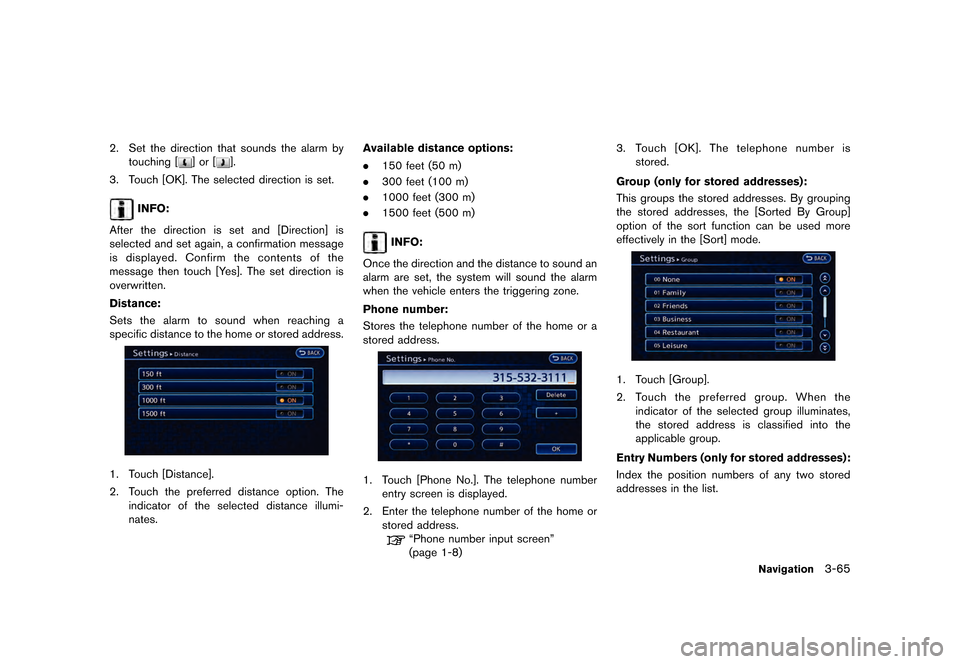

2. Set the direction that sounds the alarm bytouching [
] or [].
3. Touch [OK]. The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message then touch [Yes]. The set direction is
overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
LNE0192X
1. Touch [Distance].
2. Touch the preferred distance option. The indicator of the selected distance illumi-
nates. Available distance options:
.
150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored address.
LNE0193X
1. Touch [Phone No.]. The telephone number entry screen is displayed.
2. Enter the telephone number of the home or stored address.
ªPhone number input screenº
(page 1-8) 3.
Touch [OK]. The telephone number is
stored.
Group (only for stored addresses):
This groups the stored addresses. By grouping
the stored addresses, the [Sorted By Group]
option of the sort function can be used more
effectively in the [Sort] mode.
LNE0194X
1. Touch [Group].
2. Touch the preferred group. When the
indicator of the selected group illuminates,
the stored address is classified into the
applicable group.
Entry Numbers (only for stored addresses):
Index the position numbers of any two stored
addresses in the list.
Navigation3-65
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

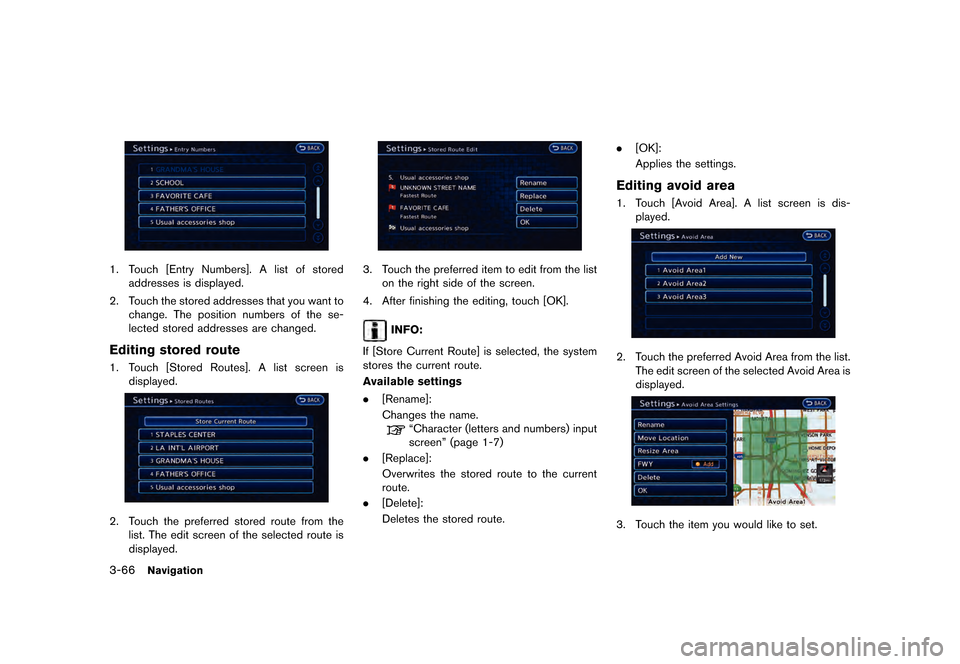

3-66Navigation
LNE0195X
1. Touch [Entry Numbers]. A list of storedaddresses is displayed.
2. Touch the stored addresses that you want to change. The position numbers of the se-
lected stored addresses are changed.
Editing stored routeGUID-FA819EB7-2462-4CCA-9FCA-6945BF4DA07F1.Touch [Stored Routes]. A list screen is
displayed.
LNE0196X
2. Touch the preferred stored route from the
list. The edit screen of the selected route is
displayed.
LNE0197X
3. Touch the preferred item to edit from the liston the right side of the screen.
4. After finishing the editing, touch [OK].
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available settings
. [Rename]:
Changes the name.
ªCharacter (letters and numbers) input
screenº (page 1-7)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route. .
[OK]:
Applies the settings.
Editing avoid areaGUID-7741D32C-748E-4BE2-9BE8-E72FF75E70C61. Touch [Avoid Area]. A list screen is dis-
played.
LNE0198X
2. Touch the preferred Avoid Area from the list.The edit screen of the selected Avoid Area is
displayed.
LNE0199X
3. Touch the item you would like to set.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

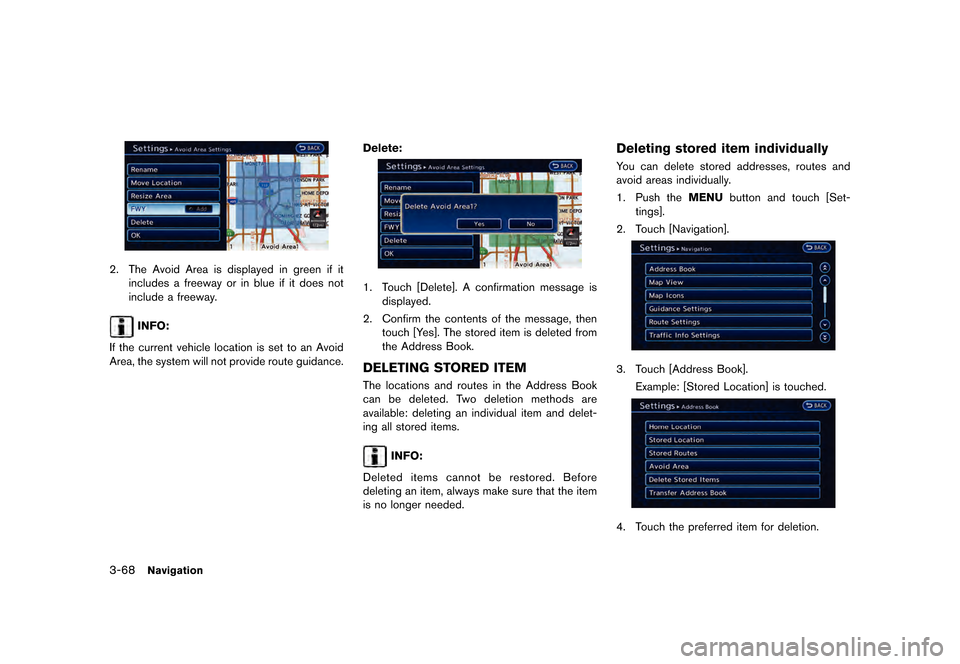

3-68Navigation
LNE0204X
2. The Avoid Area is displayed in green if itincludes a freeway or in blue if it does not
include a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance. Delete:
LNE0205X
1. Touch [Delete]. A confirmation message is
displayed.
2. Confirm the contents of the message, then touch [Yes]. The stored item is deleted from
the Address Book.
DELETING STORED ITEMGUID-A49F7444-AEBA-437D-B1BF-DA7457A3F577The locations and routes in the Address Book
can be deleted. Two deletion methods are
available: deleting an individual item and delet-
ing all stored items.
INFO:
Deleted items cannot be restored. Before
deleting an item, always make sure that the item
is no longer needed.
Deleting stored item individuallyGUID-B68C2A81-E5C0-4DB2-A740-FC904C09AB2AYou can delete stored addresses, routes and
avoid areas individually.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNE0206X
3. Touch [Address Book]. Example: [Stored Location] is touched.
LNE0207X
4. Touch the preferred item for deletion.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

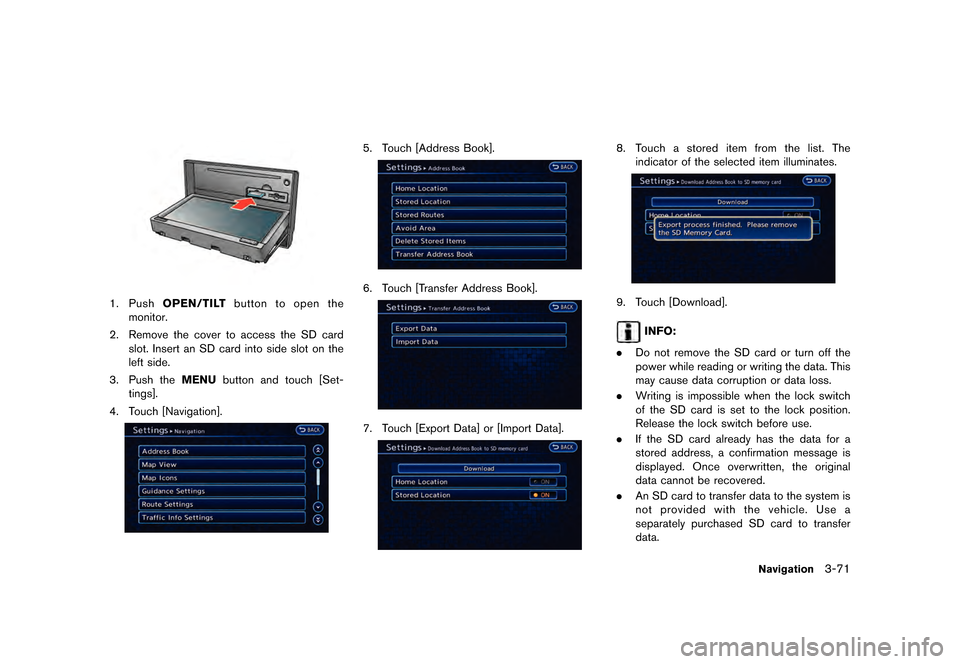

LNH0025X
1.Push OPEN/TILT button to open the
monitor.
2. Remove the cover to access the SD card slot. Insert an SD card into side slot on the
left side.
3. Push the MENUbutton and touch [Set-
tings].
4. Touch [Navigation].
LNE0217X
5. Touch [Address Book].
LNE0218X
6. Touch [Transfer Address Book].
LNE0219X
7. Touch [Export Data] or [Import Data].
LNE0220X
8. Touch a stored item from the list. The
indicator of the selected item illuminates.
LNE0221X
9. Touch [Download].
INFO:
. Do not remove the SD card or turn off the
power while reading or writing the data. This
may cause data corruption or data loss.
. Writing is impossible when the lock switch
of the SD card is set to the lock position.
Release the lock switch before use.
. If the SD card already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original
data cannot be recovered.
. An SD card to transfer data to the system is
not provided with the vehicle. Use a
separately purchased SD card to transfer
data.
Navigation3-71
