6-6Viewing technical information
.[Call]:
Makes a call for the selected charging
station. A cellular phone should be co](/manual-img/5/430/w960_430-183.png "NISSAN LEAF 2015 1.G Navigation Manual
> ( G L W 0 R G H O 1 D Y L ( 9 @
6-6Viewing technical information
.[Call]:
Makes a call for the selected charging
station. A cellular phone should be co")
> ( G L W 0 R G H O 1 D Y L ( 9 @
6-6Viewing technical information
.[Call]:
Makes a call for the selected charging
station. A cellular phone should be con-
nected beforehand.
ªConnecting cellular phoneº
(page 1-13)
. [Details]:
Displays detailed information including the
type and number of charging devices exist-
ing at the selected charging station.
GUID-C3CED98E-C094-4510-B148-64D1ABD9EAF1NavTraffic information is a subscription service
offered by SiriusXM Satellite Radio.
This service provides real-time information
regarding traffic flow, accidents, road construc-
tion and other incidents, where available.
NavTraffic combines information from commer-
cial and public traffic data providers including
government departments of transportation, po-
lice, emergency services, road sensors, cameras
and aircraft reports. The traffic information is
broadcast to the vehicle by the SiriusXM
Satellite Radio. Available traffic information on
the route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major road-
ways are shown on the navigation system:
* Unscheduled traffic data for example, acci-
dents and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .WARNING
NavTraffic information is not a substi-
tute for attentive driving. Traffic condi-
tions change constantly and emergency
situations can arise without warning.
Relying only on NavTraffic information
may lead to a collision and could result
in serious personal injury.
INFO:
. Flow information is provided only for roads
equipped with traffic sensors and is not
available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under construction.
. If a contract is not completed for NavTraffic
traffic information service, a message ap-
pears, and it will not be possible to check
the information on the traffic information
menu.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866-635-2349 or see www.siriusxm.
com/navtraffic
VIEWING AVAILABLE TRAFFIC
INFORMATION
& R Q G L W L R Q 1 $ 0
Page 190 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

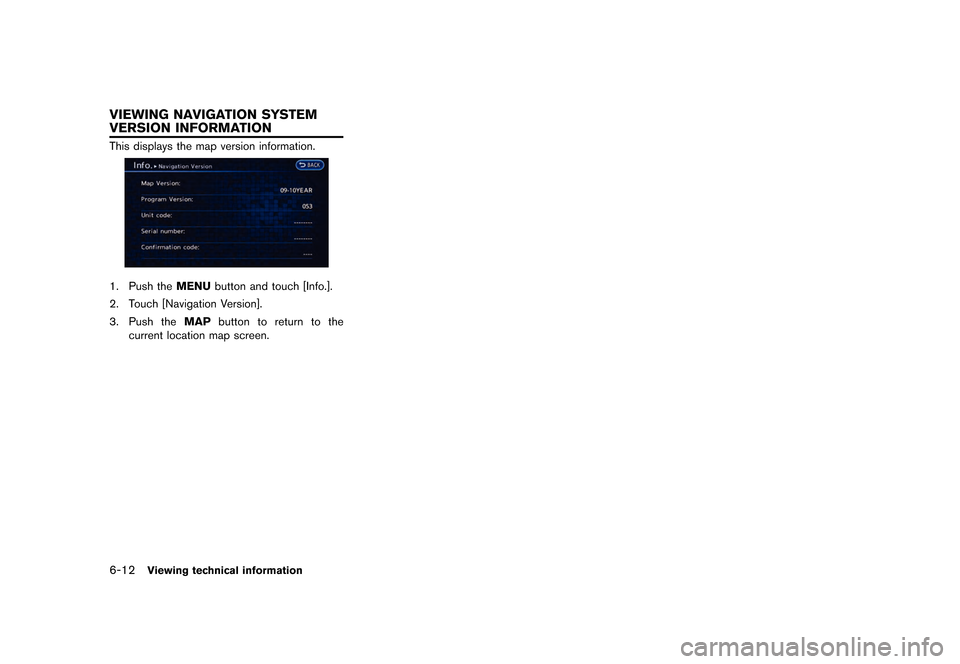

6-12Viewing technical information
GUID-2286BD91-8259-4719-BA17-5CC144BF2D35This displays the map version information.
LNH0024X
1. Push theMENUbutton and touch [Info.].
2. Touch [Navigation Version].
3. Push the MAPbutton to return to the
current location map screen.
VIEWING NAVIGATION SYSTEM
VERSION INFORMATION
& R Q G L W L R Q 1 $ 0
Page 209 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

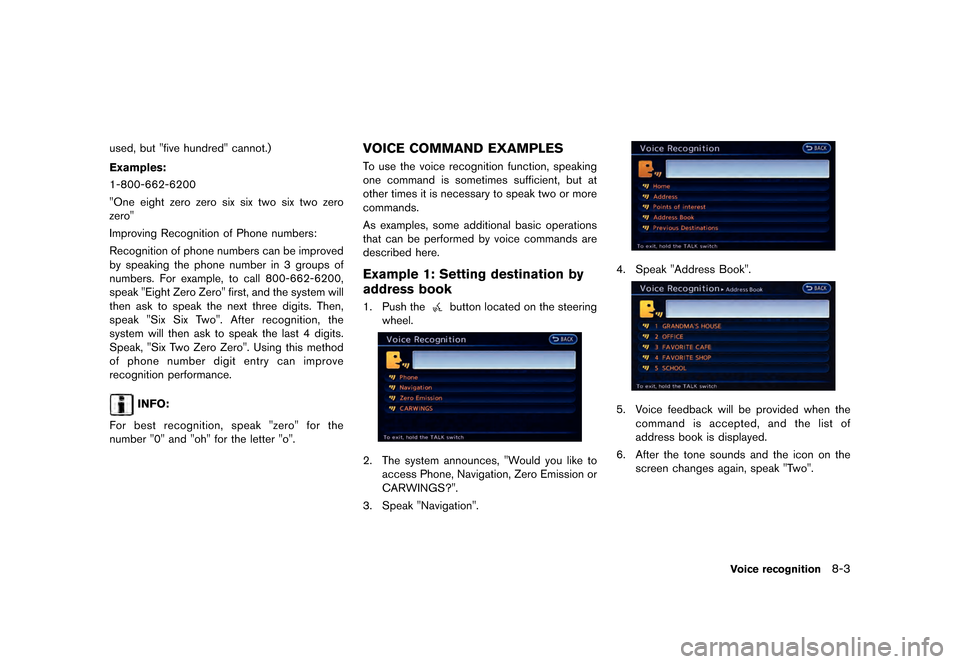

used, but "five hundred" cannot.)
Examples:
1-800-662-6200
"One eight zero zero six six two six two zero
zero"
Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by speaking the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
speak "Eight Zero Zero" first, and the system will
then ask to speak the next three digits. Then,
speak "Six Six Two". After recognition, the
system will then ask to speak the last 4 digits.
Speak, "Six Two Zero Zero". Using this method
of phone number digit entry can improve
recognition performance.
INFO:
For best recognition, speak "zero" for the
number "0" and "oh" for the letter "o".
VOICE COMMAND EXAMPLESGUID-FEA9D0CB-EA44-4D59-9DB9-7F46FBC7218BTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands.
As examples, some additional basic operations
that can be performed by voice commands are
described here.
Example 1: Setting destination by
address book
GUID-996570AA-7F37-41B2-BDB3-5D2457F8F76B1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Navigation".
LNK0048X
4. Speak "Address Book".
LNK0004X
5. Voice feedback will be provided when the command is accepted, and the list of
address book is displayed.
6. After the tone sounds and the icon on the screen changes again, speak "Two".
Voice recognition8-3
& R Q G L W L R Q 1 $ 0
Page 210 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

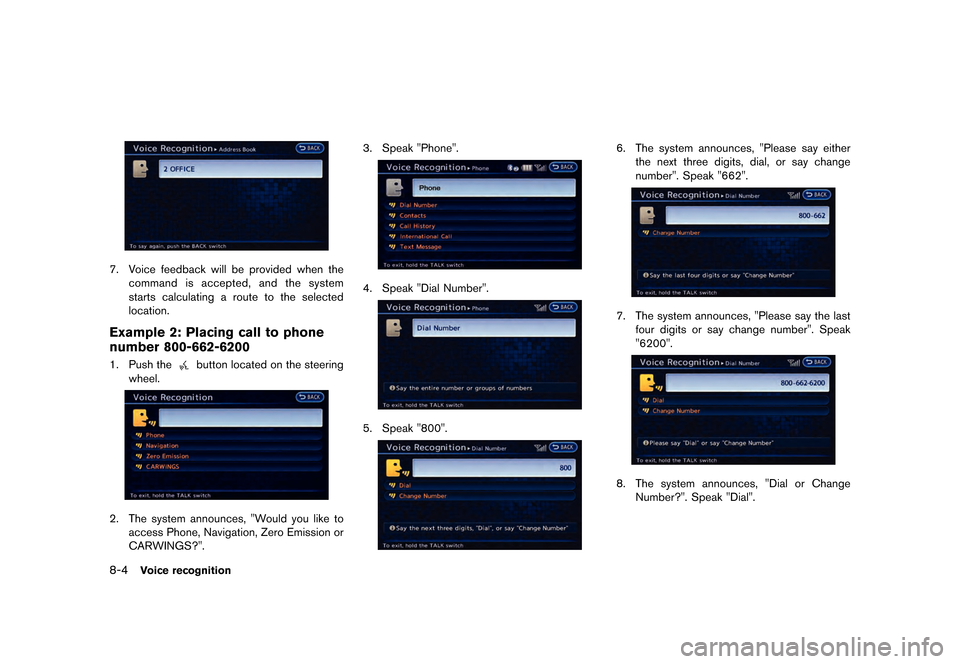

8-4Voice recognition
LNK0005X
7. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
location.
Example 2: Placing call to phone
number 800-662-6200
GUID-6CFAE30B-5975-4B25-A176-E9513A94590F1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?". 3. Speak "Phone".
LNK0049X
4. Speak "Dial Number".
LNK0008X
5. Speak "800".
LNK0009X
6. The system announces, "Please say either
the next three digits, dial, or say change
number". Speak "662".
LNK0010X
7. The system announces, "Please say the last
four digits or say change number". Speak
"6200".
LNK0011X
8. The system announces, "Dial or ChangeNumber?". Speak "Dial".
& R Q G L W L R Q 1 $ 0
Page 211 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

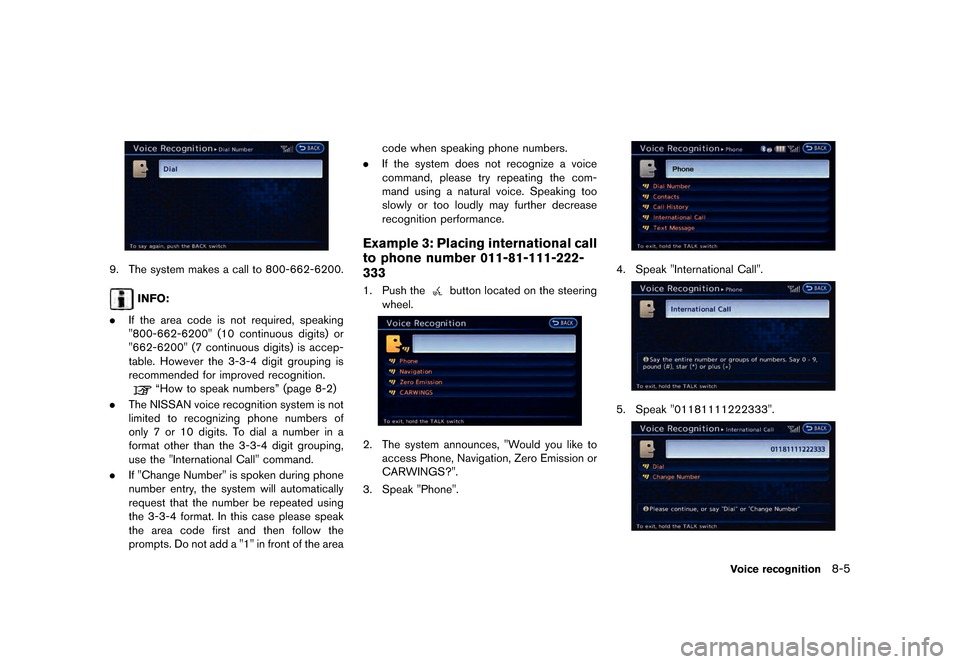

LNK0012X
9. The system makes a call to 800-662-6200.
INFO:
. If the area code is not required, speaking
"800-662-6200" (10 continuous digits) or
"662-6200" (7 continuous digits) is accep-
table. However the 3-3-4 digit grouping is
recommended for improved recognition.
ªHow to speak numbersº (page 8-2)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the "International Call" command.
. If "Change Number" is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please speak
the area code first and then follow the
prompts. Do not add a "1" in front of the area code when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 3: Placing international call
to phone number 011-81-111-222-
333
GUID-68459D75-0A33-40C2-8482-782A3FFFA8BF1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Phone".
LNK0049X
4. Speak "International Call".
LNK0015X
5. Speak "01181111222333".
LNK0016X
Voice recognition8-5
& R Q G L W L R Q 1 $ 0
Page 231 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @
10 Troubleshooting guide/General systeminformation
Troubleshooting guide ...
........................................................... 10-2
Customer assistance ...
....................................................... 10-2
System unit ...
........................................................................\
. 10-2
Unique EV functions ...
........................................................ 10-4
Navigation ...
........................................................................\
... 10-9
CARWINGS
TM...
............................................................... 10-16
Audio system ...
.................................................................. 10-17
Bluetooth
Page 232 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

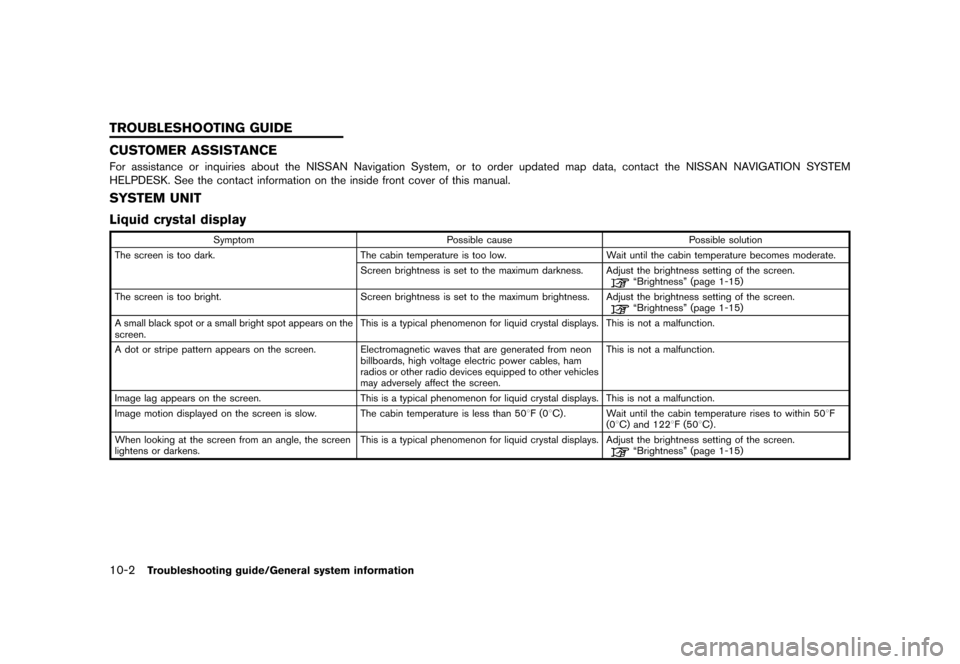

10-2Troubleshooting guide/General system information
GUID-AFB09620-BB58-4670-B66F-BCBE6FC473E4
CUSTOMER ASSISTANCEGUID-EA84A59D-8111-427E-AF1B-134B59A3E4B8For assistance or inquiries about the NISSAN Navigation System, or to order updated map data, contact the NISSAN NAVIGATION SYSTEM
HELPDESK. See the contact information on the inside front cover of this manual.
SYSTEM UNITGUID-31400E7C-F4D3-4689-A9F6-88A5A28E5475
Liquid crystal displayGUID-EAA5698F-0334-4DAC-A1E3-D24F8C3455F2
SymptomPossible cause Possible solution
The screen is too dark. The cabin temperature is too low.Wait until the cabin temperature becomes moderate.
Screen brightness is set to the maximum darkness. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
The screen is too bright. Screen brightness is set to the maximum brightness. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
A small black spot or a small bright spot appears on the
screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
A dot or stripe pattern appears on the screen. Electromagnetic waves that are generated from neon billboards, high voltage electric power cables, ham
radios or other radio devices equipped to other vehicles
may adversely affect the screen.This is not a malfunction.
Image lag appears on the screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
Image motion displayed on the screen is slow. The cabin temperature is less than 508F (08C) . Wait until the cabin temperature rises to within 508F (08C) and 1228F (508C) .
When looking at the screen from an angle, the screen
lightens or darkens. This is a typical phenomenon for liquid crystal displays. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
TROUBLESHOOTING GUIDE
& R Q G L W L R Q 1 $ 0
Page 239 of 279
> ( G L W 0 R G H O 1 D Y L ( 9 @

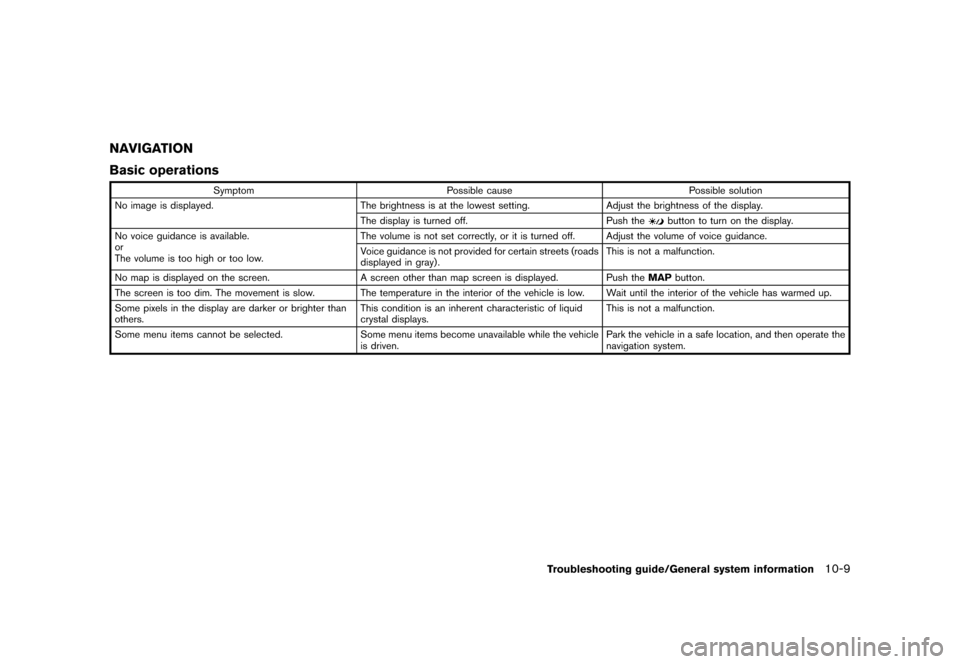

NAVIGATIONGUID-9CDB1CD7-F25C-4AF6-97FF-6E29E3C9EB64
Basic operationsGUID-63D868E1-81BC-4C67-BECA-983902BED4C1
SymptomPossible cause Possible solution
No image is displayed. The brightness is at the lowest setting.Adjust the brightness of the display.
The display is turned off. Push the
button to turn on the display.
No voice guidance is available.
or
The volume is too high or too low. The volume is not set correctly, or it is turned off. Adjust the volume of voice guidance.
Voice guidance is not provided for certain streets (roads
displayed in gray) .
This is not a malfunction.
No map is displayed on the screen. A screen other than map screen is displayed. Push the MAPbutton.
The screen is too dim. The movement is slow. The temperature in the interior of the vehicle is low. Wait until the interior of the vehicle has warmed up.
Some pixels in the display are darker or brighter than
others. This condition is an inherent characteristic of liquid
crystal displays.This is not a malfunction.
Some menu items cannot be selected. Some menu items become unavailable while the vehicle
is driven.Park the vehicle in a safe location, and then operate the
navigation system.
Troubleshooting guide/General system information10-9
