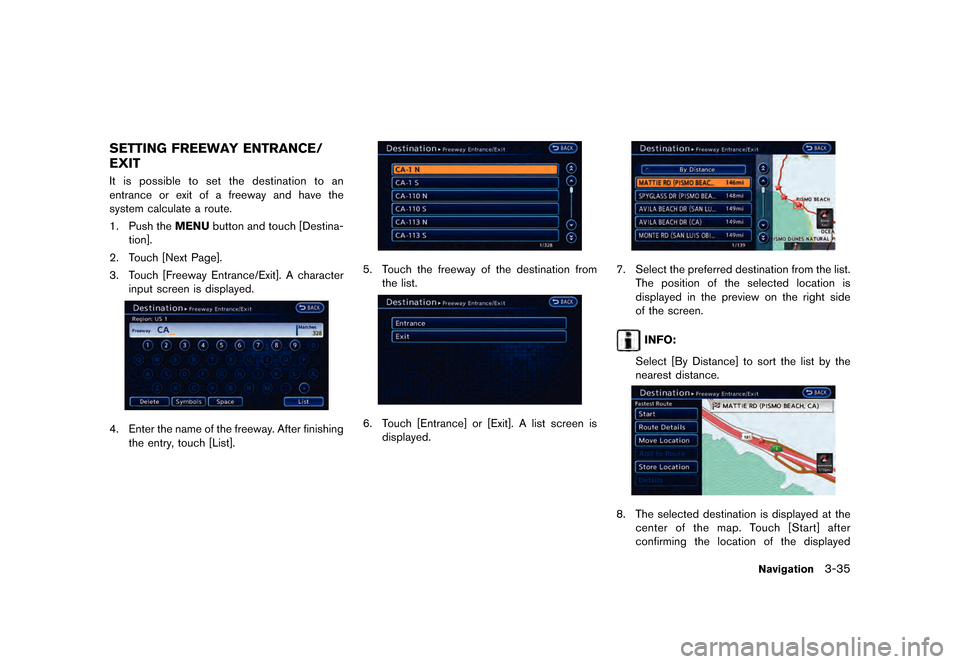

SETTING FREEWAY ENTRANCE/
EXIT
GUID-4515EF2C-9776-443B-97E6-E670C645B162It is possible to set the destination to an
entrance or exit of a freeway and have the
system calculate a route.
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Freeway Entrance/Exit]. A character input screen is displayed.
LNE0080X
4. Enter the name of the freeway. After finishingthe entry, touch [List].
LNE0081X
5. Touch the freeway of the destination fromthe list.
LNE0082X
6. Touch [Entrance] or [Exit]. A list screen isdisplayed.
LNE0083X
7. Select the preferred destination from the list.The position of the selected location is
displayed in the preview on the right side
of the screen.
INFO:
Select [By Distance] to sort the list by the
nearest distance.
LNE0084X
8. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
Navigation3-35
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-36Navigation
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
SETTING POINT ON MAPGUID-1CECA297-8DF7-4E58-9746-C408EB3A9FBDIt is possible to set a location scrolled to on the
map as the destination and have the system
calculate a route.
LNE0096X
1. Scroll the map, place the cross pointer over the preferred location, and touch [Map
Menu].
INFO:
.The map scale should be adjusted tosearch for a location more effectively.
.The point on the blinking road where thecenter of the cross pointer is located can
be set as a destination.
LNE0097X
2. Touch [New Dest.].
LNE0098X
3. The entire route is shown on the map. Touch [Start] after confirming the displayed route.
The system starts route guidance to the
selected destination.
INFO:
LNE0099X
.If a point on a freeway is set as the
destination, a confirmation message is dis-
played.
. Before starting route guidance, the route
condition can be changed and the route can
be stored in the Address Book, etc.
ªProcedures after setting routeº
(page 3-39)
OPERATIONS AFTER SETTING
DESTINATION
GUID-0BFBBD22-47CC-4CEB-8876-3CE84AFA02AAThe following operations are available after you
set a destination.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

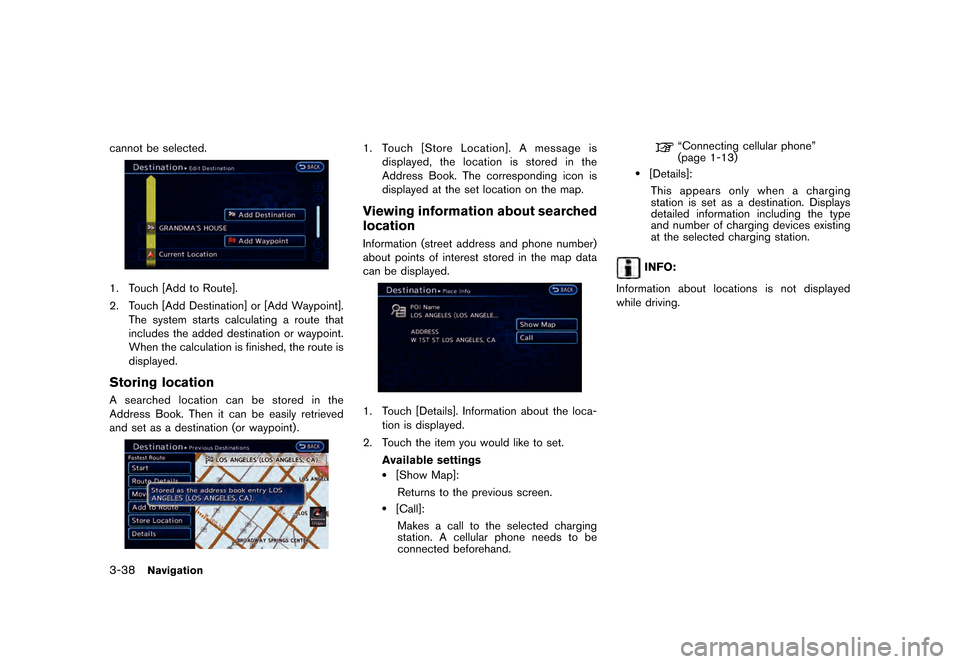

3-38Navigation
cannot be selected.
LNE0109X
1. Touch [Add to Route].
2. Touch [Add Destination] or [Add Waypoint].The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
Storing locationGUID-BC2D5B61-3800-40DA-8E7D-15B144C39062A searched location can be stored in the
Address Book. Then it can be easily retrieved
and set as a destination (or waypoint) .
LNE0110X
1.Touch [Store Location]. A message is
displayed, the location is stored in the
Address Book. The corresponding icon is
displayed at the set location on the map.
Viewing information about searched
location
GUID-AC162096-1CF4-4FB0-874A-A7FEE3CD1848Information (street address and phone number)
about points of interest stored in the map data
can be displayed.
LNE0111X
1. Touch [Details]. Information about the loca-
tion is displayed.
2. Touch the item you would like to set.
Available settings
.[Show Map]:Returns to the previous screen.
.[Call]:Makes a call to the selected charging
station. A cellular phone needs to be
connected beforehand.
ªConnecting cellular phoneº
(page 1-13)
.[Details]:This appears only when a charging
station is set as a destination. Displays
detailed information including the type
and number of charging devices existing
at the selected charging station.
INFO:
Information about locations is not displayed
while driving.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
GUID-FD38A9D2-BD38-4915-90E1-EFF73D4DAEA9

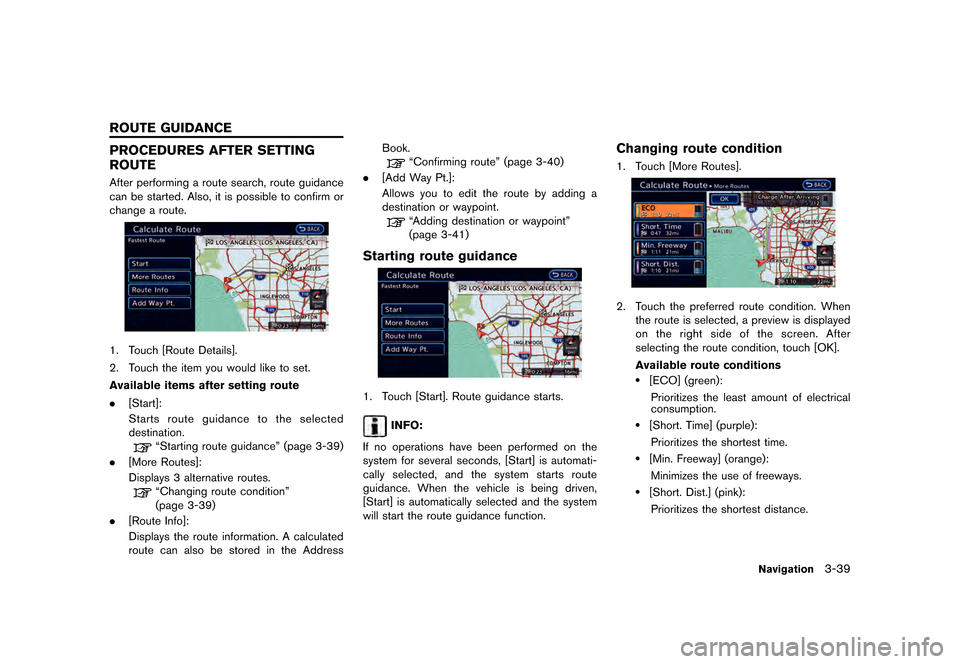

PROCEDURES AFTER SETTING
ROUTE
GUID-E83C964B-BC32-48FB-AF85-60942AFE2170After performing a route search, route guidance
can be started. Also, it is possible to confirm or
change a route.
LNE0102X
1. Touch [Route Details].
2. Touch the item you would like to set.
Available items after setting route
.[Start]:
Starts route guidance to the selected
destination.
ªStarting route guidanceº (page 3-39)
. [More Routes]:
Displays 3 alternative routes.
ªChanging route conditionº
(page 3-39)
. [Route Info]:
Displays the route information. A calculated
route can also be stored in the Address Book.
ªConfirming routeº (page 3-40)
. [Add Way Pt.]:
Allows you to edit the route by adding a
destination or waypoint.
ªAdding destination or waypointº
(page 3-41)
Starting route guidanceGUID-1EF85A2A-776D-4337-A8E2-61492E7591D6
LNE0102X
1. Touch [Start]. Route guidance starts.
INFO:
If no operations have been performed on the
system for several seconds, [Start] is automati-
cally selected, and the system starts route
guidance. When the vehicle is being driven,
[Start] is automatically selected and the system
will start the route guidance function.
Changing route conditionGUID-9AD893FA-42BC-4477-9A9F-DD22625256AA1. Touch [More Routes].
LNE0906X
2. Touch the preferred route condition. When the route is selected, a preview is displayed
on the right side of the screen. After
selecting the route condition, touch [OK].
Available route conditions
.[ECO] (green):
Prioritizes the least amount of electrical
consumption.
.[Short. Time] (purple):Prioritizes the shortest time.
.[Min. Freeway] (orange):Minimizes the use of freeways.
.[Short. Dist.] (pink):Prioritizes the shortest distance.
Navigation3-39
ROUTE GUIDANCE
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

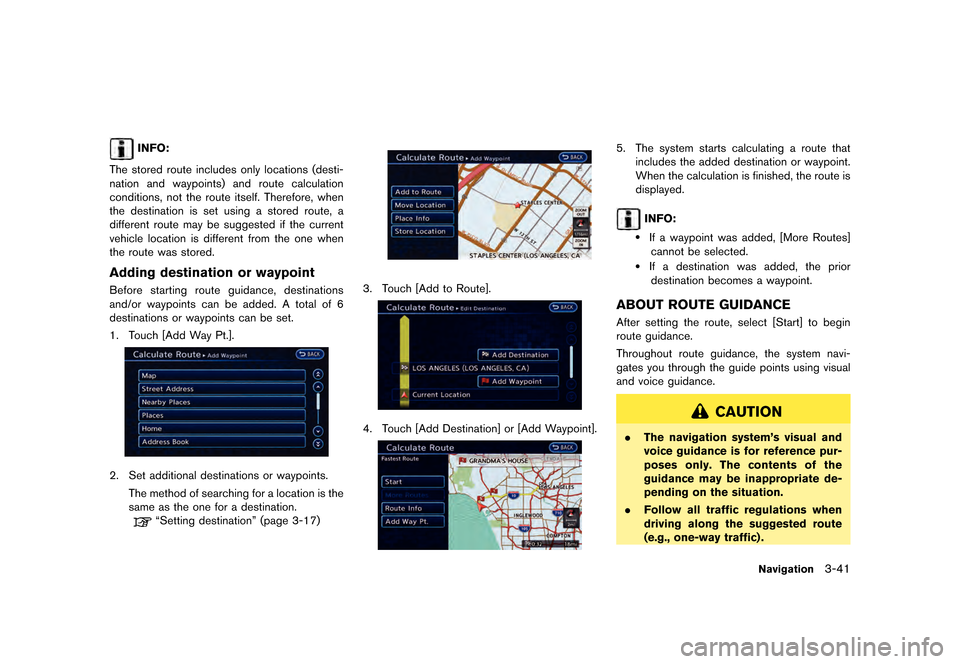

INFO:
The stored route includes only locations (desti-
nation and waypoints) and route calculation
conditions, not the route itself. Therefore, when
the destination is set using a stored route, a
different route may be suggested if the current
vehicle location is different from the one when
the route was stored.
Adding destination or waypointGUID-64FE064C-91B6-4DF2-9502-FFC30B666095Before starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
1. Touch [Add Way Pt.].
LNE0105X
2. Set additional destinations or waypoints. The method of searching for a location is the
same as the one for a destination.
ªSetting destinationº (page 3-17)
LNE0244X
3. Touch [Add to Route].
LNE0106X
4. Touch [Add Destination] or [Add Waypoint].
LNE0107X
5. The system starts calculating a route thatincludes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:
.If a waypoint was added, [More Routes]cannot be selected.
.If a destination was added, the priordestination becomes a waypoint.
ABOUT ROUTE GUIDANCEGUID-FD5538DC-DAD3-4D25-9388-EEEB98B01107After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates you through the guide points using visual
and voice guidance.
CAUTION
. The navigation system's visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. Follow all traffic regulations when
driving along the suggested route
(e.g., one-way traffic) .
Navigation3-41
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

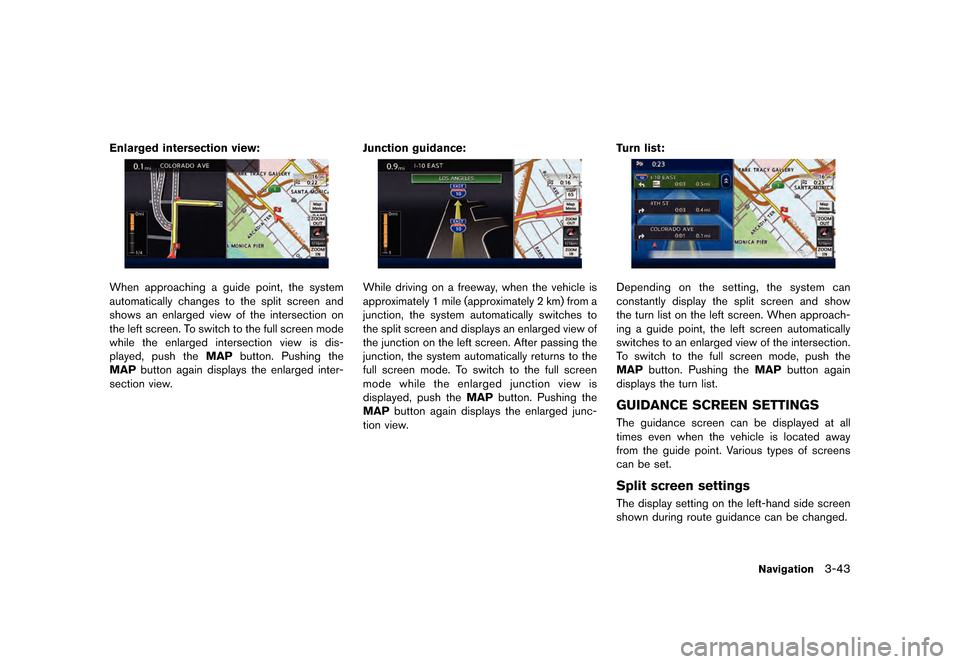

Enlarged intersection view:
LNE0113X
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. To switch to the full screen mode
while the enlarged intersection view is dis-
played, push theMAPbutton. Pushing the
MAP button again displays the enlarged inter-
section view. Junction guidance:
LNE0114X
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction on the left screen. After passing the
junction, the system automatically returns to the
full screen mode. To switch to the full screen
mode while the enlarged junction view is
displayed, push the
MAPbutton. Pushing the
MAP button again displays the enlarged junc-
tion view. Turn list:
LNE0115X
Depending on the setting, the system can
constantly display the split screen and show
the turn list on the left screen. When approach-
ing a guide point, the left screen automatically
switches to an enlarged view of the intersection.
To switch to the full screen mode, push the
MAP
button. Pushing the MAPbutton again
displays the turn list.
GUIDANCE SCREEN SETTINGSGUID-42B56FA1-7B98-44F1-BC40-014EF5BDBC53The guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. Various types of screens
can be set.
Split screen settingsGUID-6FFF7521-6286-4DF6-884B-0E9101ECFB85The display setting on the left-hand side screen
shown during route guidance can be changed.
Navigation3-43
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-46Navigation
INFO:
The facility categories that are not shown
with an icon cannot be selected.
LNE0126X
3. Touch the preferred facility for the waypoint.
LNE0127X
4. The waypoint is set, and the route search is performed.
ªProcedures after setting routeº
(page 3-39)
ROUTE SCREENGUID-A1C01E8A-570A-408B-B0D8-CEBD91E269C3
WARNING
Always stop the vehicle in a safe
location before modifying the route
conditions. Modifying the route condi-
tions while driving may cause an acci-
dent.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
personal preference.
LNE0128X
1. Push the MENUbutton and touch [Route].
2. Touch the item you would like to set. Available settings
.
[Cancel Route]/[Resume Route]:
Cancels the current route guidance. A
canceled route can also be reactivated. If
the suggested route is canceled, [Cancel
Route] changes to [Resume Route].
ªCanceling/reactivating routeº
(page 3-47)
. [Edit/Add to Route]:
Edit or add a destination or waypoints to the
route that is already set.
ªEditing routeº (page 3-48)
. [Route Info]:
Confirm the route by the route information or
simulation. The confirmed route can also be
stored.
ªConfirming routeº (page 3-52)
. [Guidance Settings]:
Activates or deactivates route, voice gui-
dance and/or traffic announcement and
adjust the volume level of voice guidance.
ªVoice guidance settingsº (page 3-53)
. [Recalculate]:
Manually search for the route again after
changing the search condition and have the
system calculate a route.
ªRecalculating routeº (page 3-53)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

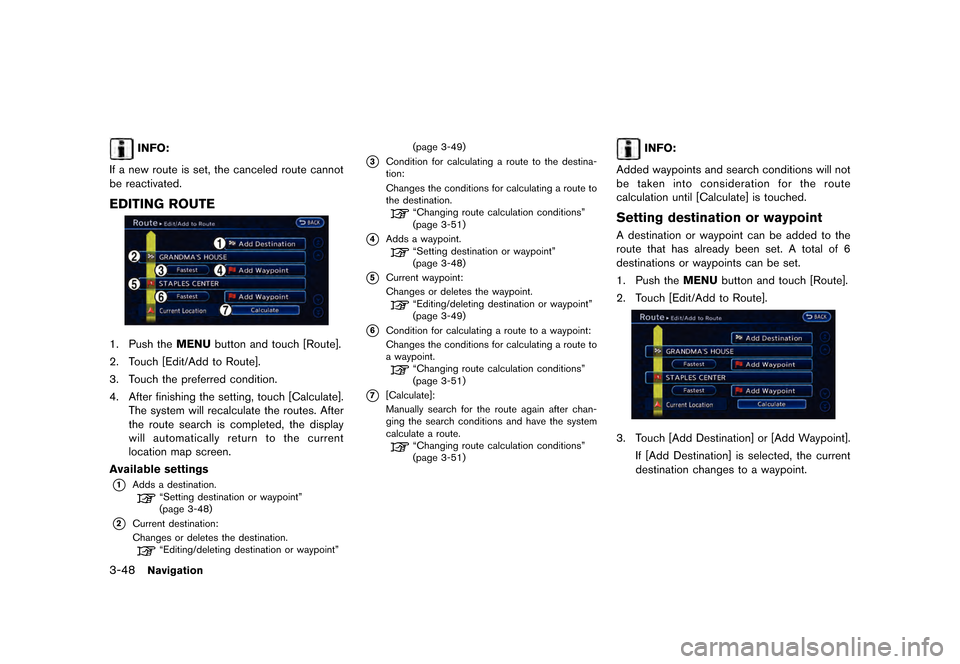

3-48Navigation
INFO:
If a new route is set, the canceled route cannot
be reactivated.
EDITING ROUTEGUID-0CFA5674-26DB-4DBD-94B4-07D1D137A60E
LNE0133X
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
3. Touch the preferred condition.
4. After finishing the setting, touch [Calculate]. The system will recalculate the routes. After
the route search is completed, the display
will automatically return to the current
location map screen.
Available settings
*1Adds a destination.ªSetting destination or waypointº
(page 3-48)
*2Current destination:
Changes or deletes the destination.
ªEditing/deleting destination or waypointº (page 3-49)
*3Condition for calculating a route to the destina-
tion:
Changes the conditions for calculating a route to
the destination.
ªChanging route calculation conditionsº
(page 3-51)
*4Adds a waypoint.ªSetting destination or waypointº
(page 3-48)
*5Current waypoint:
Changes or deletes the waypoint.
ªEditing/deleting destination or waypointº
(page 3-49)
*6Condition for calculating a route to a waypoint:
Changes the conditions for calculating a route to
a waypoint.
ªChanging route calculation conditionsº
(page 3-51)
*7[Calculate]:
Manually search for the route again after chan-
ging the search conditions and have the system
calculate a route.
ªChanging route calculation conditionsº
(page 3-51)
INFO:
Added waypoints and search conditions will not
be taken into consideration for the route
calculation until [Calculate] is touched.
Setting destination or waypointGUID-0BB2FCA4-907D-47E4-BFE0-38F304C36A5CA destination or waypoint can be added to the
route that has already been set. A total of 6
destinations or waypoints can be set.
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
LNE0134X
3. Touch [Add Destination] or [Add Waypoint]. If [Add Destination] is selected, the current
destination changes to a waypoint.
&RQGLWLRQ 1$0
